2X Waveshare UPS Module for Raspberry Pi Zero Power Supply with Battery UPS Power Supply Module Supports Charging
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
439,89 kr.
664,99 kr.
Spar 34%!
Gratis levering
1%
Tjen 4,40 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | lør. 27. jun. - fre. 3. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Enheder til uafbrudt strømforsyning
Beskrivelse og detaljer
Oversigt
- 1. Using spring thimble interface design, suitable for Raspberry Pi Zero series motherboards
- 2. The onboard lithium battery charging chip supports dynamic path management and the power supply is more stable
- 3. The onboard boost chip can provide a stable 5V voltage output

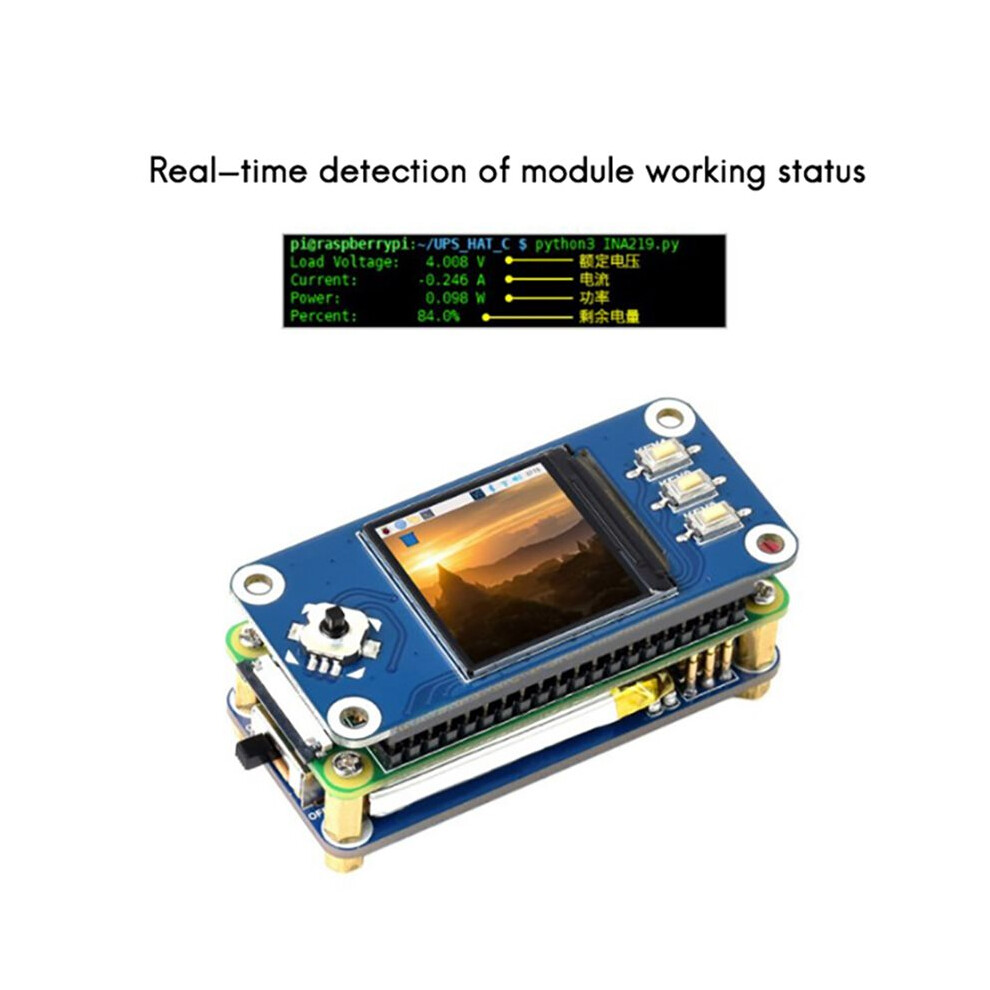

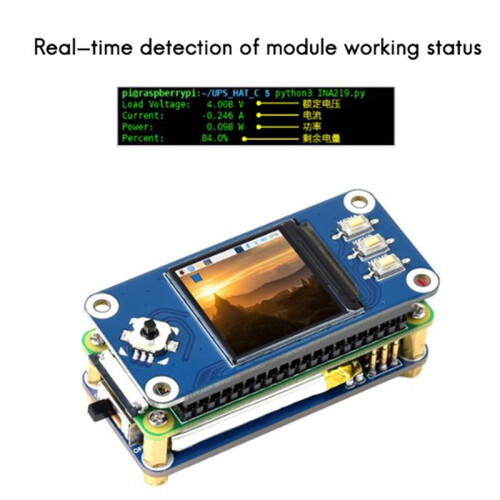

- 4. It can communicate through the I2C interface, measure battery voltage, current, power and remaining power and other parameters, and detect the working status of the module in real time
- 5. The onboard battery protection circuit prevents overcharge, overdischarge, overcurrent and short circuit, and the work is stable and safer. 6. Onboard charging indicator, easy to check the battery working status
2X Waveshare UPS Module for Raspberry Pi Zero Power Supply with Battery UPS Power Supply Module Supports Charging Beskrivelse
1. Using spring thimble interface design, suitable for Raspberry Pi Zero series motherboards
2. The onboard lithium battery charging chip supports dynamic path management and the power supply is more stable
3. The onboard boost chip can provide a stable 5V voltage output
4. It can communicate through the I2C interface, measure battery voltage, current, power and remaining power and other parameters, and detect the working status of the module in real
5. The onboard battery protection circuit prevents overcharge, overdischarge, overcurrent and short circuit, and the work is stable and safer. 6. Onboard charging indicator, easy to check the battery working status

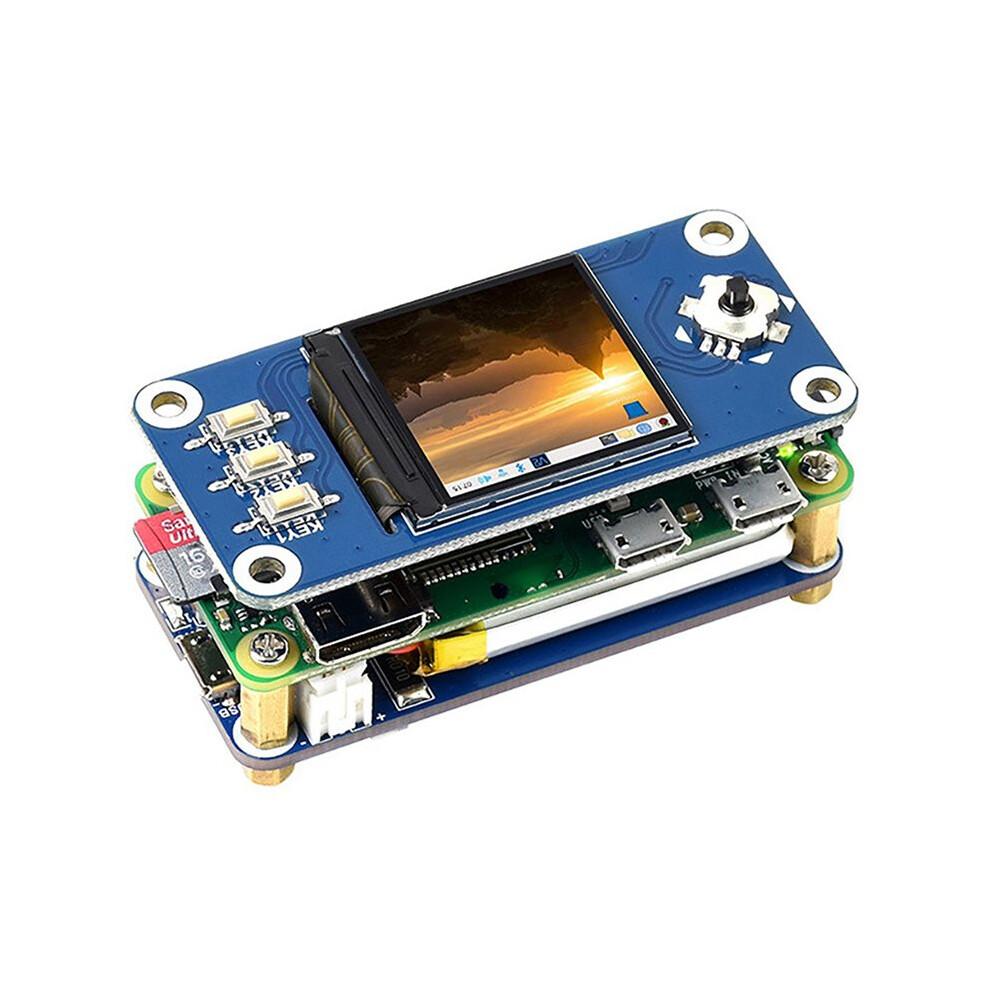

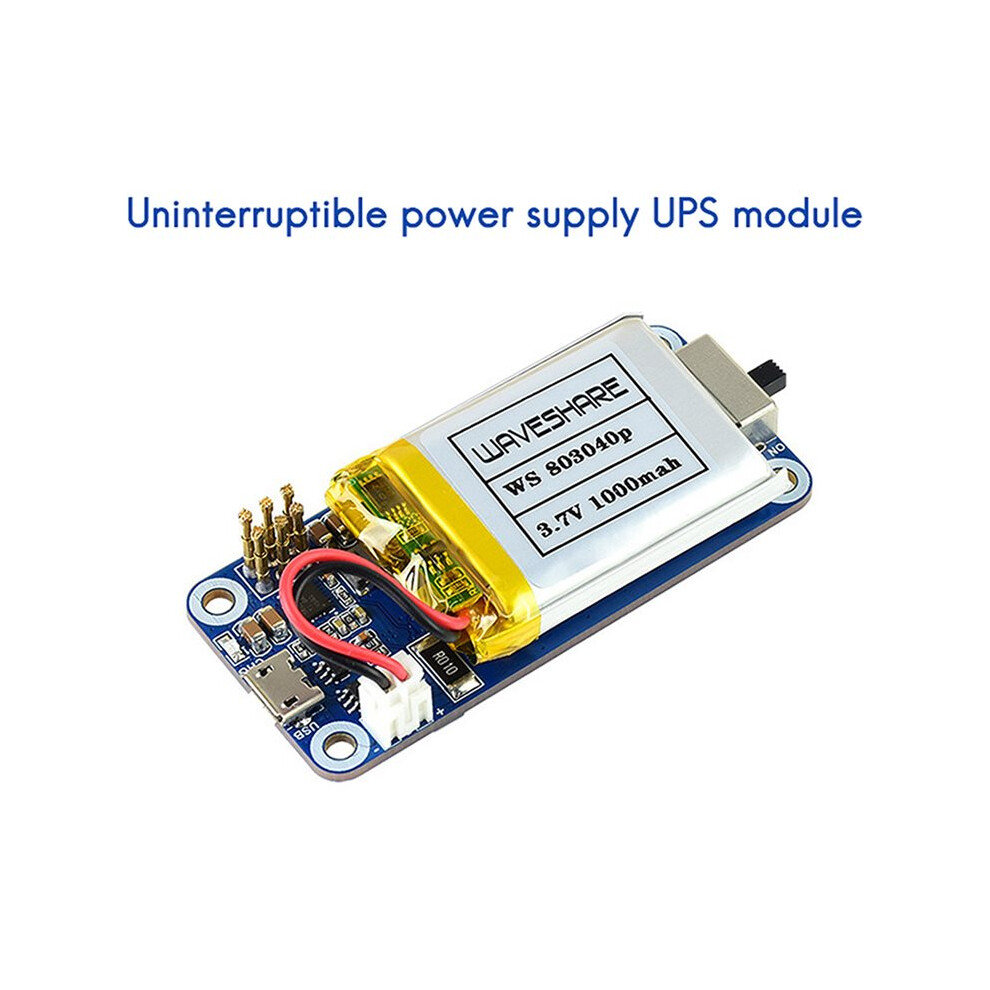

UPS HAT(C) is an uninterruptible power supply (UPS) expansion board specially designed for Raspberry Pi Zero series, onboard switching lithium battery charging chip with path management, boost chip and voltage and current monitoring chip, which can pass 12C interface Monitor battery working status.
Product parameters:
Product name: UPS power supply module
Output voltage: 5V
Charging power supply: 5V
Control interface: I2C

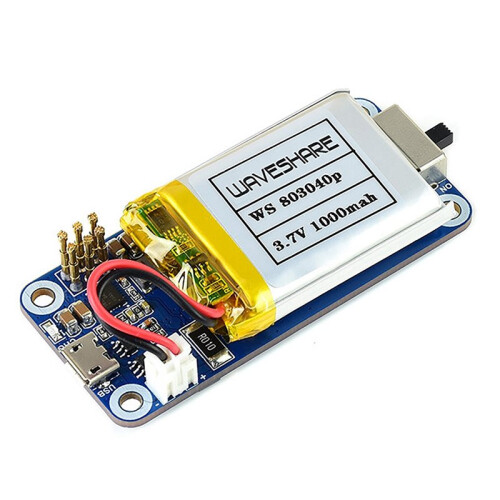

Battery specification: 803040 polymer battery 1000mAh 3.7V
Through hole diameter: 3.0mm
Colour:
Material: PCB+metal
Size: 65 x 30mm
Package Contents:

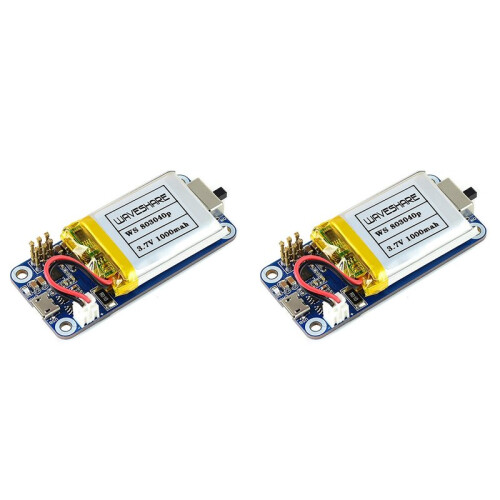

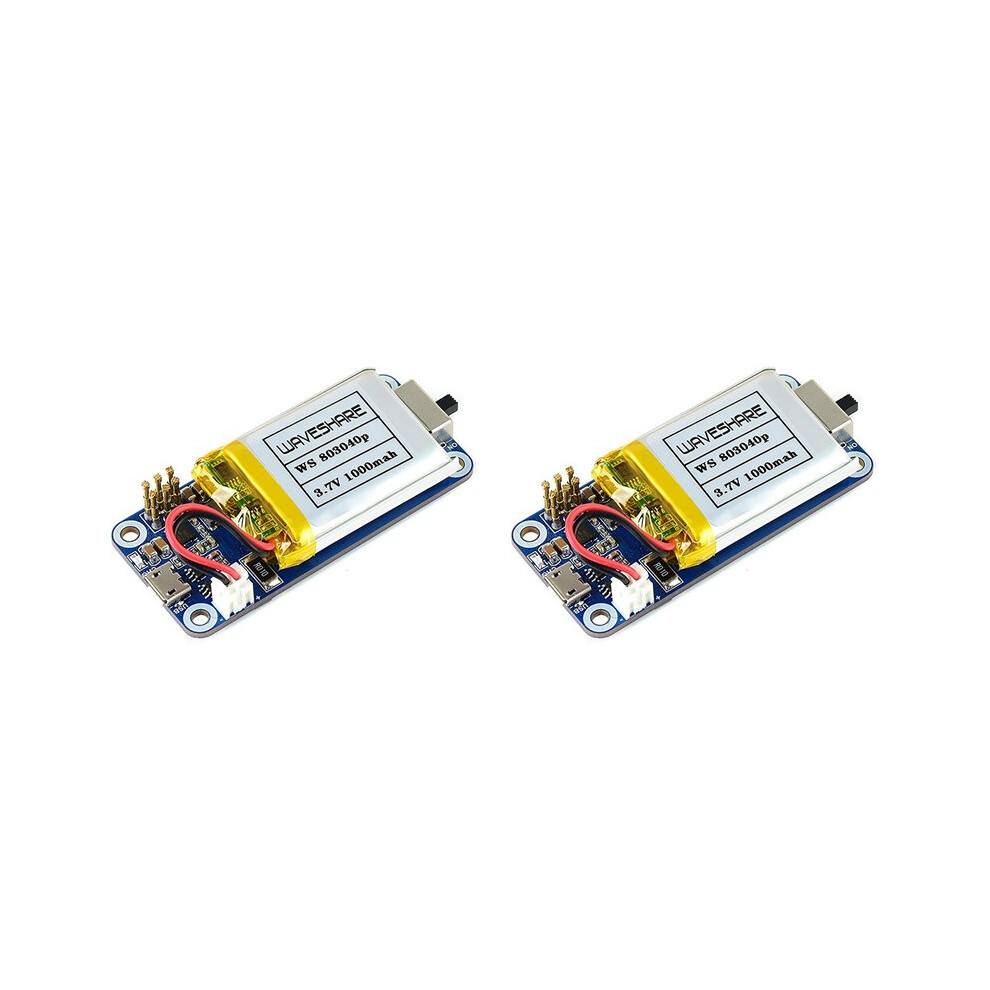

2 x UPS module
2 x lithium battery
2 x screw pack
Detaljer
| OPC | PSTPZ67 |
|---|---|
| Koder | 6033222788931 (EAN) |
Produktdata
| Height | 6cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.104kg |
| Colour | Blue |
| Material | PCB+Metal |
