Beskrivelse og detaljer

Oversigt

This module adopts TI lifting voltage special chip TPS63020 lifting voltage program, the output ripple is low, stable performance, switching frequency is up to 2.4MHZ, the majority of cases of the output current is greater than 900ma, for the power supply occasions, the same module The module also has two modes for users to choose: normal operation mode and power saving mode.
The module is a typical step-up/down structure, with input voltage range of 1.8-5.5V, which can meet the power supply requirements of STM32, ESP32, 51 microcontrollers and other models. The module contains a red LED output indicator, and supports power-saving modes to increase the battery life of the input devices.
Color: Black
Material: PCB + electronic components
Automatic Boost Buck Step Up Down Module

2X XL63020 TPS63020 Lithium Battery USB Automatic Boost Buck Step Down Module Microcontroller Power Low Ripple 3.3V Beskrivelse

This module adopts TI lifting voltage special chip TPS63020 lifting voltage program, the output ripple is low, stable performance, switching frequency is to 2.4MHZ, the majority of cases of the output current is greater than 900ma, for the power supply occasions, the same module The module also has two modes for users to choose: normal operation mode and power saving mode.
The module is a typical step-/down structure, with input voltage range of 1.8-5.5V, which can meet the power supply requirements of STM32, ESP32, 51 microcontrollers and other models. The module contains a red LED output indicator, and supports power-saving modes to increase the battery life of the input devices.
Color: Black
Material: PCB + electronic components

Input Voltage: 1.8-5.5V
Output Current: [email protected]
Output Voltage: 3.3V
Switching Frequency: Approx. 2.4MHZ
Regulation: 3.3V

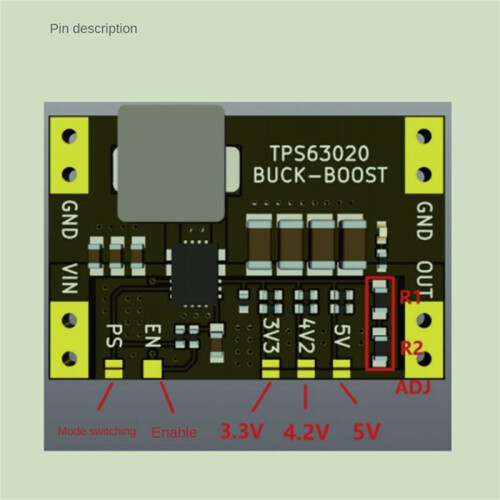

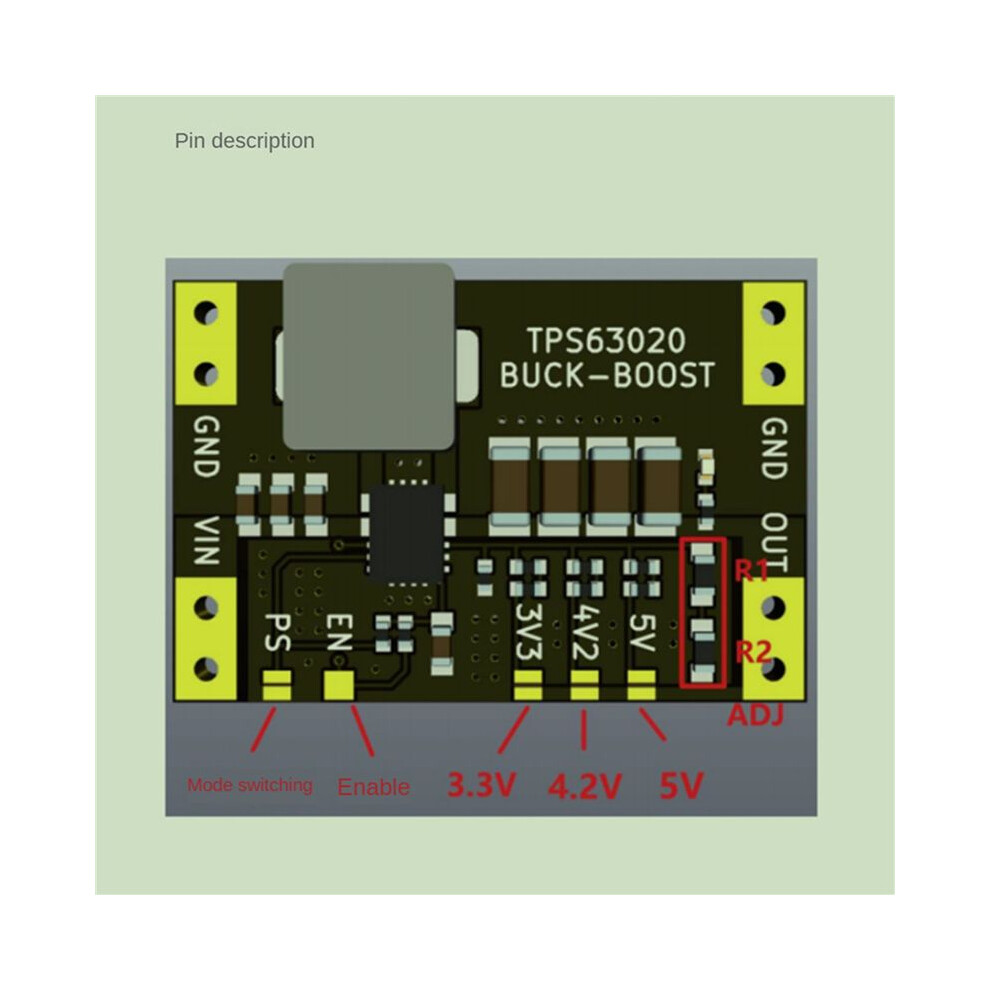

Module interface: large area pad (2.54mm pin)

Package Contents:
2 x Automatic Boost Buck Step Down Module

Detaljer

OPC	PVBB8XF
Koder	4713062050079 (EAN)

Produktdata

Height	2cm
Width	2cm
Length	3cm
Weight	0.007kg
Colour	Black
Size	3.3V
Material	PCB + electronic components
