5X STC-8080A+Digital Temperature Controller 220V Regulator Cold Storage Freezer Sensor Hygrometer 40%

5X STC-8080A+Digital Temperature Controller 220V Regulator Cold Storage Freezer Sensor Hygrometer 40% Beskrivelse

STC-8080A+ is a universal temperature controller with single sensor,specify all the functions as refrigerating,defrosting,alarming when temperature exceeds setting limit.
Compressor delay protection is solidified as 3 minutes,Controller start and close according to the solidified proportional when sensor error,which can be applied to the industries such as cold storage,refrigerator car,etc.
Main functions: To measure,display and control temperature. Defrosting cycle and defrosting is adjustable. Alarm when temperature exceeds setting temperature limit value. Compressor start delay protection. Compressor work as scheduled when sensor error.

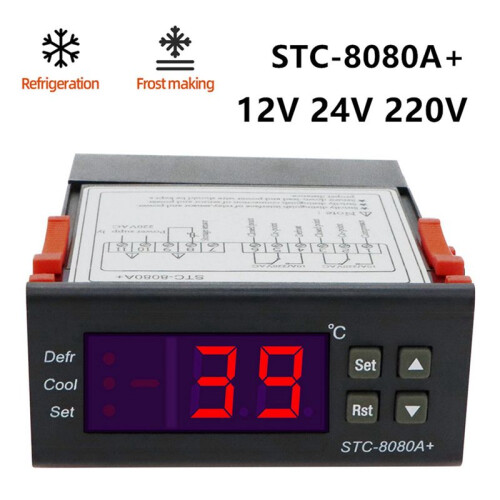

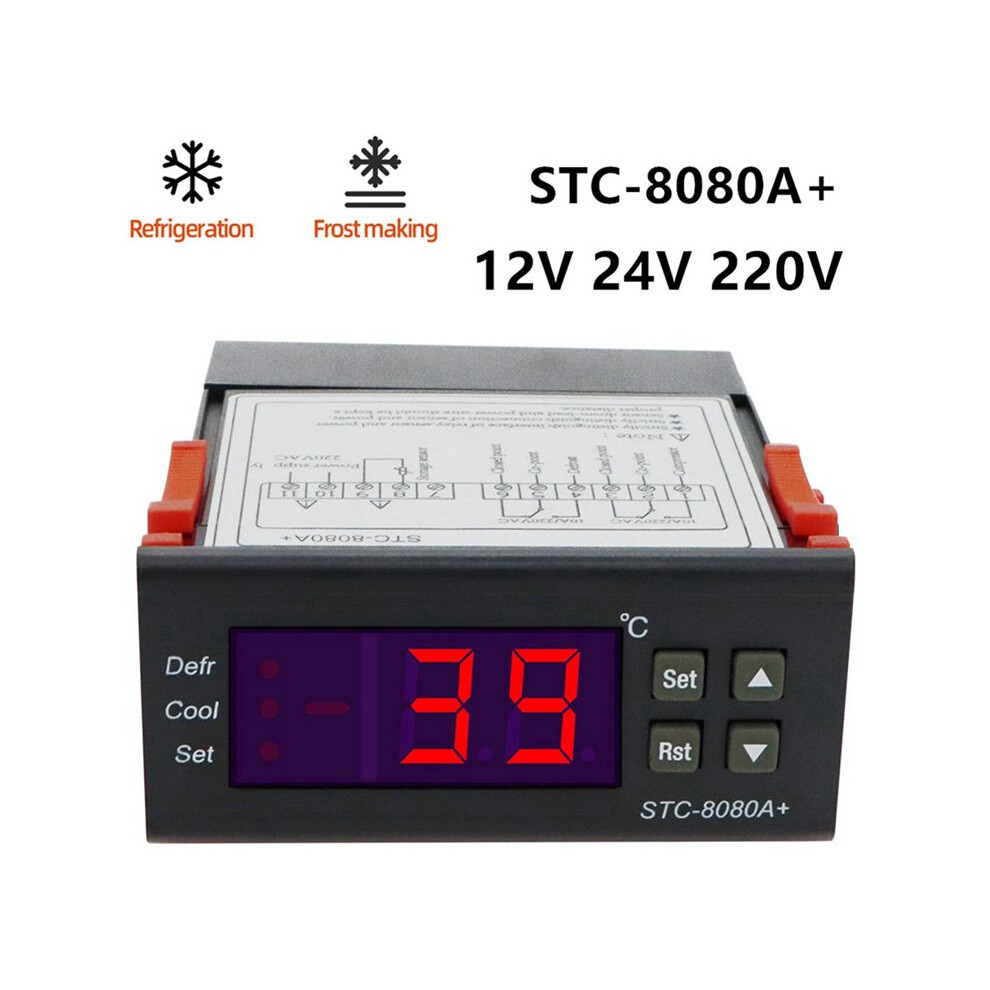

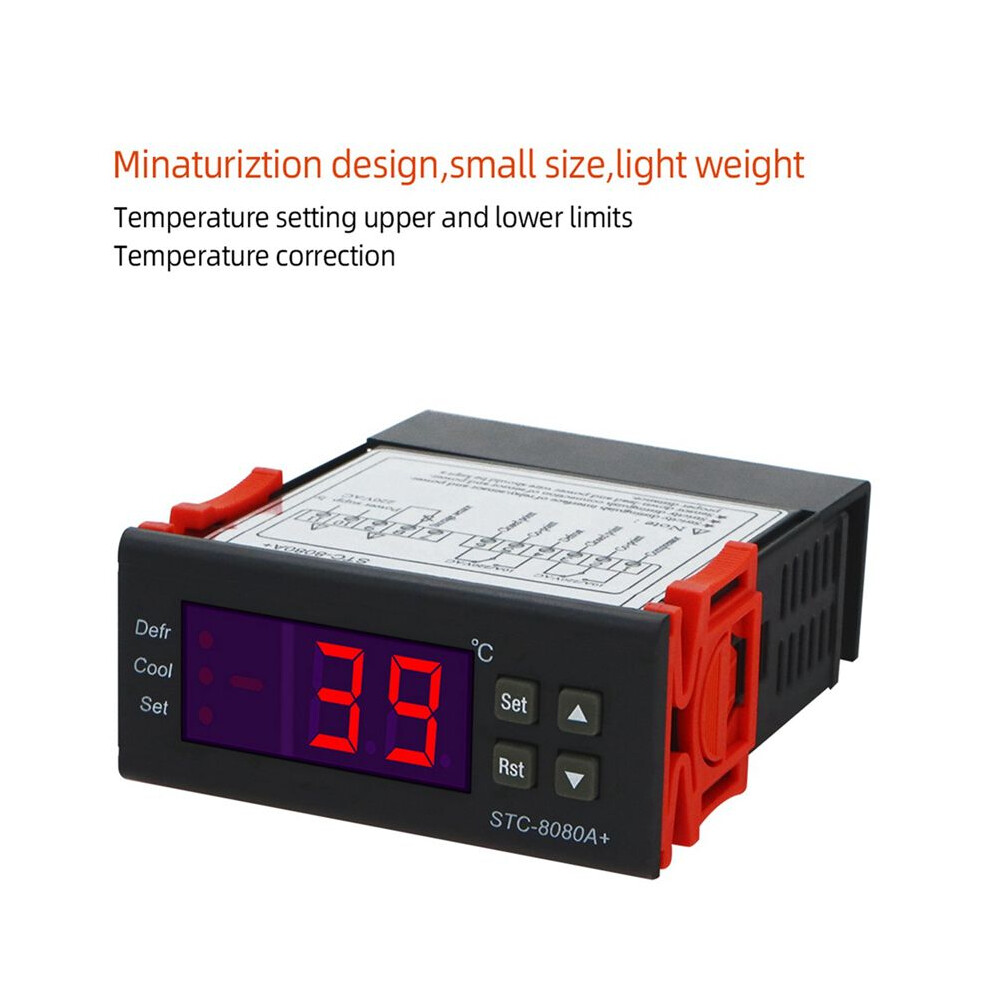

Model: STC-8080A+
Power supply voltage: 220VAC+10%/-15%,50/60Hz
Power consumption: less than 3W
Temperature measuring range:-50C to 99 C
The temperature range is:-40C to 50 C
Measurement accuracy: 1 C
Accuracy: +/- 1 C (-40 to 50 C), +/- 2C (Other)

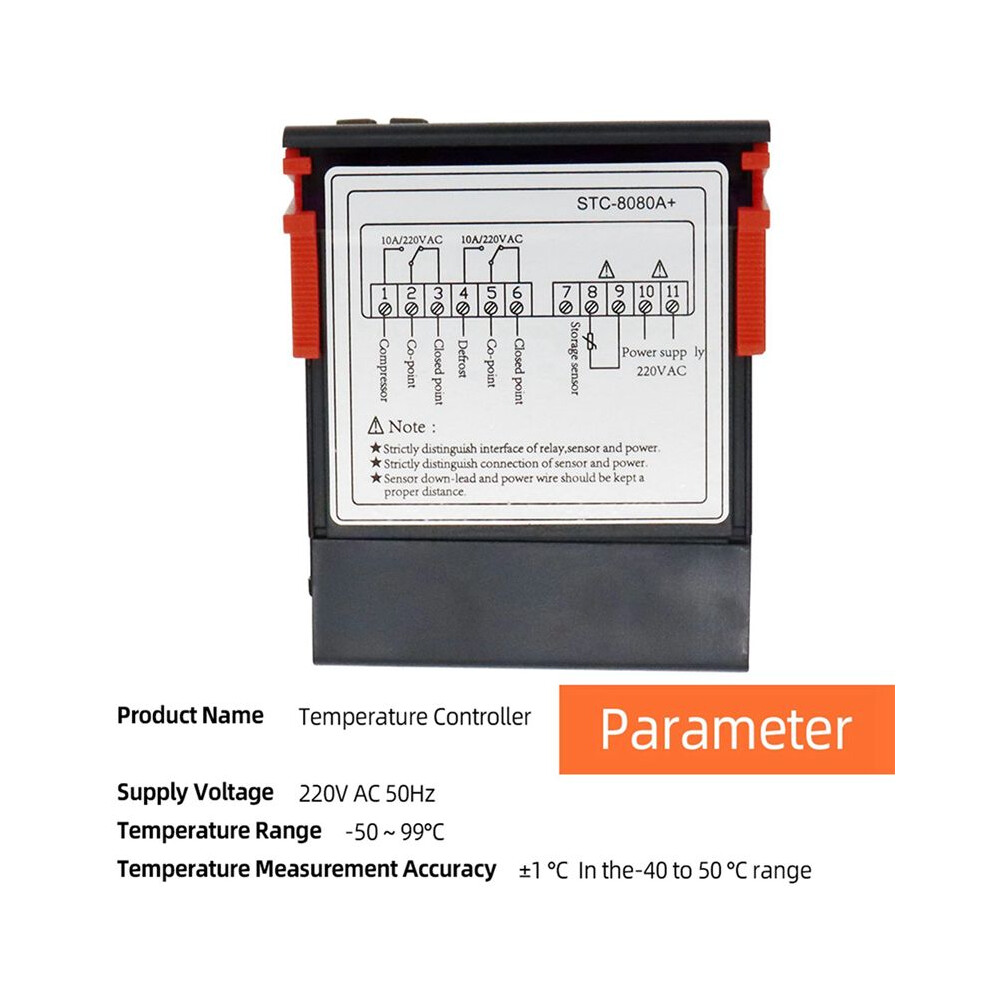

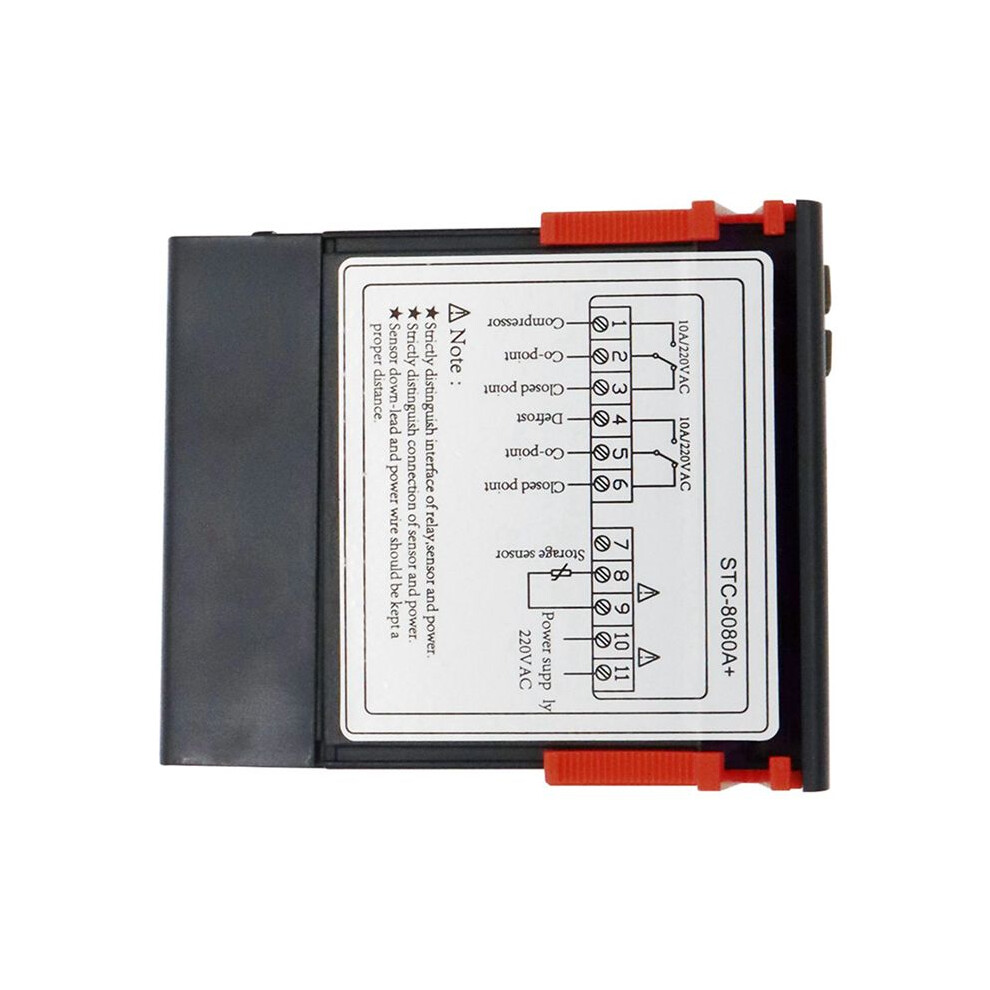

Relay capacity of compressor:10A/220VAC,
Relay capacity of defroster:10A/220VAC
Sensor error relay :1 minute
Sensor type:NTC sensor
Front panel safe level:IP64
Operating temperature:0C - +60C
Relative humidity:20%-85%( No condensate )
Storage temperature:-30C - 75C
Colour: black
Material: plastic

Package Contents:

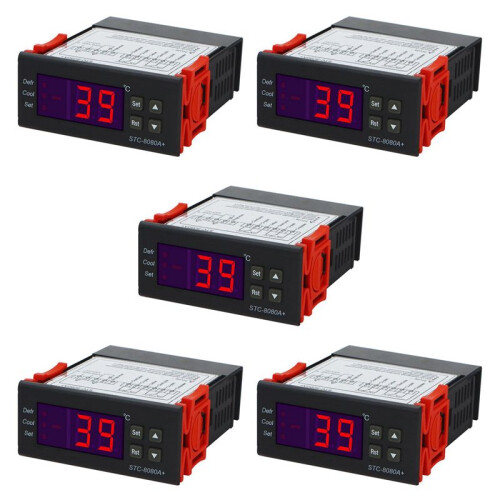

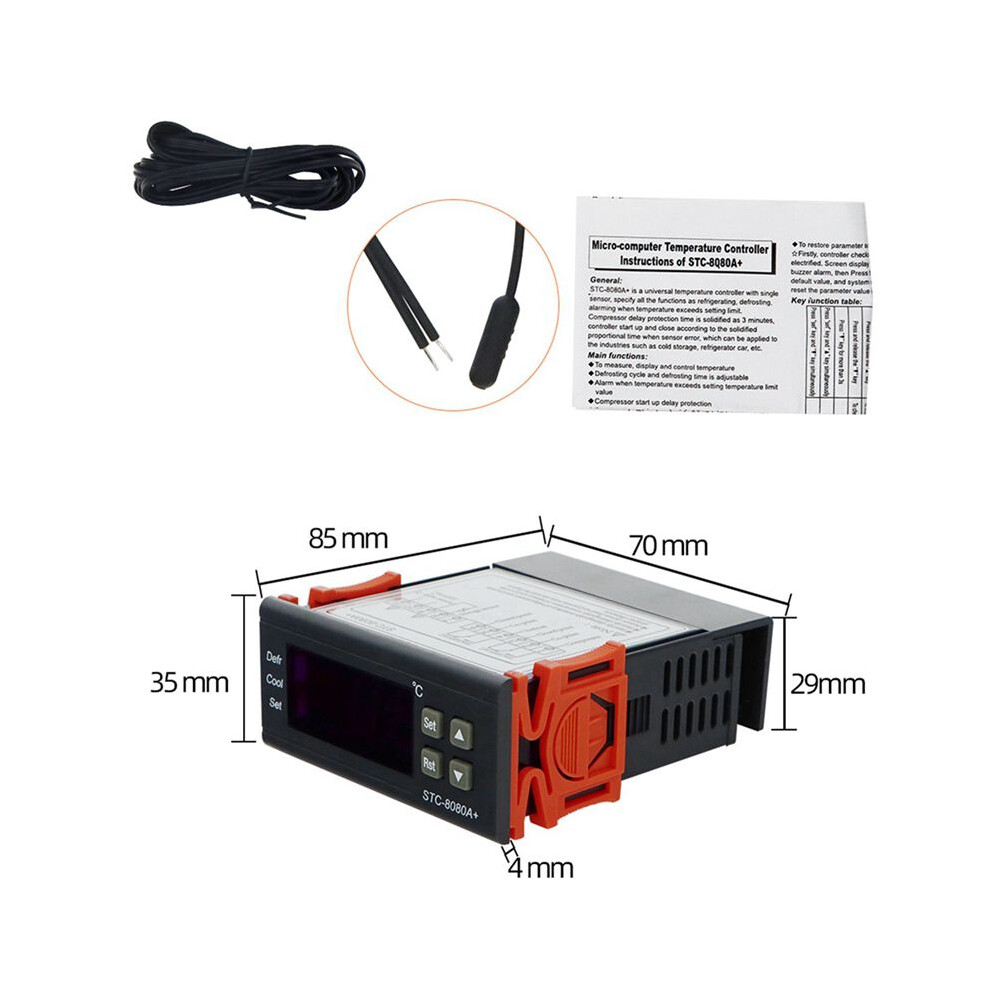

5 * STC-8080A+ Digital Temperature Controller
