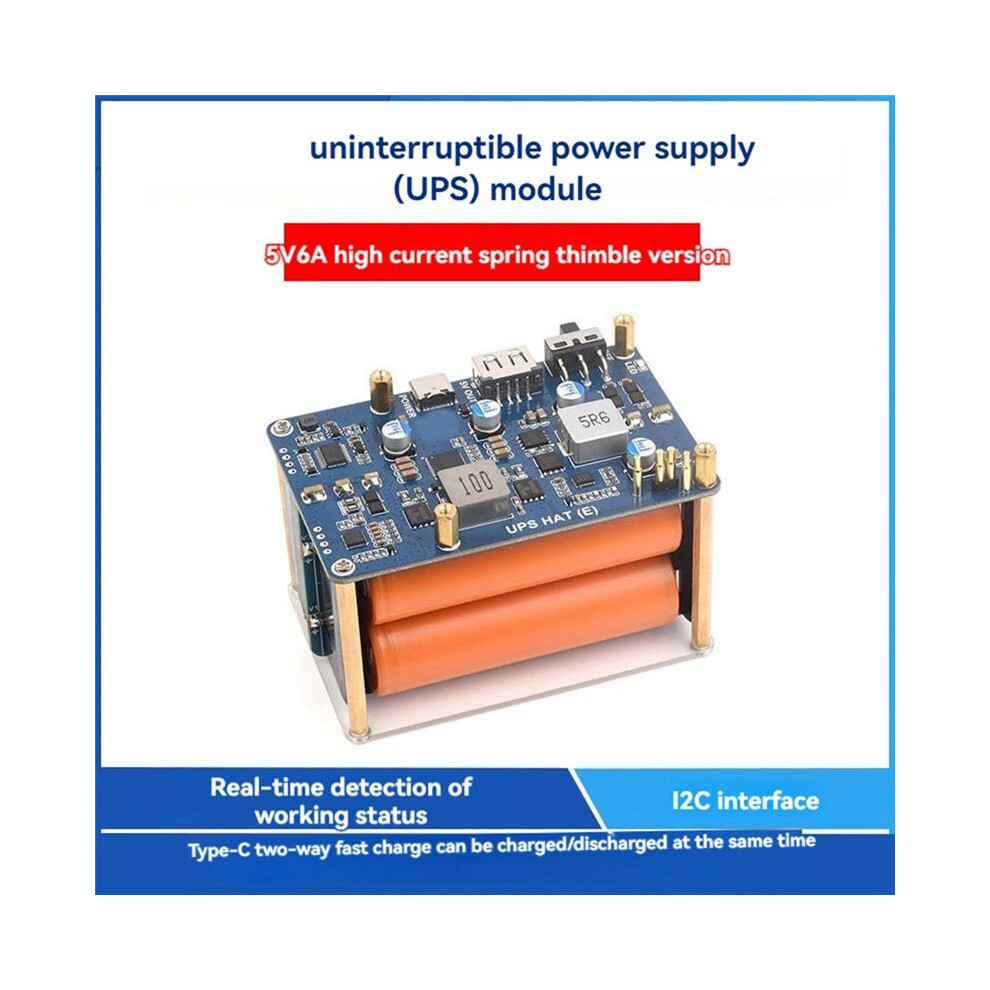

For Raspberry Pi 5 Uninterruptible Power Supply UPS HAT Type-C Fast Charging for Raspberry Pi 4B/3B+ UPS Module

For Raspberry Pi 5 Uninterruptible Power Supply UPS HAT Type-C Fast Charging for Raspberry Pi 4B/3B+ UPS Module Beskrivelse

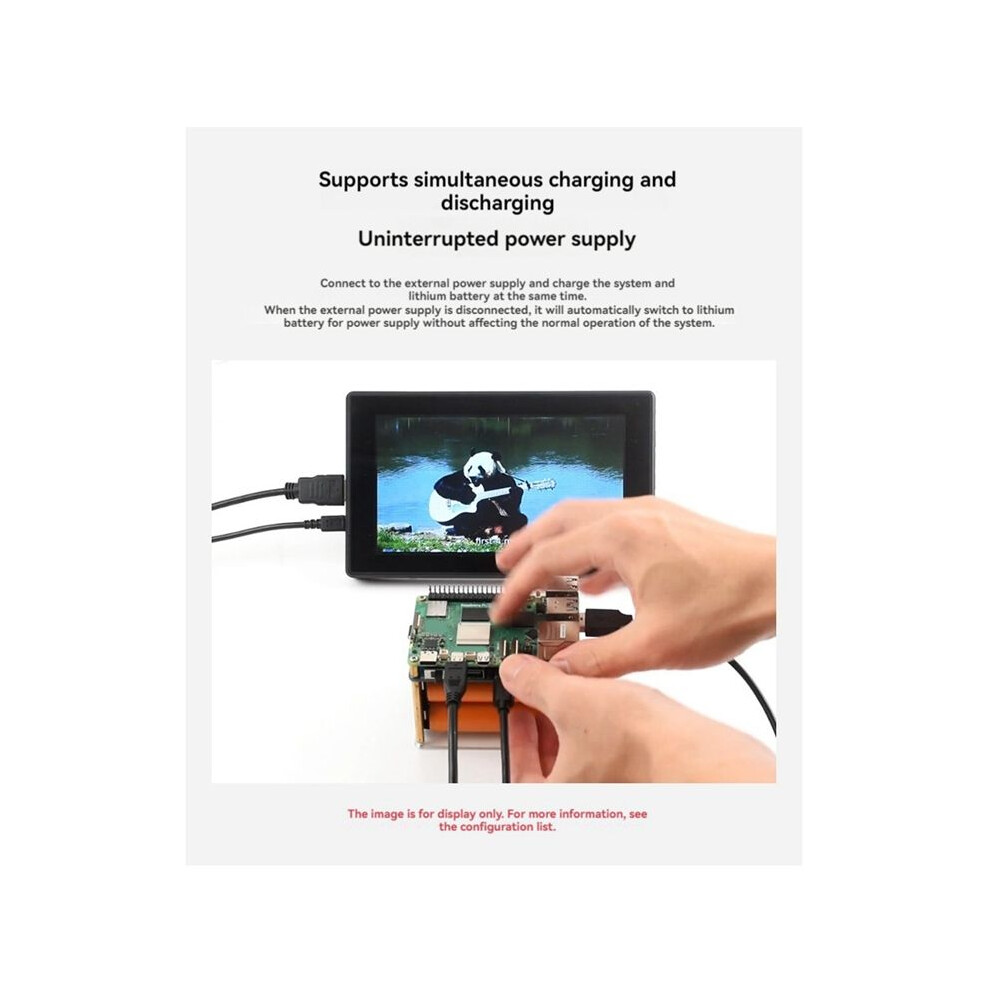

Uninterruptible power supply (UPS) module for Raspberry Pi, with onboard -type lithium battery charging chip with path management, boost chip and voltage and current monitoring chip. Supports simultaneous charging and discharging, can provide stable 5V voltage output, and can monitor battery voltage, current, power and other parameters through the I2C interface. Supports battery power icon display, easy to check battery status.
Adopts spring pin interface design, suitable for Raspberry Pi series motherboards
Onboard Type-C bidirectional fast charging interface, supports multiple charging input and output protocols such as PD3.0, and supports to 40W power
Onboard dedicated battery power meter chip, supports reading battery voltage, current, power, remaining power and other parameters

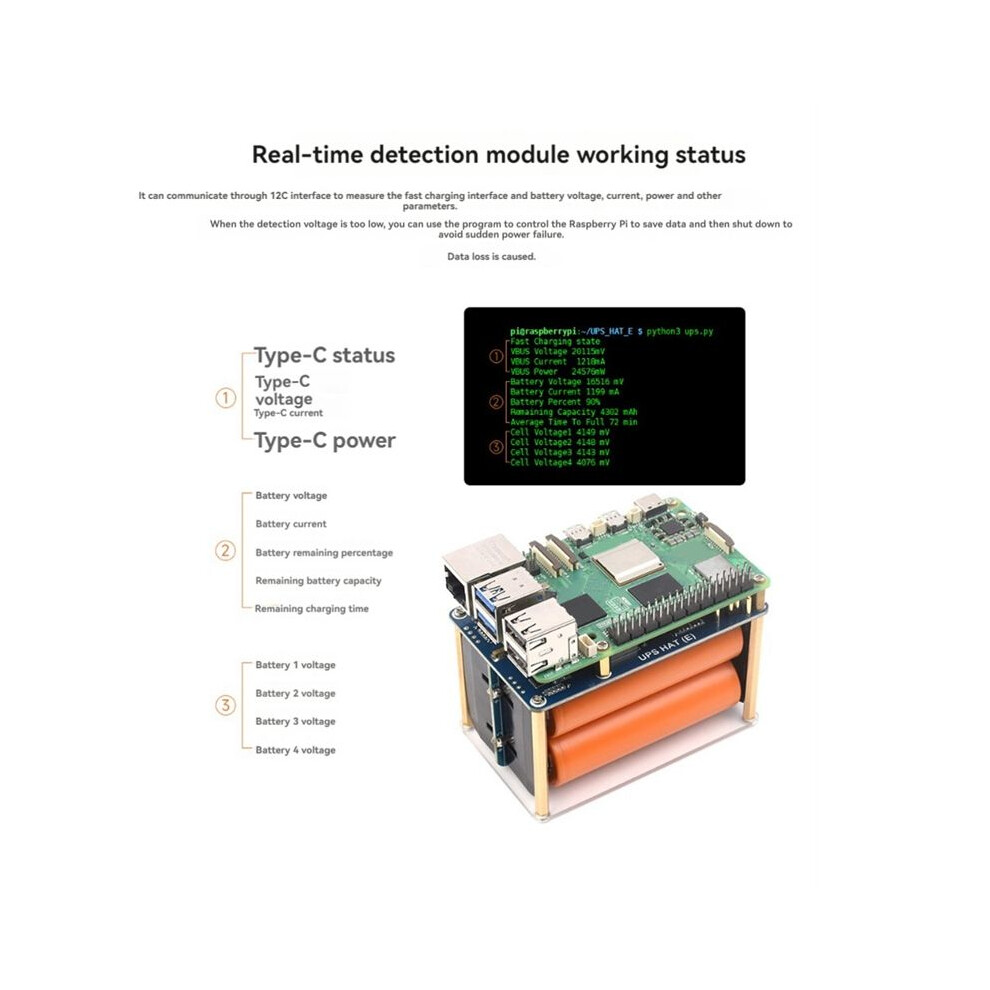

Can communicate through I2C interface, read Type-C input and output, battery status and other information, and detect module working status in real

The module adopts four 21700 lithium battery design, with larger capacity and longer battery life
The board high-power buck chip can provide stable 5V 6A output
Onboard MCU chip management, supports power- detection and startup function
Support battery power icon display, easy to check module status

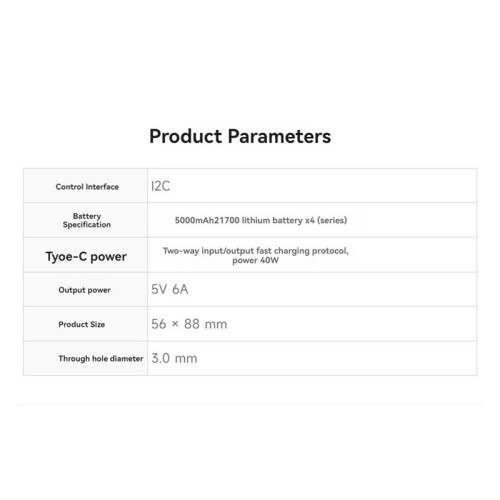

Output voltage: 5V
Control interface: I2C
Charging power supply: bidirectional input/output fast charging protocol, maximum support 40W power
Output power: 5V 6A
Battery specification: 21700 rechargeable battery 3.6V
Current capacity: 5000mAh (nominal)
Product size: 56mm x 88mm Through hole diameter: 3.0mm
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Colour:
Material:PCB

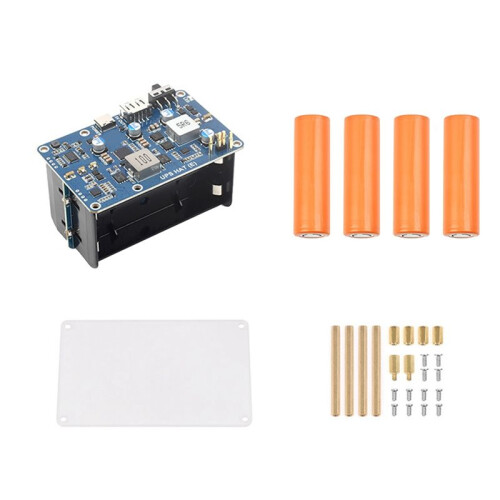

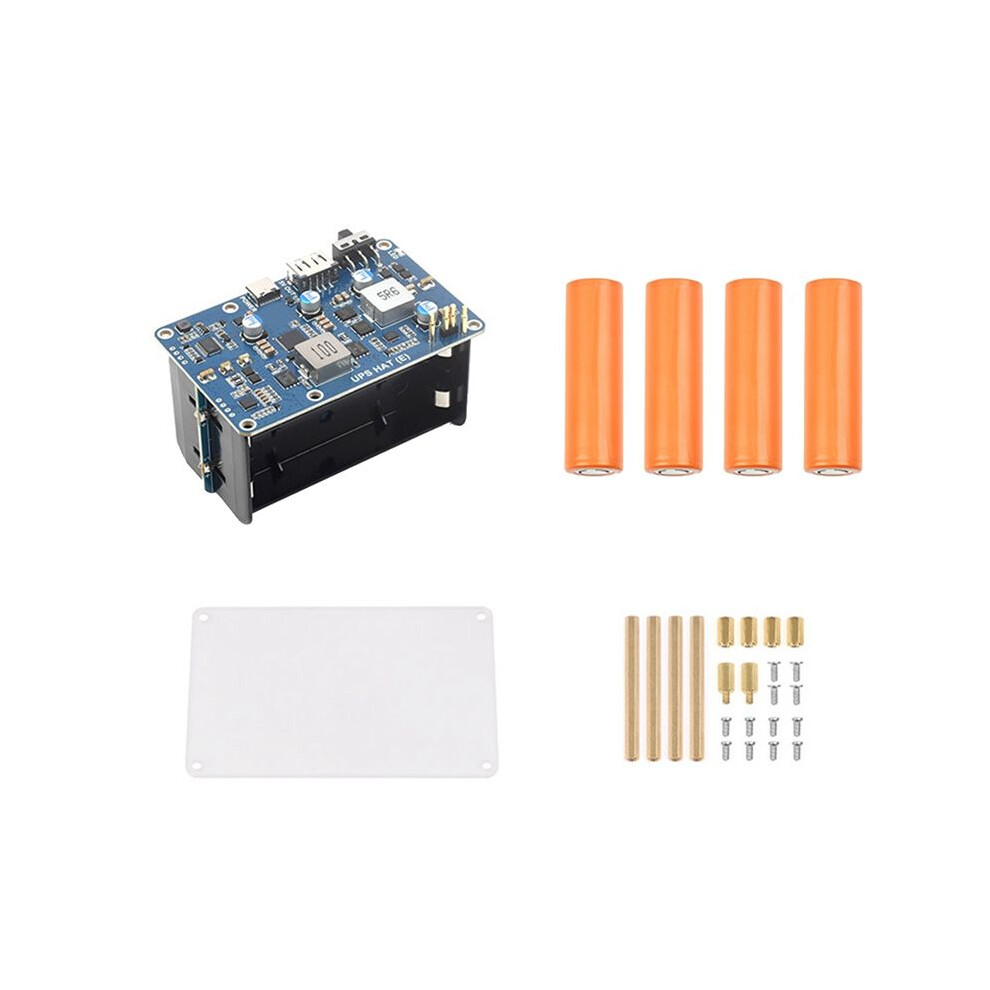

Package Contents:
1* For Raspberry Pi 4B/3B+ UPS Module Kit
