MT6701 is a new generation magnetic angle encoder chip based differential Hall sensing principle.
MT6701 senses the magnetic field component perpendicular to the surface of the chip, as the radial magnets magnetized by one pair of poles the chip surface rotate.MT6701 outputs angle signals ranging from 0 to 360 .

In addition to providing ABZ/UVW incremental output and Analog/PWM absolute angle output, MT6701 also provides 14 bit digital angle output through the I2C/SSI interface.
In addition to measuring the rotation angle, MT6701 also provides a "press" output to achieve single chip button (rotation+press) function.
Product Features
Based differential Hall technology, providing absolute angle measurement from 0 to 360
Working voltage 3.3-5.0V, working temperature -40 ~125
Linear deviation typical value Less than 1 , within the full temperature range Less than 1.5
The system delay is as low as 5us or less, and can support speeds to 55000 rpm
Provide I ² C/SSI interface reads 14 bit angle data inside the chip
Incremental output ABZ supports any resolution from 1 to 1024 lines
Incremental output UVW supports any polarity from 1 to 16
Provide 12 bit PWM output or analog output (12 bit DAC)
Dedicated press detection output (change in distance between induction magnet and chip), achieving single chip button application
Built in EEPROM, Greater than 1000 repetitions of programming
Specifications: 5 sets
Color: Black
Material: PCB

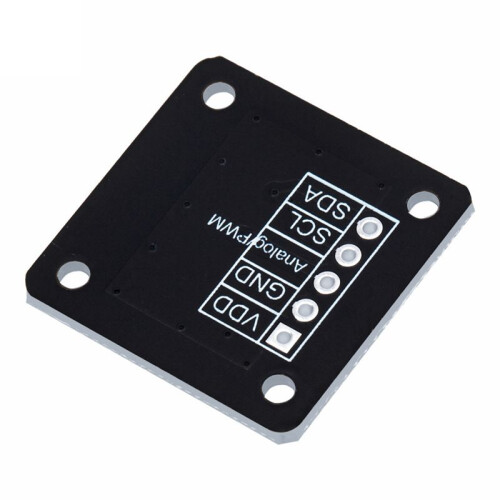

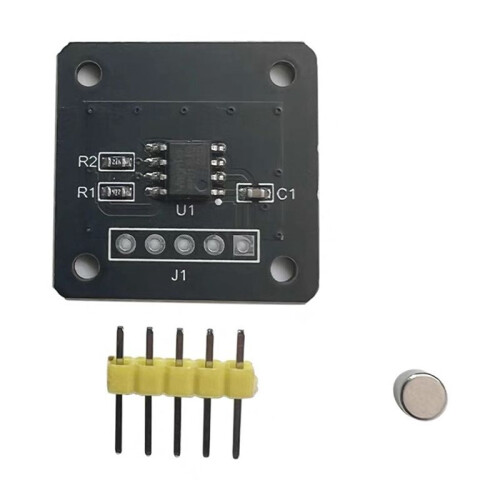

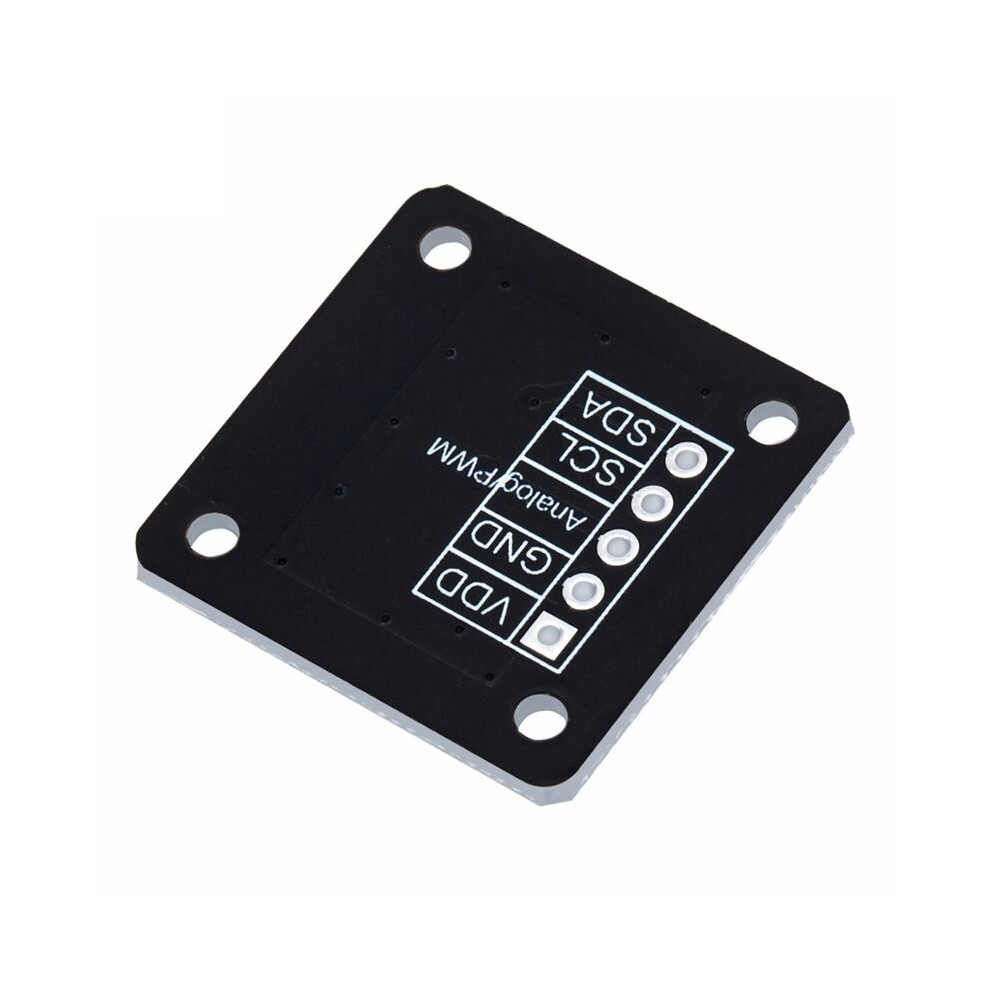

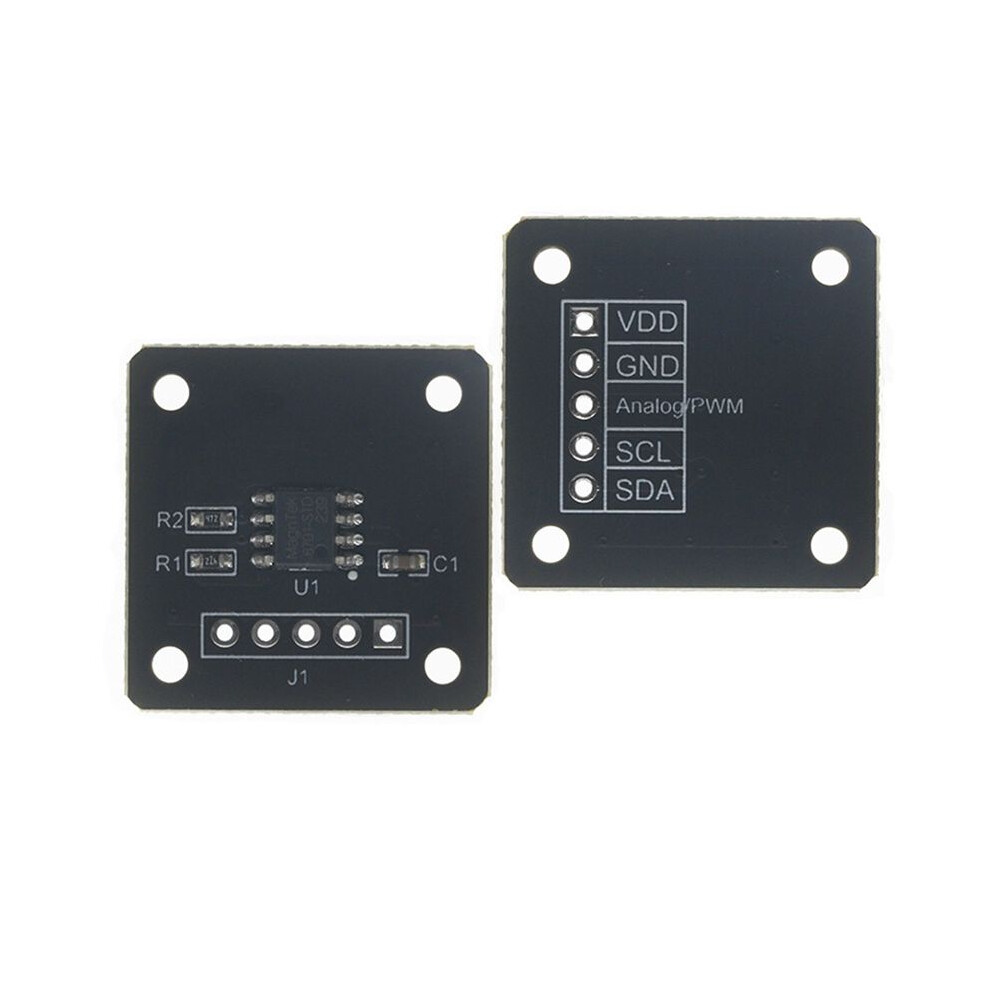

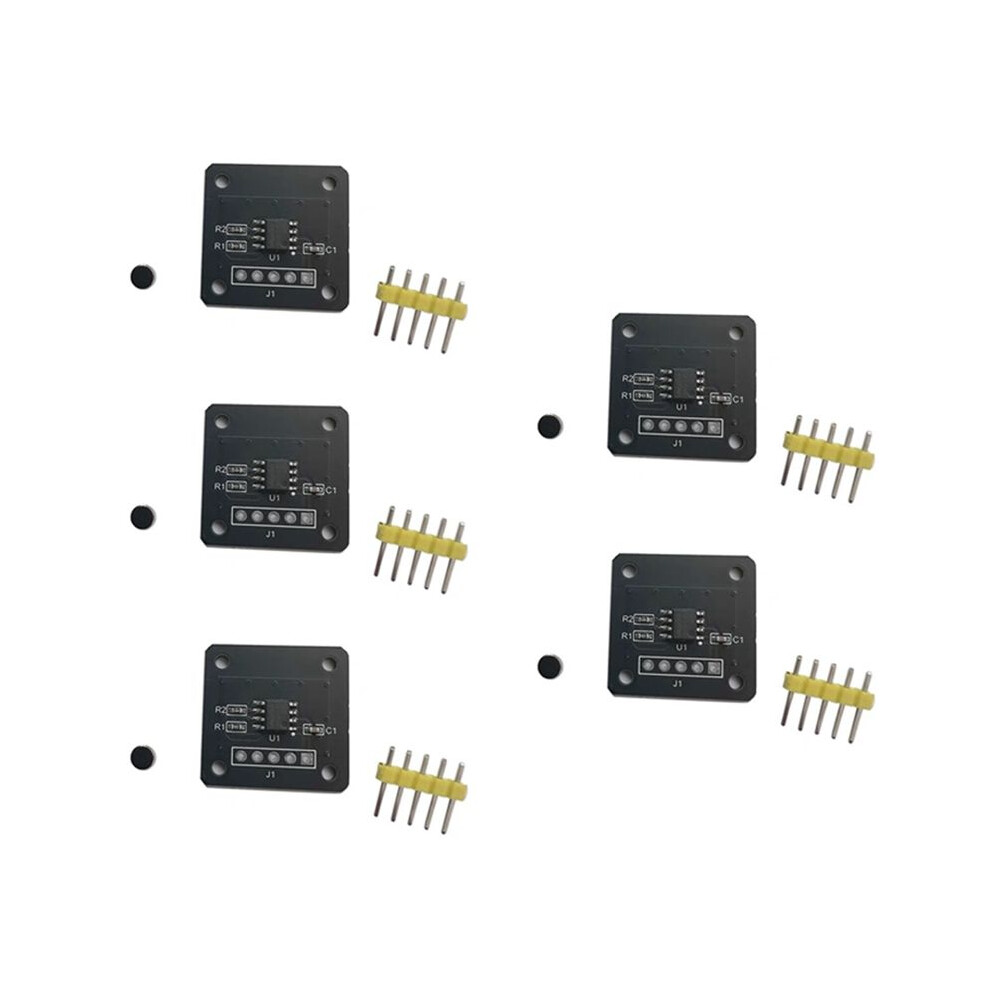

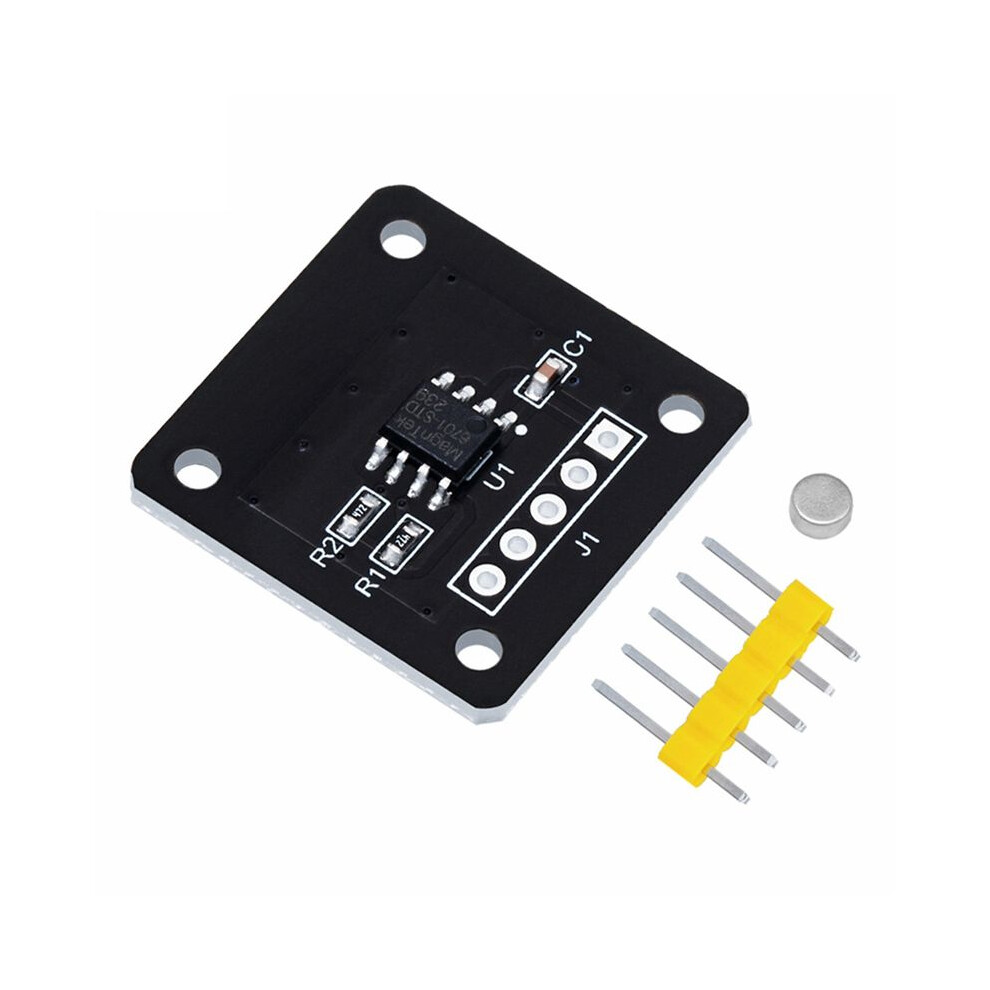

Package Contents:

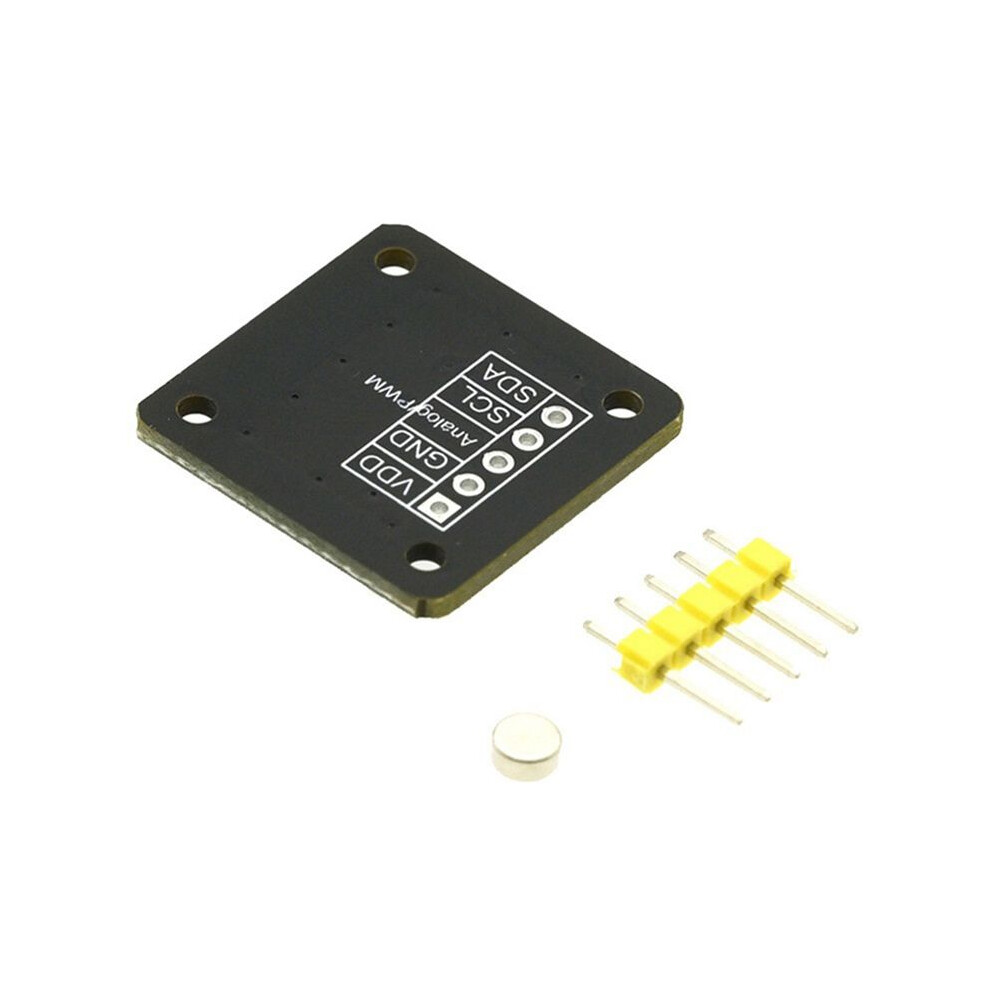

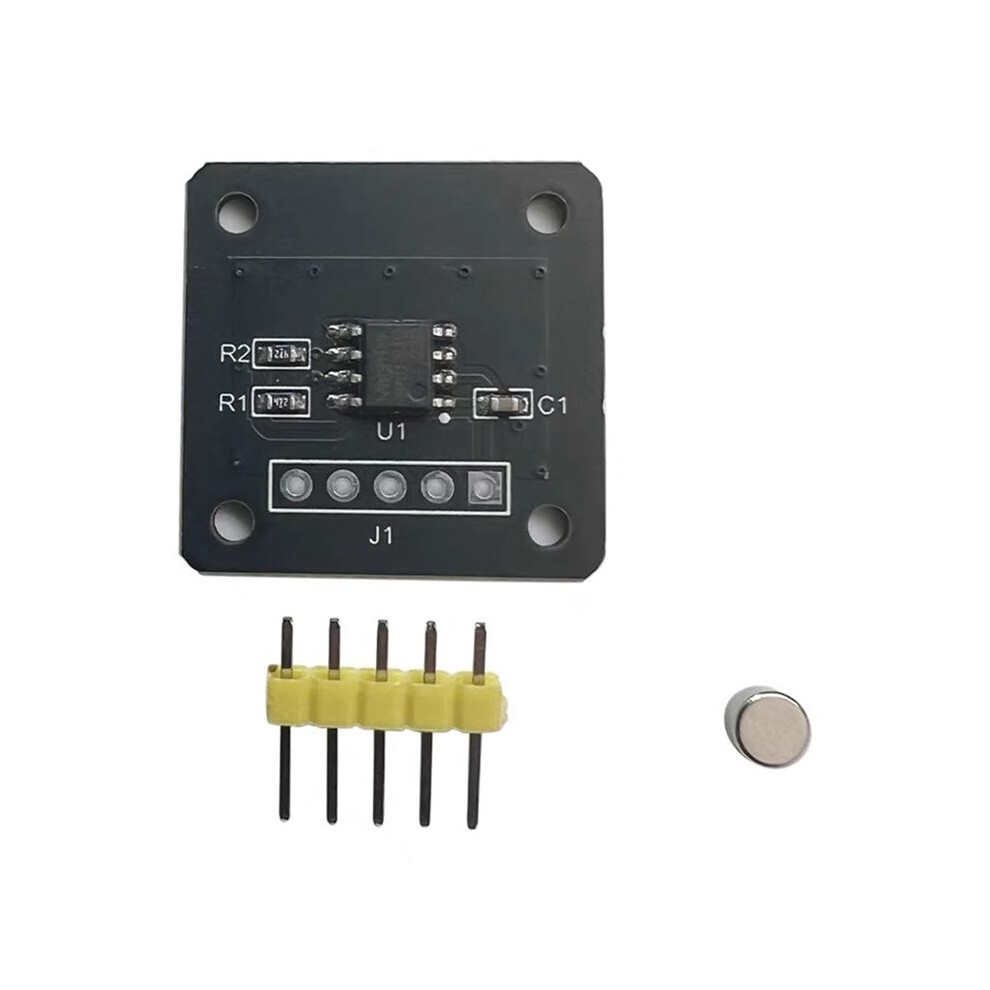

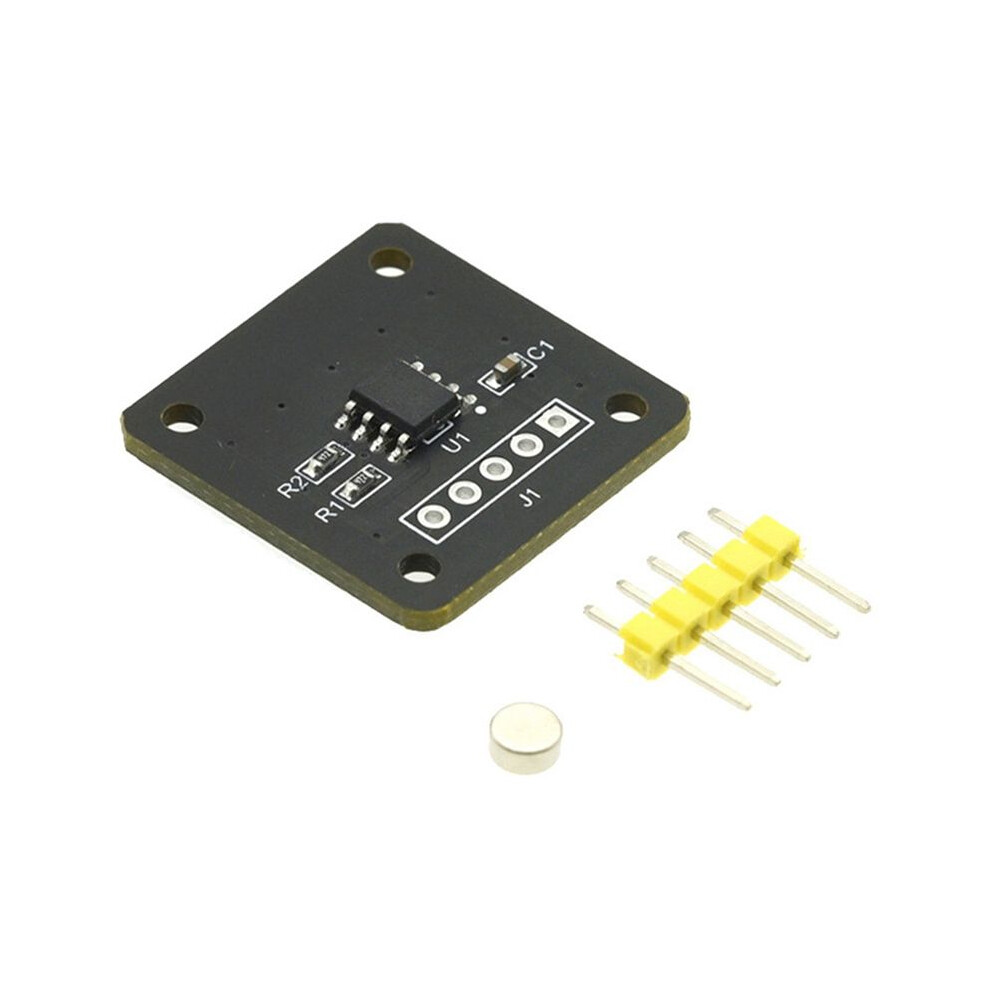

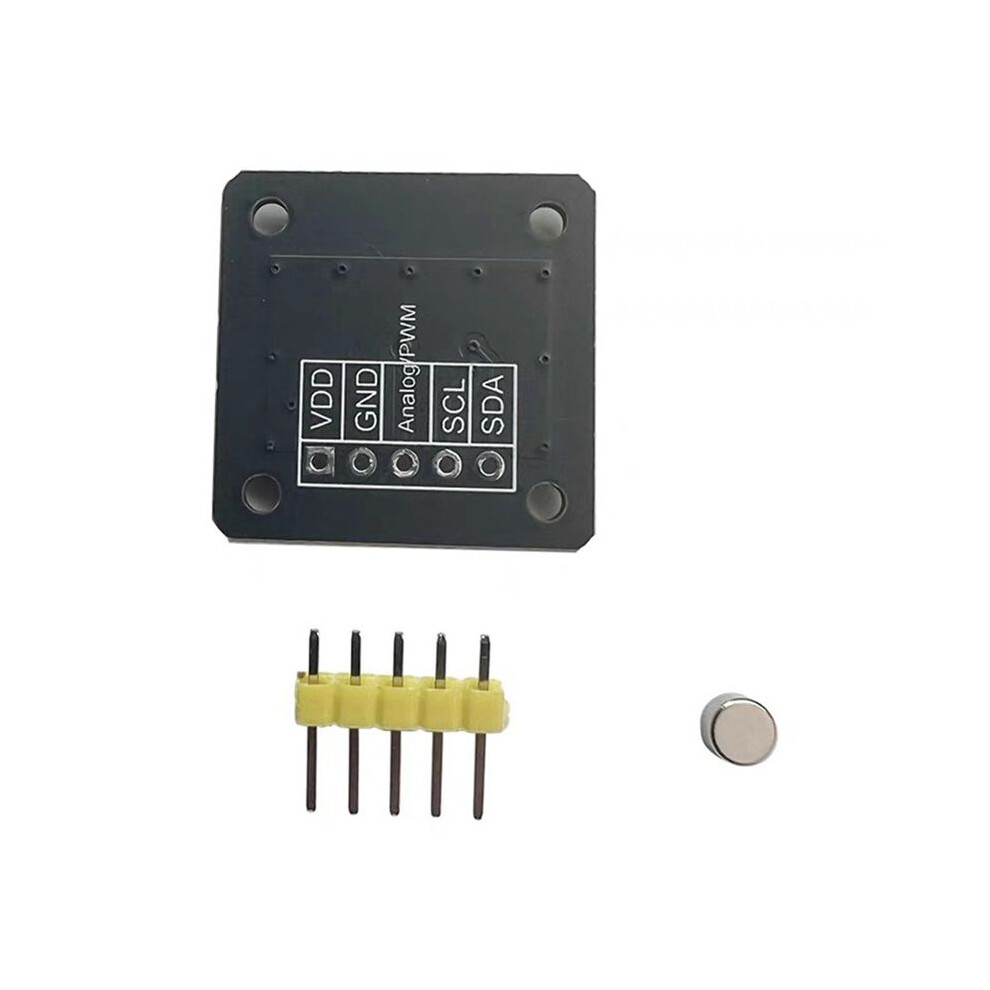

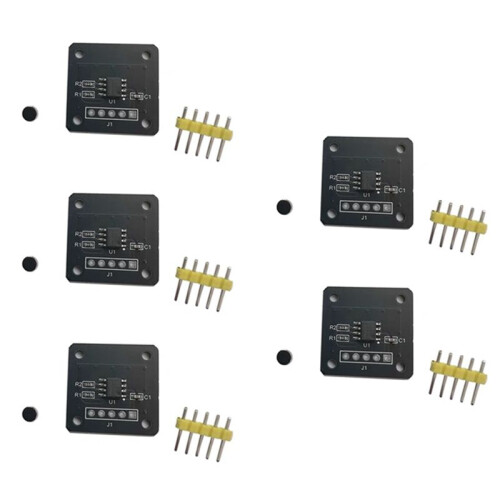

5 * Magnetic Encoder
5 * Magnet
5 * pin (random colors, don't accept the specified color)
