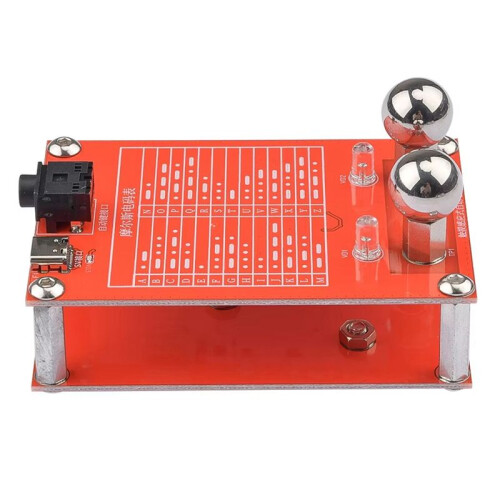

New 5V CW Morse Touch Sensing Automatic Key Type-C USB Morse Touch Sensing Auto Key for Maker Group

New 5V CW Morse Touch Sensing Automatic Key Type-C USB Morse Touch Sensing Auto Key for Maker Group Kuvaus

Power Supply Voltage: -5V via Type-C
Output Port: 3.5mm jack
Operating Temperature: -40C to 85C

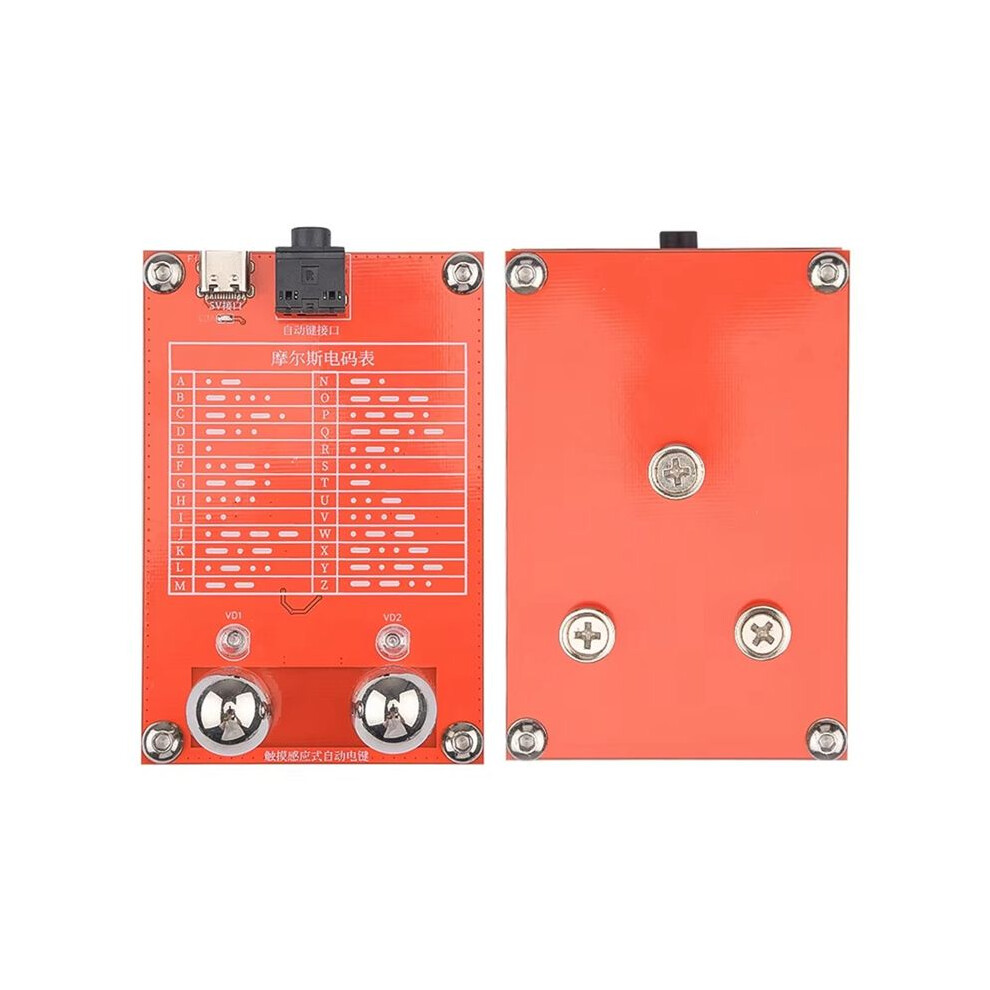

Principle:The touch key is divided into two layers. The upper layer houses the key's main circuitry and interface, while the lower layer houses the magnetic base. The device uses a touch chip to sense changes in the capacitance of a metal . When a person touches the metal , the capacitance change is transmitted via circuitry to the relevant pins the chip. The corresponding key signal is amplified, driven by a transistor, and finally transmitted to the key interface. The device's logic is to indicate a low level for a valid key signal and a high level of 5V for a non-touch signal. This voltage level matches the operation of most radios. The lower layer contains a strong magnet that can attach to any metal casing, securing the key.
Instructions:The USB cable can be connected to a mobile phone charger or computer. Please note that the USB port must be powered by 5V; other voltages will damage the chip. After powering , the LED at the USB port will light , indicating proper power supply. If you touch the left or right metal , you will see the corresponding LED light . At this , the touch is valid and the product functions normally. The touch button the right is short, representing one point, and the touch button the left is long, representing one stroke.
Color: Red
Material: Stainless Steel+ABS

Package Contents:
1 x CW automatic keyer
