200 Litre Belt Drive Air Compressor - 3 Phase 5.5hp Motor - Triple Cylinder Pump

200 Litre Belt Drive Air Compressor - 3 Phase 5.5hp Motor - Triple Cylinder Pump Description

200 Litre Belt Drive Air Compressor - 3 Phase 5.5hp Motor - Triple Cylinder Pump

Overview:

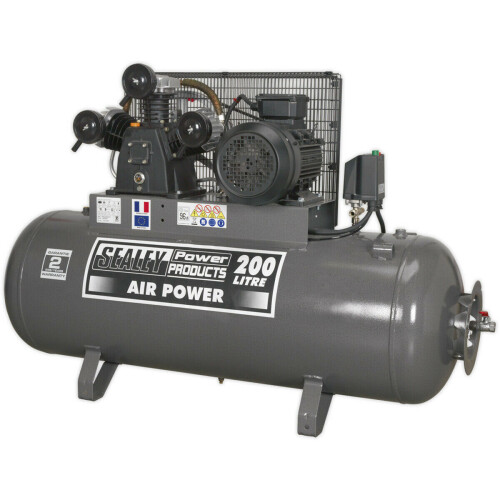

Heavy-duty 3-phase compressor suitable for the professional workshop. Triple cylinder pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by an alloy heads for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual. Includes a drain valve for easy release of condensed water build-up in the tank.

Features:

• Air Displacement: 20.7cfm(585L/min).
• Maximum Free Air Delivery: 15.9cfm(450L/min).
• Maximum Pressure: 145psi(10bar).
• Heavy-duty 3-phase compressor suitable for the professional workshop.
• Triple cylinder pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.
• Pump features heavy-duty full cast cylinders, capped by an alloy heads for improved heat dissipation and long-life.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.

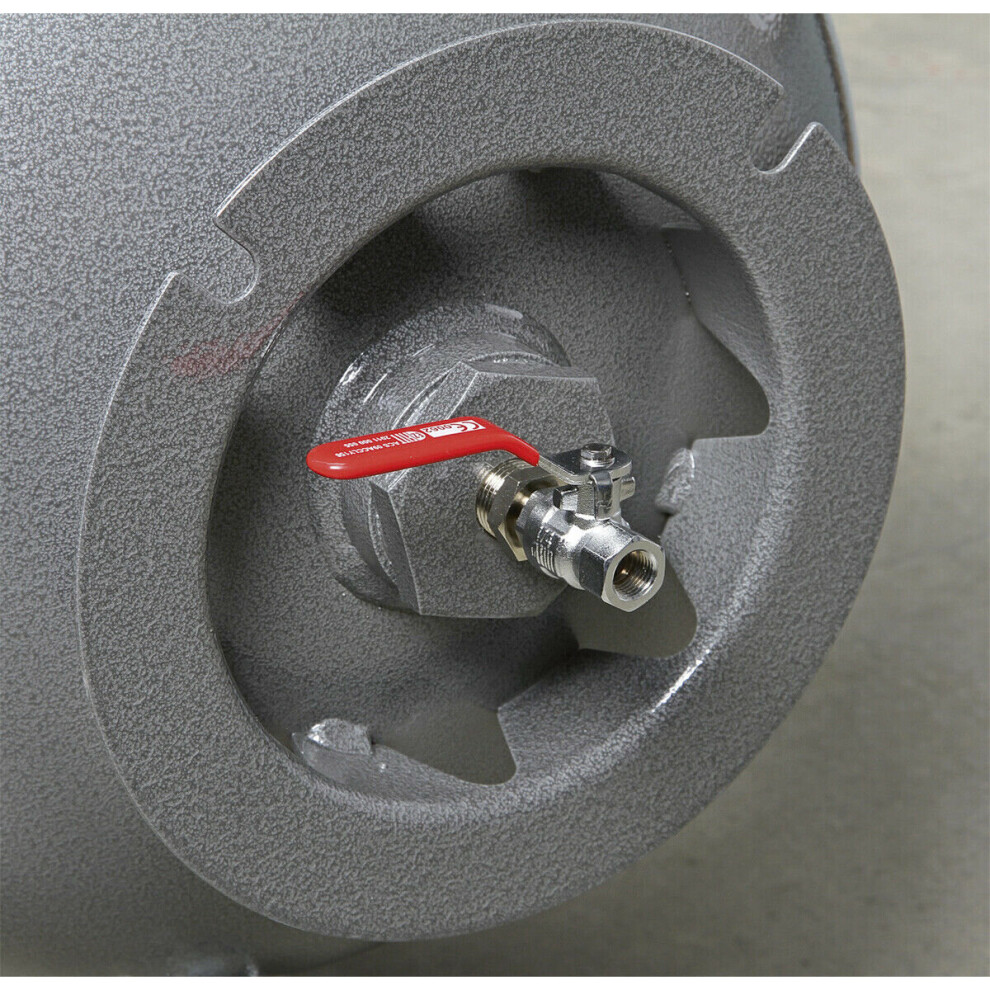

• Includes a drain valve for easy release of condensed water build-up in the tank.
• 2 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Air Displacement cfm(L/min) - 20.7(585)
• Maximum Free Air Delivery cfm(L/min) - 15.9(450)
• Maximum Pressure - 145psi(10bar)
• Minimum Rated Supply - 32A
• Motor Output - 5.5hp
• Net Weight - 121kg
• Outlet - 1/4"BSP
• Phase - 3ph
• Receiver Capacity - 200L
• Size (W x D x H) - 1430 x 500 x 970mm
• Speed - 1181rpm
• Supply - 415V
