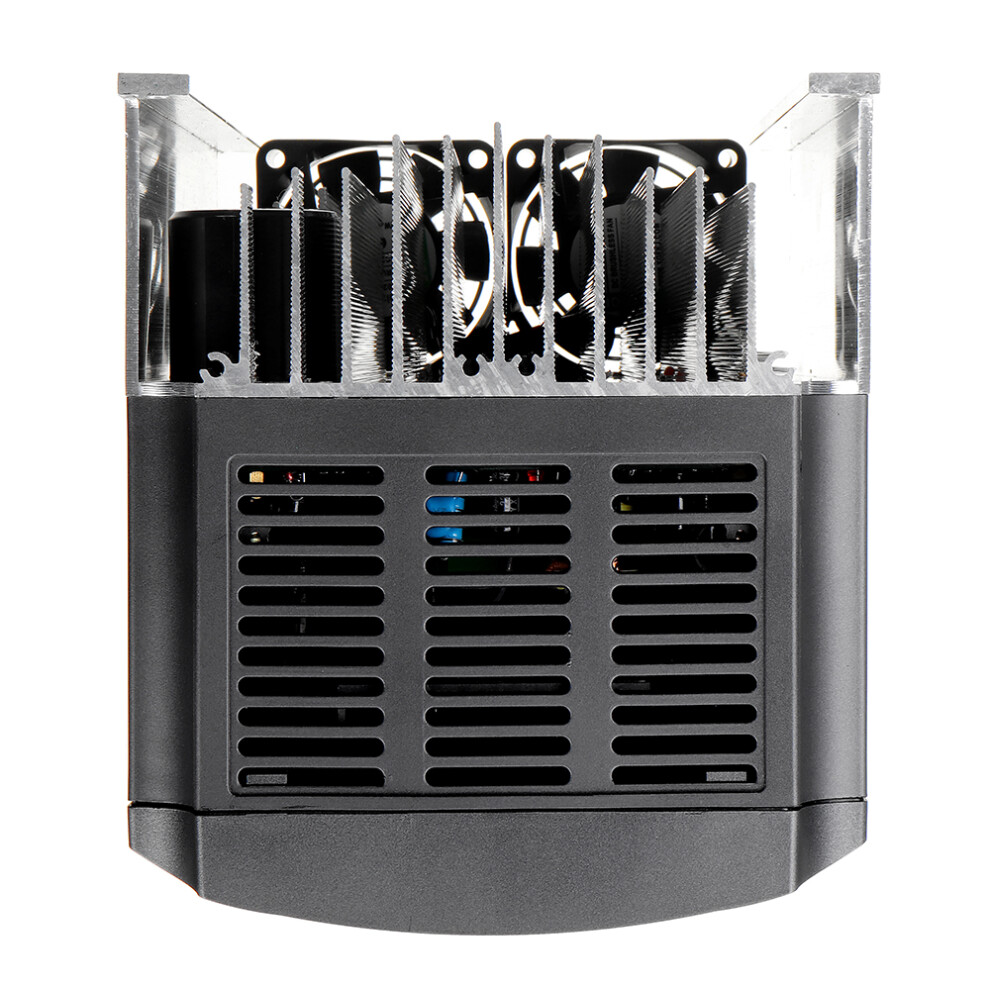

220V To 380V 7.5KW Variable Frequency Speed Control Drive VFD Inverter Frequency Converter Frequency Changer

220V To 380V 7.5KW Variable Frequency Speed Control Drive VFD Inverter Frequency Converter Frequency Changer Description

Size Conversion Inches Centimeters Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size. Type selection instruction:â 1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring. 2. This frequency converter can not drive other load types except inductive load such as motor . Please pay special attention to it when purchasing. 3. The overload capacity of 220V to 380V frequency converter is small. Please choose at least one higher power level. When the load is very large (such as gear pump hydraulic pump) or there is a blocking condition, please choose carefully. 4.This machine does not support quick stop. The start of the motor needs to be controlled on the product panel. 5. If you don't know how to choose the type, you can also contact us to give you some suggestions. This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. The inpute for this VFD is 1 phase as you like. You can control the different speed as you like when yo use this VFD. You can use for : Pumps & Conveyors,water pump,textile machine,wooden cuter,blower etc and then performance excellently. This item use Sine wave PWN(SPWM ) for the control system and performace excellently. Features: 1. Frequency setting mode: digital setting, analog setting, serial communication setting, multi-speed, PID setting. 2. PID control function 3. Multi-speed control function: 8-speed control 4. Swing frequency control function 5. Instantaneous power outage without stopping function 6. REV / JOG key function: user-defined multi-function shortcut keys 7. Automatic voltage adjustment function: When the grid voltage changes, the output voltage can be automatically maintained constant 8. Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection. Specification: Inverter Series 9100-1T3-00750G Power 7.5KW 16A Control Mode SPWM Input Voltage 220V(+/-15%) AC Output Voltage 380V/AC Input Frequency 0-50/60Hz Output Frequency 0 - 650 Hz Input Phase 1 phase (1 phase for 220V) Output Phase 3 phase (3 phase for 380V) 4Digits Display & Status Indicator Lamp Displaying frequency, current, revolution, voltage, counter, temperature, forward or reserve running, and fault, etc. Communication Control RS-485 Operation Temperature -10~40â Humidity 0-95% Relative Humidity(without dew) Vibration Below 0.5G â Input and output characteristics Input voltage range: 220VÂ15% Input frequency range: 47~63Hz Output voltage range: 0~rated input voltage Output frequency range: 0~650Hz â Peripheral interface features Programmable digital input: 4 inputs Programmable analog input: AI1: 0~10V input, AI2: 0~+5V or panel potentiometer input Open collector output: 1 output Relay output: 1 output Analog output: 1 output, optional 4~20mA or 0~10V â Technical performance characteristics Control: PG-free vector control, V/F control Starting torque: without PG vector control: 0.5Hz / 150% (SVC) Speed ratio: no PG vector control: 1: 100 Speed control accuracy: PG vector control: Â 0.5% of the maximum speed Carrier frequency: 0.5k ~ 15.0kHz Package included: 1 X Variable Frequency Drive VFD Inverter 1 X Accessories Set 1 X English Manual >>Please click here to download the English user manual<<
