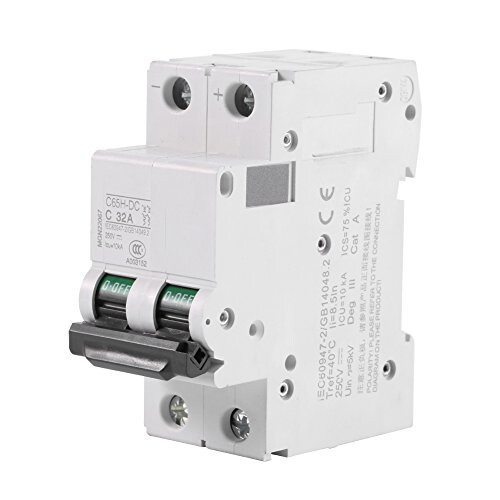

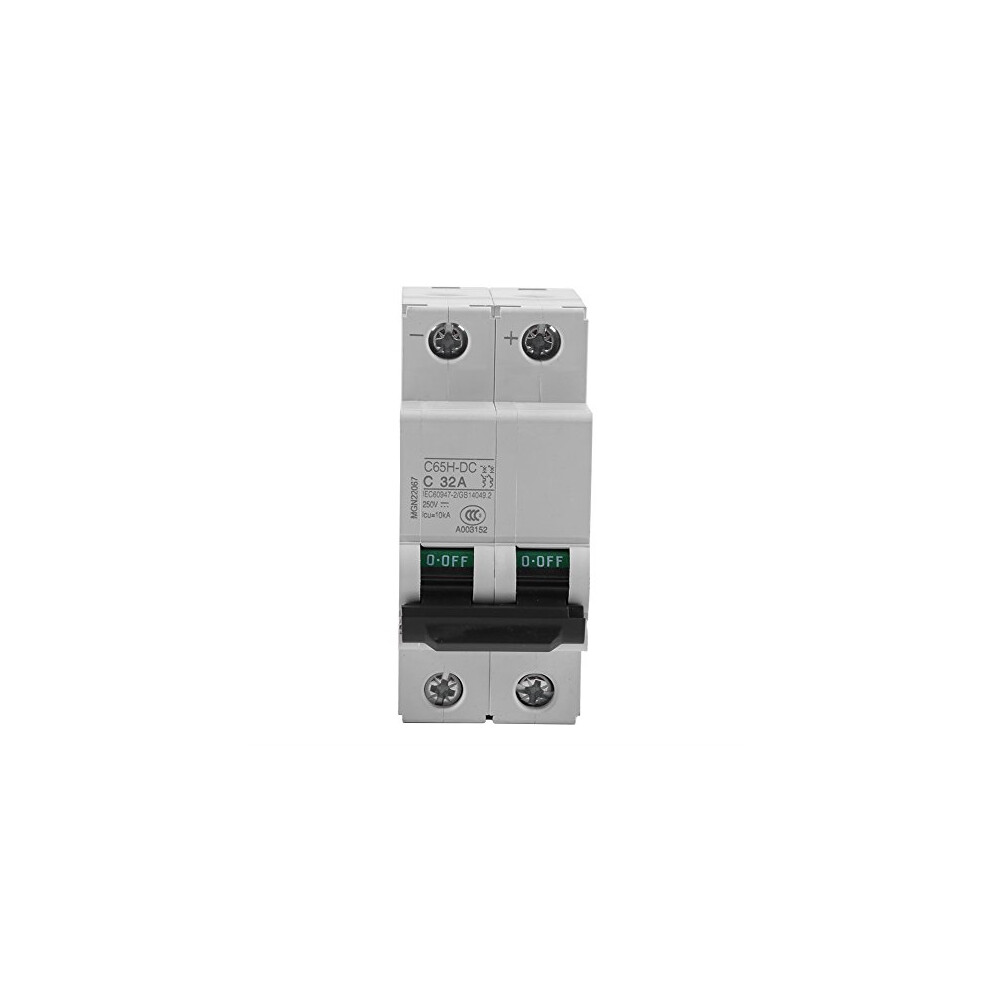

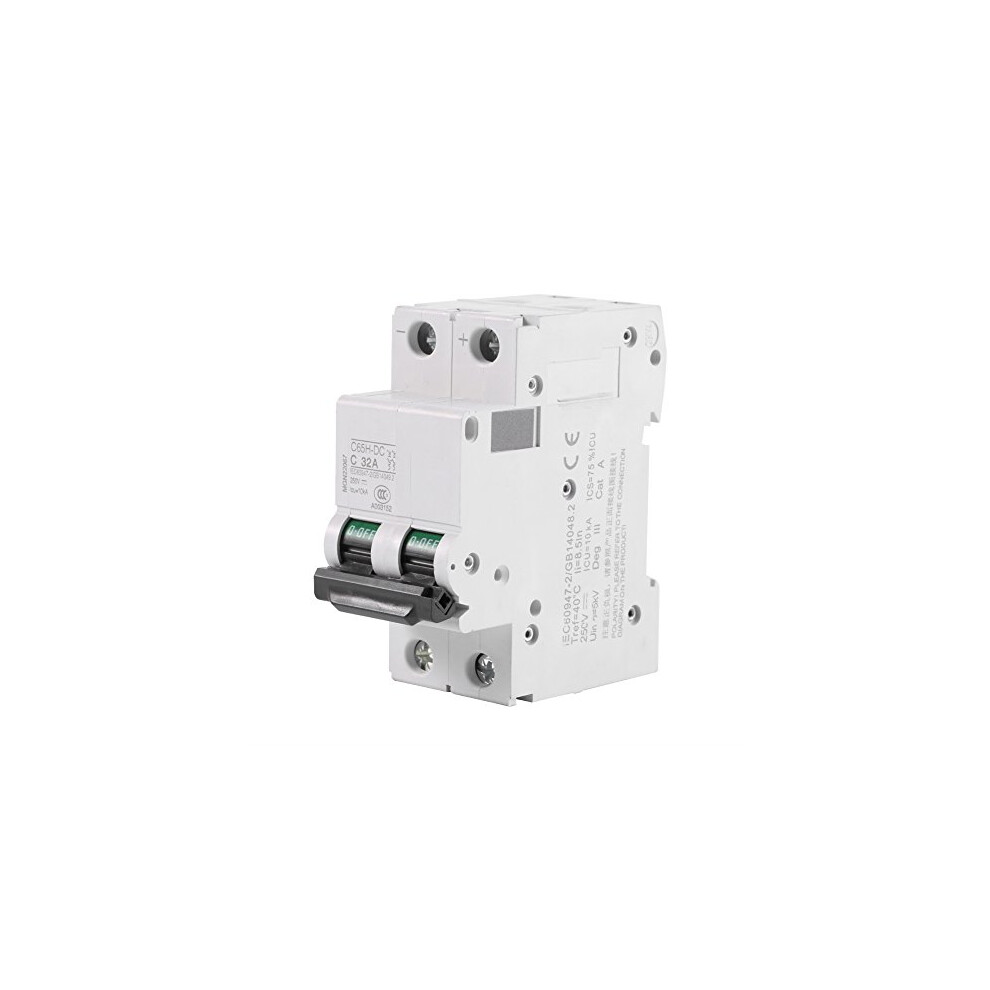

2P 32A Solar Energy Switch Miniature Circuit Breaker 250V DC Low-Voltage Miniature Air Circuit Breaker for Solar Panels Grid System

2P 32A Solar Energy Switch Miniature Circuit Breaker 250V DC Low-Voltage Miniature Air Circuit Breaker for Solar Panels Grid System Description

Features: This is a great circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit.
Fast closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It is easy and reliable to use, which supports short circuit protection, overload protection.

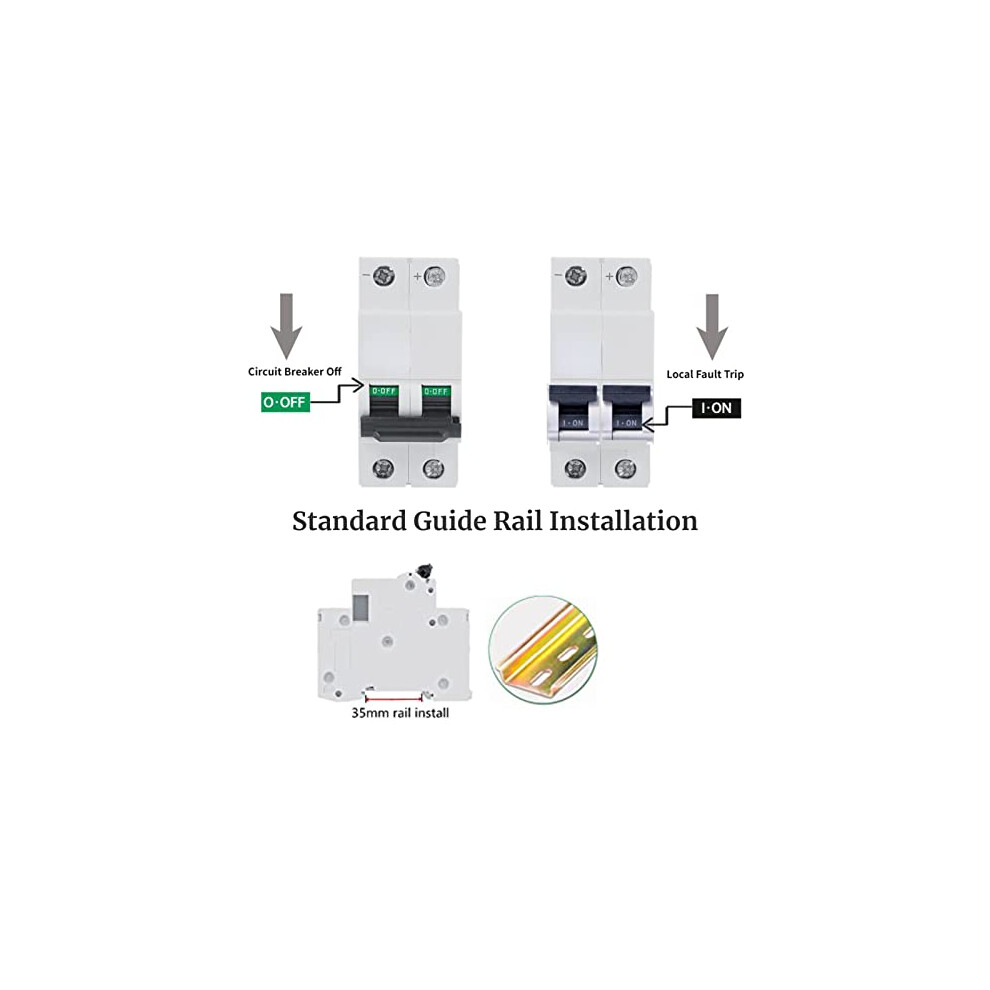

It can be mounted conveniently on DIN rail, DIN rail is not included. Widely used for solar panels grid system, wind and solar hybrid system and many other DC systems.


Specifications:
Model: C65H-DC 2P
Poles: 2P
Rated Voltage: DC250V
Ultimate Breaking Capacity(ICU): 10kA Trip Characteristics: B, C Rated Impulse-withstand Voltage(Uimp): 5kV
Current Limiting Class: 3
Mechanical Life: 20,000 times (IEC 60947-2/GB14048.2)
Electrical Life: 10,000 times (IEC 60947-2/GB14048.2)
Operating Temperature: -25~+70 Storage Temperature: -40~+85
Heat & Humidity Resistance: 55, 95%RH
Size: 8.2 x 3.6 x 7cm / 3.22 x 1.41 x 2.75"

Package Includes:
1 x Circuit Breaker

Brand: Hilitand
Model: AK3-AT1-GL-M-X
Size: 32A
Manufacturer: Hilitand
Hilitand 2P 32A Solar Energy Switch Miniature Circuit Breaker 250V DC Low-Voltage Miniature Air Circuit Breaker for Solar Panels Grid System
