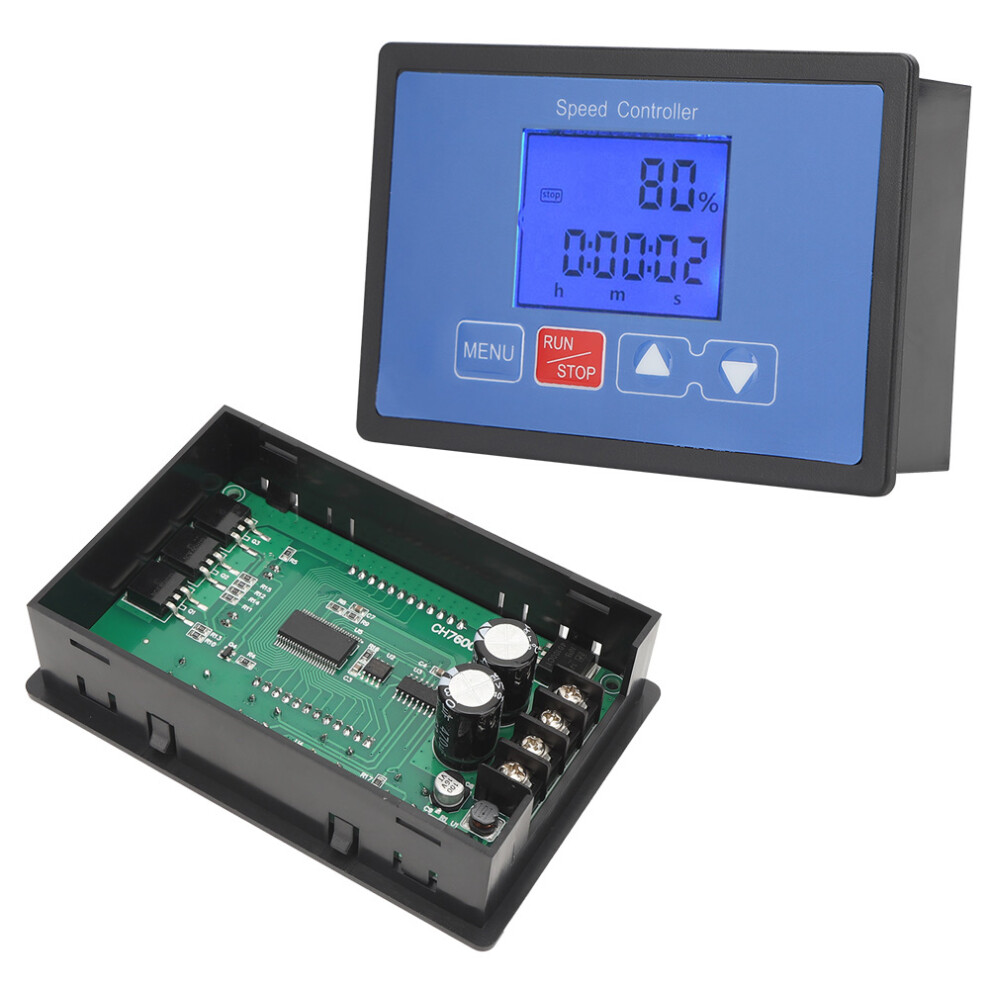

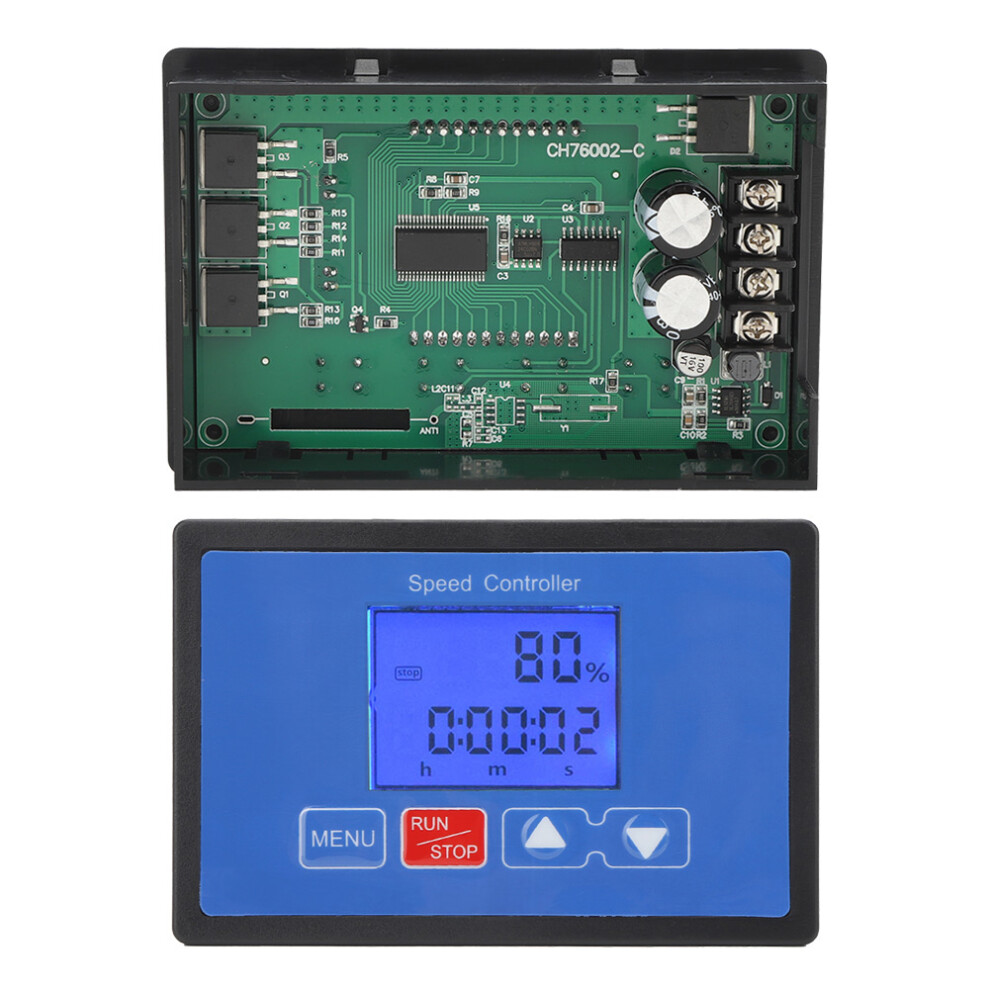

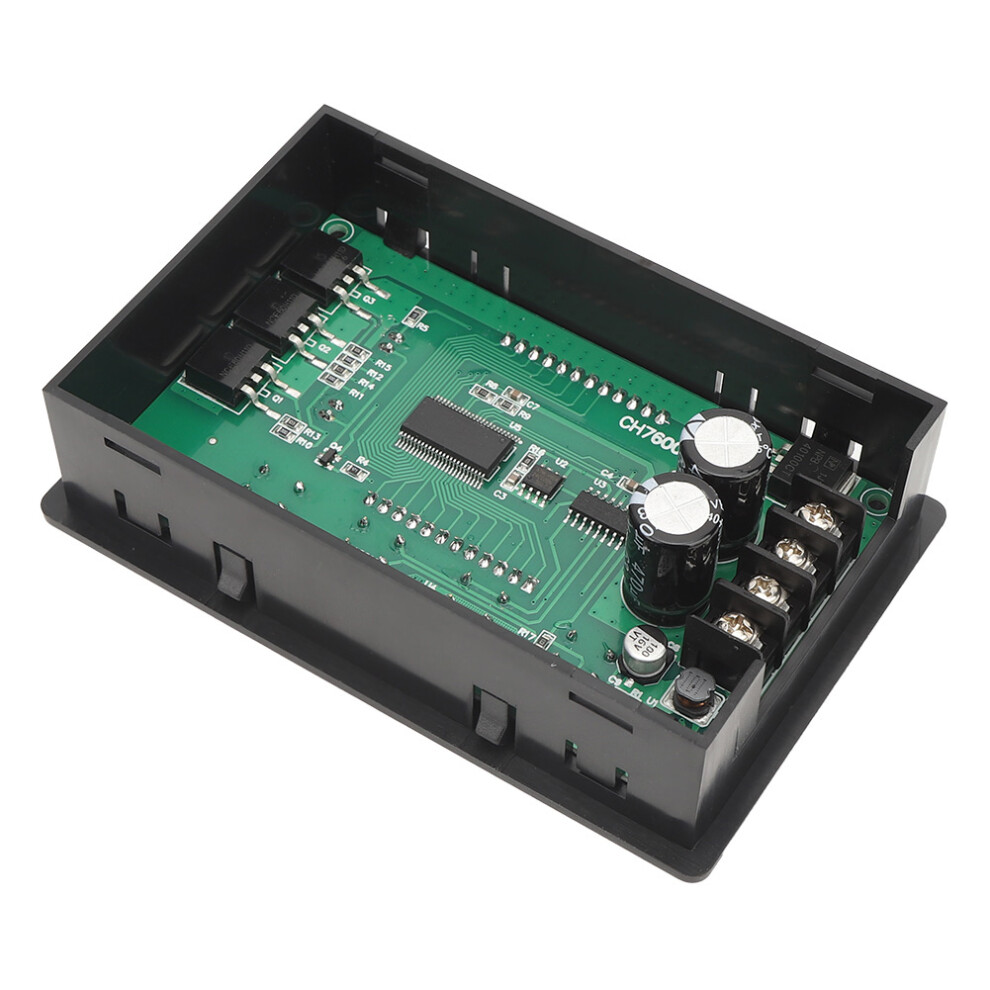

30A 6.5V-55V DC Brush Motor PWM Speed Controller

30A 6.5V-55V DC Brush Motor PWM Speed Controller Description

30A 6.5V-55V DC Brush Motor PWM Speed Controller Digital LCD Cycle Run/Stop Timer

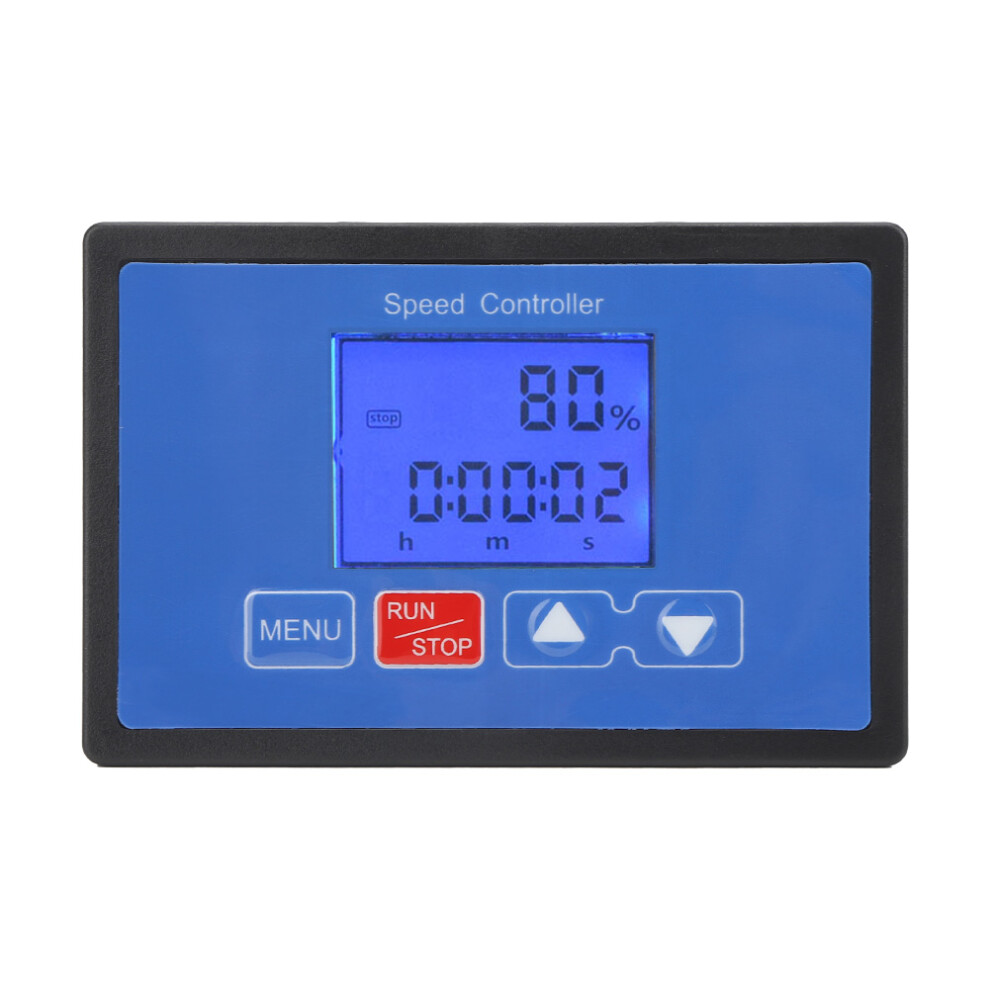

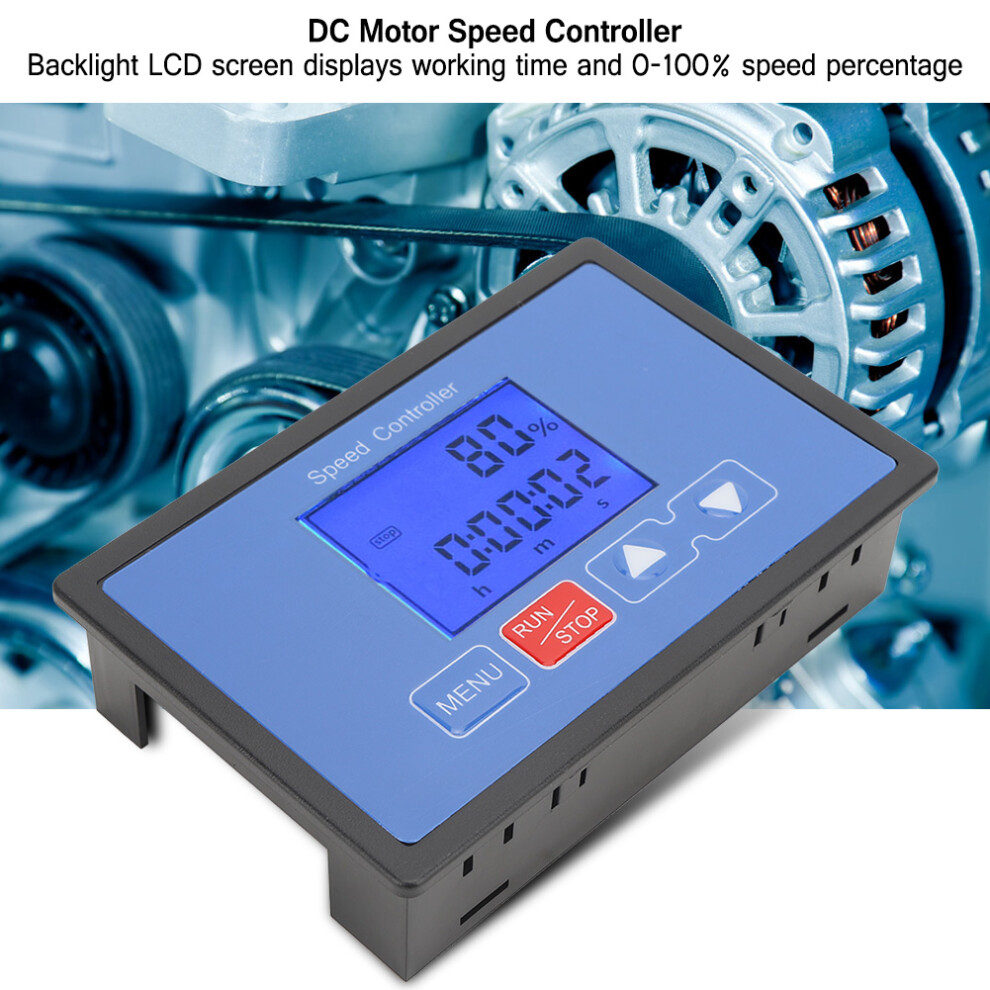

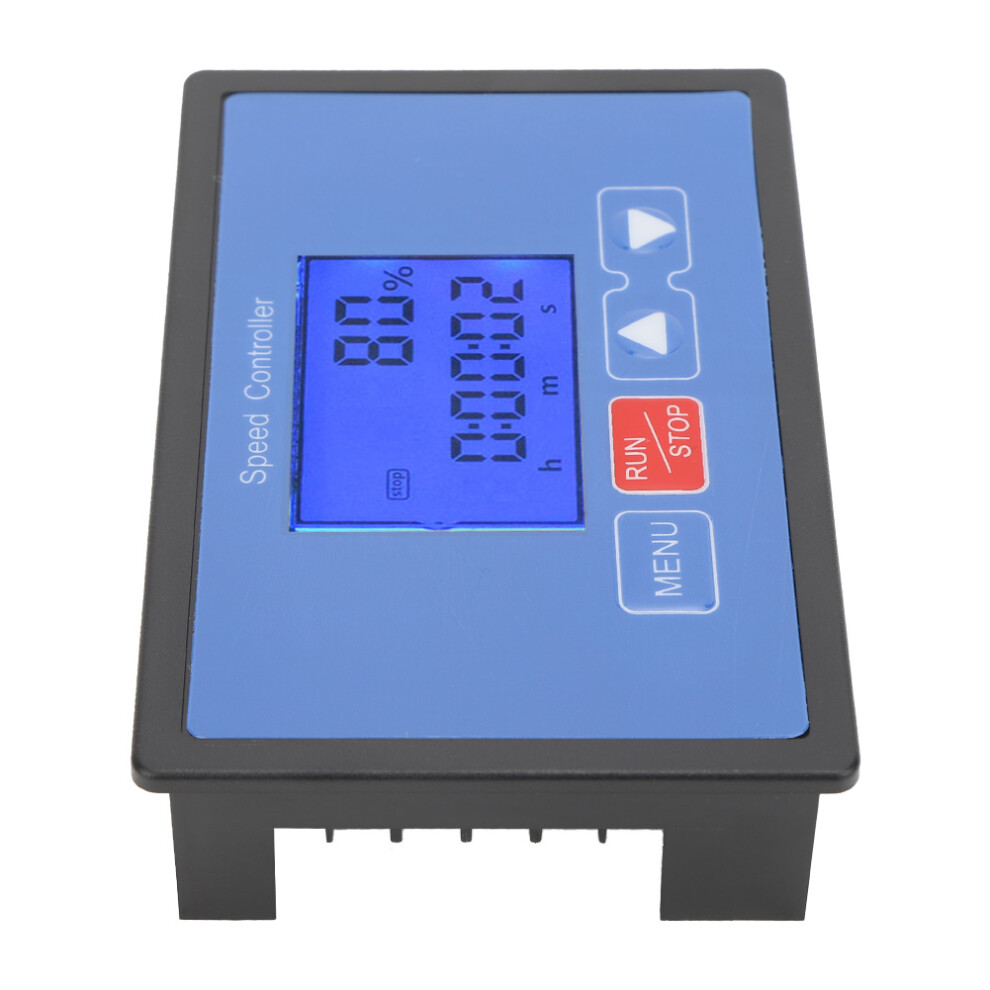

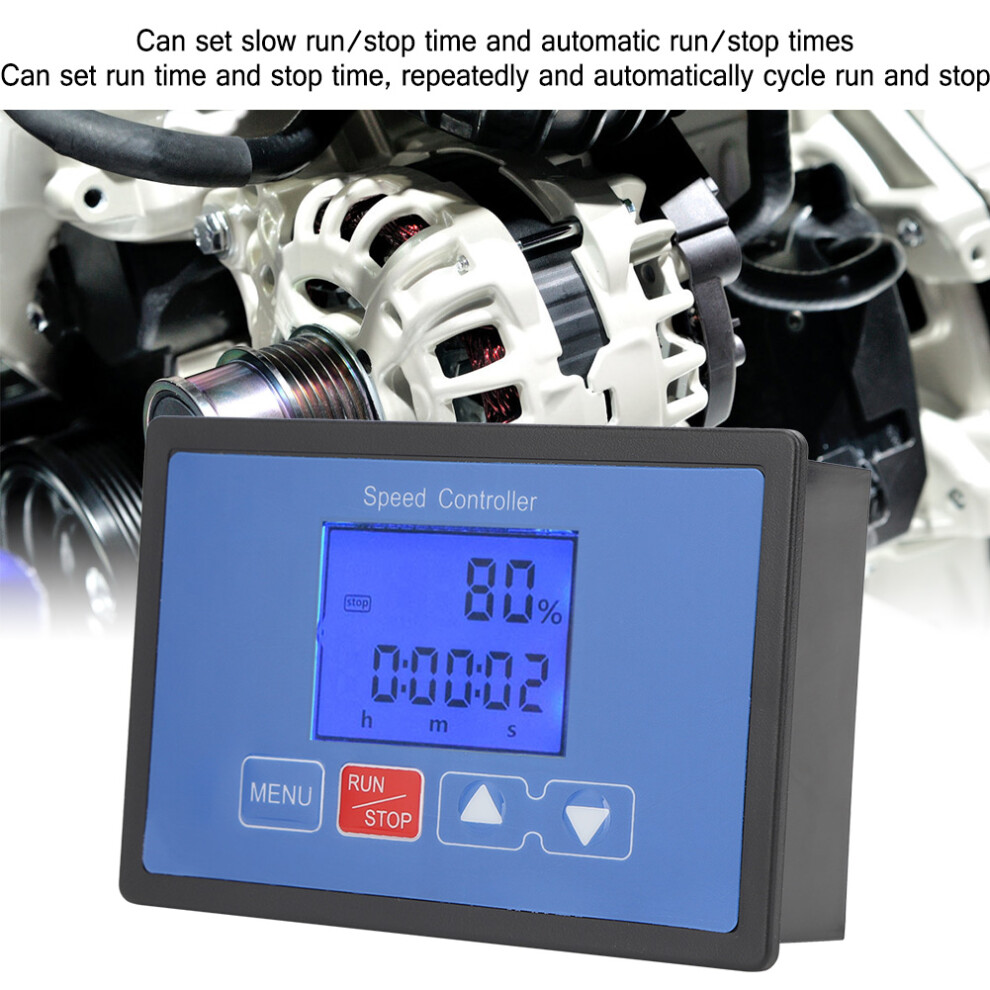

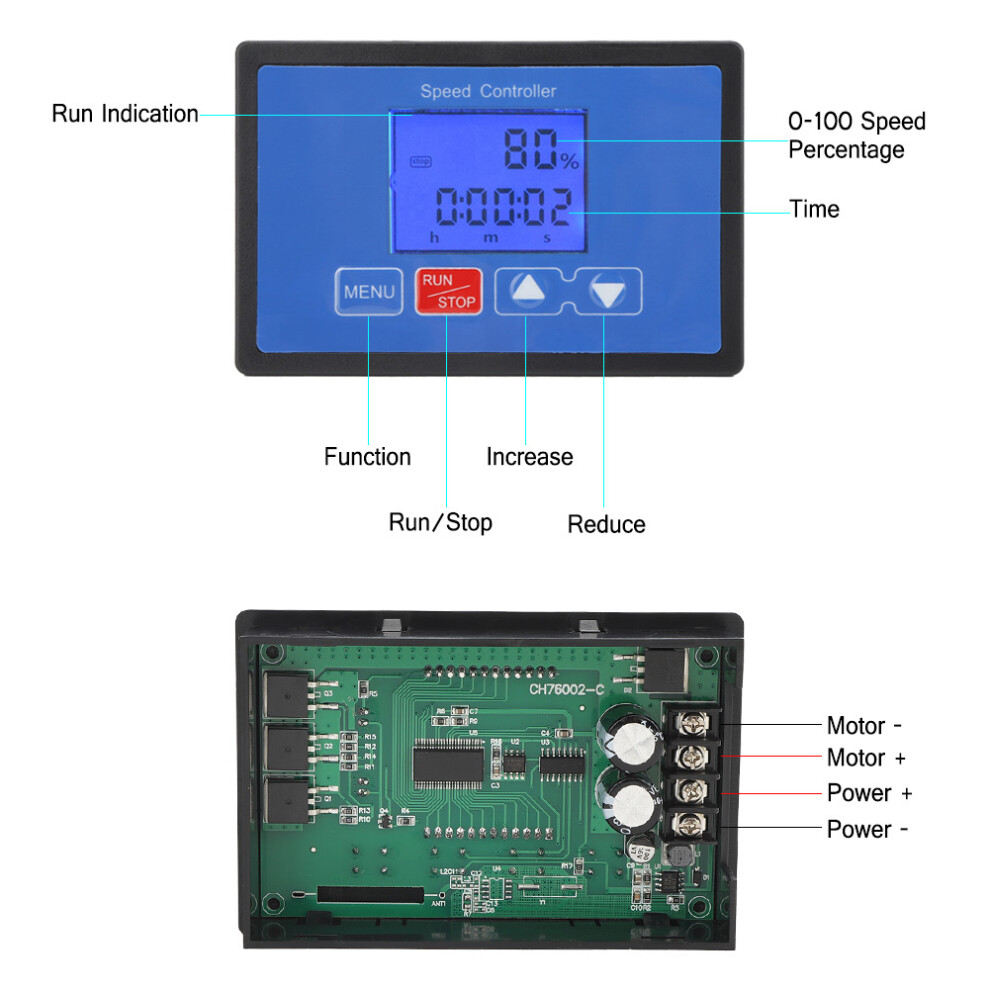

1、Backlight LCD screen displays working time and 0-100% speed percentage. 2、Can set slow run/stop time and automatic run/stop times. 3、The upper limit and lower limit of the speed can be set, change the speed by buttons rather than the potentiometers that is easy to damage. 4、Can set the total working time, the motor stops when the time is up. 5、Can set run time and stop time, repeatedly and automatically cycle run and stop.

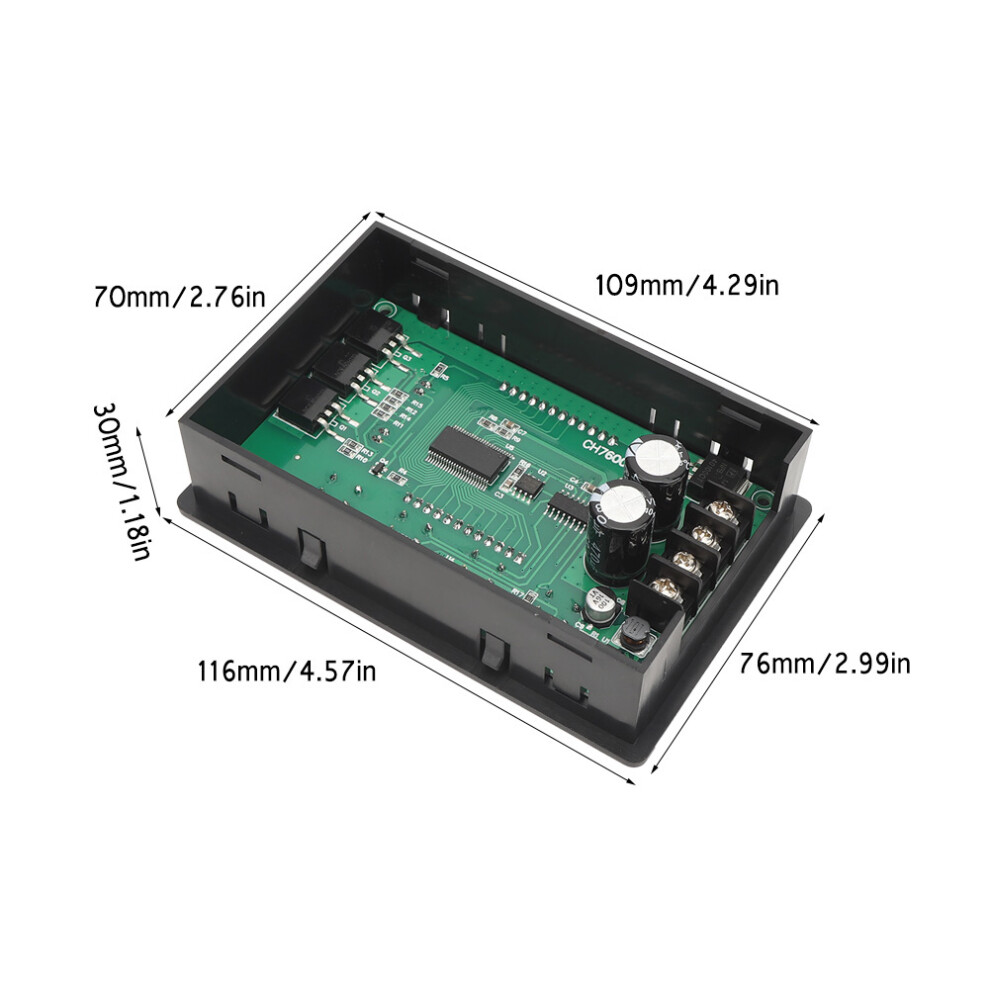

Item Type: DC Motor Speed Controller Instantaneous Current: 30A Continuous Current: 20A Speed Regulation Type: Current Regulation Speed Adjustment Method: Jog + - Wireless Remote Control: Not supported Timing: Yes Slow Run Slow Stop: Can be set Speed Digital Display: 0-100 percentage Speed Range: 0-100% Control Frequency: 15KHZ Connection Type: Fence type terminal Support Motor: Brush Motor Module Size: 116x76x30mm / 4.57x2.99x1.18in Mounting Size: 109x70mm / 4.29x2.76in Installation Method: Panel type Function: 1-2-3-4-5-6-7-8-9 function settings are as follows: Slow Run Time Setting Function 1: 000-100, slow start to 100% speed, adjustable time 0-10s, default is 1s. Slow Run Time Setting Function 2: 000-100, slow stop, adjustable time 0-10s, default is 1s. Speed Lower Limit Setting Function 3: 000-080, adjustable minimum speed 0-80% and less than the maximum speed setting value, default is 0. Speed Upper Limit Setting Function 4: 000-100, adjustable maximum speed 0-100% and greater than the minimum speed setting value, default is 100%. Acceleration/Deceleration Value Setting Function 5: 001 002 005 010 015 020 025, Each time the key increase/reduce is pressed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%. Motor Running Time Setting Function 6: 1s to 99h 59min 59s, default is 99h 59min 59s. Motor Stop Time Setting Function 7: 1s to 99h 59min 59s, default is 99h 59min 59s. Cycle Times Of Motor Run Stop Function 8: Adjustable 1-999 times, default 999 times With/Without Timing Selection Function 9: 0: Without, 1: With, Default 1 With



1 x Motor Speed Controller
