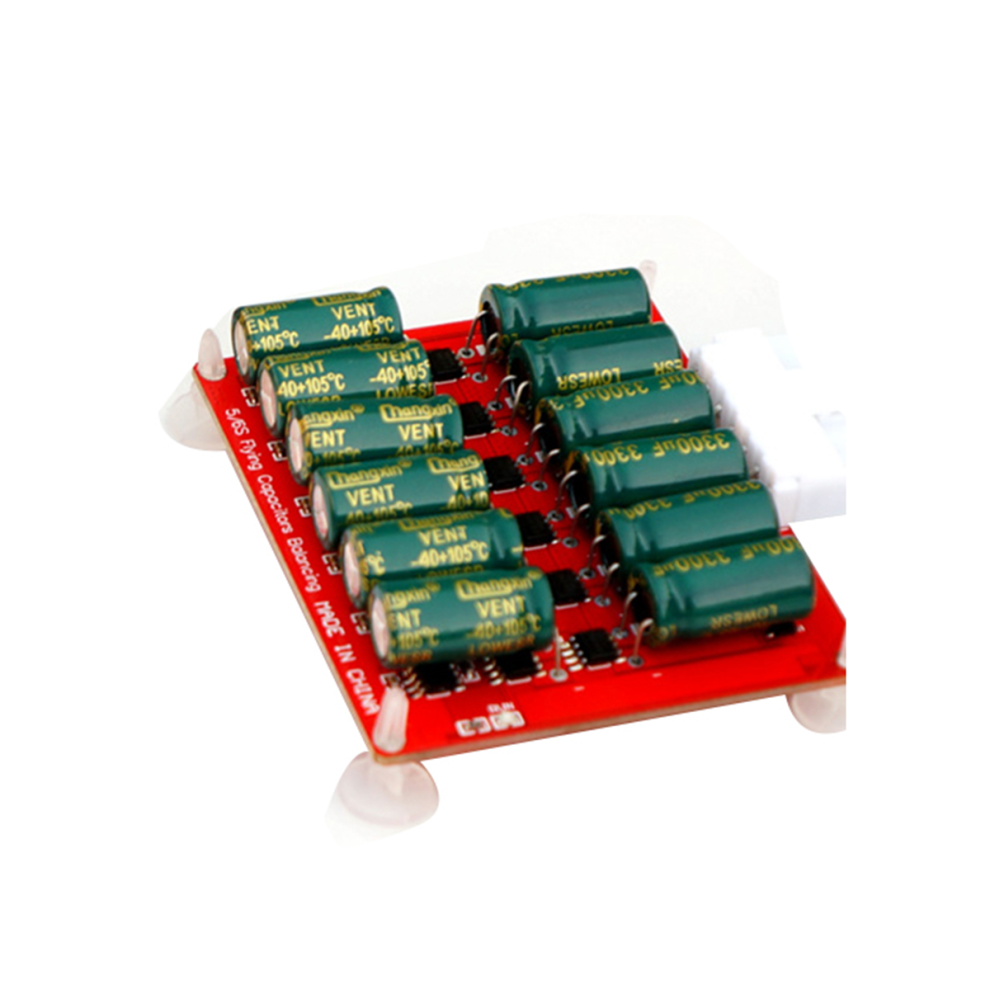

3A Whole Group Balancer Active Lithium Li-Ion Lifepo4 Battery Equalizer Energy Transfer Capacitor BMS Board-6S

3A Whole Group Balancer Active Lithium Li-Ion Lifepo4 Battery Equalizer Energy Transfer Capacitor BMS Board-6S Description

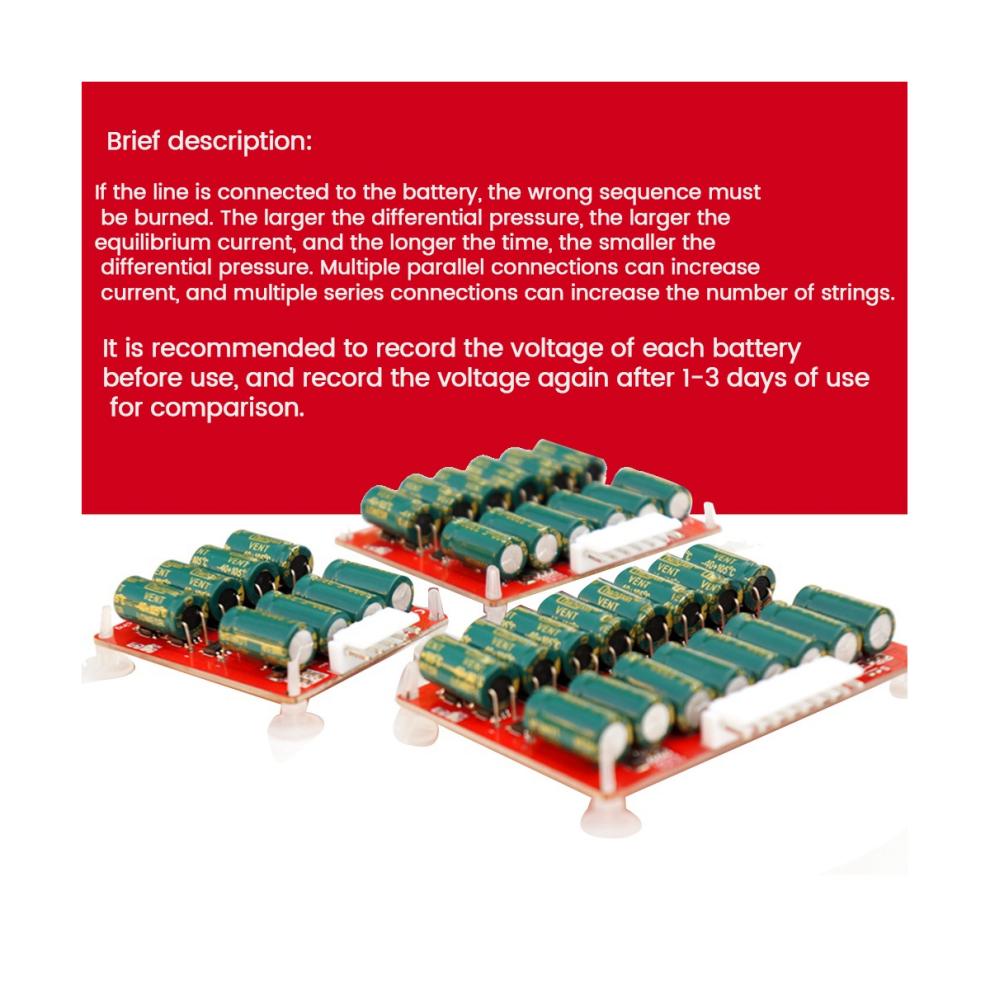

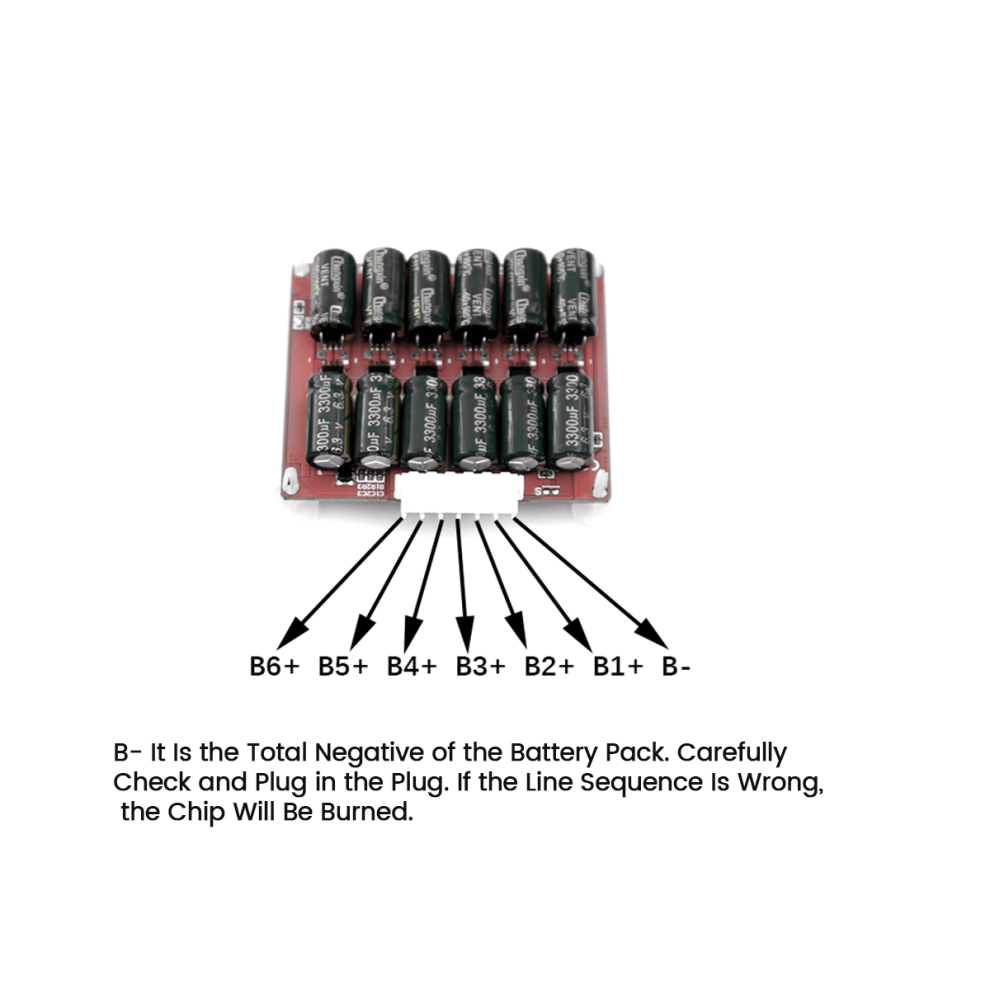

Brief description: 1. When the battery is connected by wire, the wrong sequence will burn. The greater the differential pressure is, the greater the equalizing current will be, and the longer the time is, the smaller the differential pressure will be. Multiple parallel connections can increase the current, and multiple series connections can increase the number of series.
2. It is recommended to record the voltage of each battery before use, and record the voltage again after 1-3 days of use for comparison.

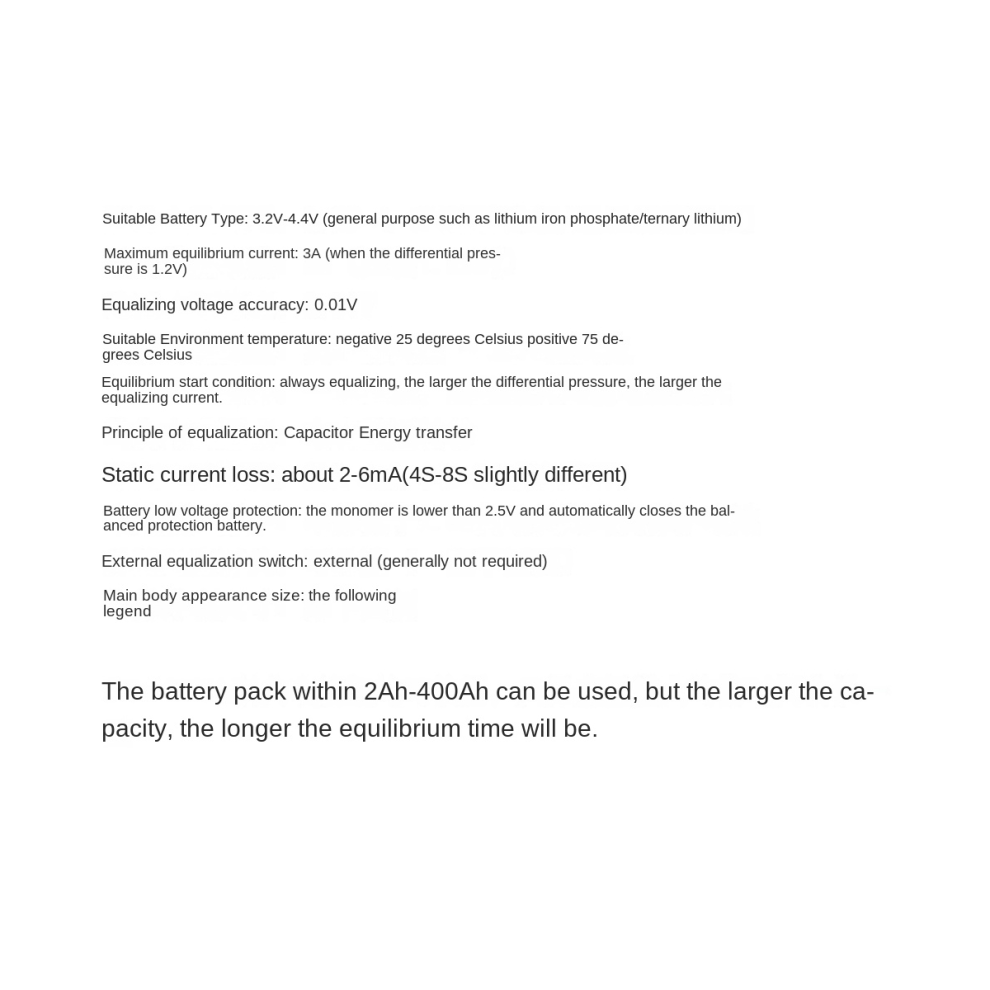

Specification:
Type: 6S
Suitable battery type: 3.2V-4.4V (lithium iron phosphate/lithium ternary)
Maximum equalizing current: 3A (at 1.2V differential pressure)
Equalizing voltage accuracy: 0.01V
Suitable ambient temperature: - 25 ? -+7525 ?
Equalizing starting condition: always equalizing, the greater the differential pressure, the greater the equalizing current

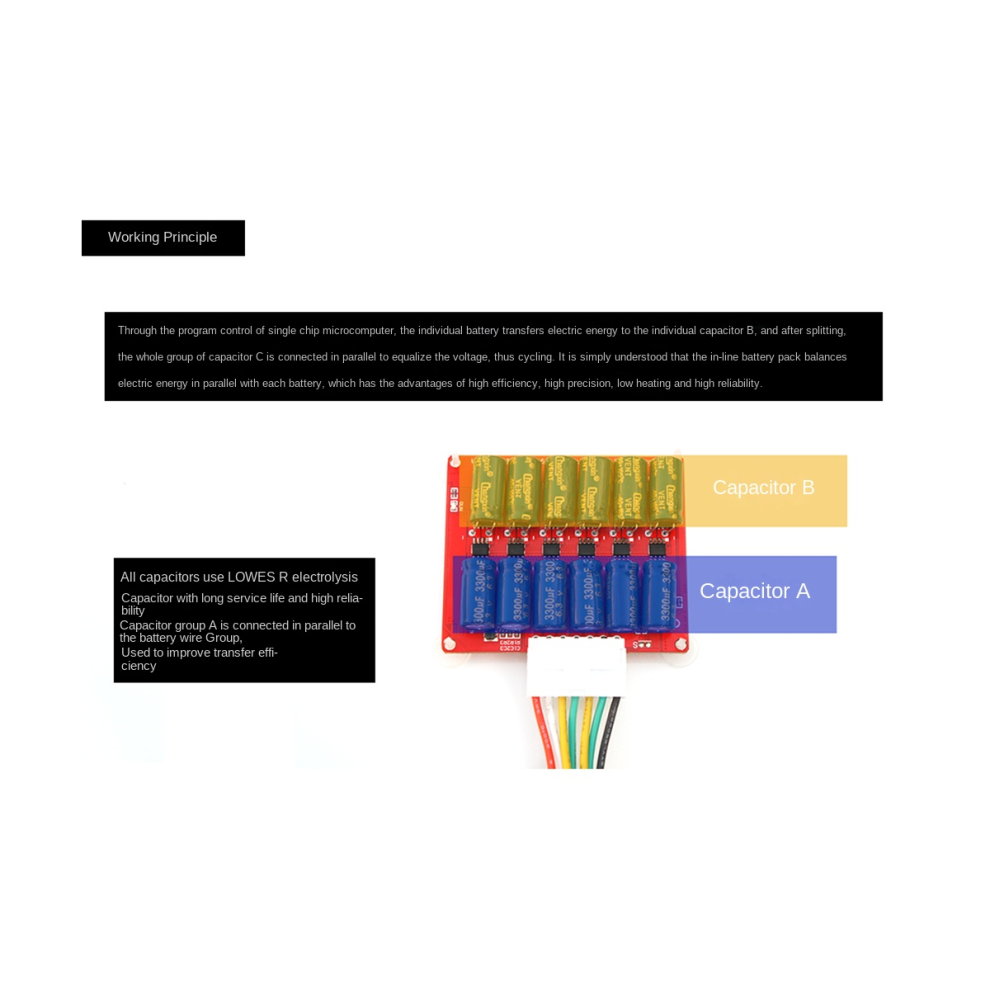

Principle of equalization mode: capacitive energy transfer
Static current loss: about 2-6mA (slight difference in 4S-8S)
Low voltage protection of battery: when the voltage of single battery is lower than 2.5V, it will automatically turn off the balanced protection battery

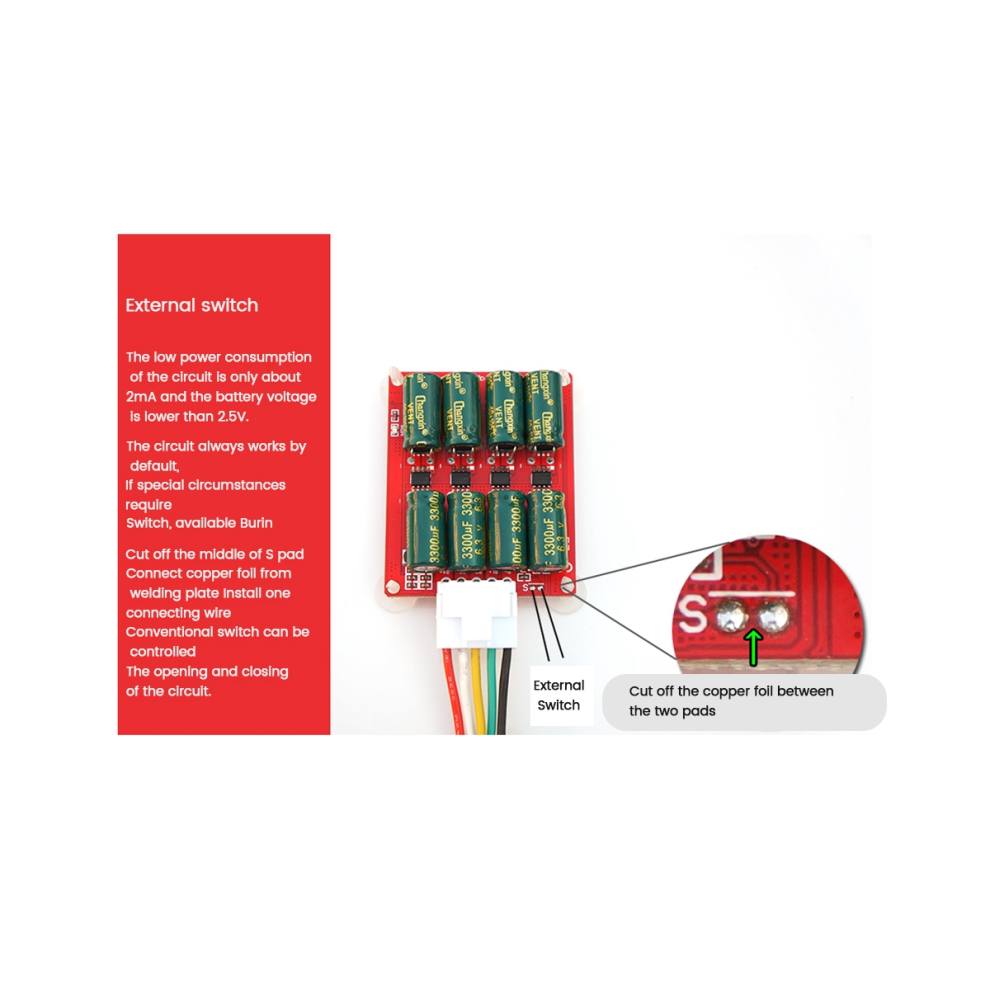

External equalizing switch: can be connected externally (generally not required)

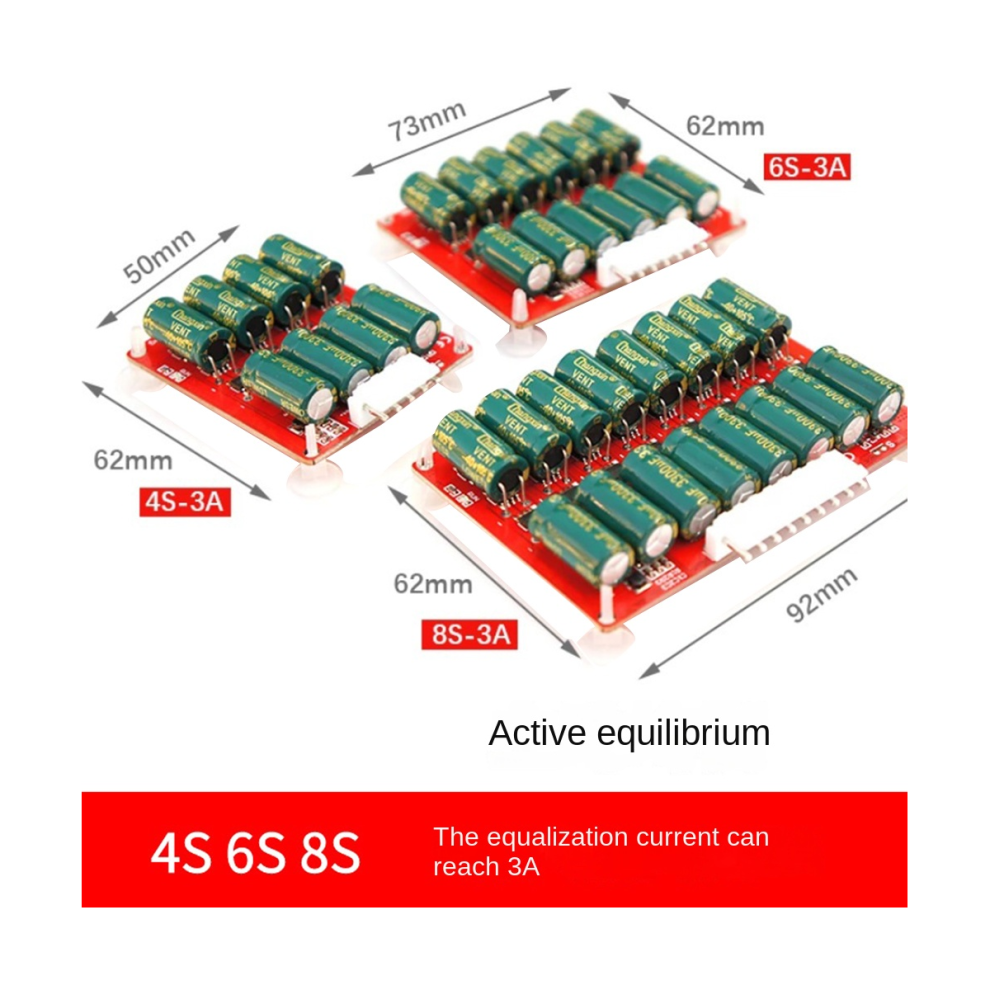

6S appearance dimension: 73 x 62mm
Note: The battery pack within 2Ah-400Ah can be used, but the larger the capacity is, the longer the equalization time will be
Material: PCB
colour: Red

Package Contents:
1 x Equalizer Energy Transfer Board
1 x connecting wires

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
