3X WYA-20 99C 102PSI 210F 0.7Mpa to Valve BSP 3/4 Inch Valve

3X WYA-20 99C 102PSI 210F 0.7Mpa to Valve BSP 3/4 Inch Valve Description

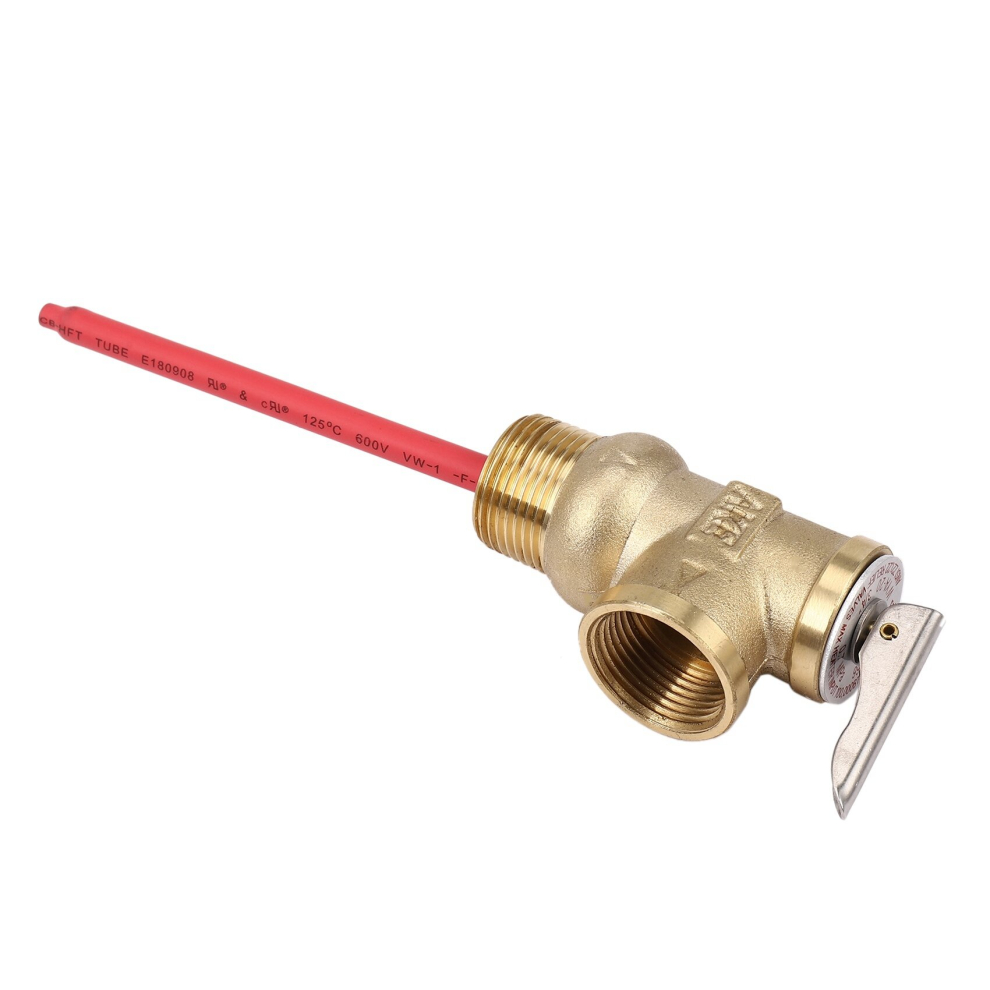

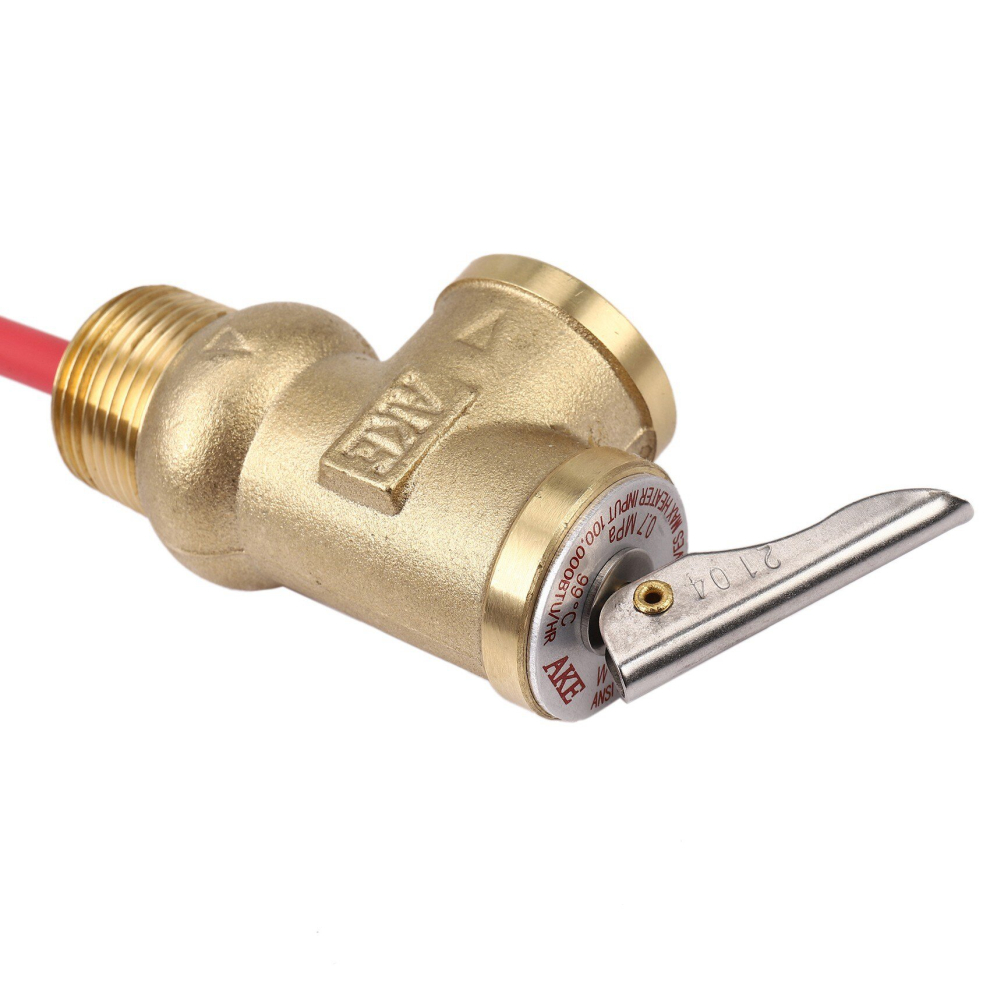

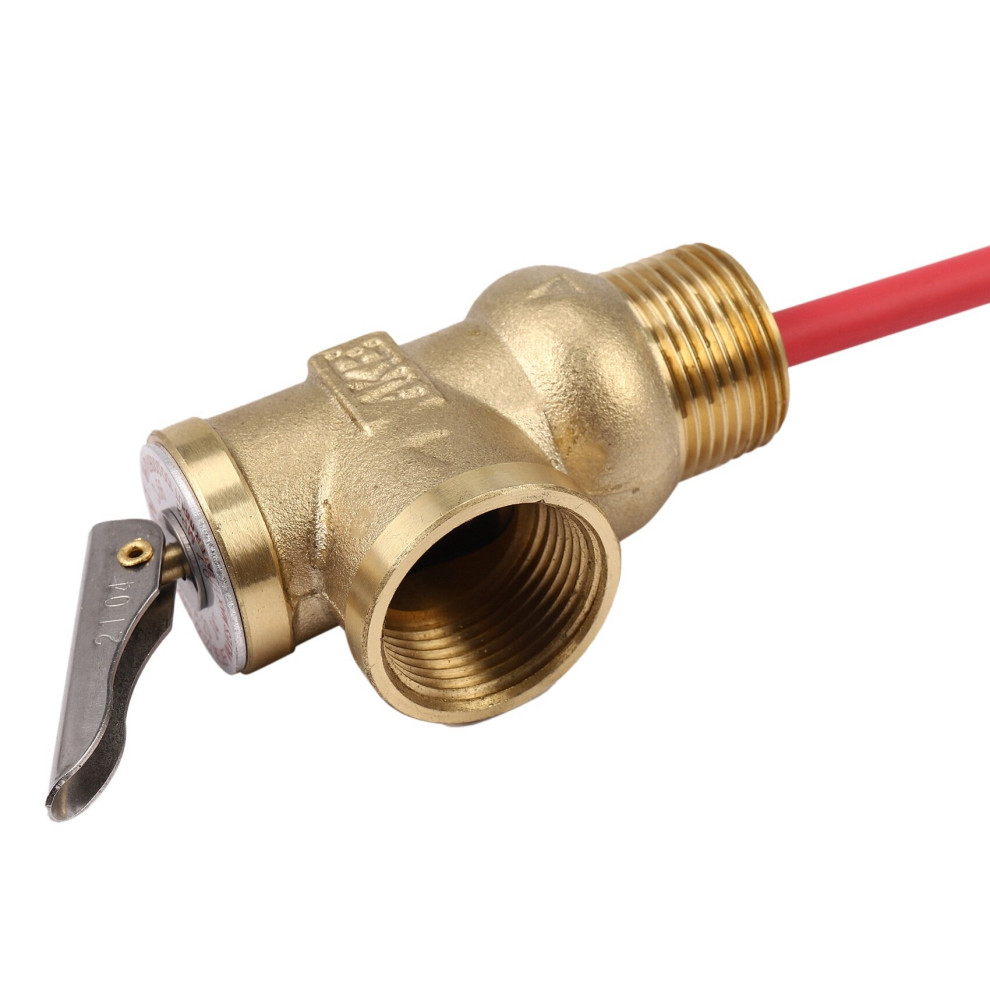

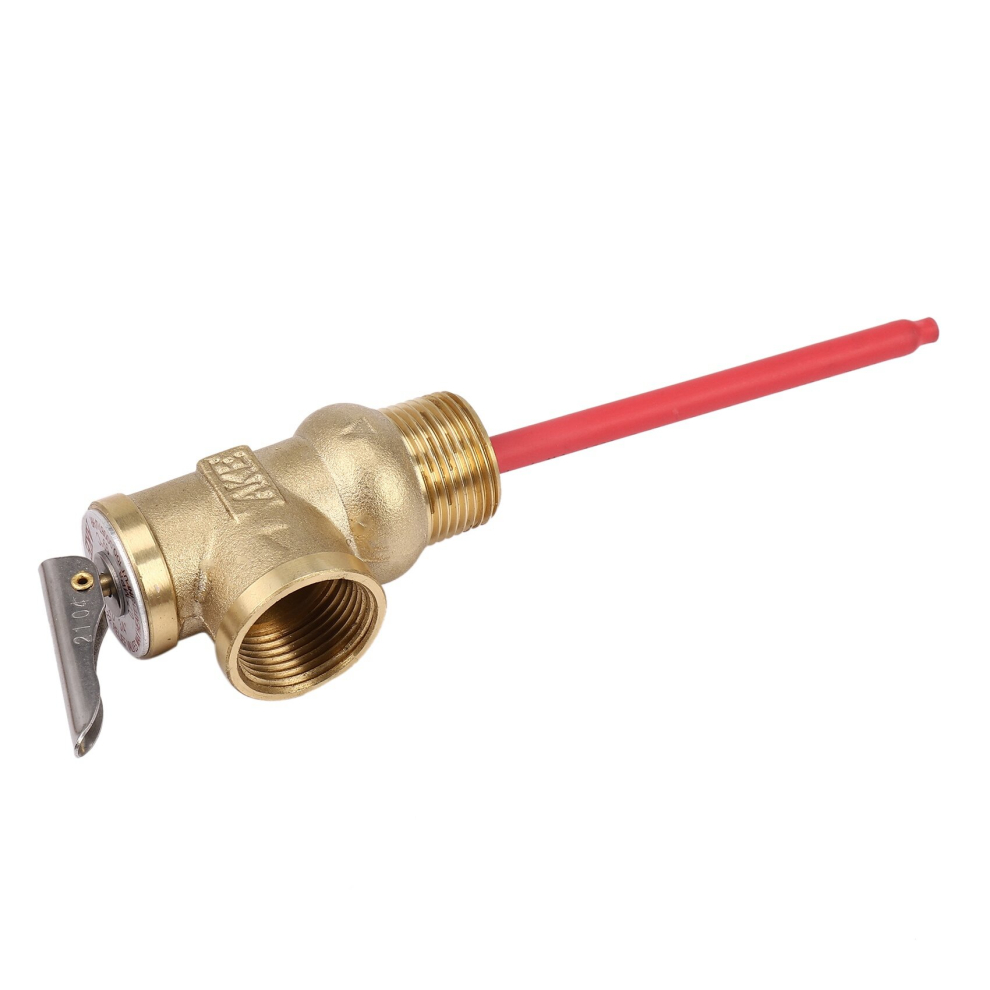

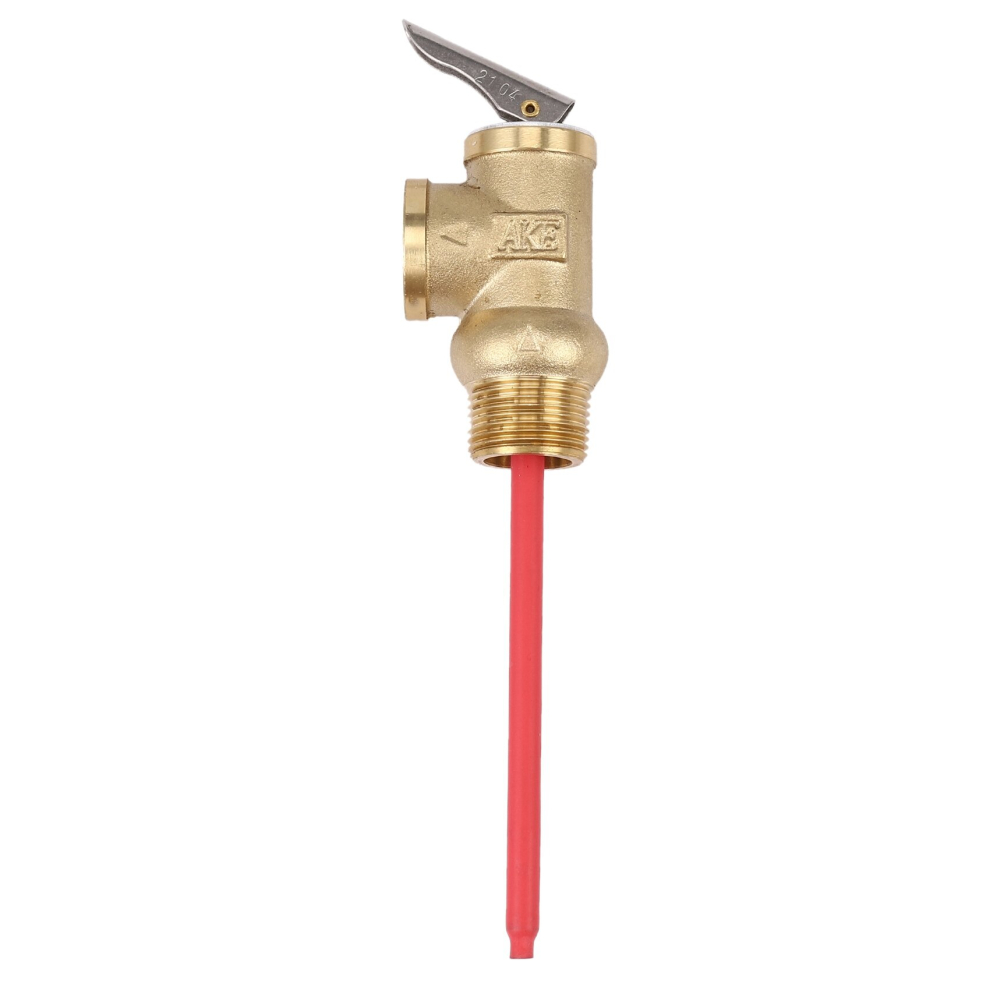

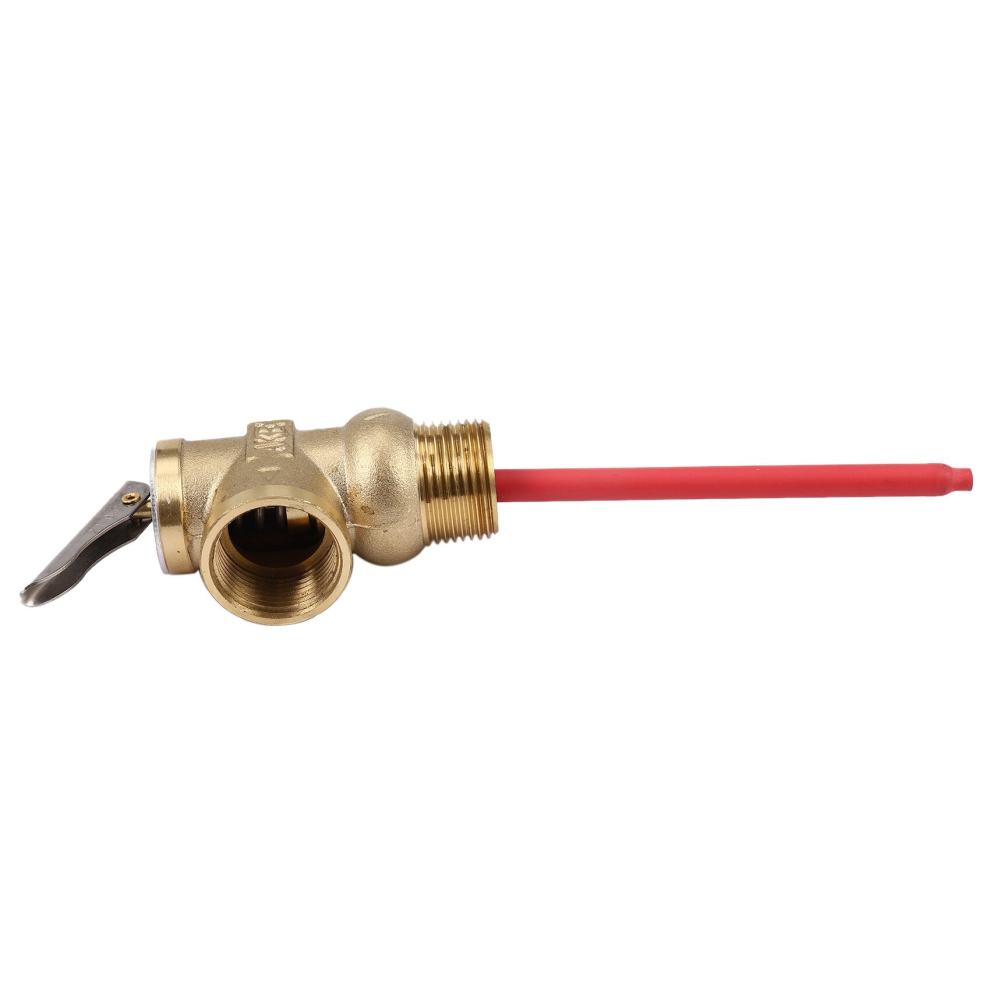

Introduction: Temperature and Pressure Safety Valves (T / P Valves)
0.7Mpa applies = 102PSI
Detailed introduction:
Temperature and pressure relief valves ( valves) are suitable for other sensitive heaters such as solar , electric heaters, heat pump , various heating functions (such as boilers).
The valve can automatically reduce the temperature and pressure, and has the dual safety protection function of temperature and pressure. It is the safety protector of the current pressure water heater.

Features:
Safety relief valves are commonly used to control the pressure in boilers in heating systems, hot water tanks stored in domestic hot water systems, and general water systems.
When the calibrated pressure is reached, the valve opens and, by venting to the atmosphere, prevents the system from reaching pressure levels that are dangerous to the components in the boiler and the system itself.
Calibration pressure: 0.1, 0.15, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 Mpa;
Deviation: When not more than 0.5Mpa, the deviation is 0.015Mpa, and when it is 0.5Mpa, the deviation is 3% of the rated pressure.
Technical specifications:
color:gold
material:
Body: 3/4 inch ; brass
Control spindle: brass
Closed hole: silicone gel gasket
Spring: SUS304 stainless steel
Nominal pressure: PN10
Temperature range: 5-110 C
Set pressure: 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 MPa
Set pressure deviation: -10%-5% set pressure
Set temperature: 994 degrees Celsius
Entrance and exit (middle): BSPP 3/4 x 3/4
Weight (g): 714g
size:83 x 42mm

Package Contents:

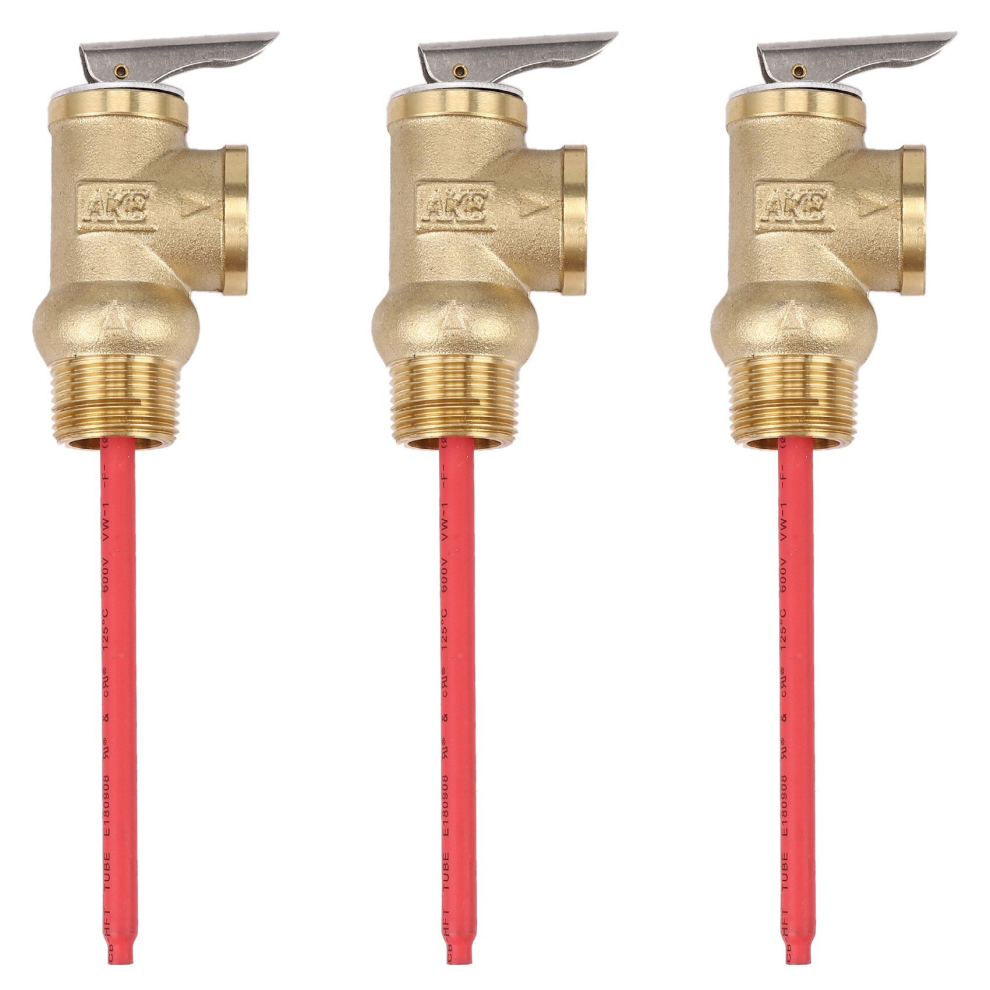

3 x Pressure Valve

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
