4 Set PowerCON Type A NAC3FCA+NAC3MPA-1 Chassis Plug Panel Connector

4 Set PowerCON Type A NAC3FCA+NAC3MPA-1 Chassis Plug Panel Connector Description

Withstand Voltage:250V
Withstand Current:20A
Contact Resistant:Less than ohm
Lifetime:More than 1000
colour:blue

Material:plastic

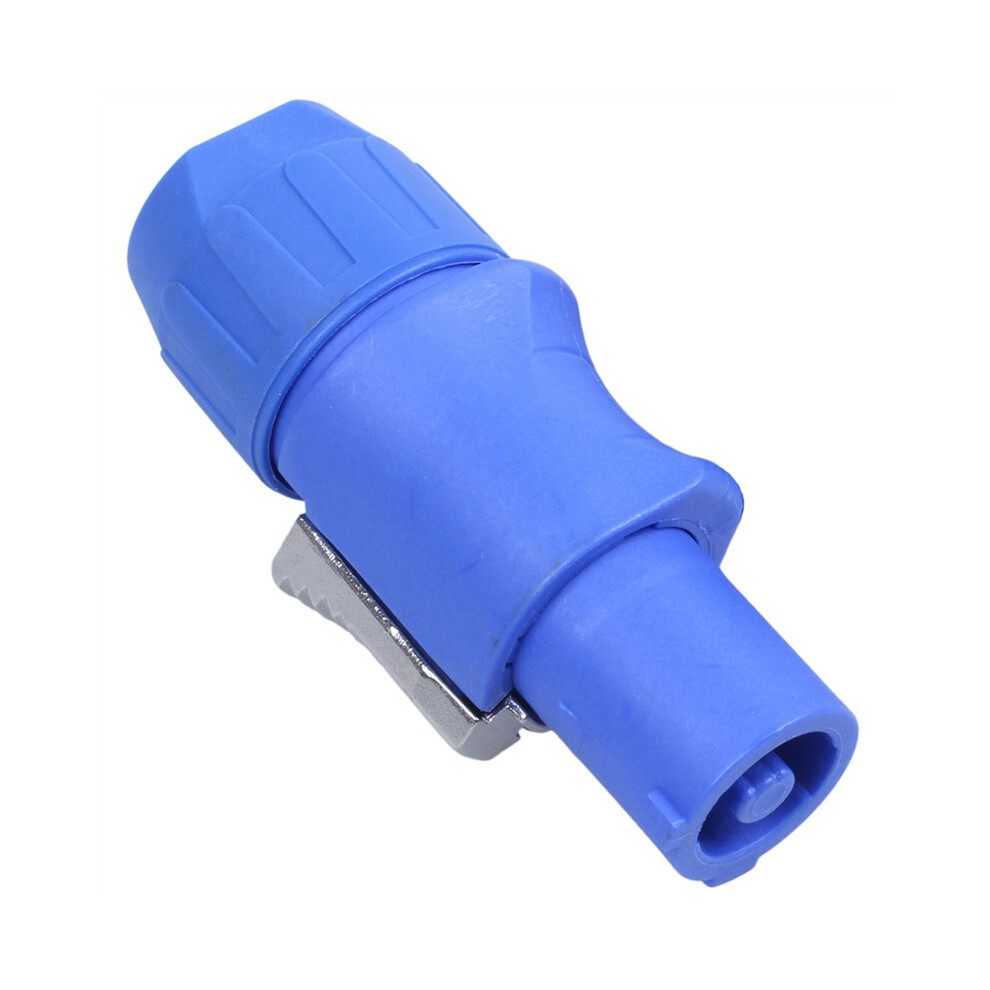

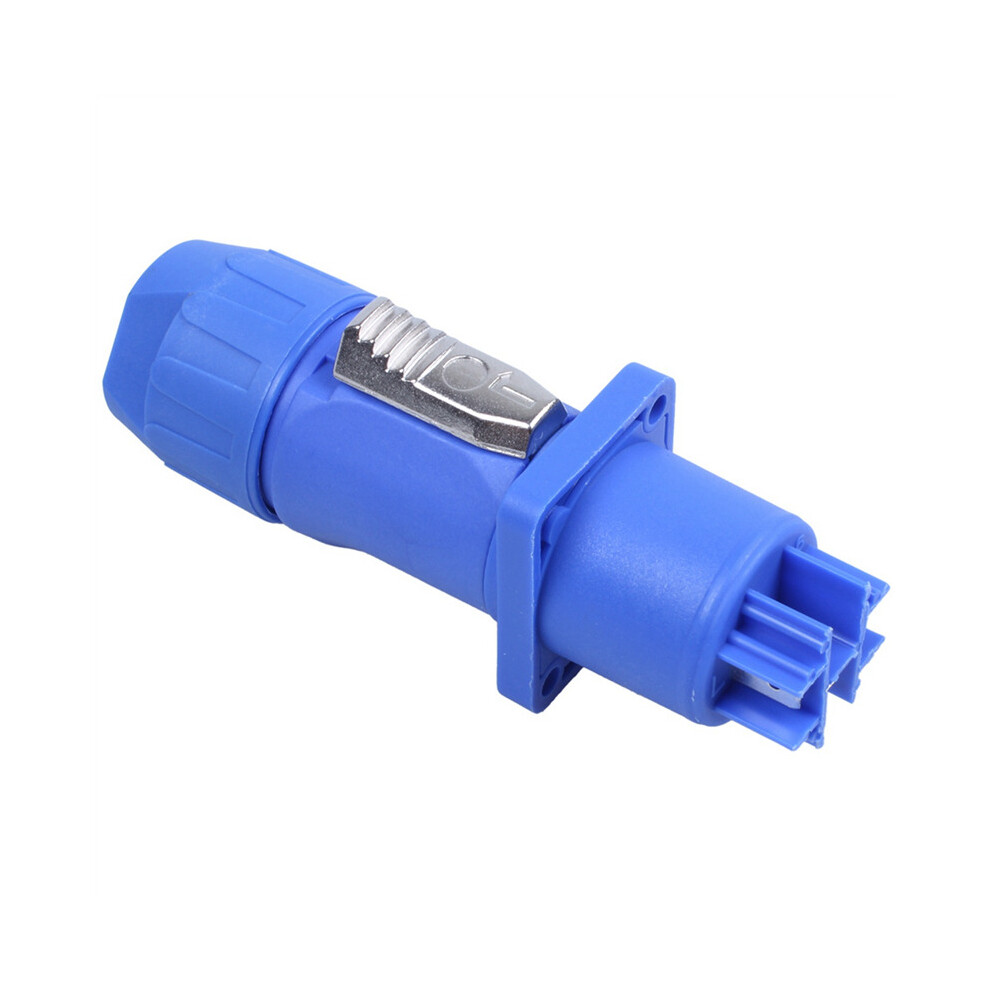

NAC3FCA PowerCON Power In Type A Cable Mount Connector , A-type for power-in, screw terminals
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to a safe power connection.
Attention: The powerCON is a connector without breaking capacity, . the powerCON should not be connected or disconnected under load or live!
Type A plug and socket is for power IN to a device

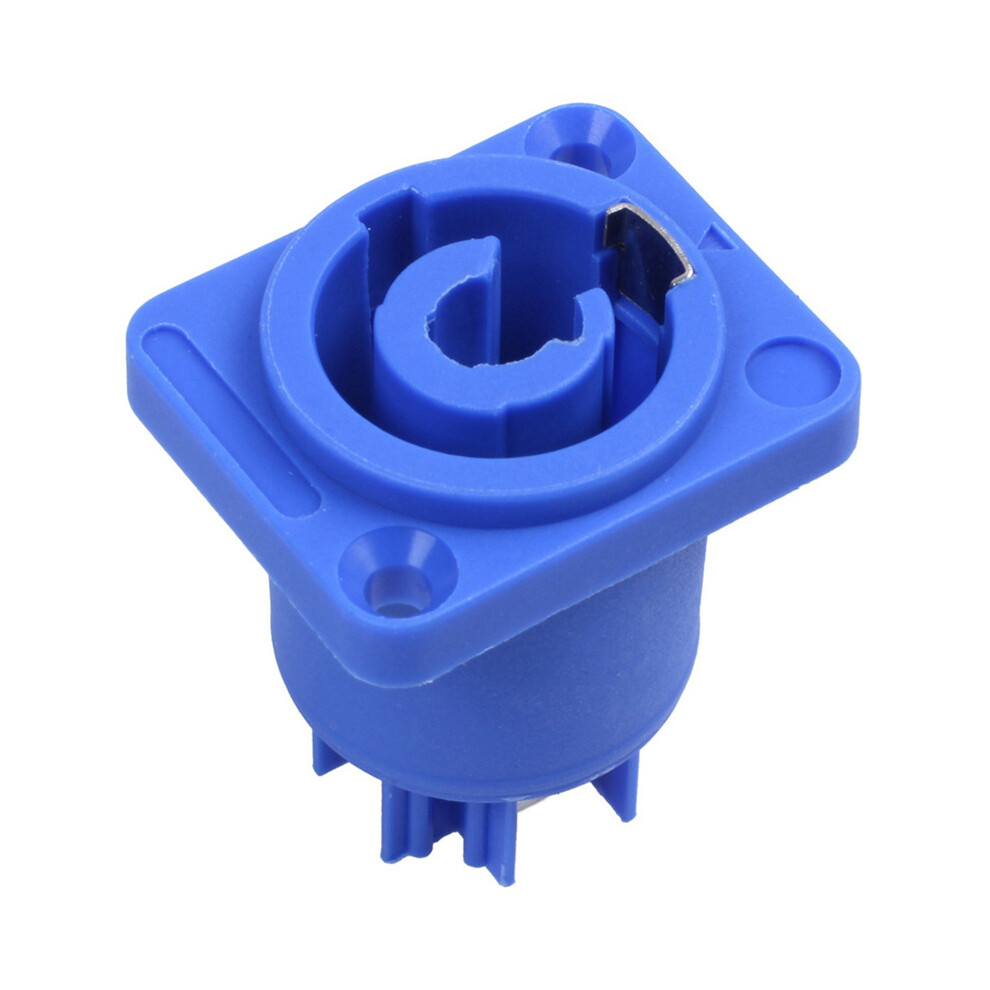

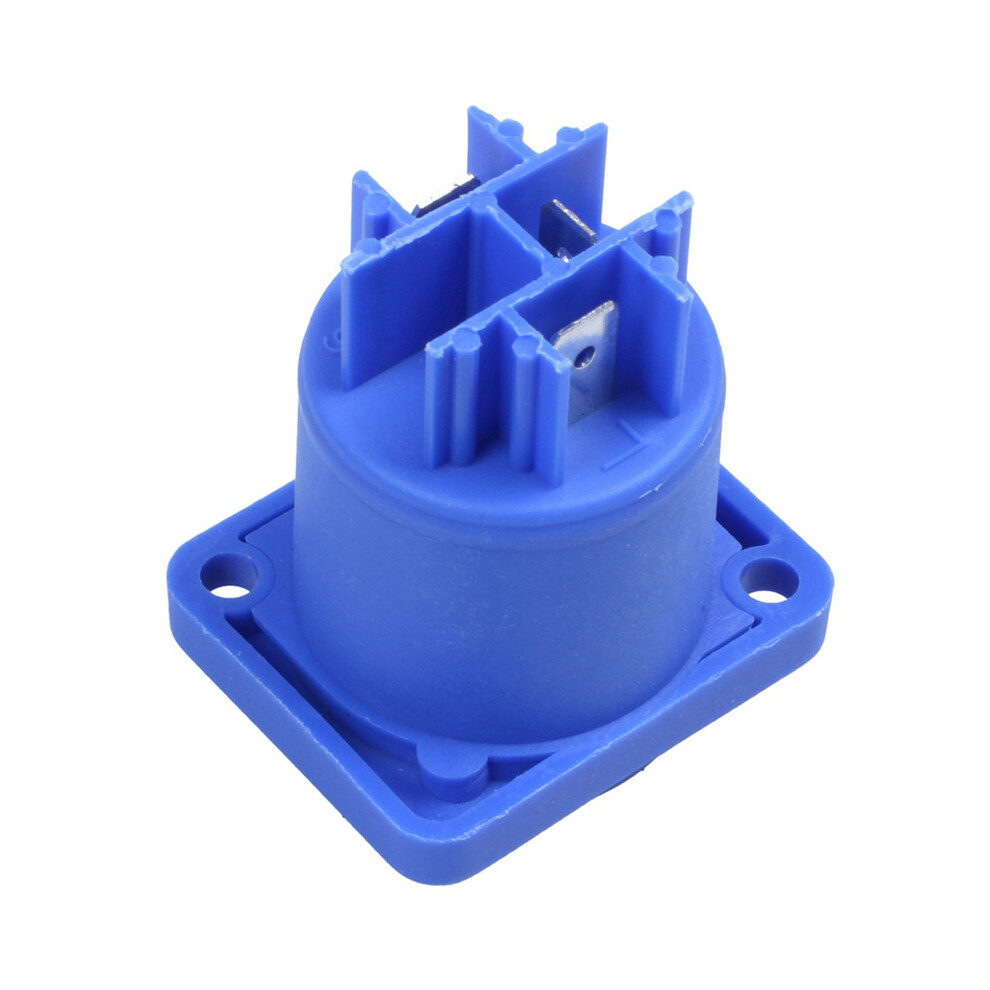

NAC3MPA-1
Powercon offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards. The series offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the Speakon' twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current Speakon' connectors).
Cable connectors have screw terminals (max. wire size 4mm), panel connectors have ' 4.8 x0.5mm 'spade' terminals. NAC3MP panel connectors have plain mounting holes and are airtight.
This means it is impossible to produce a short circuit with correctly wired connectors.

Package Contents:

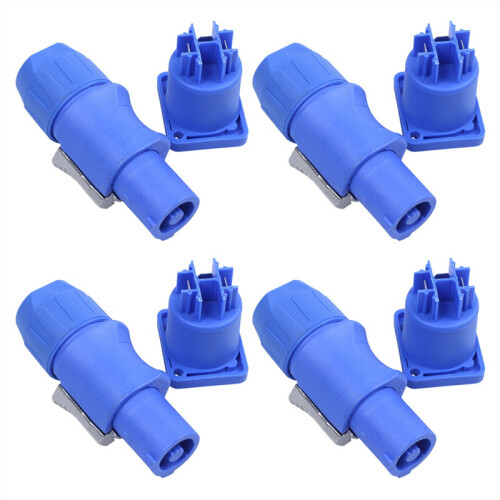

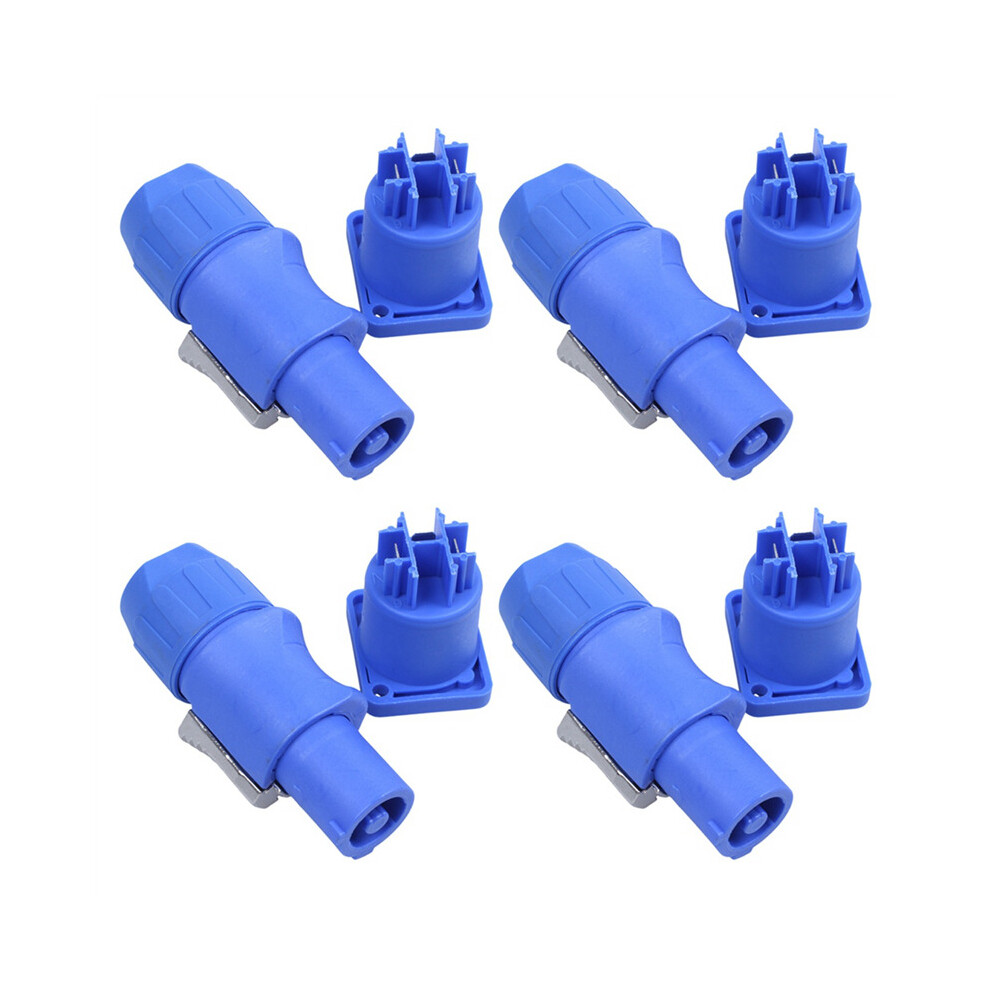

4 set x NAC3FCA + NAC3MPA-1 plug (8pcs)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
