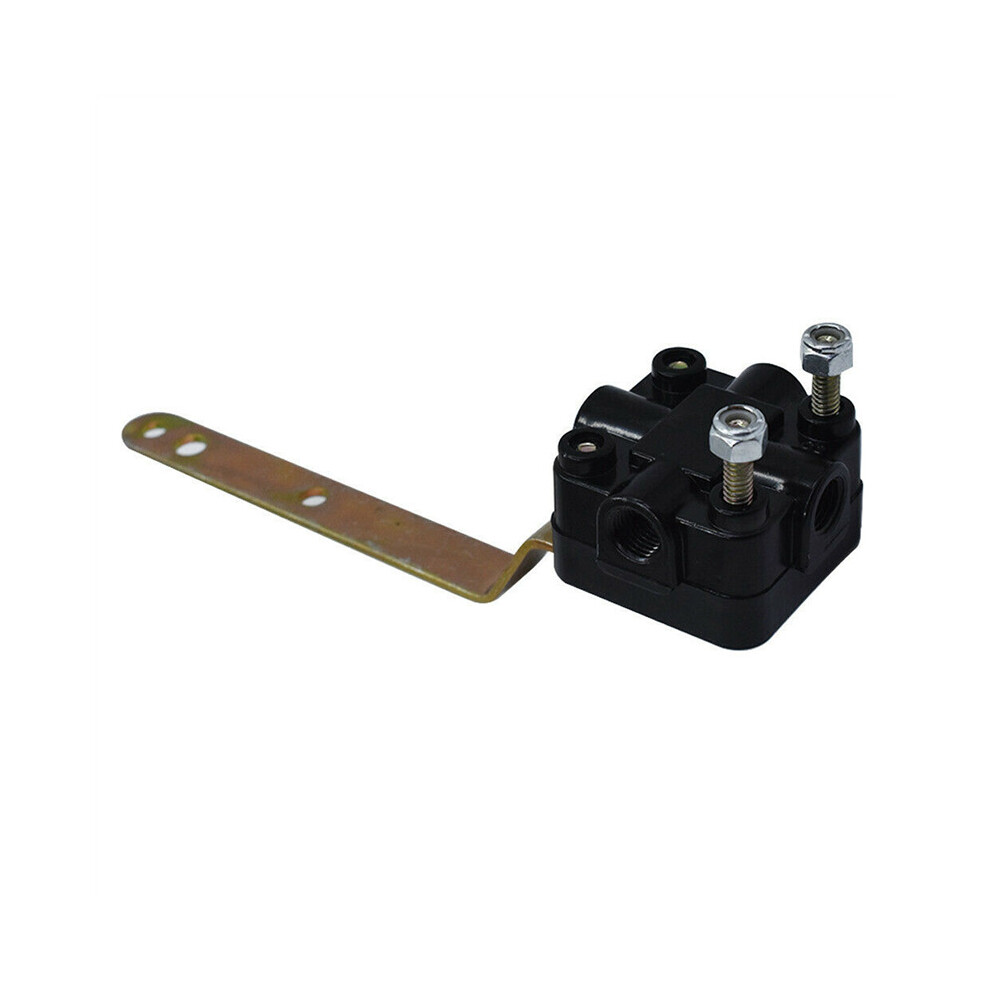

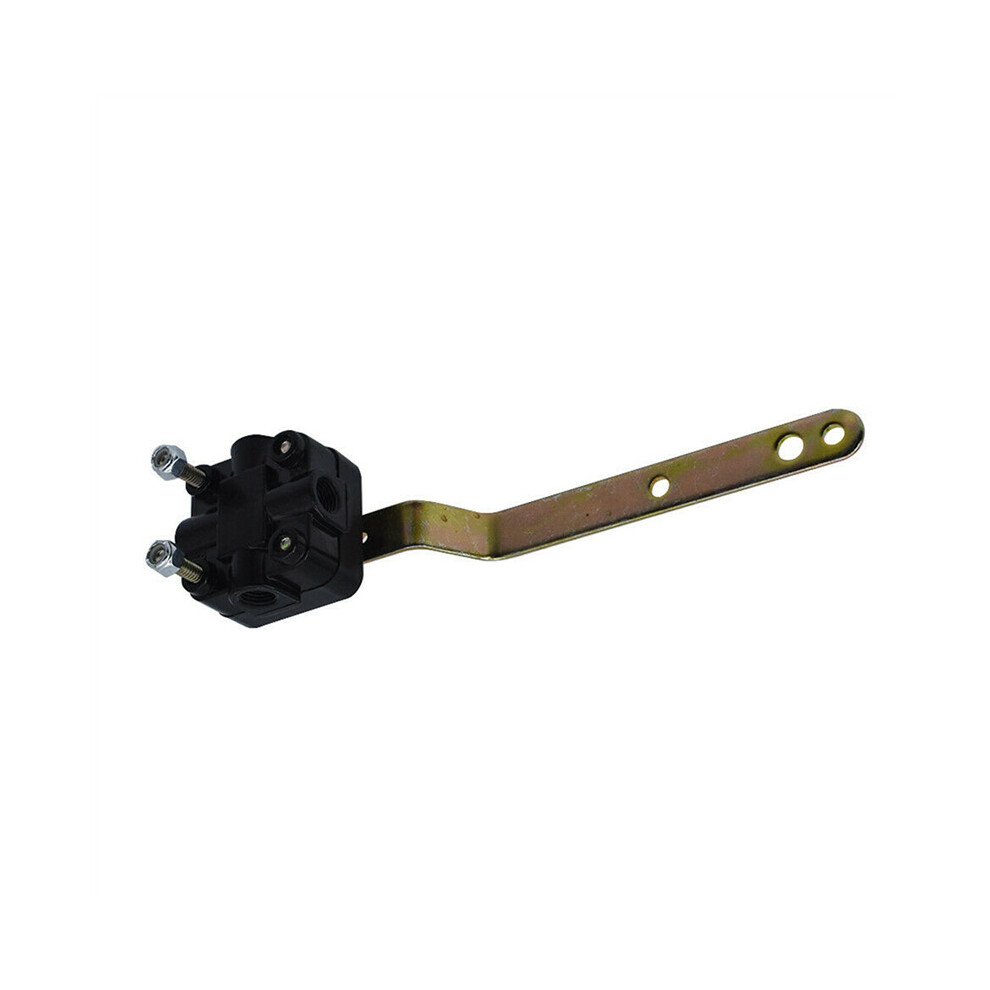

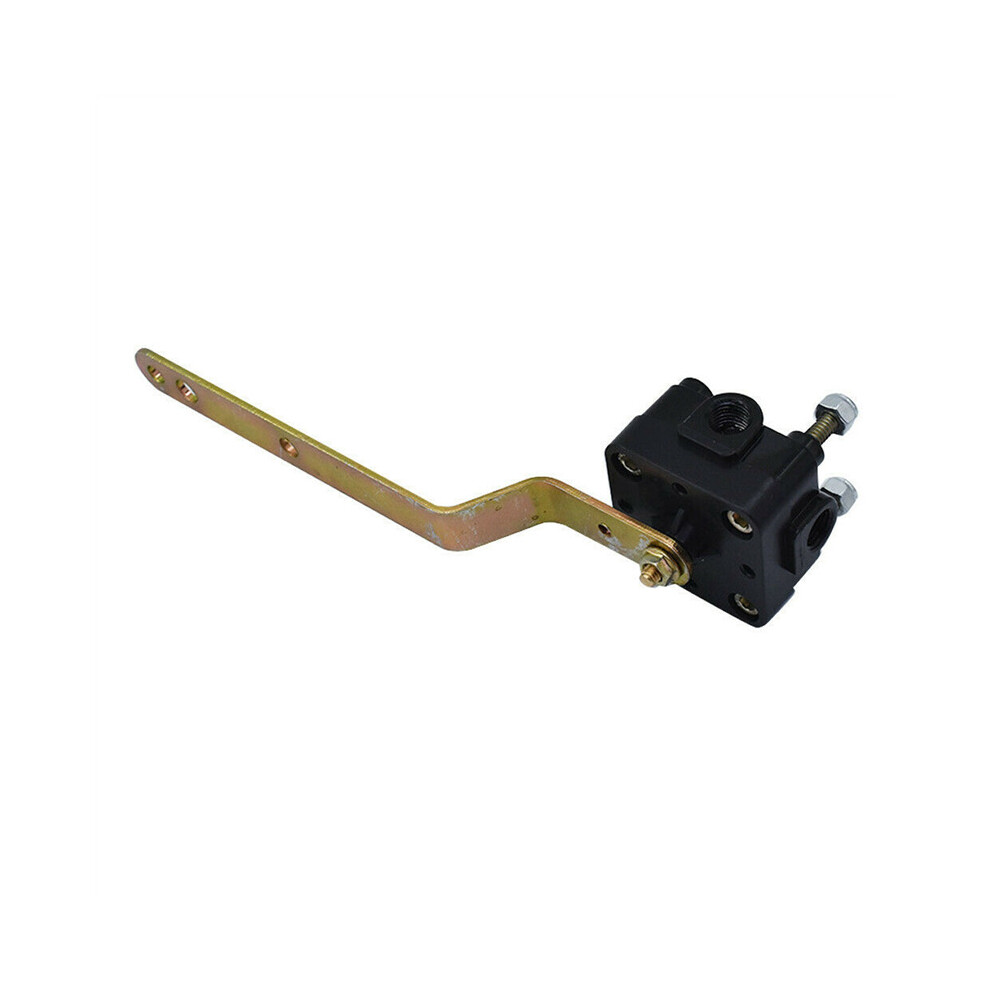

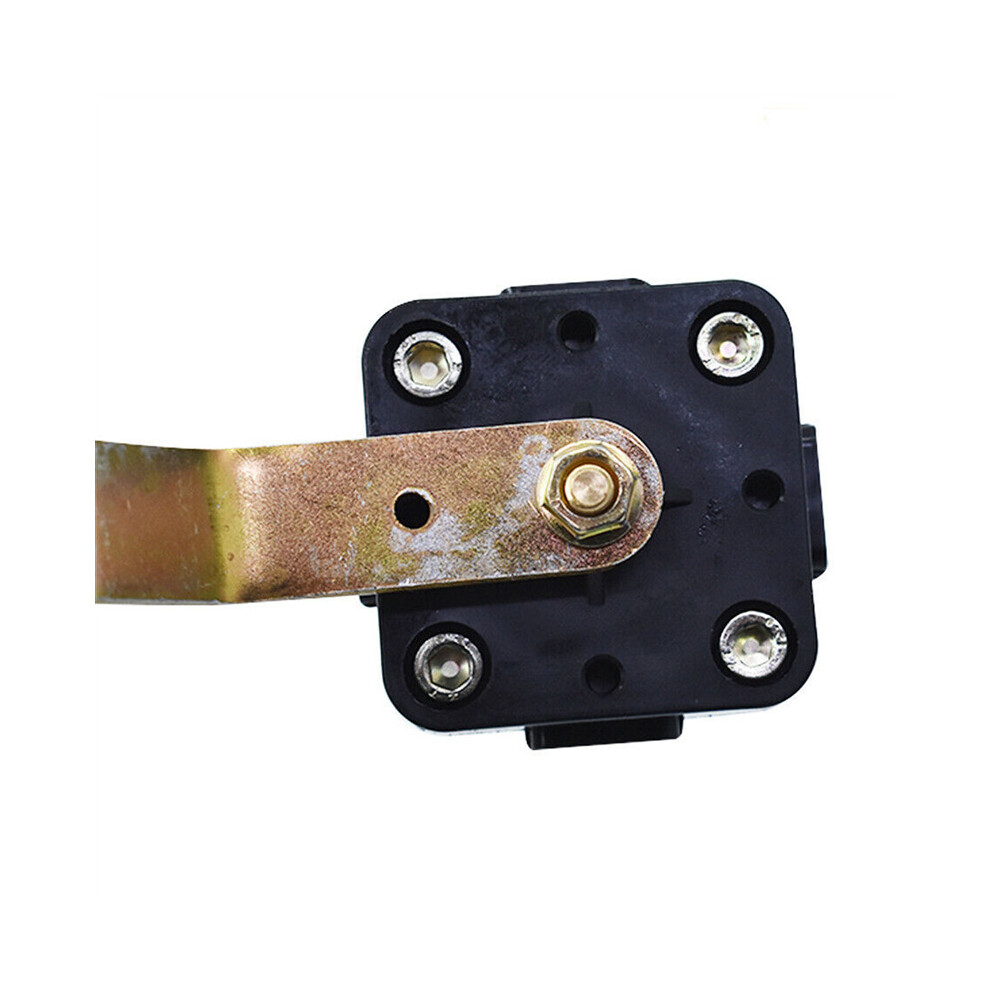

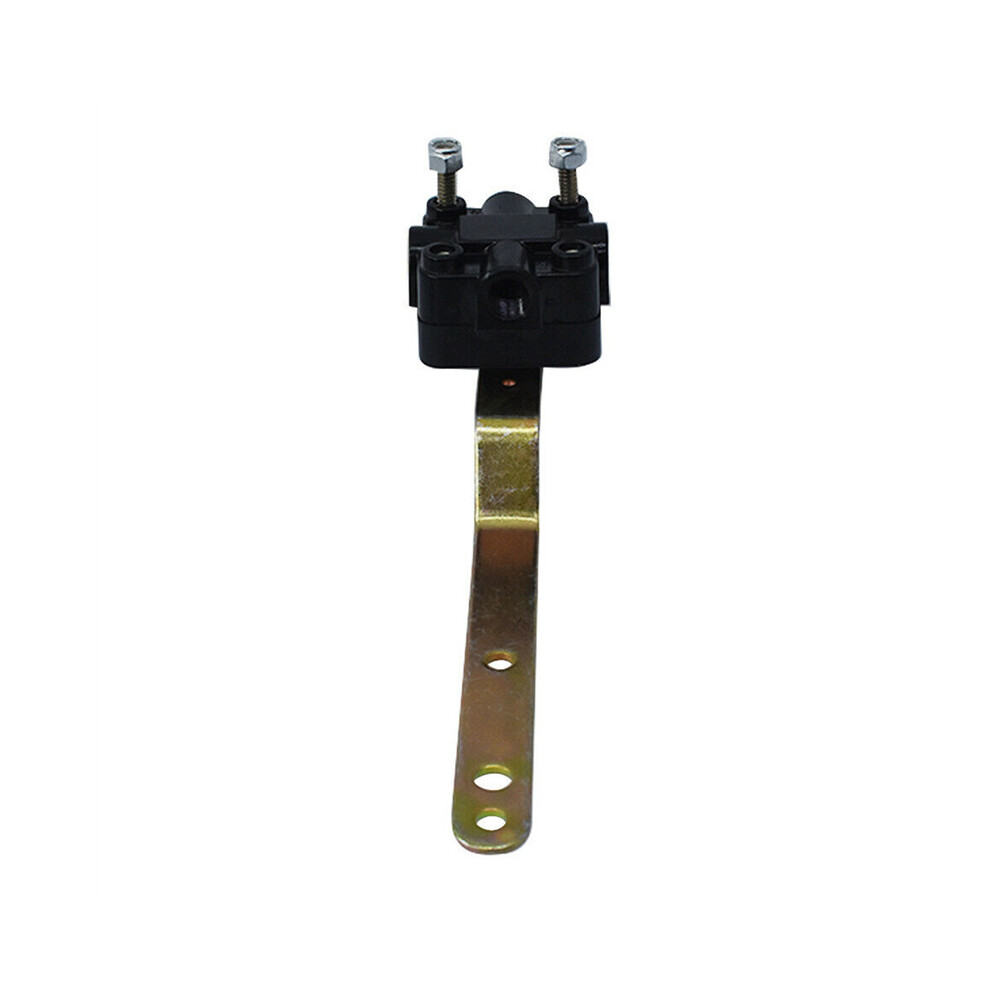

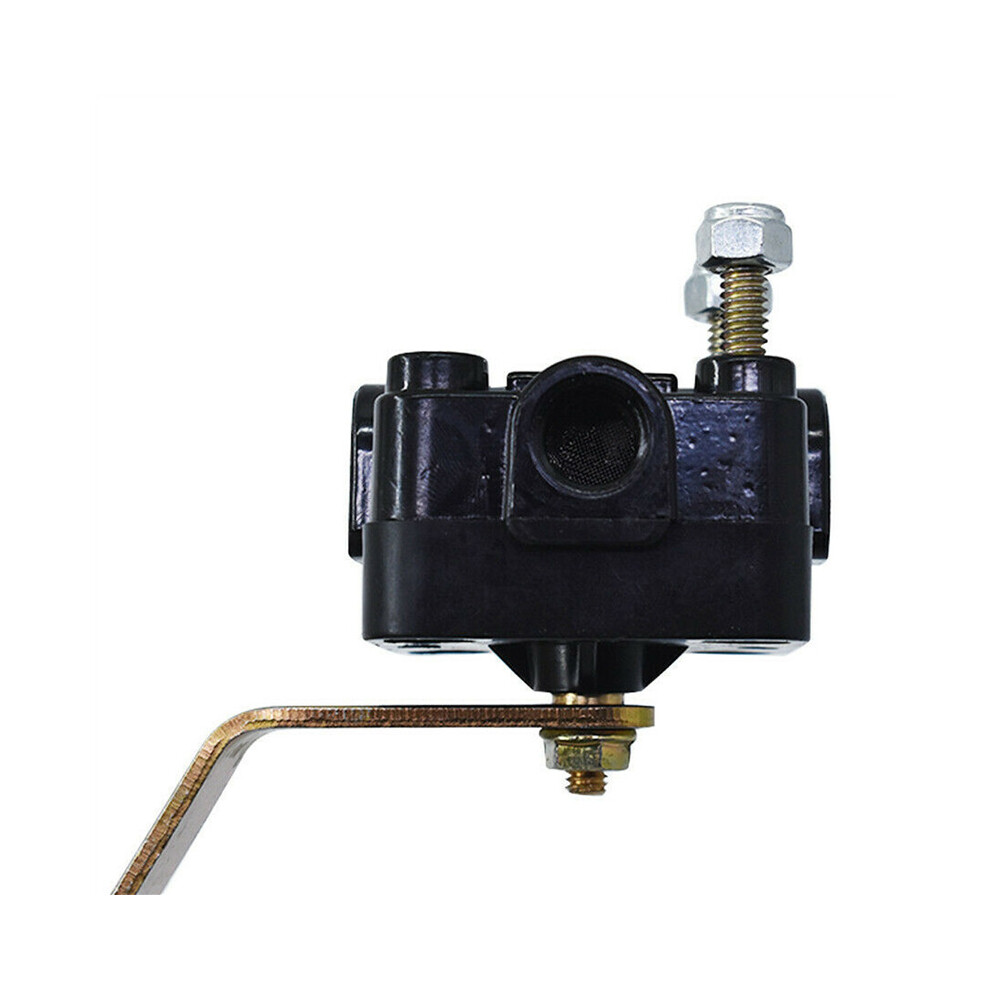

52321-Q120A Leveling Height Control Valve with 1/4 Inch NPT VS227 for Truck Trailer

52321-Q120A Leveling Height Control Valve with 1/4 Inch NPT VS227 for Truck Trailer Description

Replace Part Number: VS-227, 53321-Q120,52321-Q120A

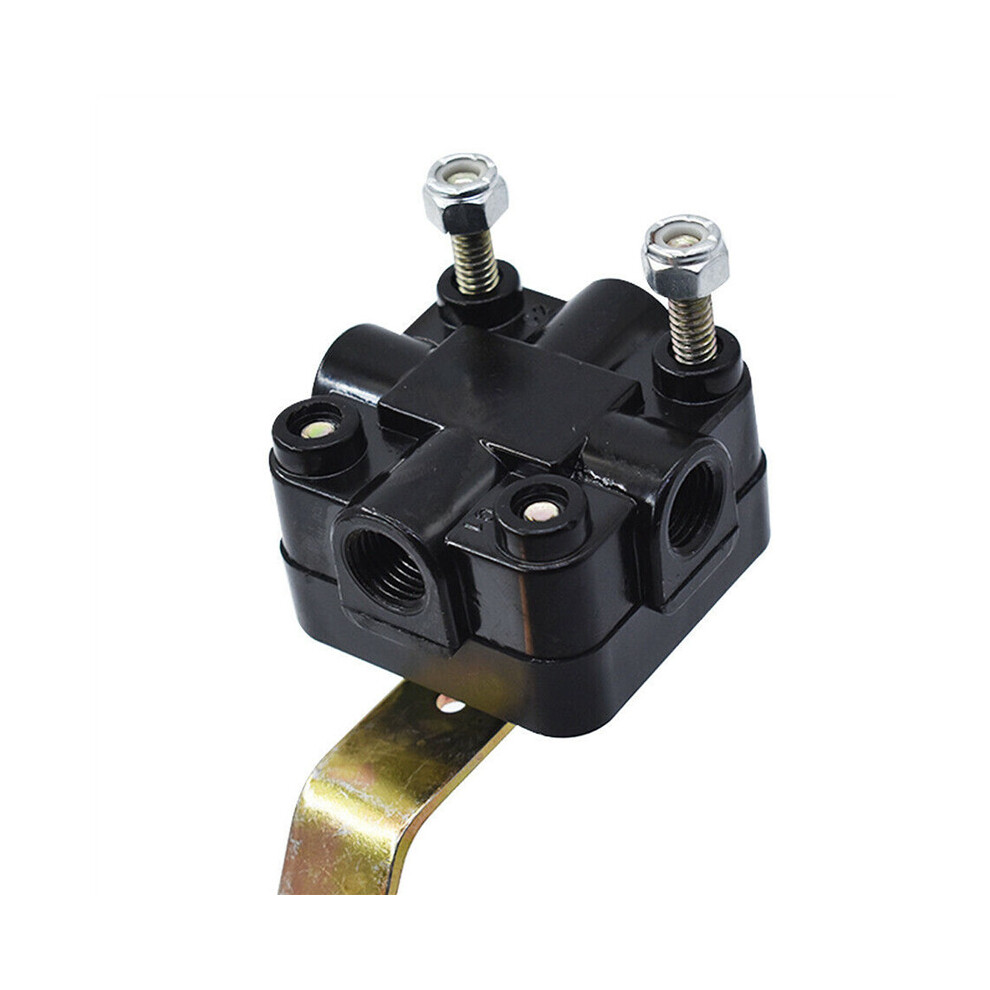

Inlet Port: NPT1/4
Max Working Pressure: 1.2Mpa
Mounting Hole Centre: 38mm
Mounting Thread: 1/4-20UNC

Fit for: All Hendrickson Suspension Applications,
All 1980's Through Current Neway Trailer Air Suspensions,
Most Other Trailer Air Suspensions.
Installation Recommendations:
When Not Exceeding The Maximum Movement Angle of 45 ,
The Length Ratio L / A Should Be Less than = 1.2. The Length L Should Be Between 175 and 295 mm.
If A Shorter Yaw is Used, The Height Valve Will Generate A Large Air Consumption.
Neway suspensions will have to be measured from the bottom of the frame to the center of the axle.
This is because they have an 8 1/2 inch, 10 1/2 inch and 17 1/2 inch hanger height.
Material: Metal
colour: black

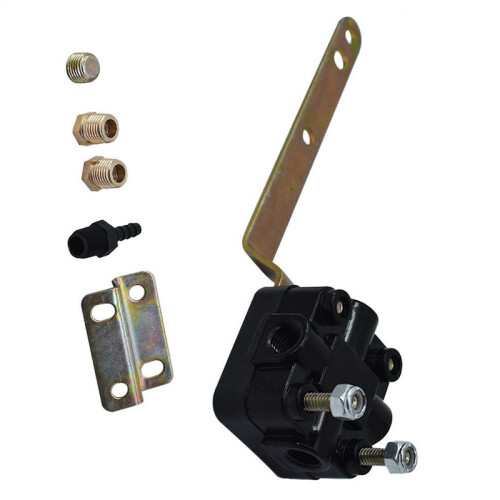

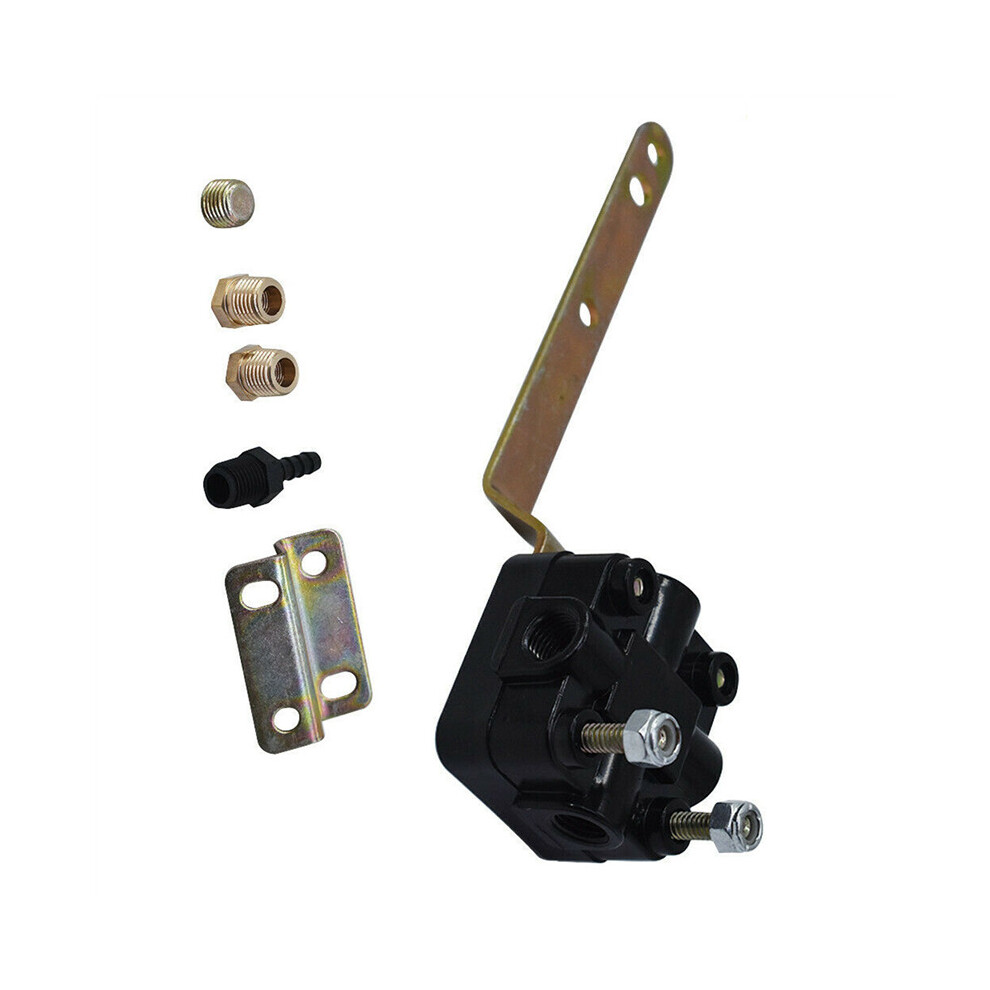

Package Contents:
1 set x Air Height Leveling Valve

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
