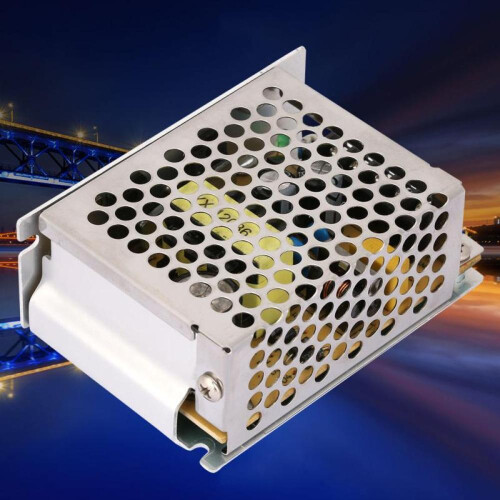

5a 12v Ac/ Voltage Converter Regulated Switch Power Supply For Led

5a 12v Ac/ Voltage Converter Regulated Switch Power Supply For Led Description

Specification: Weight: 130g/4.6oz Model: HS-60-12 output voltage: 12V Output voltage tolerance: 1% Rated output current: 5A Output current range: 0 ~ 5A noise: 100 mVp-p Stability of incoming line: 0.% Load stability: 0.% output power: 60W Efficiency: 85% voltage adjustable range: 10% Input voltage range: 100 ~ 240VAC47 ~ 63Hz; 120-370 VDC Input current: 2A/115V 1A/230V Shock current: cold starting current 30A/115V, 60A/230V Leakage current: < 3.5ma /240VAC Overload : 105% ~ 150%; Type: cut off output; Reset: automatic recovery Overvoltage : 115%-135% High temperature :; Temperature coefficient: + 0.03% / (0 ~ 50 ) Start, rise and hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC Seismic resistance: 10 ~ 500Hz, 2G 10min, /1 cycle, 60 minutes in total, each- Pressure resistance:; Between input and output: 3KvAC input and housing; 1.5kvAC output and housing; 0. KvAC Isolation resistance: Between the input and output, the input and the , the output and : 500 VDC / 100 Ω Working temperature and humidity: - 10 ~ + 60 , 20% ~ 90% RH Storage temperature and humidity: - 20 ~ + 85 , 10% ~ 95% RH Size: 85 * 60 * 34mm / 3.3 * 2.4 * 1.3in Package List: 1 Supply Regulated Switch; Label: Yes
