Genuine Mk4 Single Lnb Digital Universal Satellite Lmb For Sky+ Hd Freesat Vk1X

Genuine Mk4 Single Lnb Digital Universal Satellite Lmb For Sky+ Hd Freesat Vk1X Description

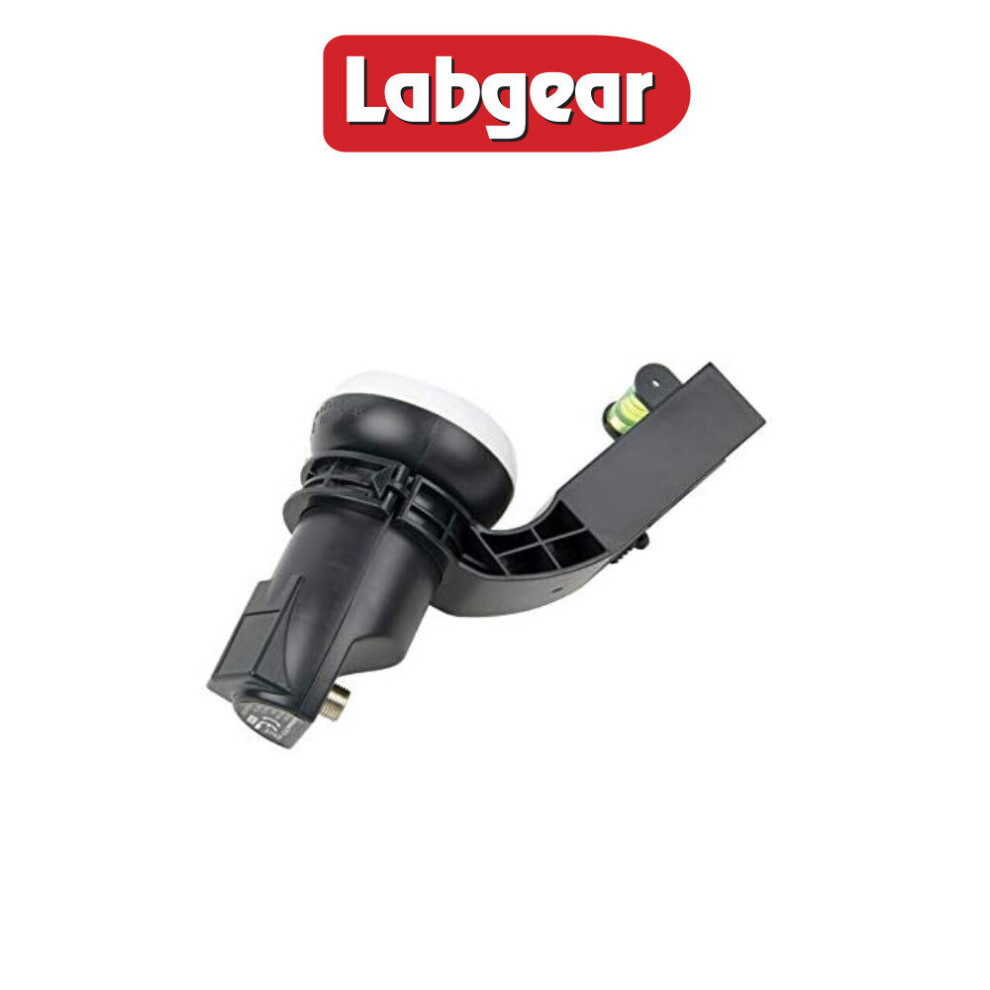

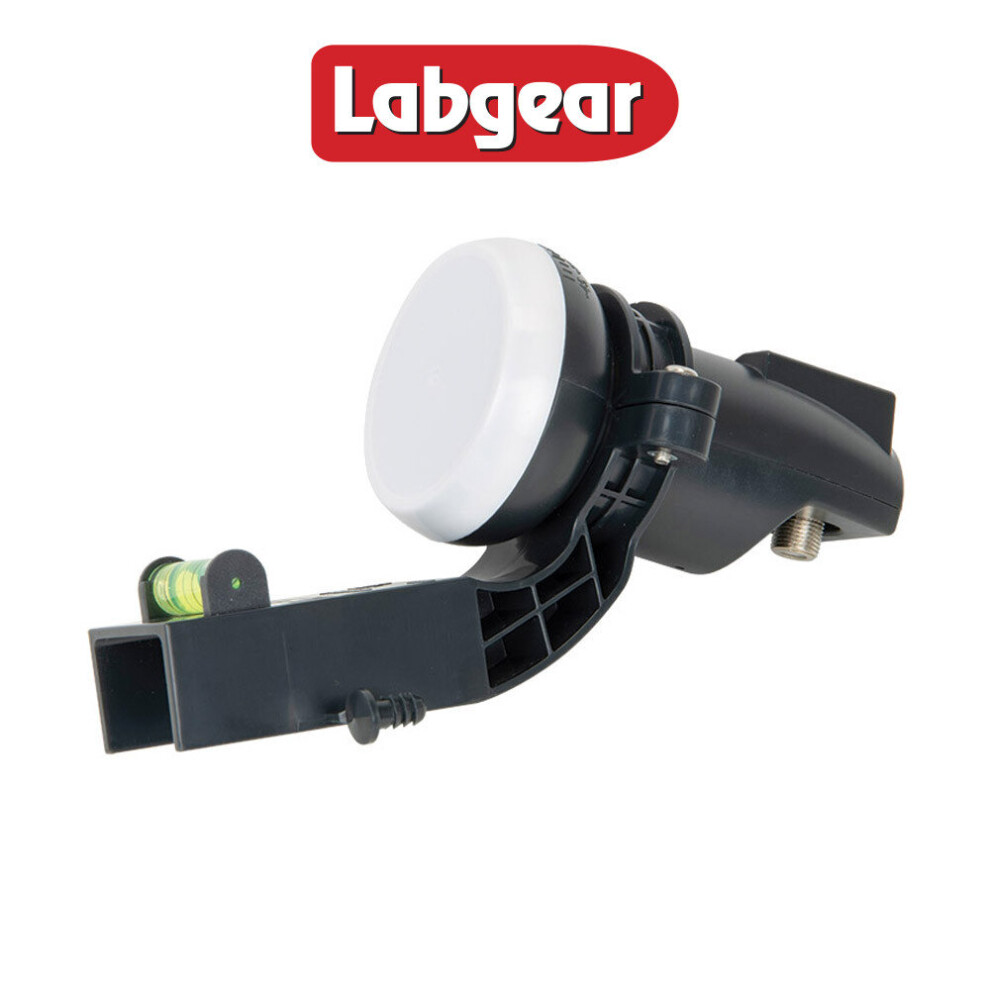

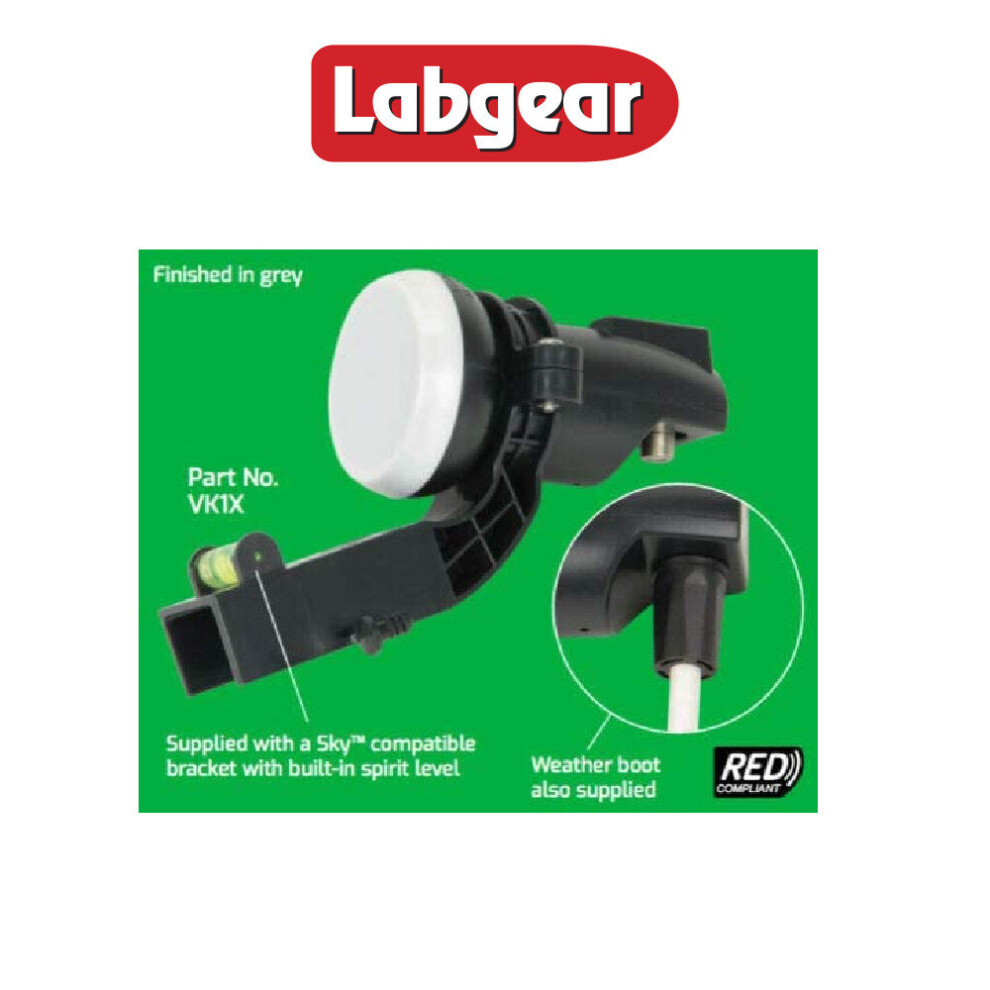

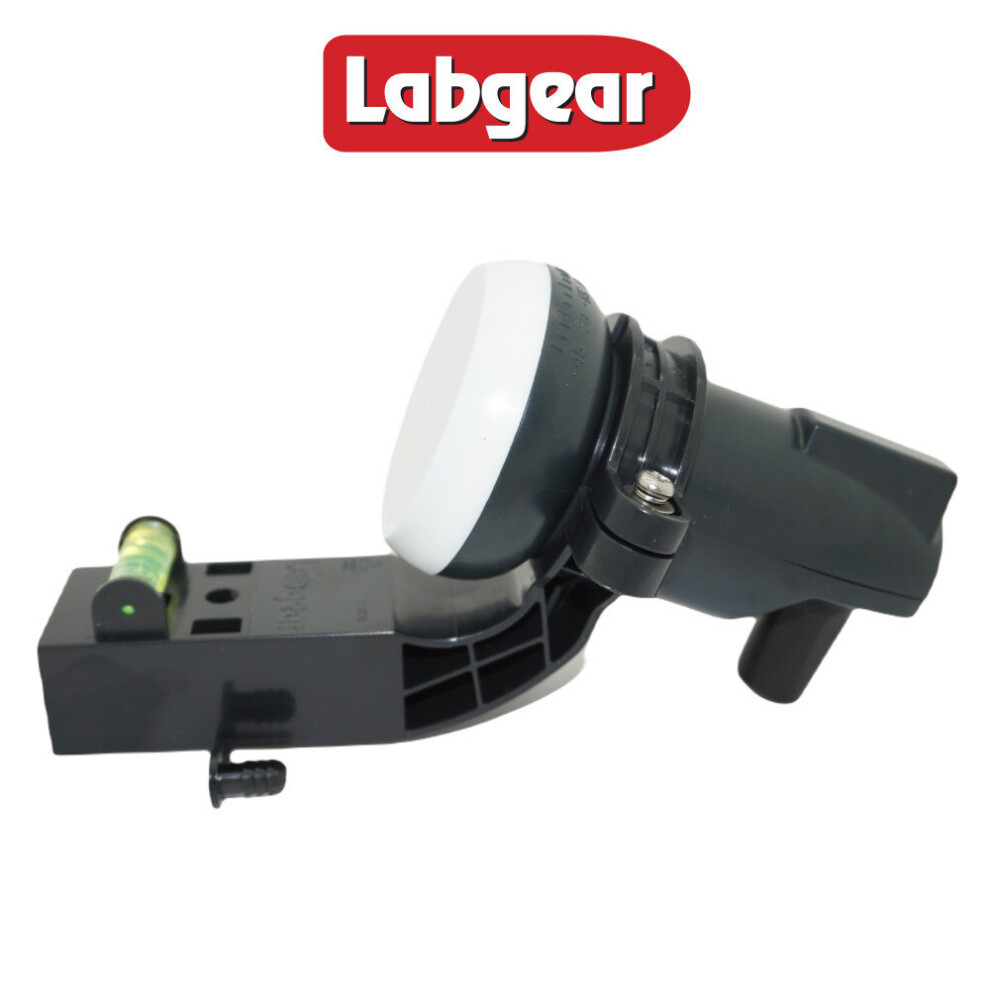

Genuine MK4 Single LNB as fitted to the latest Sky satellite dishes for Sky Zone 1 and Zone 2. This SKY LNB is supplied complete with the MK4 bracket and it will fit only the MK4 Sky Dishes.

This universal Single LNB is the type used by Sky in its installations. It is designed specifically for the Sky dishes as fitted by Sky.

Universal Ku Band Single LNB's suitable for use as a single tuner with Sky-HD™, FreeSat HD™ & also popular European satellite broadcast.

You can also use this LNB with the Sky Dish or any offset Ku Band 40mm satellite dishes for any other satellite services that require a universal LNB such as Freesat, Astra 1 @ 19.2 East, Hotbird 13 East, and many more. To use with an offset dish just remove the MK4 bracket and fit the LNB to the standard dish 40mm collar.

Features:

• Genuine Sky Single MK4 LNB For Sky Dishes Zone 1 and Zone 2
• Can Be Used For Sky + HD Box / Freesat receiver as single Tuner
• Sky Single LNB is easy to replace and install
• Fitted with  MK4 bracket
• Attached Built-in spirit level
• Weather boot included
• Suitable For MK4 Sky Dishes
• Low Noise Typ. < 0.9dB
• 25MHz PLL Circuit for rock-solid frequency stability

Technical :
Brand: Labgear Visiblewave
Part No: VK1X

Input frequency
Low band: 10.7 - 11.7 GHz
High band: 11.7 - 12.75 GHz

Output frequency
Low band: 950 - 1950 MHz
High band: 1100 - 2150 MHz

L.O. frequencies: 9.75/10.6GHz
Noise gure: Typ. 0.9 dB
Conversion gain: 54dB - 68dB
Cross polar isolation: Typ 19dB min
Operating temperature: -35°C~ +70°C
Power consumption: 110mA (max)
RED  Compliant
Package Size: L 12cm x W 11.5cm x H 7.5cm
Weight: 138 gr.

What's Included:

• 1x Visiblewave MK4 Sky Single LNB
• 1x SkyTM compatible MK4 bracket
• 1x Weather Boot
