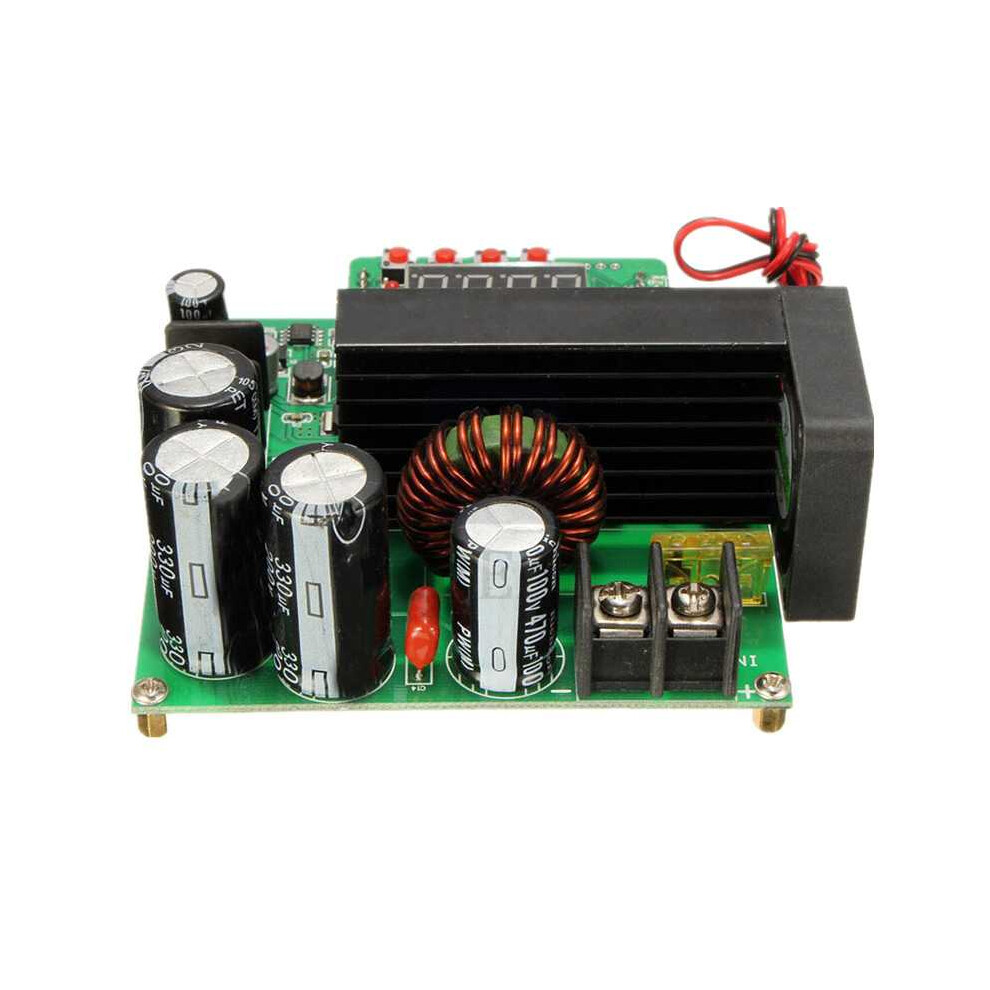

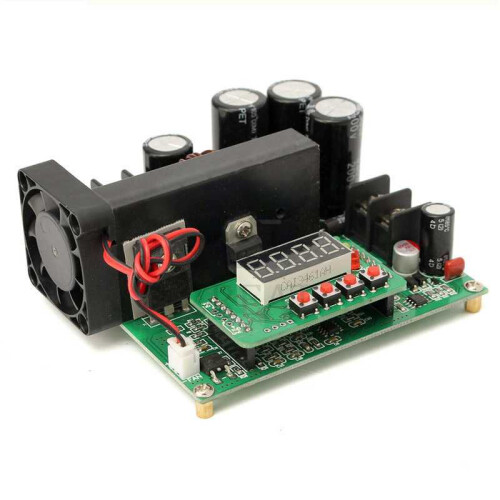

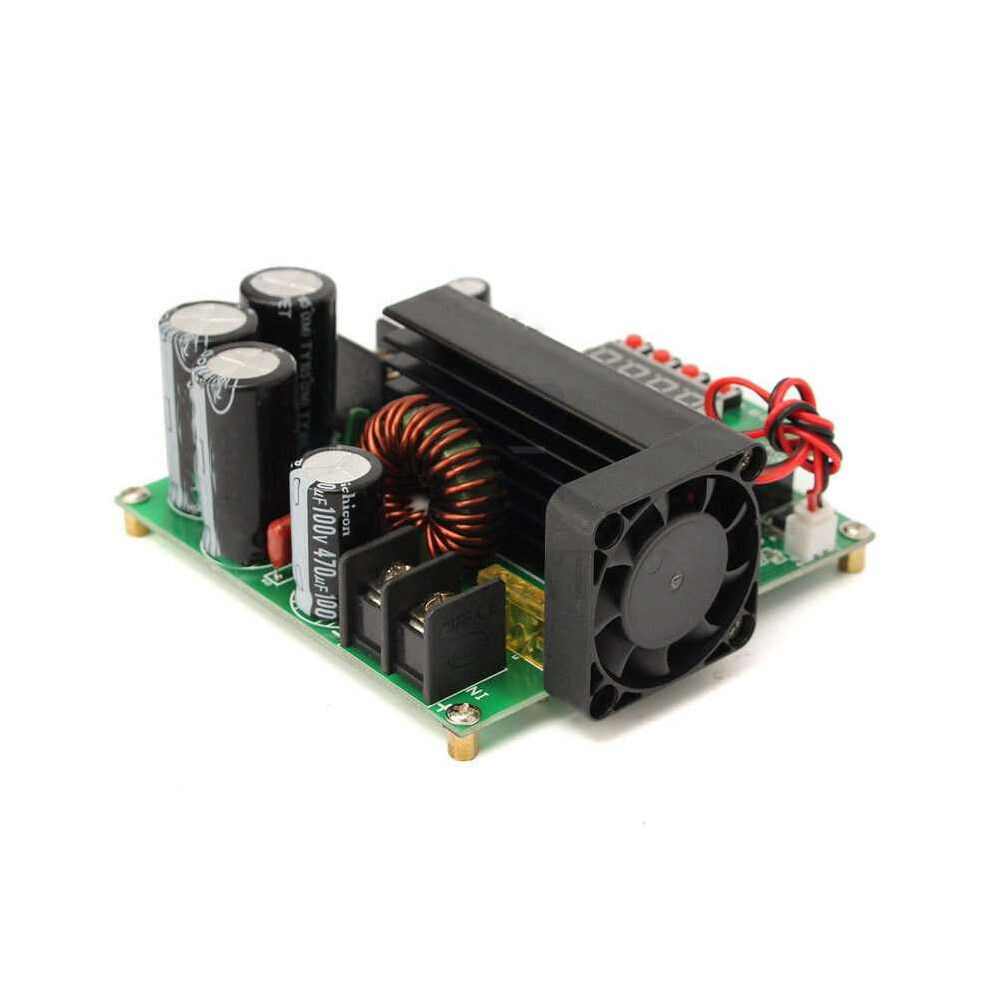

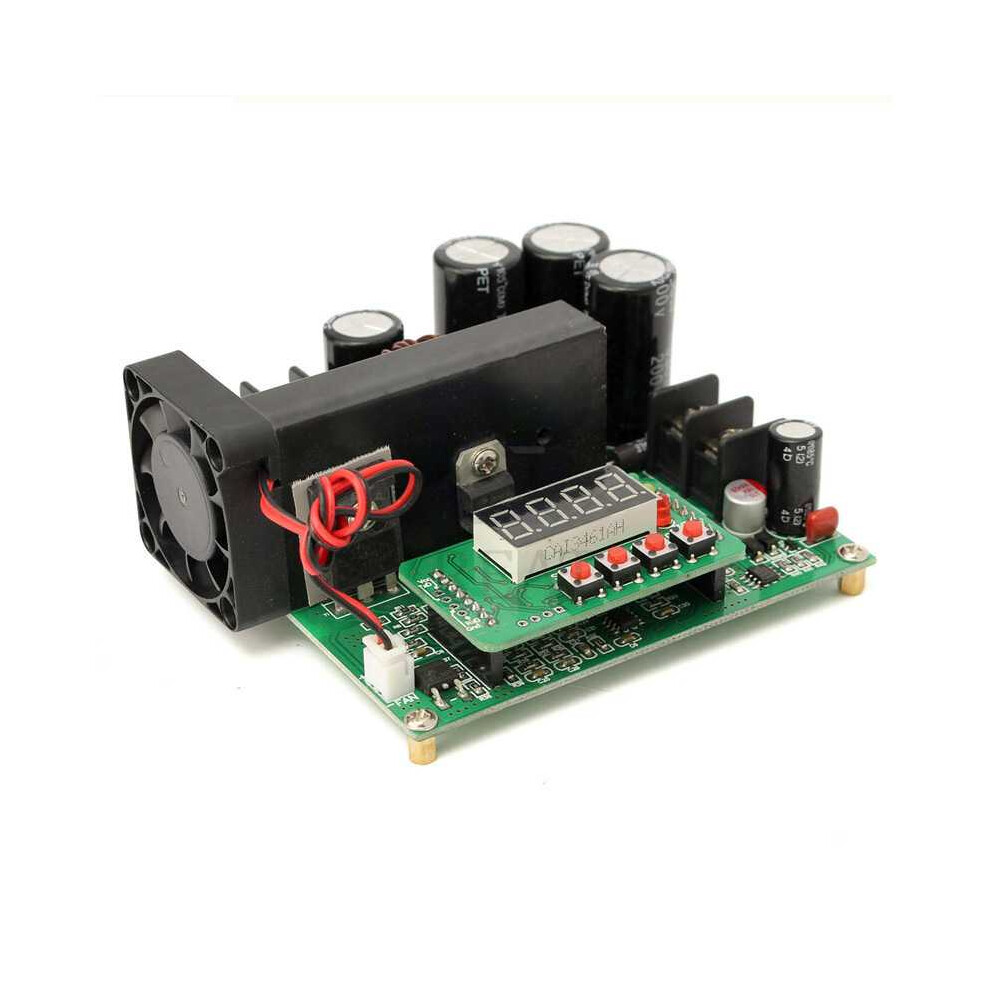

High Power DC-DC Adjustable Boost Module Digital Boost Circuit Board

High Power DC-DC Adjustable Boost Module Digital Boost Circuit Board Description

1. Input voltage: 8-60V
2. Input current: 0-15A
3. Output voltage: 10-120V
4. Output current: 0-15A
5. Power: 900W
6. Working frequency: 150KHz
7. Short circuit protection: 20A fuse
8. Control mode: digital control + digital tube display
9. Voltage regulation/display resolution: less than 100V/0.01V, greater than 100V/0.1V
10. Current adjustment/display resolution: less than 10A/0.01A, greater than 10A/0.1A
11. Output ripple: within 50mV
12. Weight: about 243g

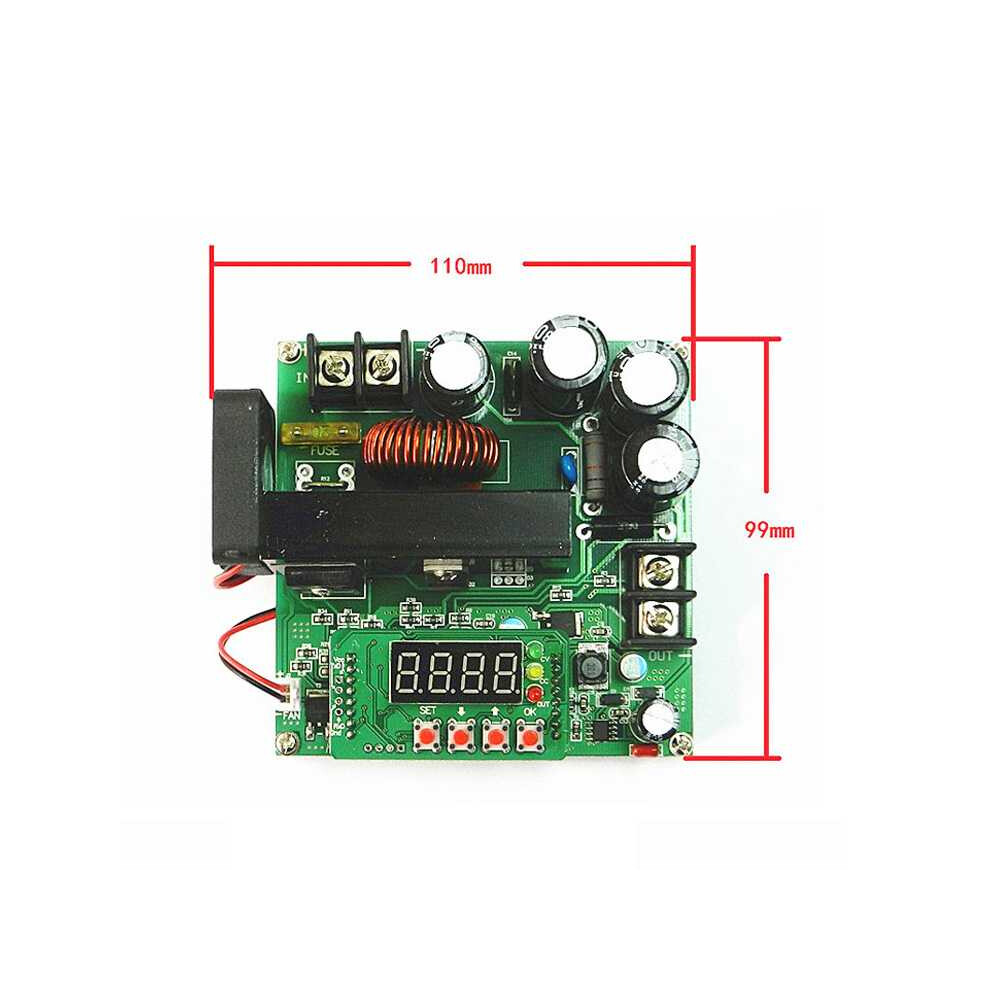

13. Size: about 11x9.6x4.6cm

Features:
1. Using a microprocessor, the output voltage and current can be adjusted
2. With memory saving function, 10 groups of parameters can be stored, and can be stored and recalled freely
3. The use of power devices, combined with the CV and CC loops formed by peripheral precision op amps, improves the overall performance of the module
4. With input voltage regulation protection function
5. With constant voltage, constant current function

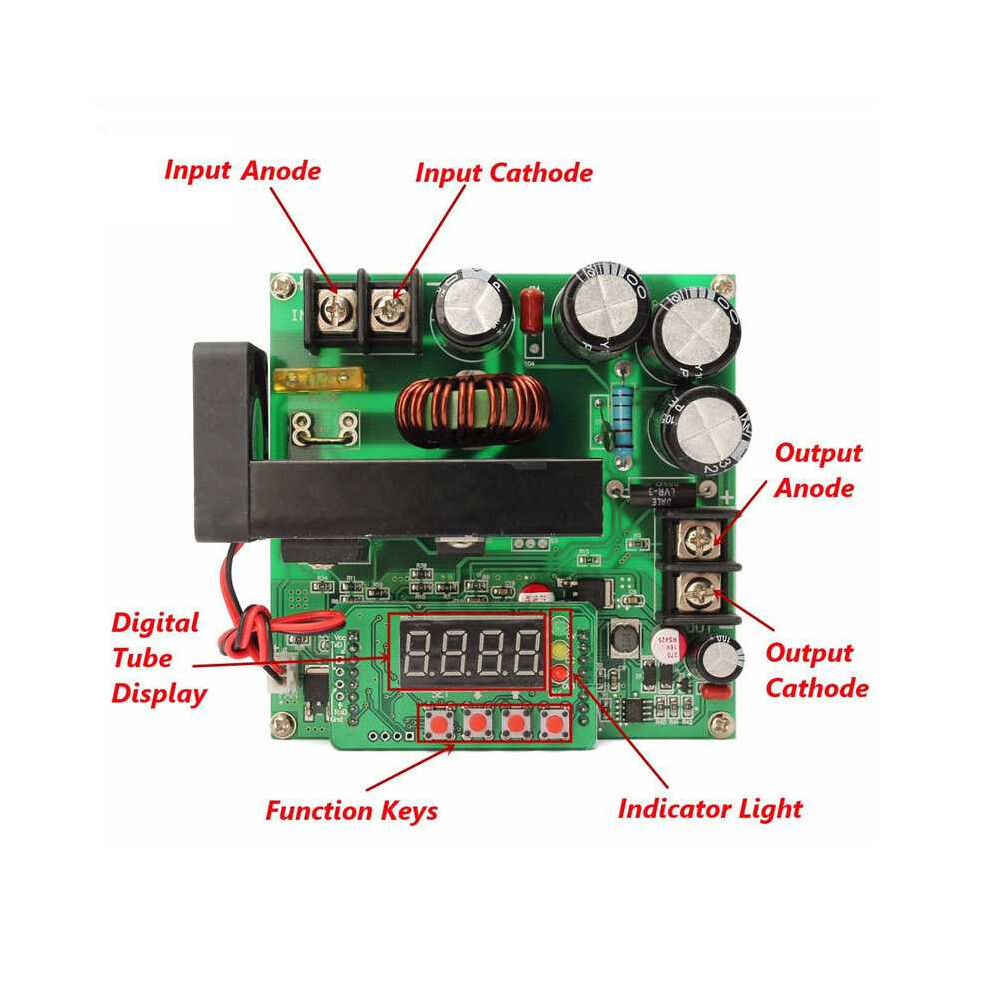

6. Using 4-bit high-brightness digital tube, it can display parameters such as output voltage, current, power and capacity in real time
7. Automatic/manual switch to display parameters such as voltage, current, power, capacity, etc.
8. With output OUT, constant voltage CV, constant current CC indicator, you can check the working status in real time
9. It can be set whether to output automatically after power-on
10. The current set voltage and current value can be saved with one key
