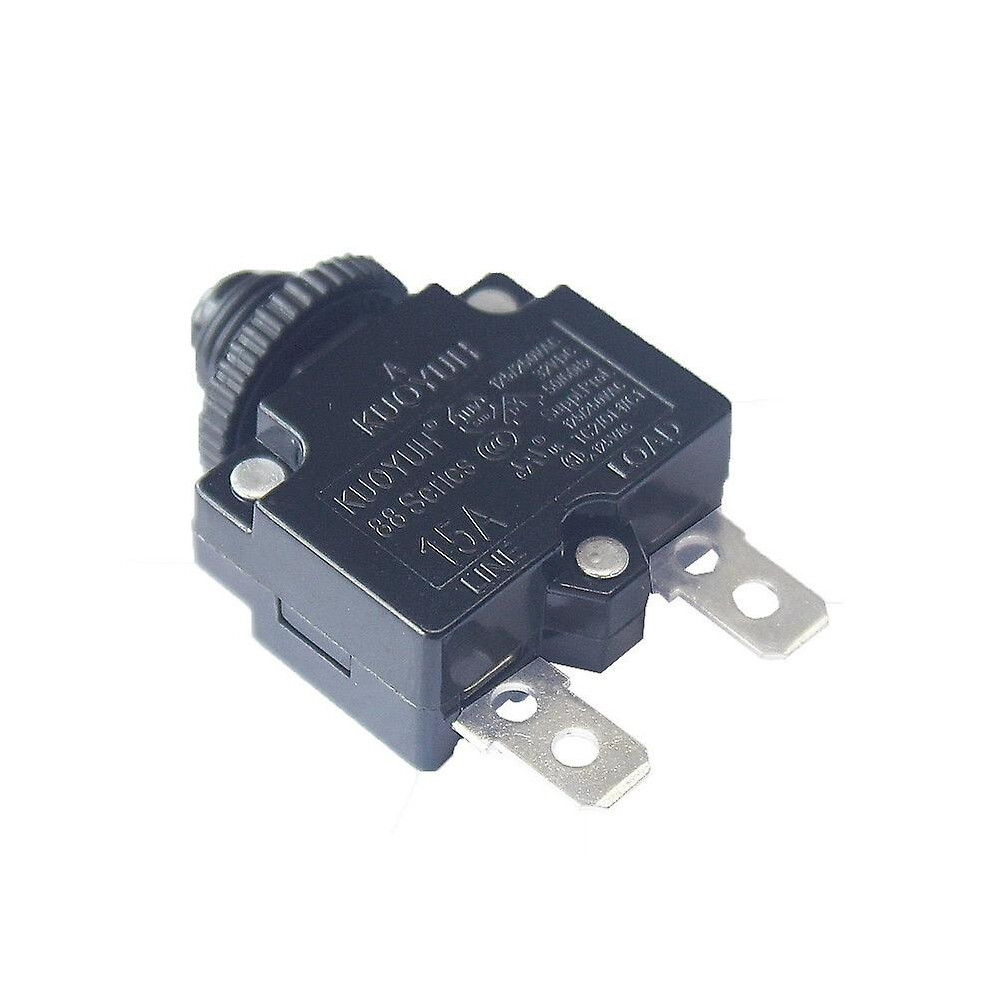

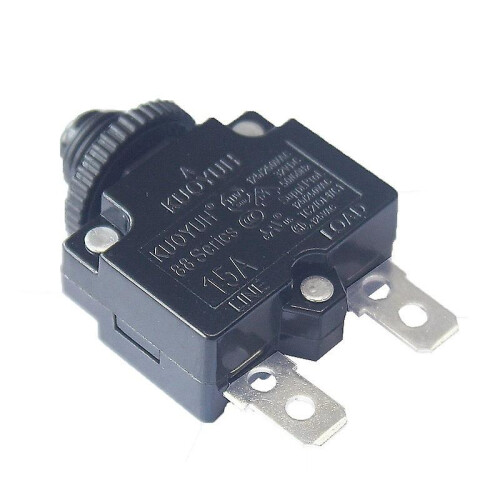

(20a) Kuoyuh 88 Series 5a 10a 15a 20a 25a 30a Automatic Reset Thermal Overload Protector Switch Circuit Breaker For Air Compressor

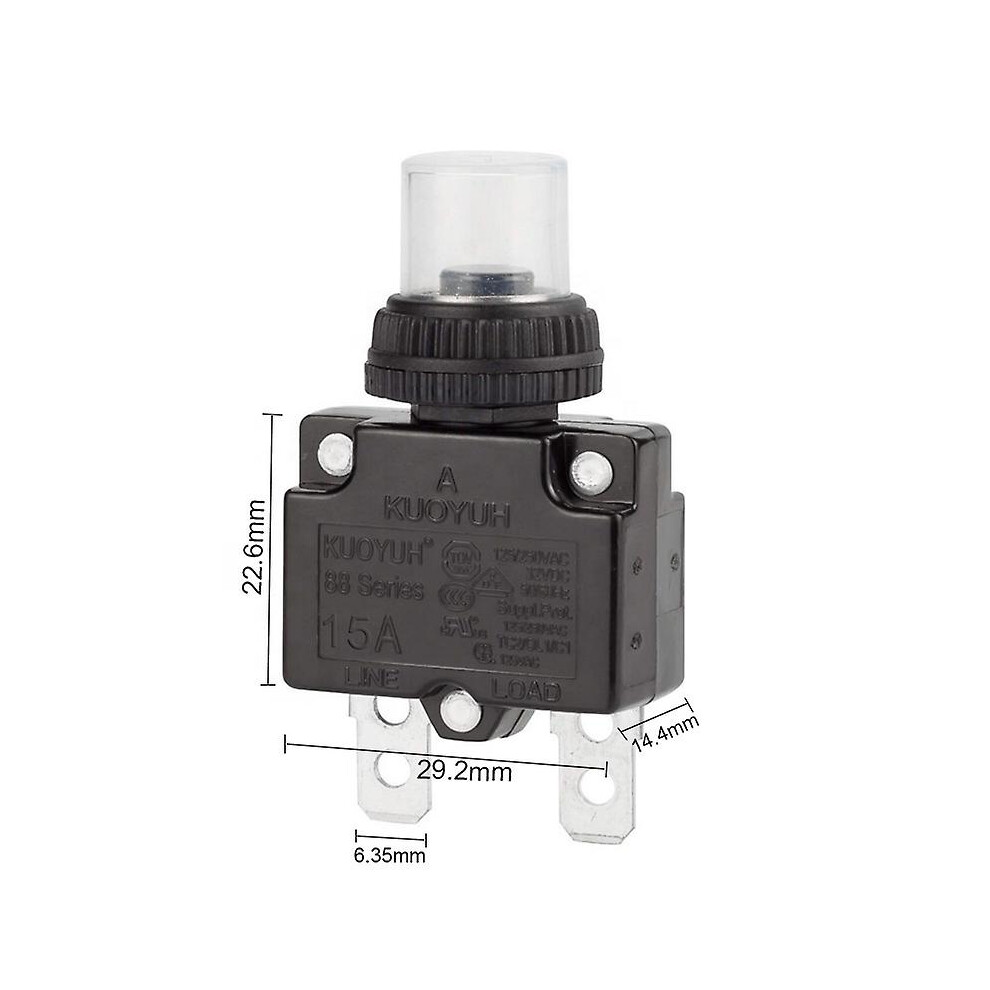

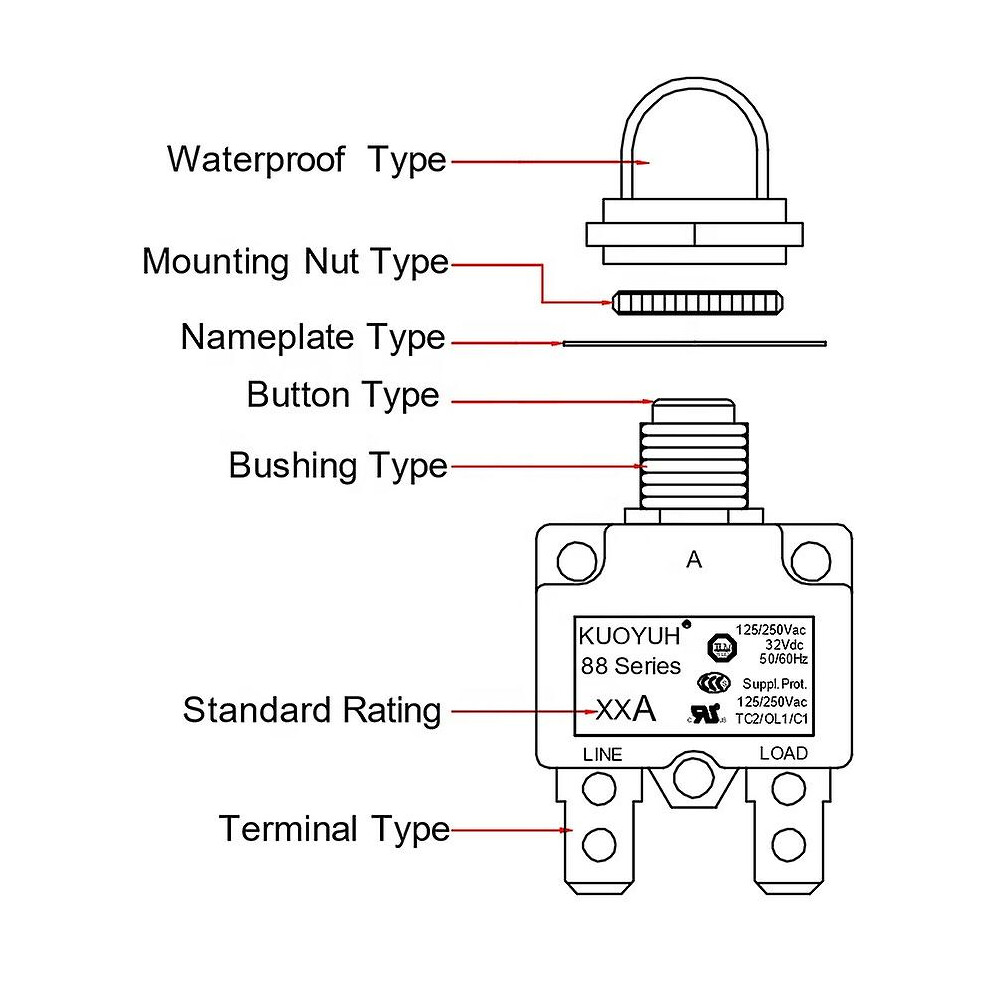

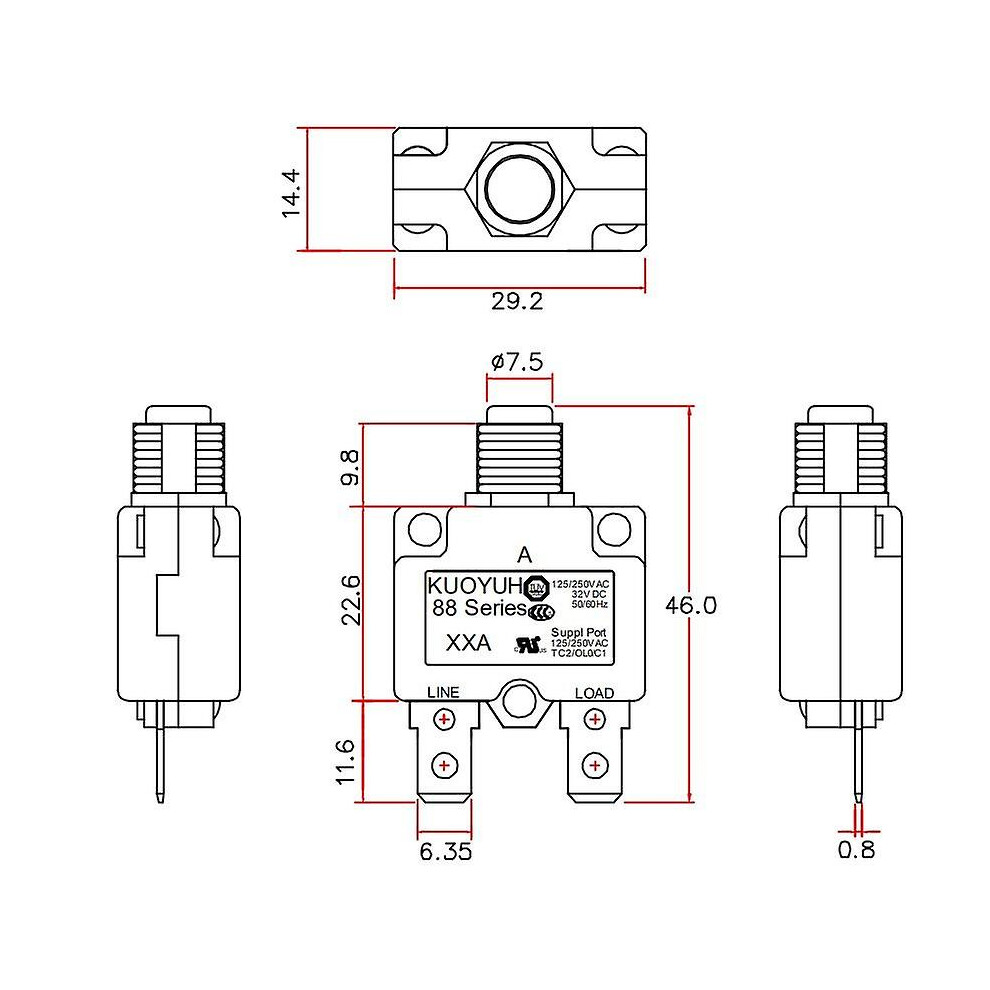

Product Description Free samples Kuoyuh 88 Series 15A thermal overload protector circuit breaker for pump motor thermal protectorTechnical dataCurrent rating range:3~30AInput voltage rating :125/250VAC; 32/50VDCInterrupting Capacity : 125/250VAC x 1,000A(UL 1077)Typical life : 1,000 operations at 200% overloadInsulation co-ordination:Rated impulse withstand voltage 2.5kVDielectric Strength:> 1.500VAC/min.Insulation Resistance:>100MOHM (DC 500V)Degree of protection:Terminal area IP00, operating area IP40Mechanical/Environmental DataOperating Ambient Temperature: -10 to +60Mounting: Various options. See Ordering Information and drawingsTermination: 250& x27;& x27;(6.35mm)quick connects or solder terminalsCalibration(at25)100% of Rated Current: Hold , No Trip300% of Rated Current: 1.5-5.0 sec Trip 200% of Rated Current: 5-30 sec Trip 150% ofRated Current: Trip Within 1 HourApprovalApproval & File No Rated current Rated voltageCUL UL E155159 3- 30A 125/250VAC; 50VDCTUV SUD B15 09 58611 007 3-20A 125/250VAC; 32VDCVDE 40036160 3-16A 125/250VACCSA 102199 3-16A 250VACIEC 60934 3-20A 250VACTypical applicationsTarnsforms, Motors, Battery chargers, Power supplies, appliances, extra low voltage systems, machineryApplication 1. The material of high-quality goods is good. 2. The style is novel and unique, and is deeply loved by consumers. 3. It is practical and can stand the test. There are many repeat customers. 4. Will ship within 48 hours 5. Delivery within 4-10 working days
