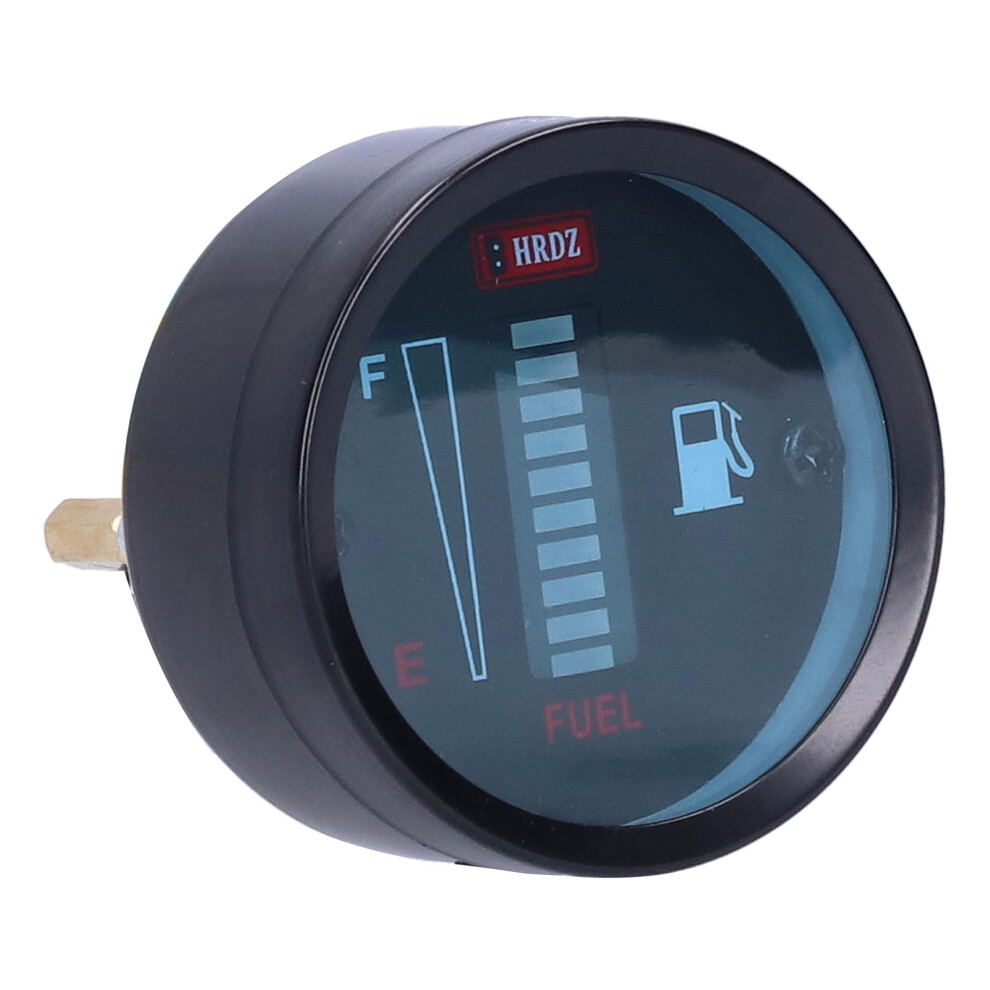

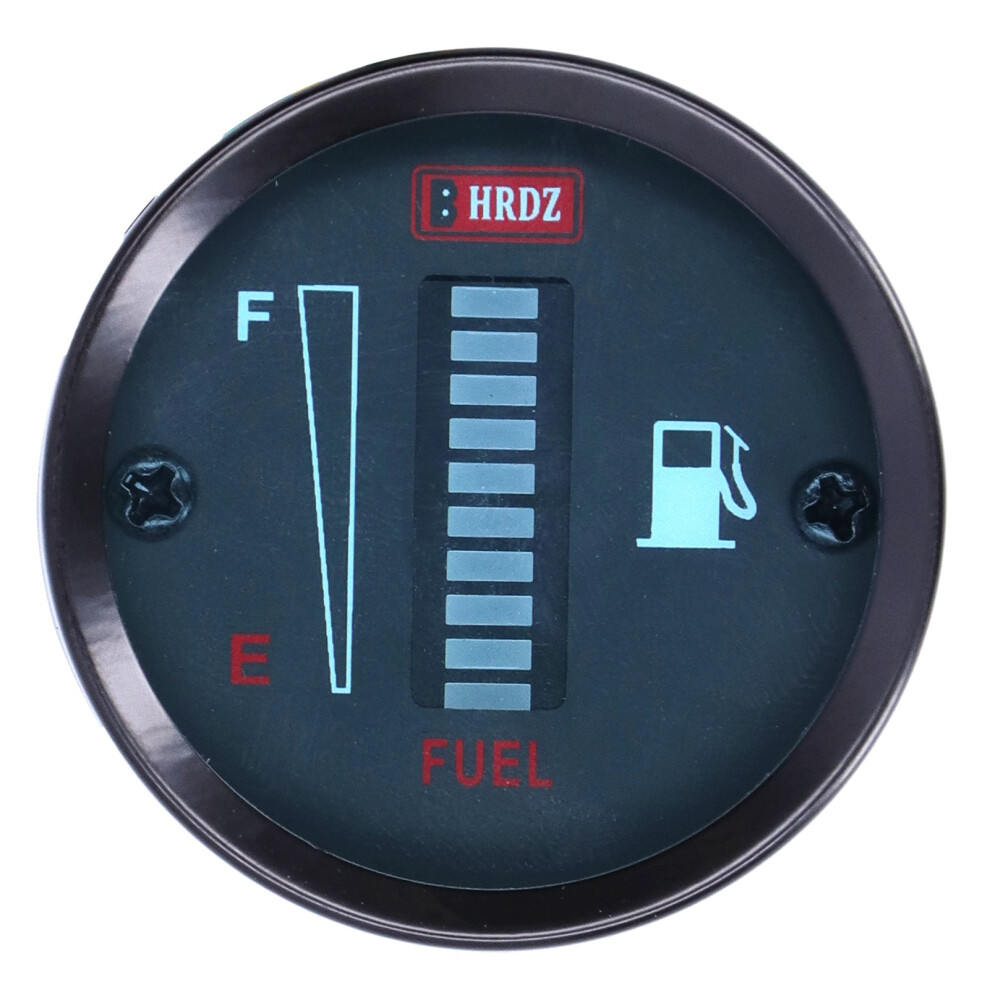

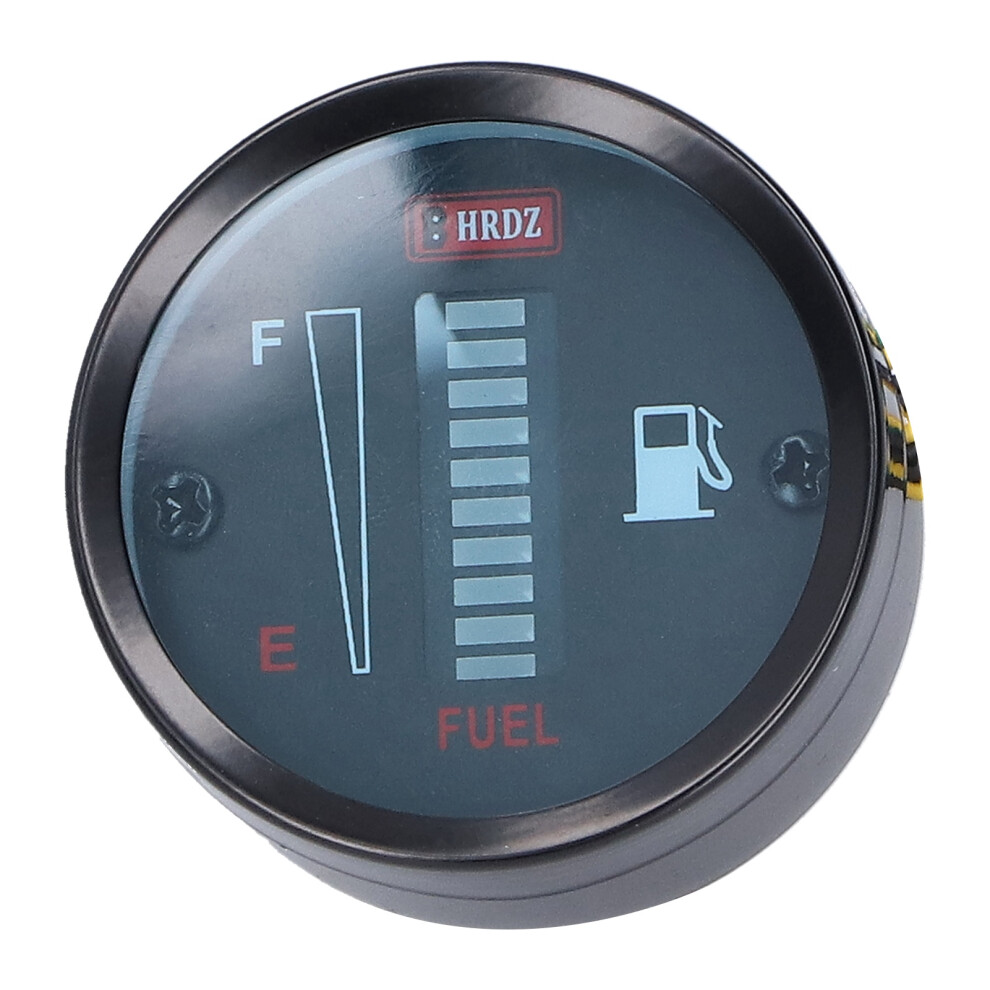

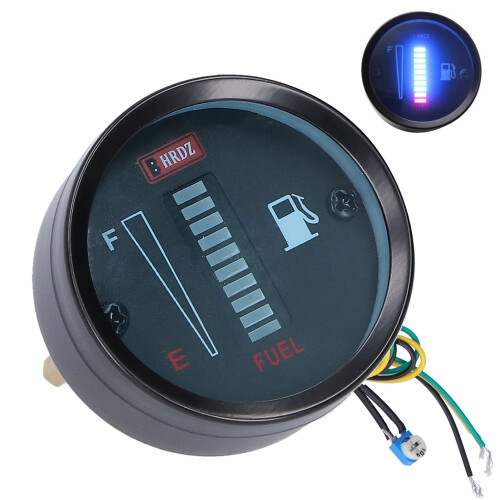

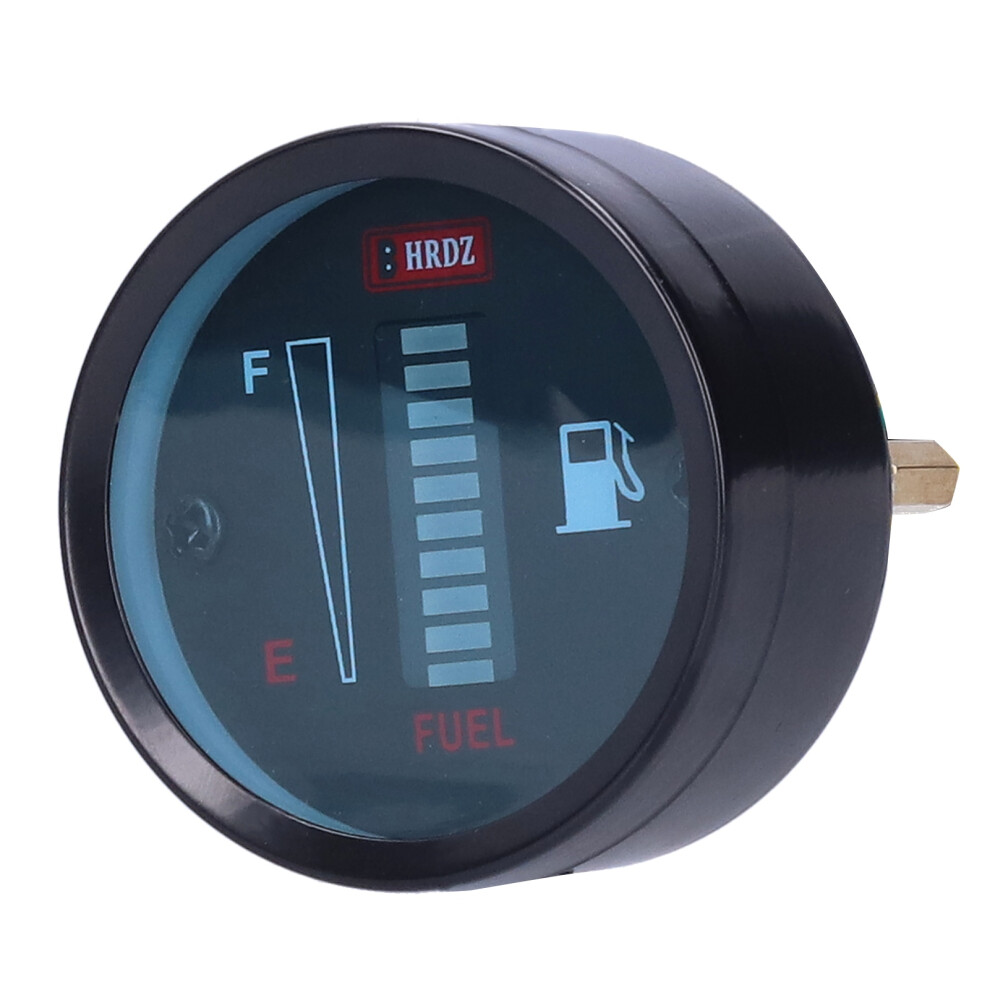

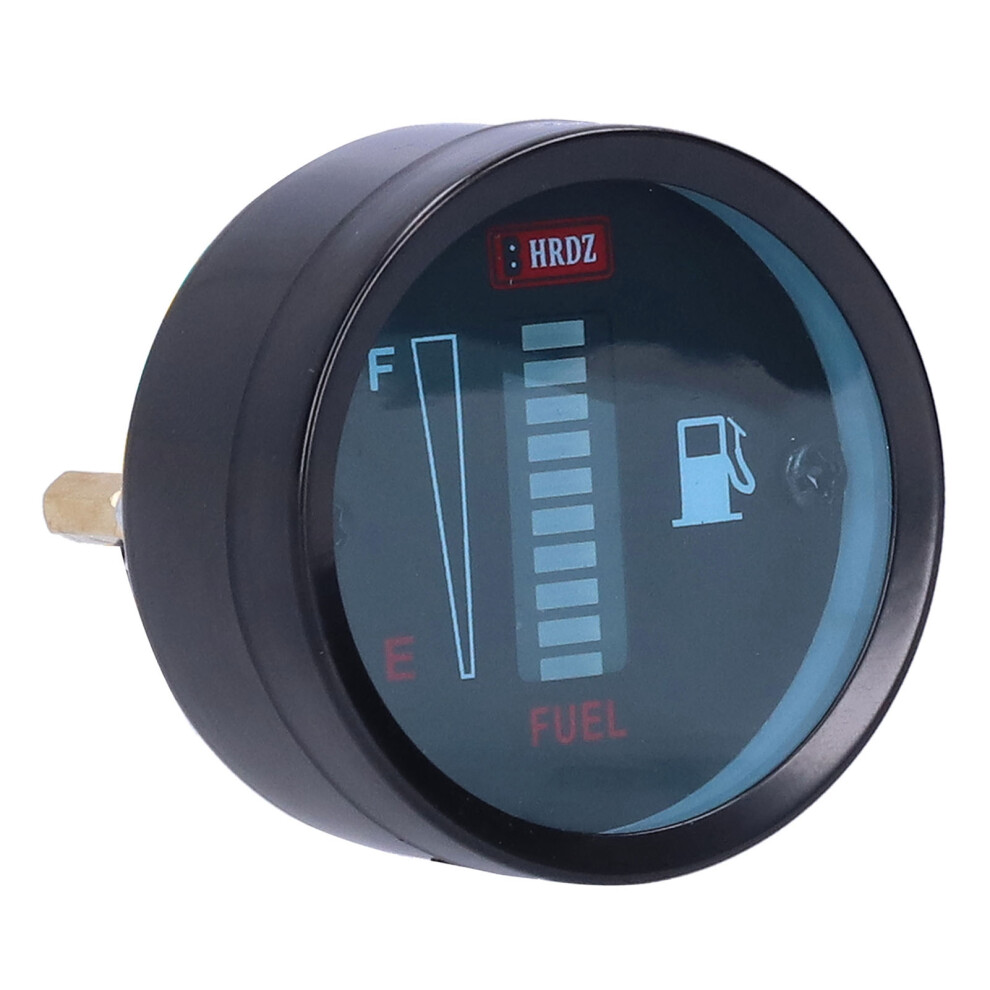

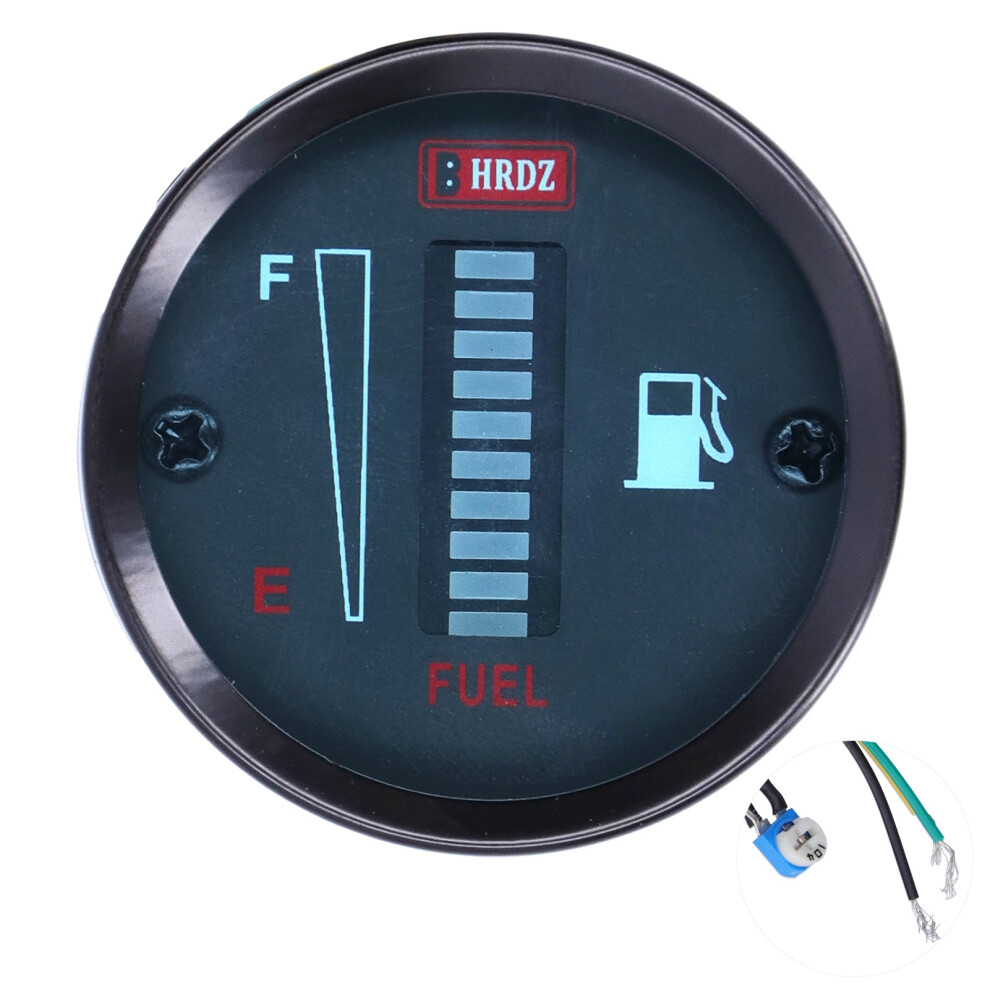

LED Fuel Meter Gauge Indicator 52mm Dia 12V

LED Fuel Meter Gauge Indicator 52mm Dia 12V Description

LED Fuel Meter Gauge Indicator 52mm Dia 12V Adjustable Resistance for Auto Motorcycle



1、LED fuel gauge, use LED to shows your car fuel state, easy and visualized to read. 2、With delay function circuit that does not cause the LED display to flicker because the tank tilts while driving. 3、Universal for car, motorcycle, etc. say goodbye to embarrassing situation like ran out of gas on the way. 4、Blue LED can be clearly displayed even in strong sunlight, 1 yellow LED means that the gas is small, and 1 red LED means that the gas is almost exhausted. 5、Can work with original fuel sensor, and the adjustable resistance allows different fuel sensor.



Item Type: LED Fuel Gauge Material: Plastic + Metal Led Color: Blue, Green, Yellow, Red Material: ABS Housing Color: Black Range: DC 12V Accuracy: +/-1% Operating Temperature: -10-+ 65 OHM Range: 0-566 OHM Application: Work with original fuel sensor Resistance: Adjustable resistance for different fuel sensor Description: 1. Eight blue or green LED displays the amount of oil in the tank (judging the amount of gasoline by the number shown), 2. 1 yellow LED indicates that gasoline is not enough 3. 1 red LED indicates that gasoline is nearly exhausted 4. The oil meter has a delay function circuit. LED flicker 5. Blue LED can be clearly displayed in the strong sunlight. Connection Description: Black wire connect to the positive supply (+ 12V) Green Wire connect to the negative power supply (-12V) Yellow wire connect to the sensor Attention: Red wire function: It is adjustable resistance for oil adjusting, Do not need to use it at normal circumstances, if the oil amount is not Display accurate, the red wire can be used to adjust the oil amount.



1 x LED Fuel Gauge
