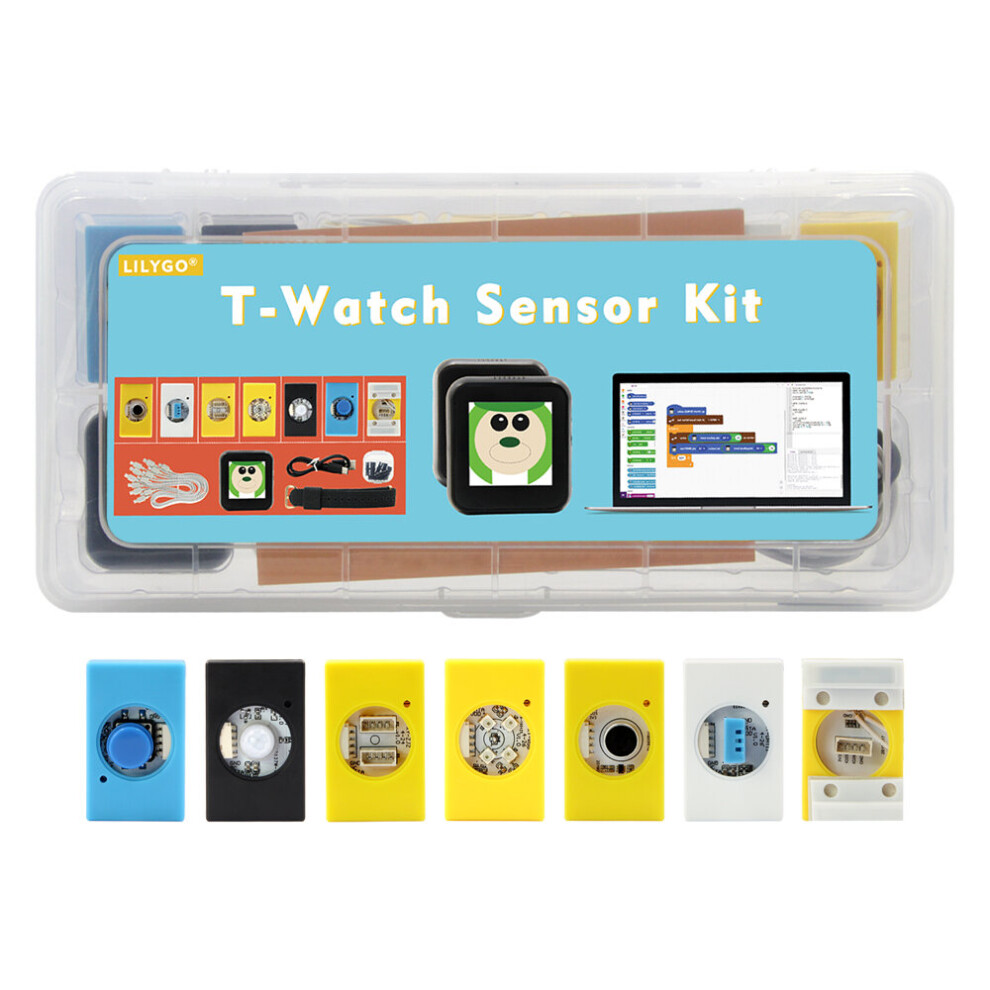

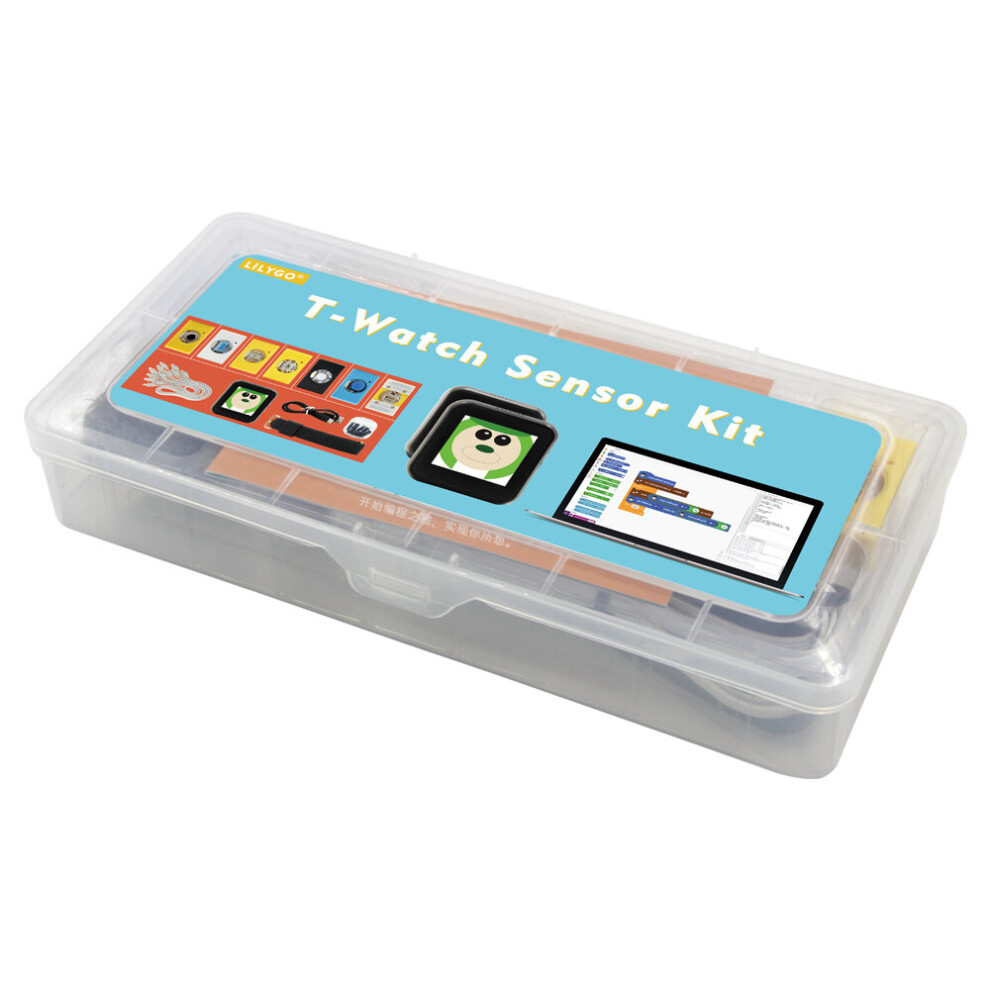

LILYGO TTGO T-Watch Sensor Development Kit STEM Programming Educational Sensor Module Multiple Function Sensor

LILYGO TTGO T-Watch Sensor Development Kit STEM Programming Educational Sensor Module Multiple Function Sensor Description

Size Conversion Inches Centimeters Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size. More information: https://t-watch-document-en.readthedocs.io/en/latest/introduction/index.html https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library Hardware Specifications Chipset ESP32, dual-core MCU, PMU power management FLASH QSPI flash 16MB / PSRAM 8MB SRAM 520 kB SRAM Button power key, IO36 Extended function Reference enhanced version and sensor kit USB to TTL CP2104 Modular interface UART, SPI, SDIO, I2C, LED PWM, PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA On-board clock 40MHz crystal oscillator Working voltage 2.7V-3.6V Working current About 70mA Sleep current About 3mA Working temperature range -40 â ~ +85 â Size&Weight 46.47*43*20.4mm 43.19g Display: 1.54 inch LCD capacitive touch screen Sensor: BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition. RTC clock : PCF8563 Power Supply Specifications Power Supply USB 5V/1A Charging current 500mA Battery 3.7V lithium battery Wi-Fi Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip) Protocol 802.11 b/g/n (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval Frequency range 2.4GHz~2.5GHz(2400M~2483.5M) Transmit Power 22dBm Communication distance 300m Bluetooth Protocol Meet bluetooth v4.2BR/EDR and BLE standard Radio frequency with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH Audio frequency CVSD&SBC audio frequency Software specification Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P Security mechanism WPA/WPA2/WPA2-Enterprise/WPS Encryption Type AES/RSA/ECC/SHA Firmware upgrade UART download/OTA (Through network/host to download and write firmware) Software Development Support cloud server development /SDK for user firmware development Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT User Configuration AT + Instruction set, cloud server, android/iOSapp OS FreeRTOS 1. Button Module: A switch that can control the passage or open circuit. Generally, it is used as a passage and released as an open circuit. Pin Details ESP32 Attributes Description GPIO25 1-Wire Button 2. RGB Module Pin Details ESP32 Attributes Description GPIO25 1-Wire WS2812 3. Pir Human Detection Module PIR sensors are commonly used for security alarms and automatic lighting applications. PIR sensor detects general motion but does not provide information about the mover or moving object Pin Details ESP32 Attributes Description GPIO25 1-Wire Pir infrared sensor 4. DHT11 Module: It is a sensor combined with temperature and humidity sensing components. The built-in processor converts the measured temperature and humidity data into digital signals, and then sends the data. Pin Details ESP32 Attributes Description GPIO25 1-Wire DHT11 5. Door Contact Door Contact is a device for security alarm. It consists of a wireless transmitter and a permanent magnet. It is used to detect whether doors, windows, drawers, etc. are illegally opened or moved. Pin details ESP32 Attributes Description GPIO25 1-Wire Door 6. Microphone The microphone is a device â a transducer â that converts sound into an electrical signal Pin details ESP32 Attributes Description GPIO33 1-Wire Microphone 7. Function_extension The expansion module can be freely combined with various modules. Pin details ESP32 Attributes Description GPIO25,26 Function_extension Package includes: 1 x Basic TTGO T-Watch 1 x Black strap 1 x DHT11 sensor 1 x Button sensor 1 x WS2812-RGB sensor 1 x Door-Contact sensor 1 x Pir sensor 1 x 2 Function extension sensor 1 x Microphone sensor 1 x A small box of For Lego latches 1 x USB-C charging cable 3 x Module connection cable (15cm) 3 x Module connection cable (30cm) 1 x Product manual 1 x Plastic box
