Mini Motor Permanent Magnet AC Synchronous Speed

Mini Motor Permanent Magnet AC Synchronous Speed Description

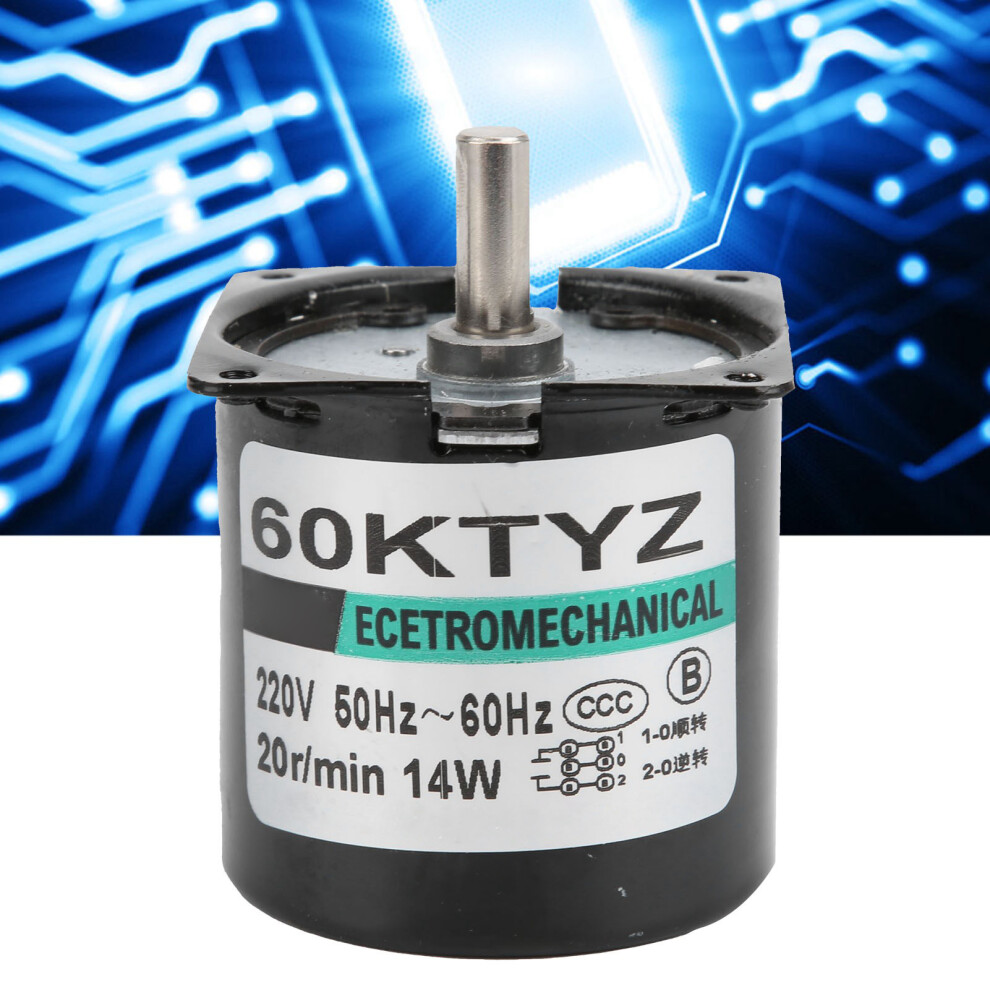

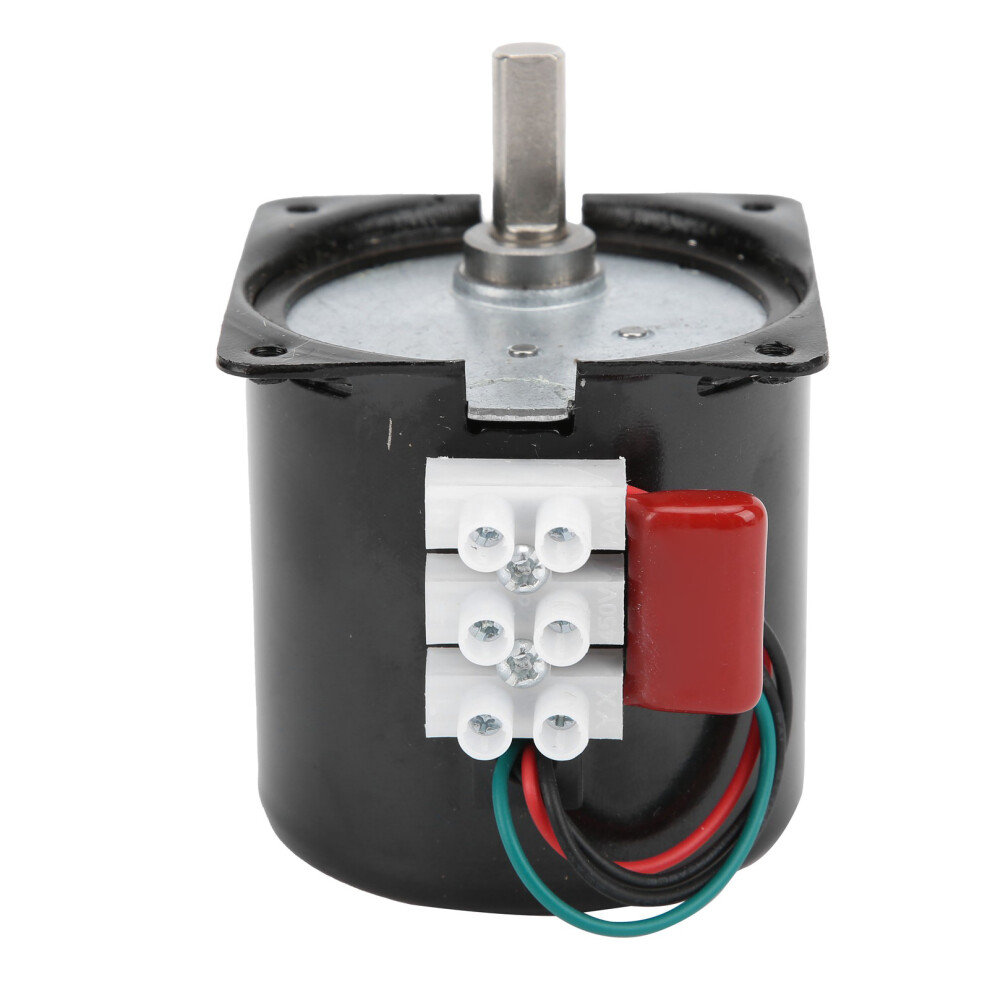

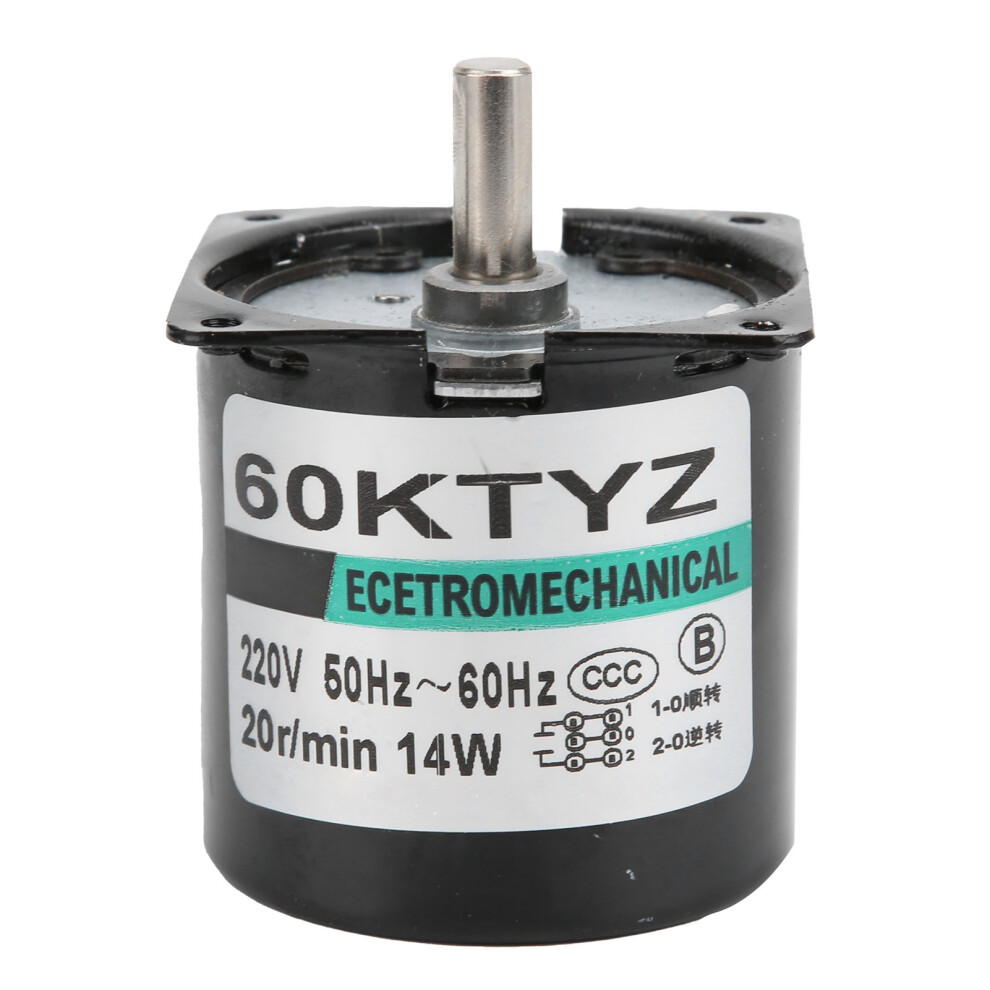

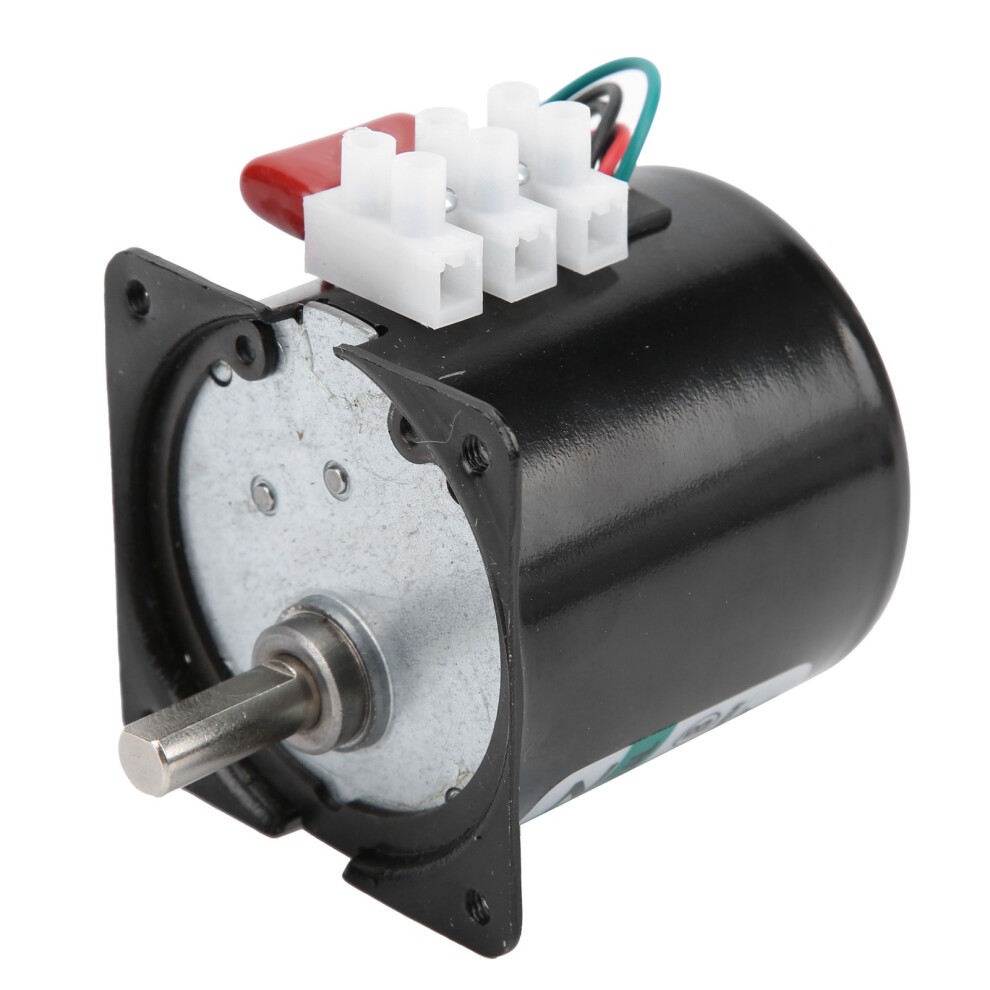

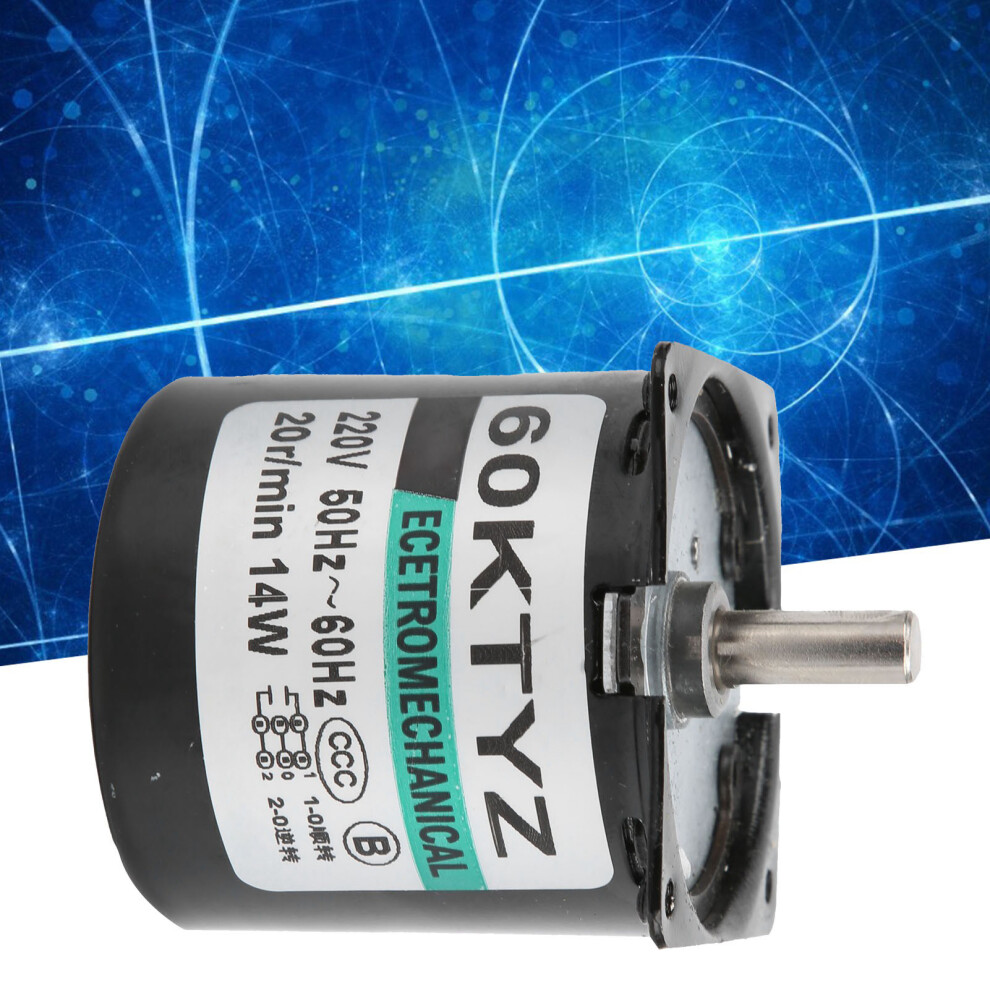

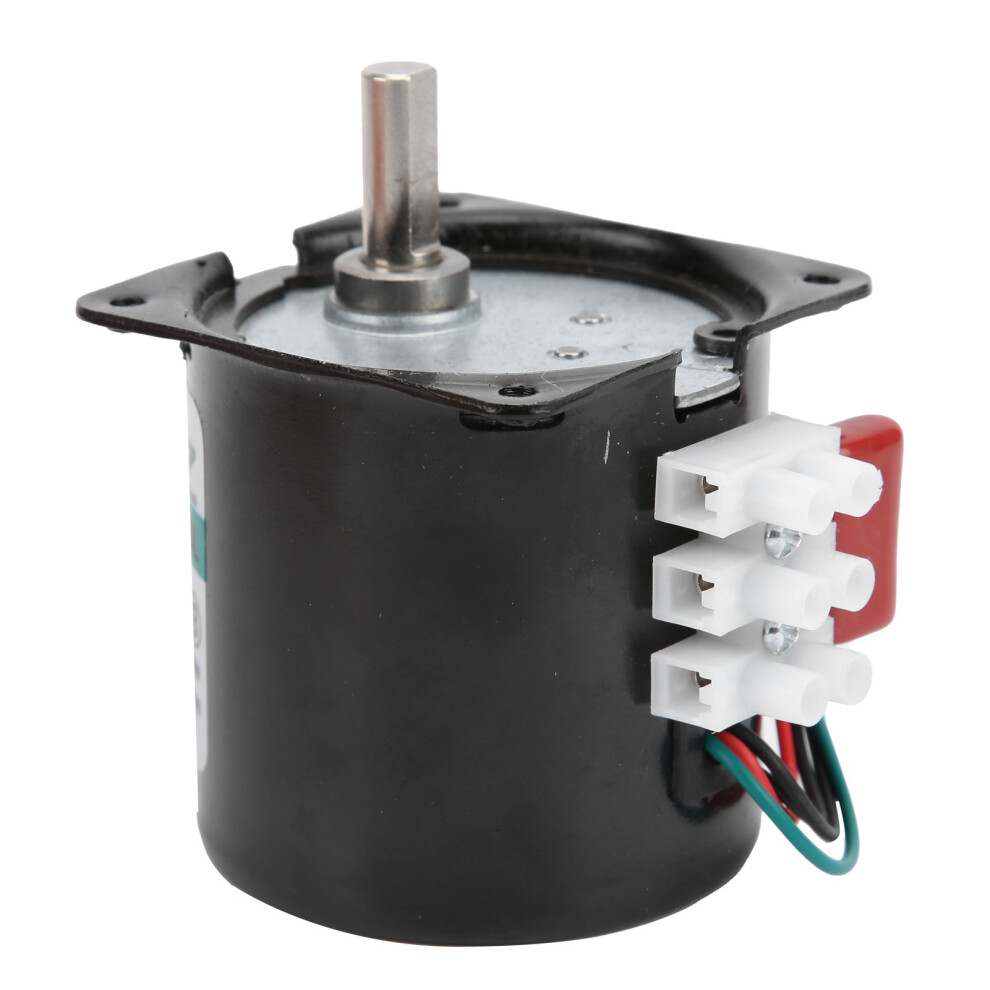

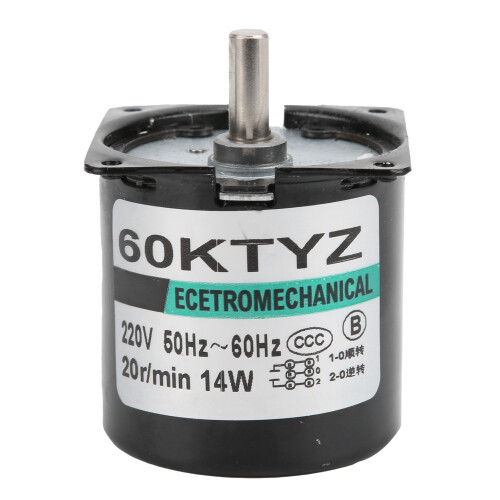

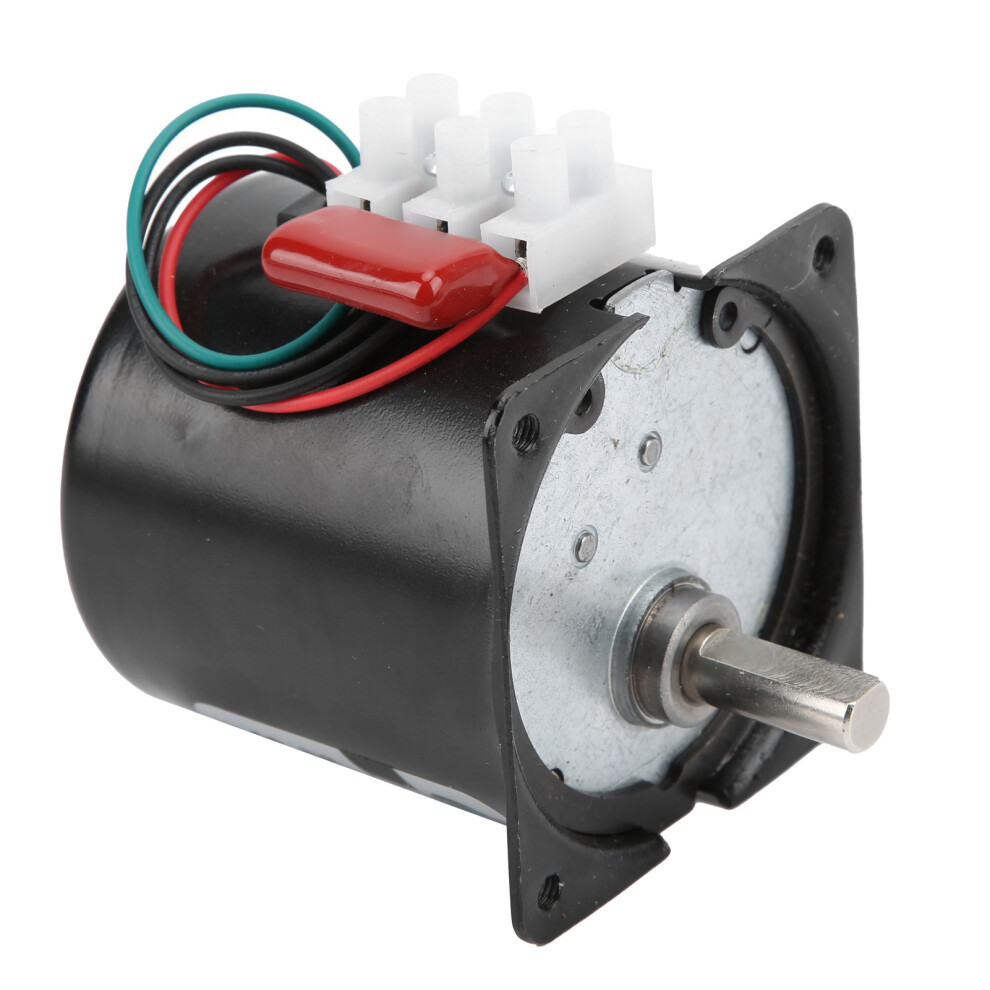

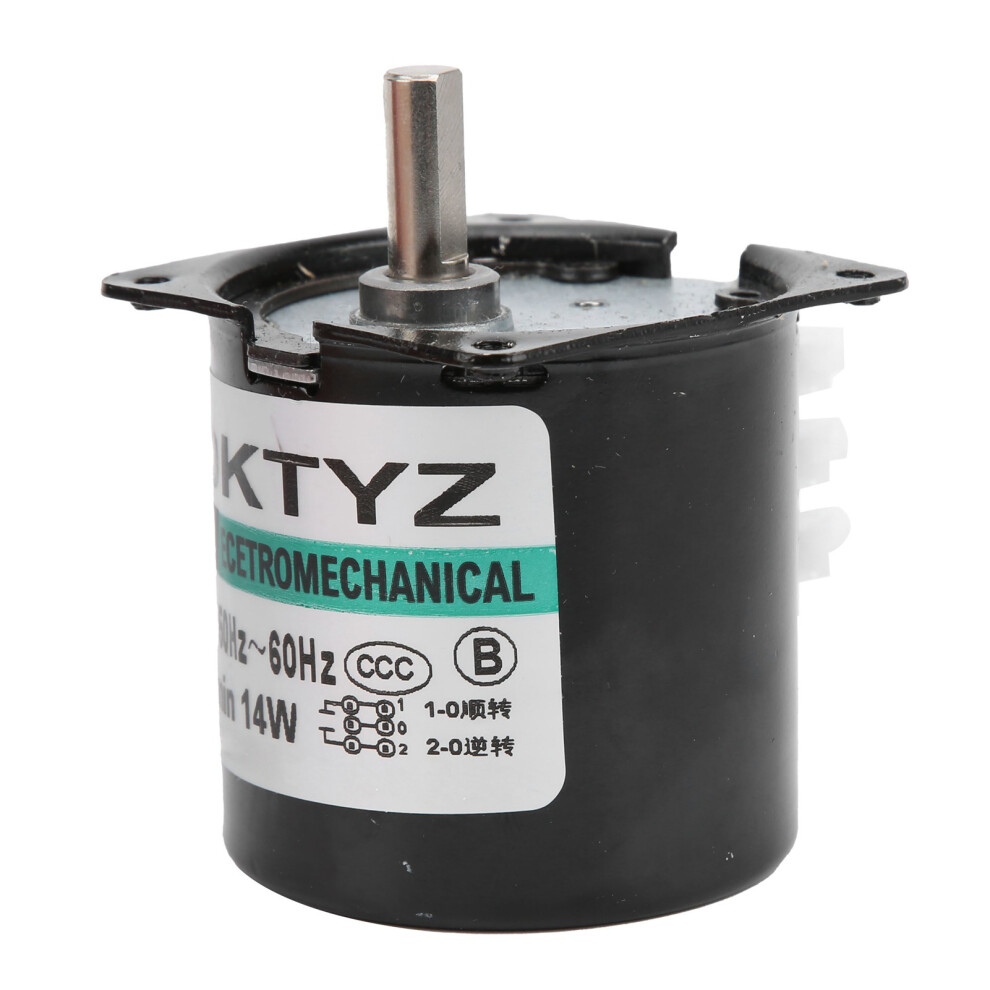

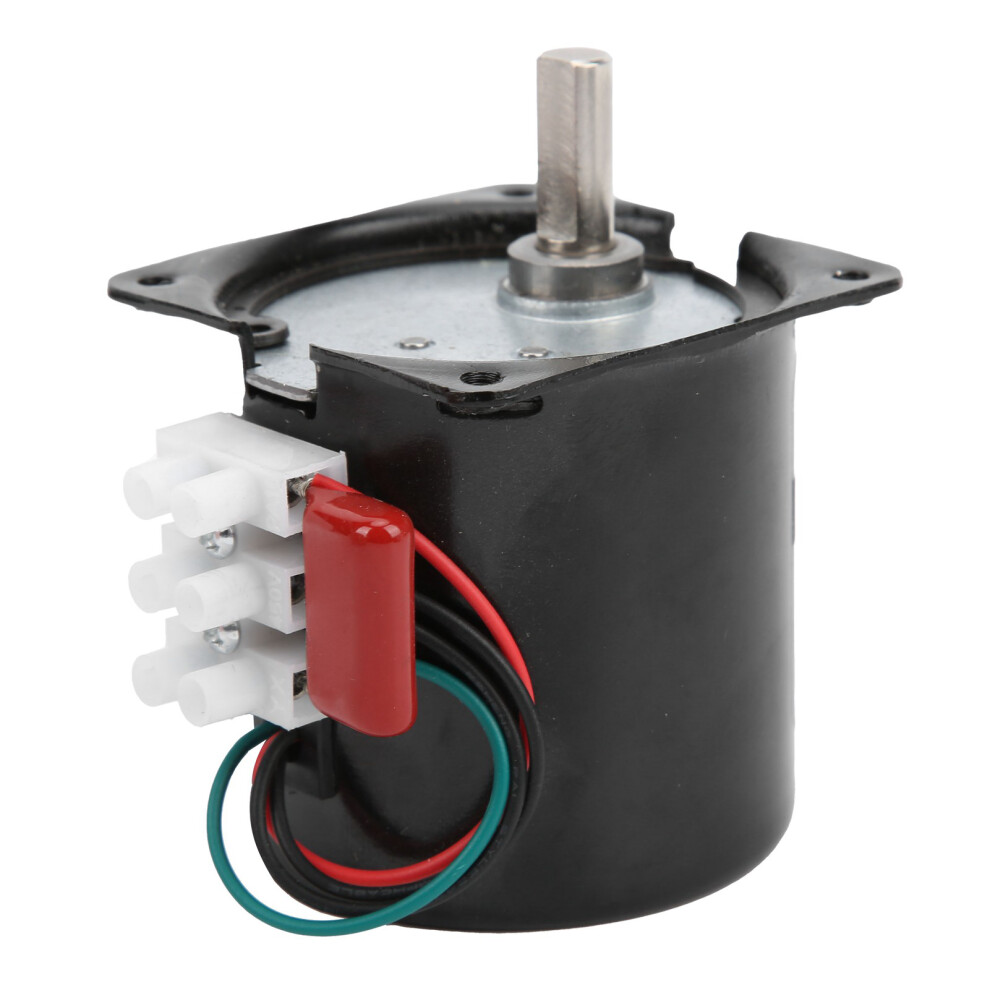

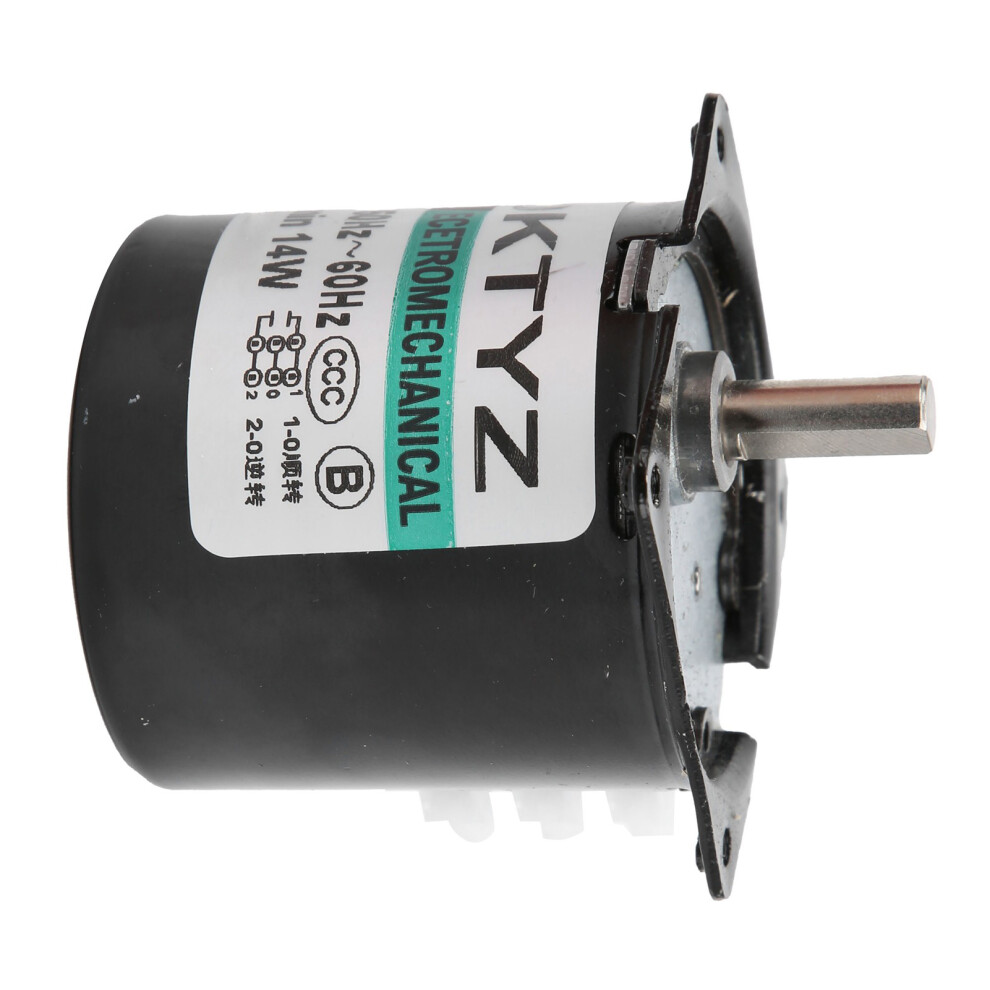

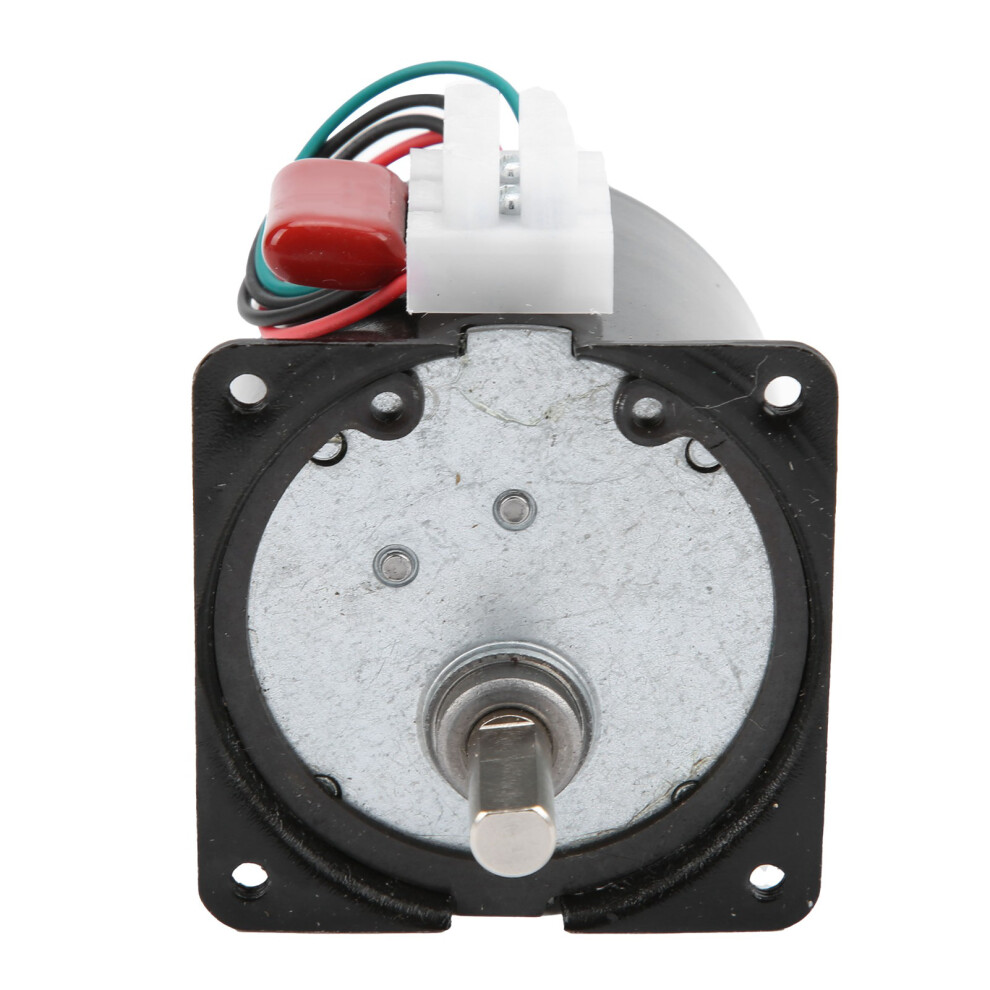

Mini Motor Permanent Magnet AC Synchronous Speed Reduction Eccentric Shaft Accessories20rpm/min AC220V



1、The micro motor is a permanent magnet AC synchronous motor, which improves the reliability of motor operation. 2、The motor adopts all‑metal gears, small size and large torsion, stable and quiet operation. 3、The copper coil and deceleration resistor are used to enhance the conductivity and increase the motor torsion. 4、Using high-quality magnetic tiles, higher working efficiency and less dynamic loss. 5、Widely used in home or industry, used in various CNC machine tools, machining, electronic manufacturing, etc.

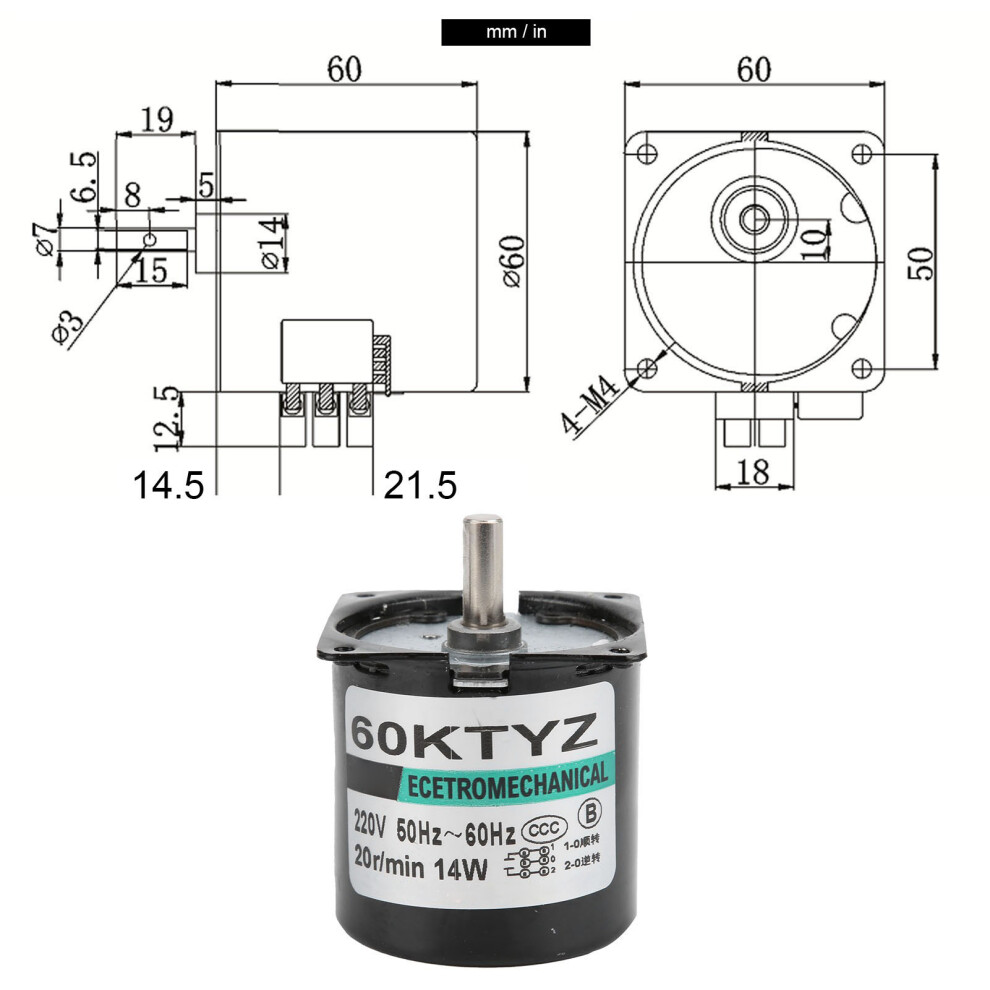

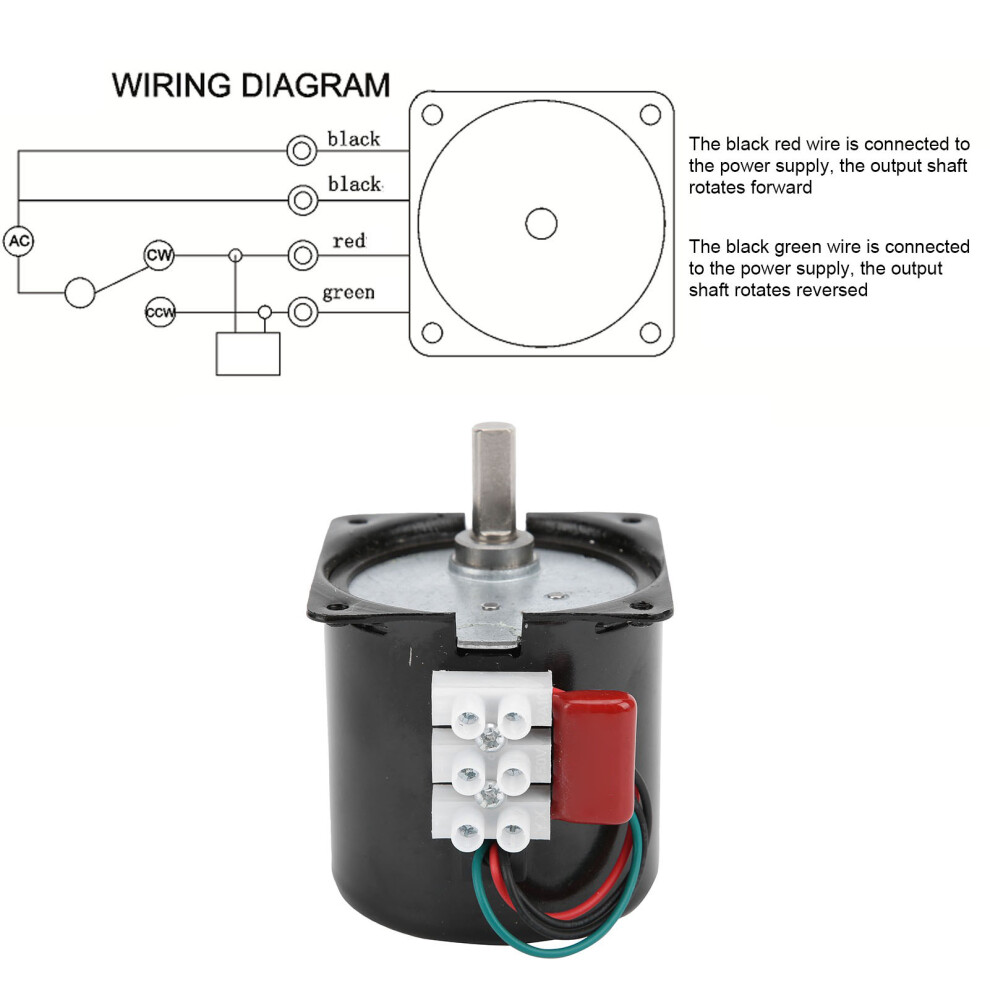

Item Type: Mini Motor Model: XD-60KTYZ + bracket Material: Copper Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in Protection Level: IP20 Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, apply 50Hz or 60Hz between the coil shells for one second at a voltage of 1800V without abnormality. Temperature Rise: When the gearbox or equivalent heat sink is installed, and the rated operation is performed under normal temperature and humidity, it is normal to measure the temperature rise of the coil by the resistance method to 75-80. Insulation Class: E class (130) Operating Environment Temperature: Motor: -10~+40 (no icing) Use Environment Humidity: 85% or less (no condensation) Whether Support CW and CCW: Yes Whether Support Speed Regulation: No Model Voltage (V) Speed (rpm/min) Normal Torsion (kgf·cm) Long Time Work Large Torsion (kgf·cm) Intermittent Work Power (W) XD60KTYZ AC220V 20 12 17 14 30 5 10 14 50 2.5 5 14 80 1.7 3 14 AC110V 20 12 17 14 30 5 10 14 50 2.5 5 14 80 1.7 3 14

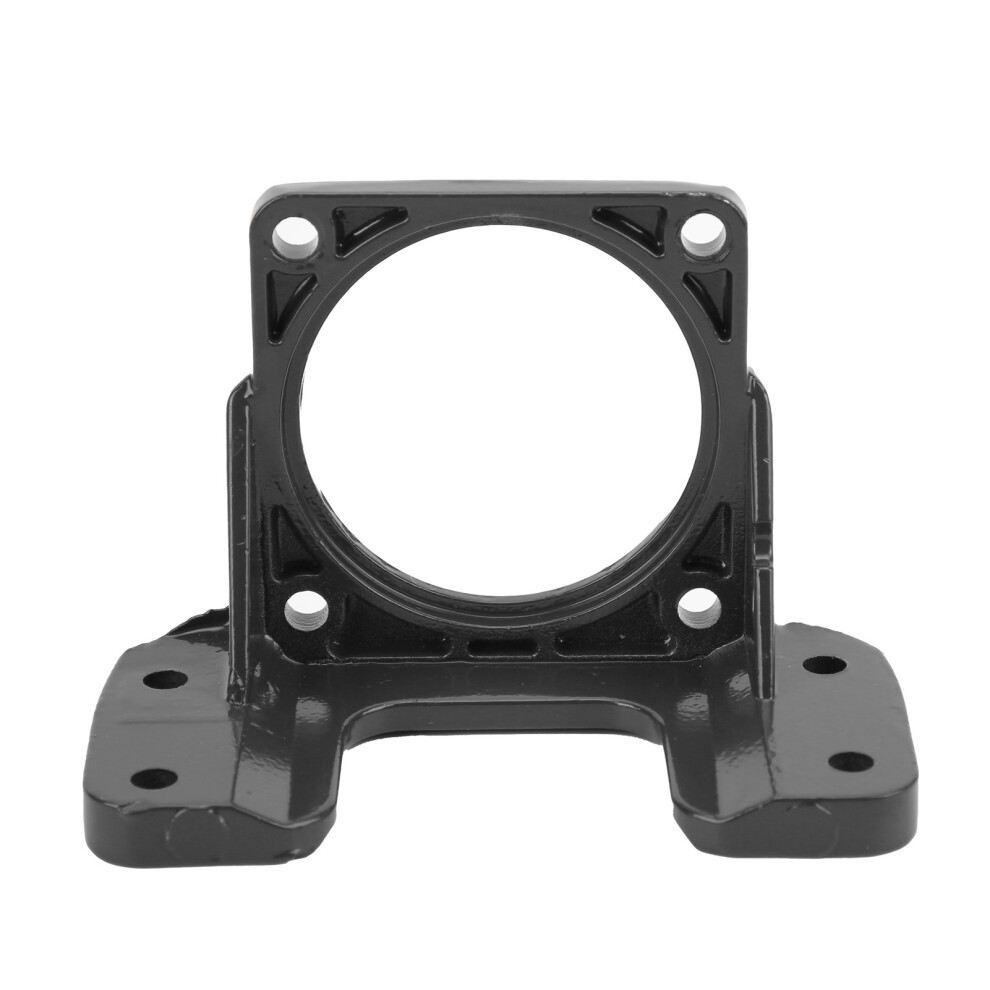

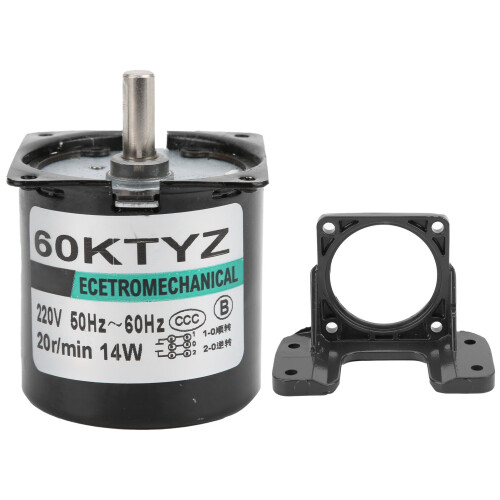

1 x Mini Motor 1 x Bracket
