Motorcycle Multifunction Waterproof Digital LCD Speedometer 12V Black

Motorcycle Multifunction Waterproof Digital LCD Speedometer 12V Black Description

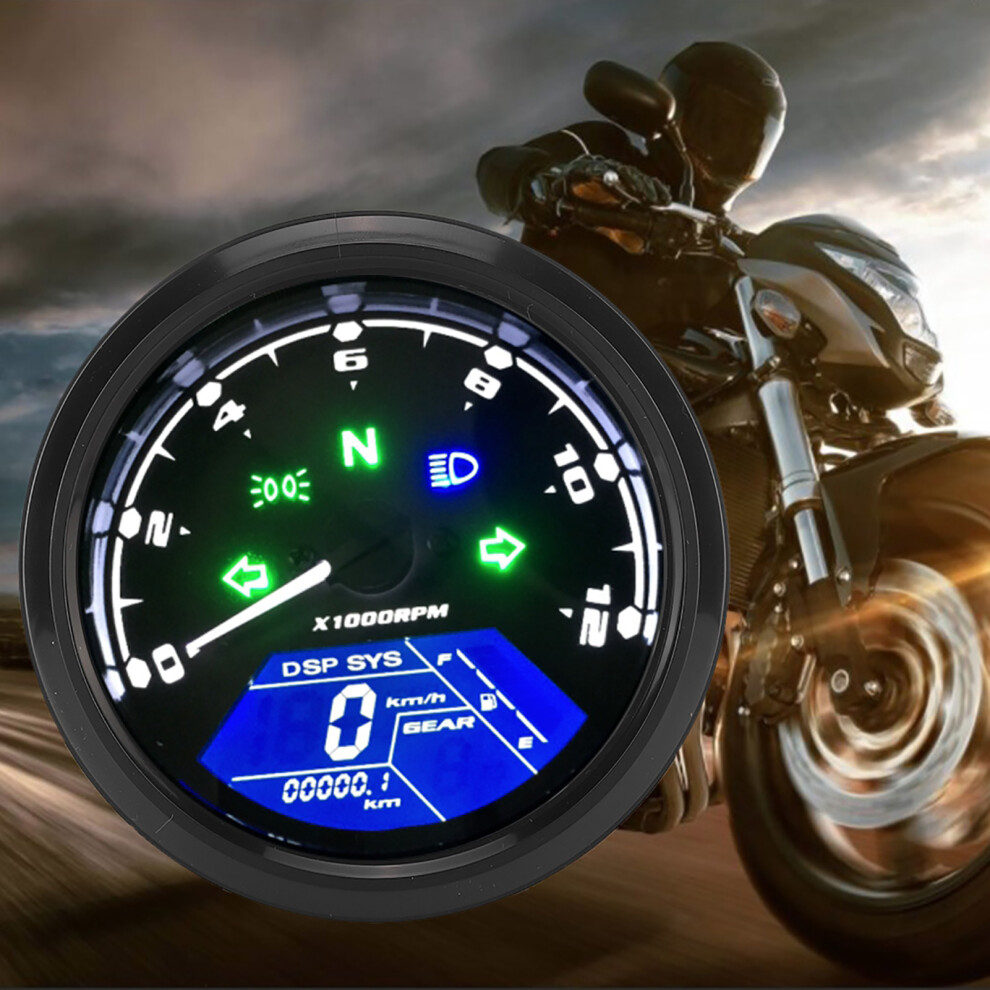

Motorcycle MultiFunction Display Waterproof Anti Vibration Digital LCD Speedometer Odometer
Features:

With multi-function display performance, like turning lamp display, gear display lamp, rear fog light display light, fuel display, speed display, speed display, N level display, and battery symbol.


High pressure resistance performance, can achieve instantaneous withstand voltage 100V.


Possessed of UV protection, anti-glaring, and Vibration resistant features, giving you a good driving experience.


With waterproof, lightning protection, speed, rotation speed, oil volume, left and right turn, N level- 1-6 level function.


Can meet -20-70 C working temperature, -30-80 C storage temperature, 8-18V Working voltage condition, to make Speedometer work well.

Specification:
Condition:
Material: ABS
Color: As pictures shown
Product Color: Black
Power Supply Voltage: 12VDC
Product Features: Turn to display lamp, gear display lamp, rear fog light display light, fuel display, speed display, speed display, N level display, battery symbol
Perimeter Settings:
Range: 50-22600 Acquiescence: 1871
Speed Pulse Number Setting:
Range: 1-12 Acquiescence: 2
Speed Pulse Number Setting:
Range: 2  4
2:166Hz=10x1000RPM  4:333Hz=10x1000RPM
Acquiescence: 2
Fuel Sensor Setting:
Range: 2 line 3 line
2 line:8-98 Ohm  3 line: 33-566 Ohm
Acquiescence: 2
Total ODO Setting: Short press when enter the setting, totally reduce 200km for three times
Working Temperature: -20-70 C
Storage Temperature: -30-80 C
Working Voltage: 8-18V
UV protection, anti-glaring
High Pressure Resistance: Instantaneously withstand voltage 100V
Function: Vibration resistant, waterproof, lightning protection, speed, rotation speed, oil volume, left and right turn, N level- 1-6 level
Technical Requirements:
1.short press the button to switch the ODO,TRIP two states.
2.Press the button for three seconds on the TRIP, and TRIP will be zero
3.Press the button for three seconds on the ODO,and Metrics/inch switching.
4.Background Settings: hold down the button, switch on electricity, keep five seconds into the settings, and it will flash once enter in, short press to modify, and automatically moves to the following step with no operation, long press to the following position. The order is: girth - speed pulse - fuel.
5. Sensor: total ODO, long press or switch off.
6.Position negative: Left and right turn signal, rear fog light, Gallery light control.
7.When the voltage is less than 11.9 V, the TV symbol light will flash, which will not be displayed when it is 12-14.9 V. And the battery symbol light will flash when it is higher than 15.0V.

Package List:
1 x Instrument
1 x Sensor
1 x Bracket
1 x Chinese and English Manual
2 x Magnet

Note:
1. The factory speed parameter is 22.8Hz=65KM/h. The perimeter values not used in the background, backstage parameters are used only when the background is set.
2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
