PWM Pulse Generator, Dual Mode Adjustable Function Generator Variable Pulse Width Frequency Duty Cycle Square Rectangular Wave Signal Generator Module

PWM Pulse Generator, Dual Mode Adjustable Function Generator Variable Pulse Width Frequency Duty Cycle Square Rectangular Wave Signal Generator Module Description

PARAMETER --- working voltage DC 3.3-30V; frequency range 1Hz-150kHz; duty ratio range 0-100%; number of pulse 1-9999 or infinite; delay output time 0.000s-9999s.
DUAL MODE --- the signal generator has 2 modes, PWM mode (default) & pulse mode.

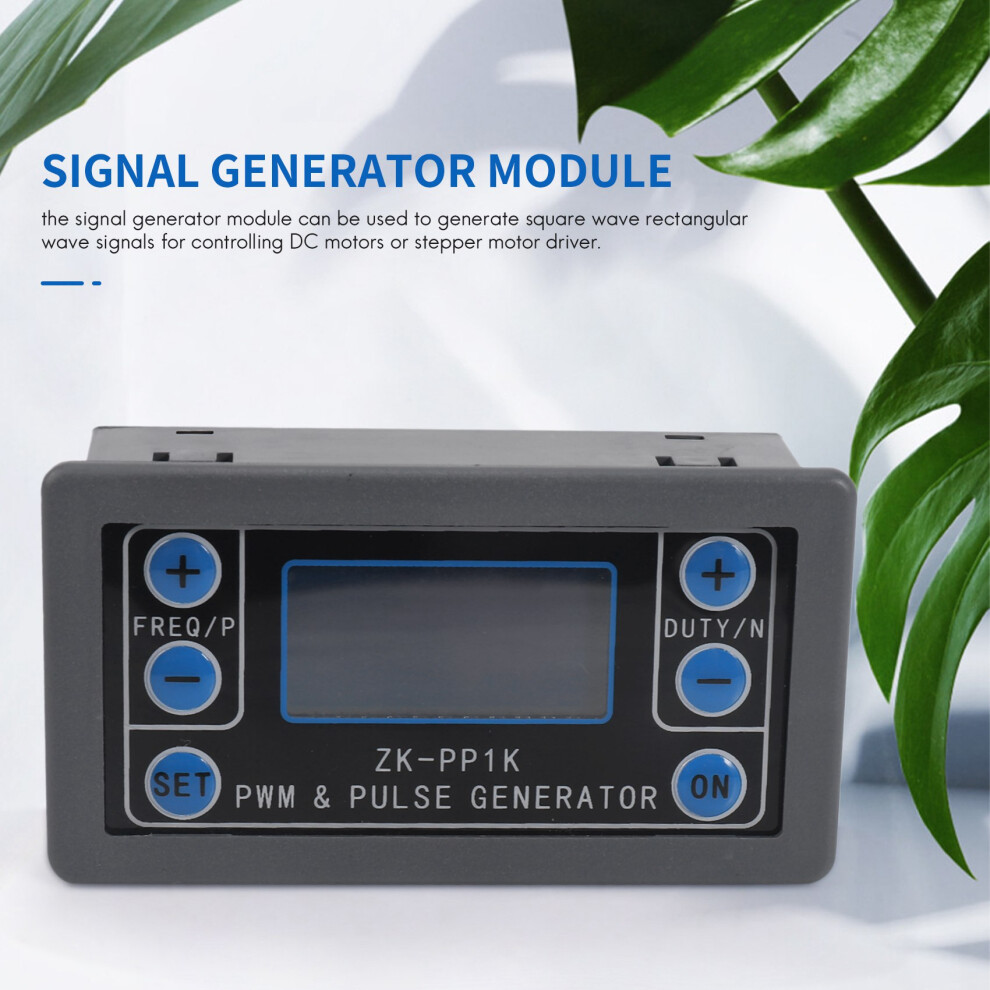

APPLICATION --- the signal generator module can be used to generate square wave rectangular wave signals for controlling DC motors or stepper motor driver; for servo motors, stepper motors, electric jaws, PLC pulses replacement, etc.
PROTECTION --- with anti-reverse protection, 5.08mm terminal wiring.

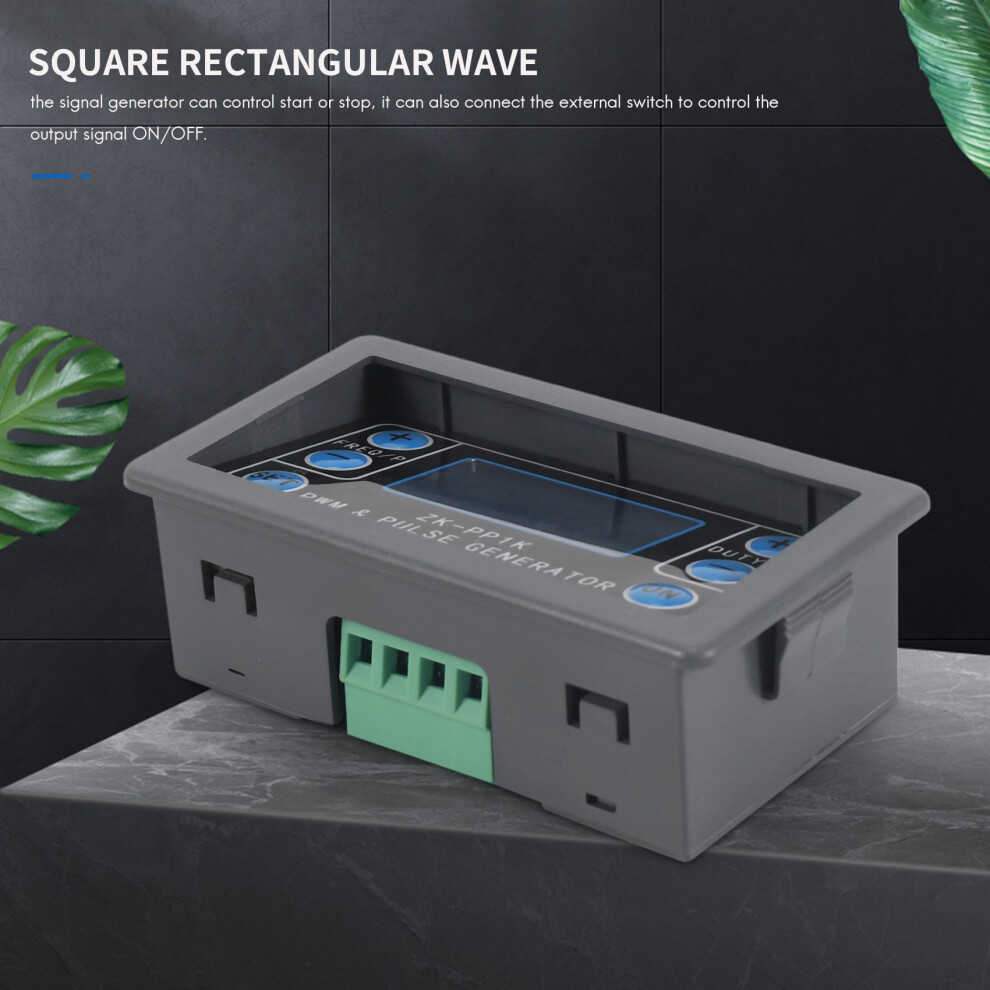

EASY TO OPERATE --- the signal generator can control start or stop, it can also connect the external switch to control the output signal ON/OFF.
Parameter:
Working Voltage: DC 3.3-30V, with anti-reverse protection.
Frequency range: 1Hz~150KHz, accuracy about 1%.
Duty cycle range: 0-100%, 1% stepping.
Number of pulses: 1-9999, or infinite (display '----'stands for ).
Delay output time: 0.000s-9999s, the minimum can be set 1ms.
positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms.
signal loading capacity:less than 30mA.
Output signal amplitude: amplitude is equal to the supply voltage.
Dual Modes:
PWM mode - frequency (continuous), duty cycle. Note that the number of pulses cannot be set in this mode, and the pulse is always sent;
PULSE mode - positive pulse width time, negative pulse width time, delay start time, and number of pulses are adjustable.
Colour: grey
Material:plastic
Size:71*43mm

Package contents:
1*PWM Pulse Generator
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
