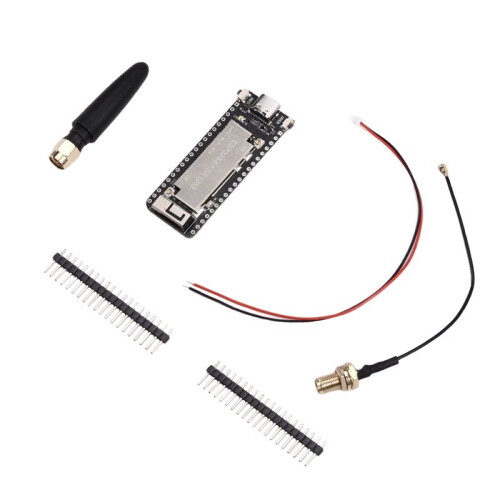

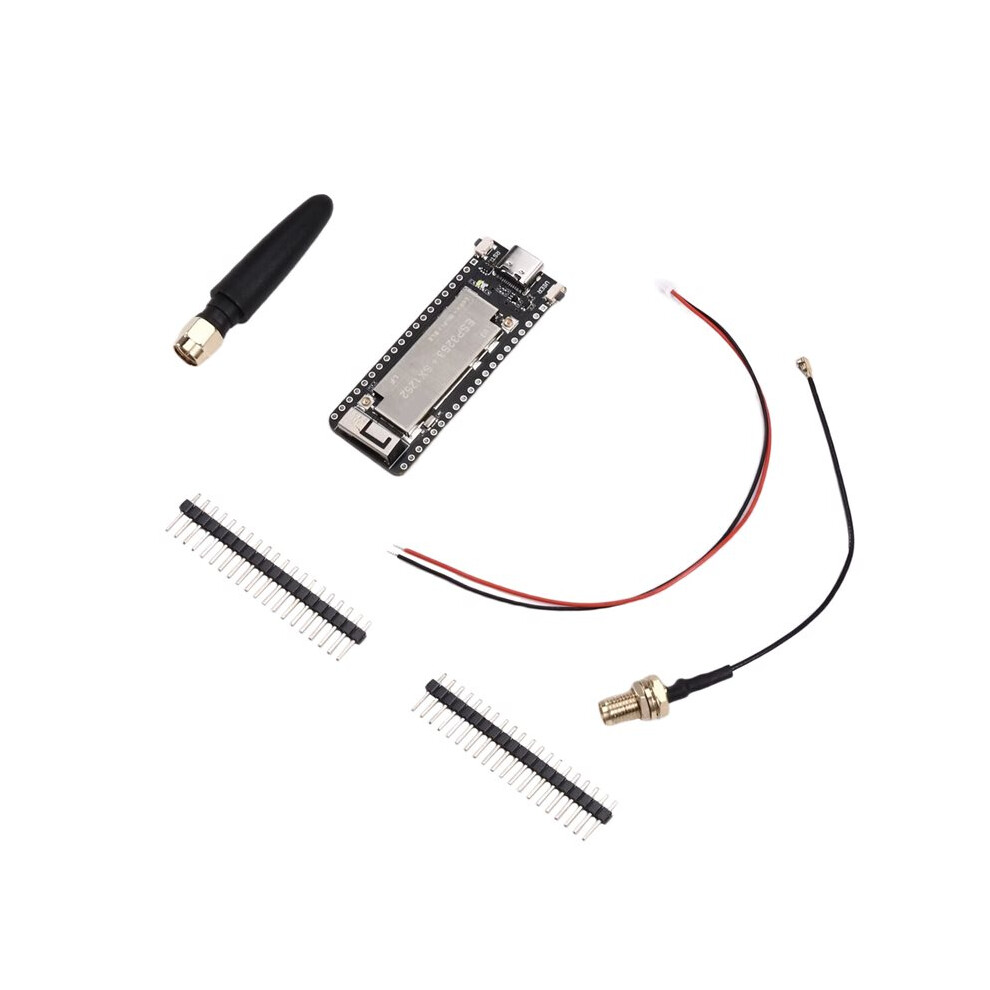

433-510MHZ Wireless Stick Lite V3 ESP32+LoRa Development Board Compatible with ESP32-S3 Node Type-C
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 132,000 κριτικές με βαθμολογία « Άριστα »
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Κανονικό (3,50 €) | Πεμ 27 Αυγ - Τρι 1 Σεπ
Πωλείται από: BALURE
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Περίληψη
- 1. The upgraded version is smaller and more energy-saving. It integrates the advantages of traditional wireless modules to make the product smaller and consume less energy;
- 2. Shielding cover, strong anti-interference, the shielding cover is installed on the module, which greatly improves the anti-interference ability of the product;
- 3. Using SX1262+ESP32 chip, it fully supports the IoT development kit of the standard LoRaWAN protocol;
- 4. Rich interfaces, products can be programmed through standard libraries and simple development languages, and solution verification and product development can be quickly completed;
- 5. Supports three major wireless communication protocols, ESP32 chip, supports WIFI, BLE and LoRa wireless communication functions. It is applicable to various intelligent scenarios. It can be used as a gateway for Internet of Things products and can also be used to drive terminal products;
433-510MHZ Wireless Stick Lite V3 ESP32+LoRa Development Board Compatible with ESP32-S3 Node Type-C Περιγραφή
1. The upgraded version is smaller and more -saving. It integrates the advantages of traditional wireless modules to make the product smaller and consume less ;
2. Shielding cover, strong anti-interference, the shielding cover is installed the module, which greatly improves the anti-interference ability of the product;
3. Using SX1262+ESP32 chip, it fully supports the IoT development kit of the standard LoRaWAN protocol;
4. Rich interfaces, products can be programmed through standard libraries and simple development languages, and solution verification and product development can be quickly completed;
5. Supports three major wireless communication protocols, ESP32 chip, supports WIFI, BLE and LoRa wireless communication functions. It is applicable to various intelligent scenarios. It can be used as a gateway for Internet of Things products and can also be used to drive terminal products;
Product parameters:
Frequency band: 433-510MHZ
MCU chip: ESP32-S3FN8
LORA chip: SX1262
Maximum receiving sensitivity: -139dBm
LORA maximum output power: 211dBm
Hardware resources: 7xADC1; 9xADC2; 8xTouch; 3xUART; 2x I2C; 2xSPI
FLASH:8MB
Interface: Type-C, battery interface, LORA antenna interface, 2. 4G antenna interface (IPEX)
USB to serial port chip: CP2102
Battery type: supports 3.7v lithium battery charging and discharging (battery not included in product)
Sleep current:
Λεπτομέρειες
| OPC | PXDJPNK |
|---|---|
| Μάρκα | Jojomino |
| Κωδικοί | 6031575254356 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 7cm |
| Weight | 0.033kg |
| Colour | Black |
| Material | PCB |
