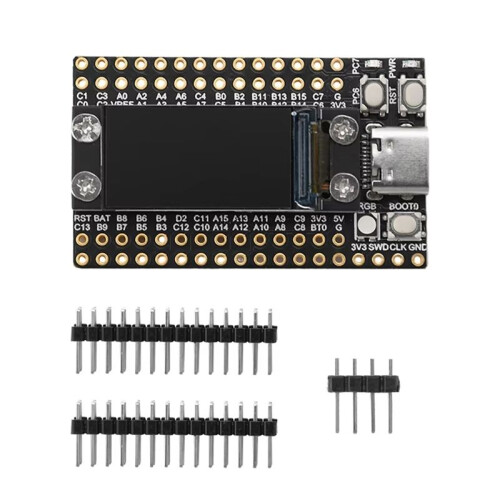

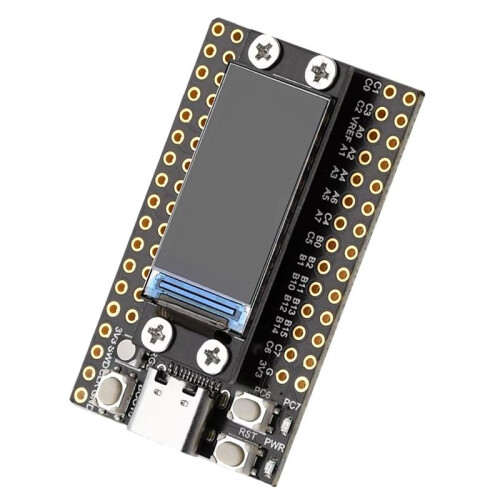

Dual Type-C STM32F103RCT6 Microcontroller Development Board with 0.96Inch Lcd Screen and Flash Minimum System Board

Dual Type-C STM32F103RCT6 Microcontroller Development Board with 0.96Inch Lcd Screen and Flash Minimum System Board Περιγραφή

1. STM32F103RCT6 is a microcontroller designed based the Cortex-M3 kernel, making it compatible with most processor tools and software.
2. Its peripheral and hardware design are compatible with some mainstream microcontrollers in the market, and have been enhanced in performance and functionality, making it convenient for users to quickly import and achieve functional enrichment while maintaining consistent operation.
3. The maximum main frequency of STM32F103RCT6 is 72MHz, with built-in 128KB flash memory and 20KB , which can support high-speed computing and large capacity storage.
4. At the same , the chip also supports external memory expansion, which can achieve larger storage capacity through cards, serial Flash, and other methods.
5. Enhanced USB function with 2 USB interfaces, supporting serial port downloading and USB function, stronger functionality, and lower cost.

It has rich peripheral interfaces and various communication interfaces, which can be widely used in consumer electronics, automation control, automotive electronics and other fields.
Rated voltage: 3.3 or 5V
Automatic download circuit for onboard serial port
board 8MFlash chip

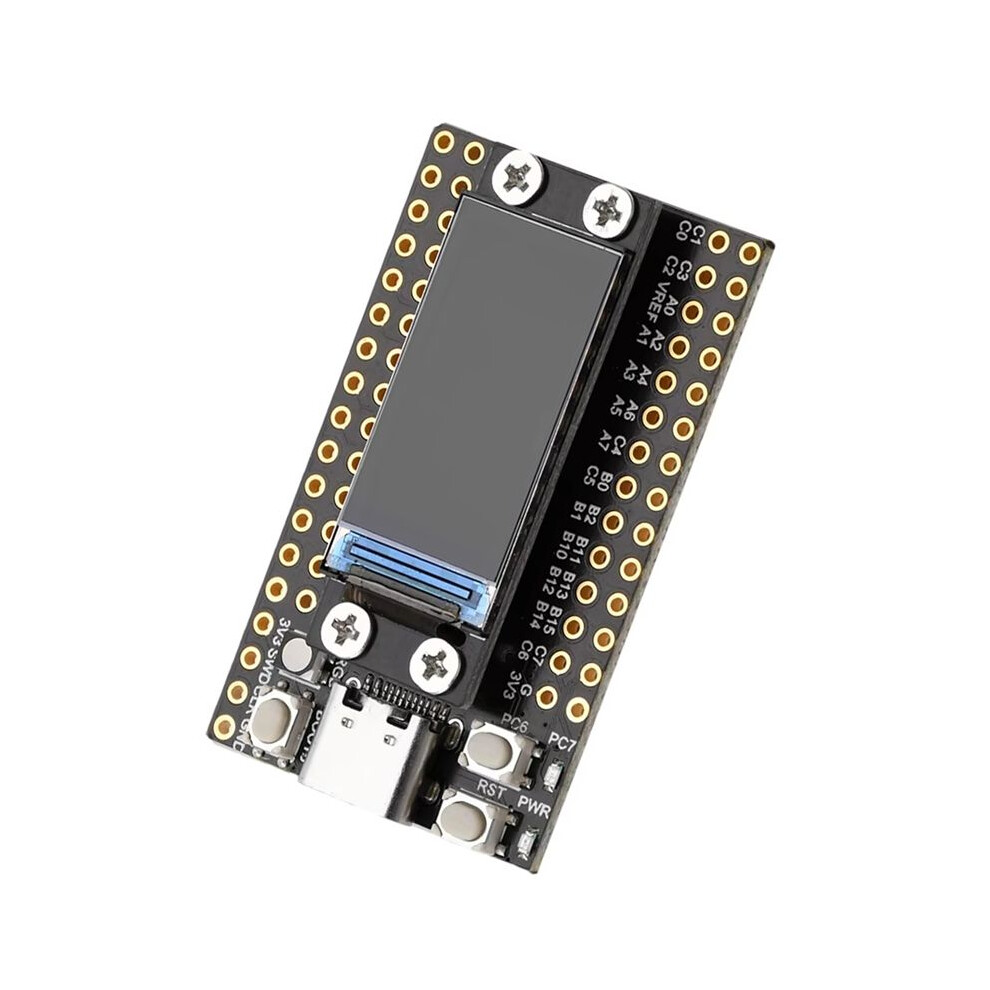

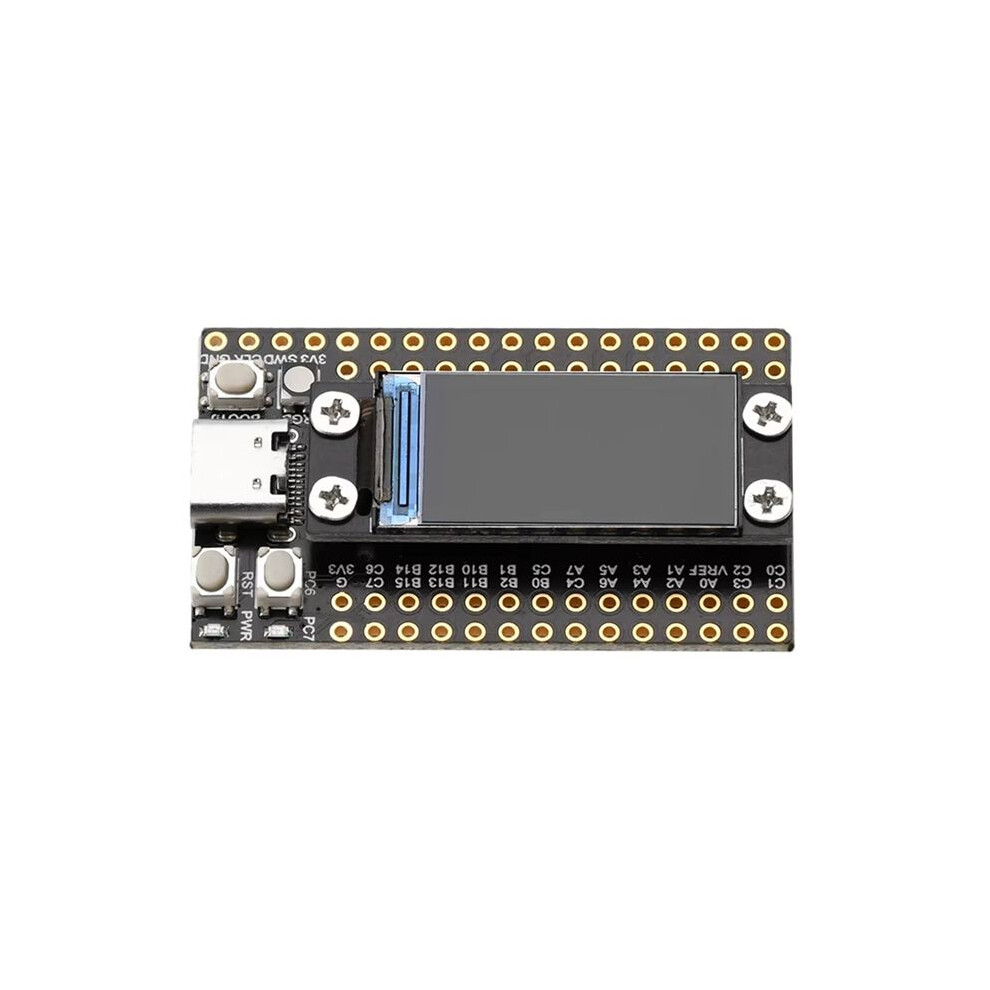

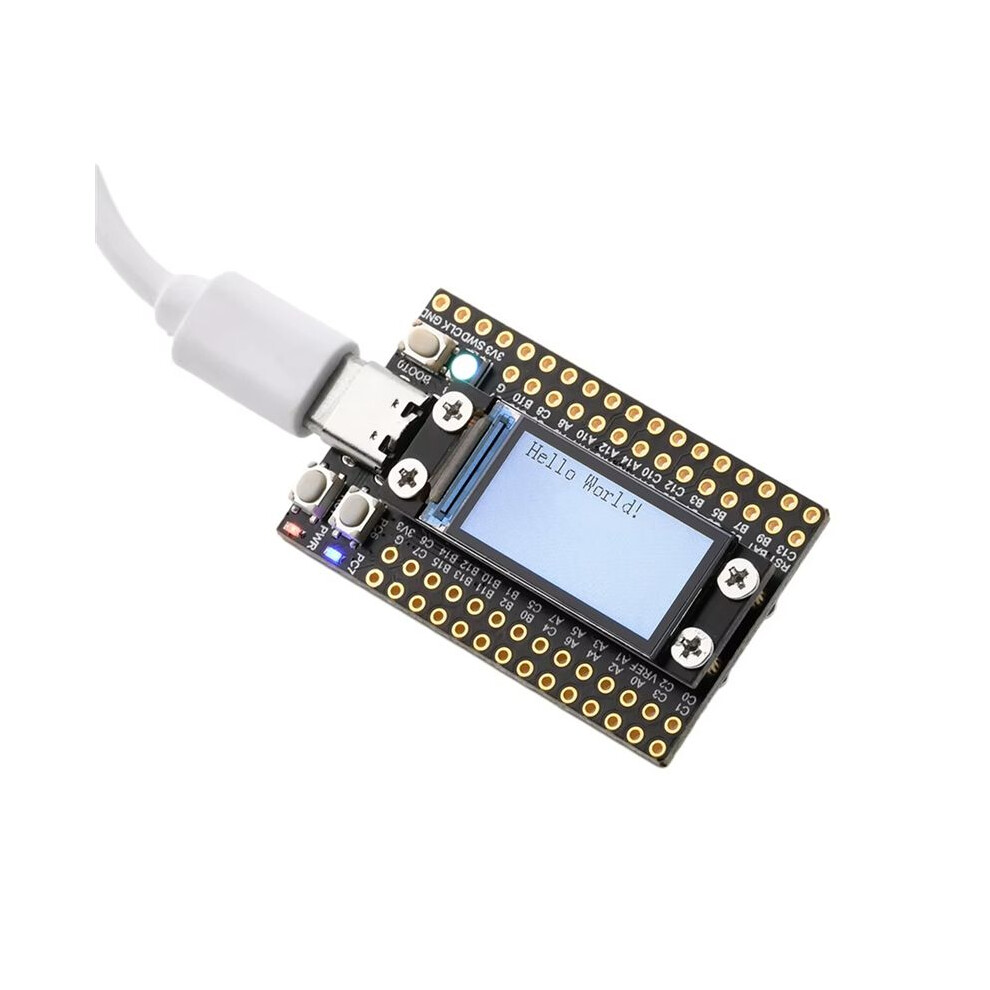

board 0.96-inch TFT LCD
Dual USB, supporting serial port download and USB function (bottom USB can only provide power and cannot be debugged)
HSI serves as a clock source to PLL, running at 72MHz main frequency
The APB1 bus clock can reach the system main frequency
SPI1/2 clock to 36MHz
Supports USB 2.0 full speed host/device functionality
Wake interrupt source consistent with USBD
Built in ADC unit
16 touch button channel detection
One DAC unit with 2 analog signal outputs
Colour:As Shown
Material:Plastic

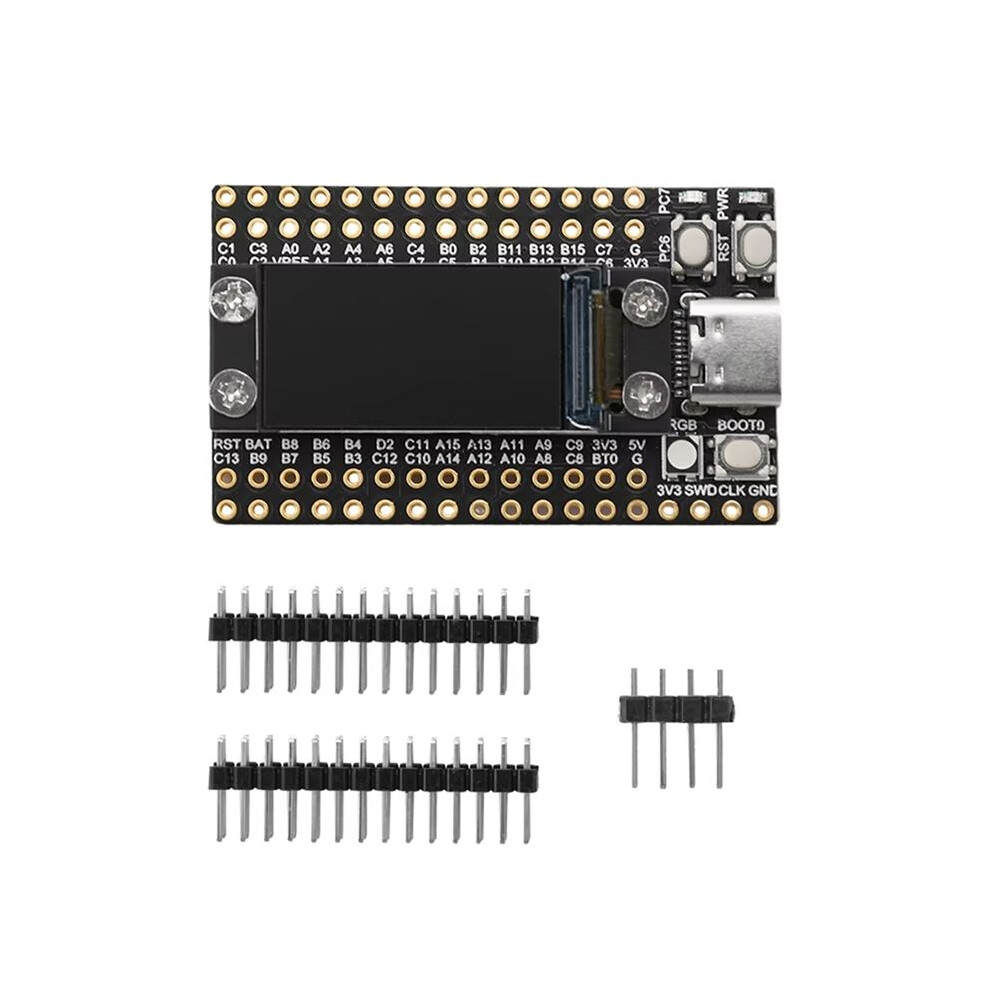

Package Contents:
1 * Development Board
1 set * needles
