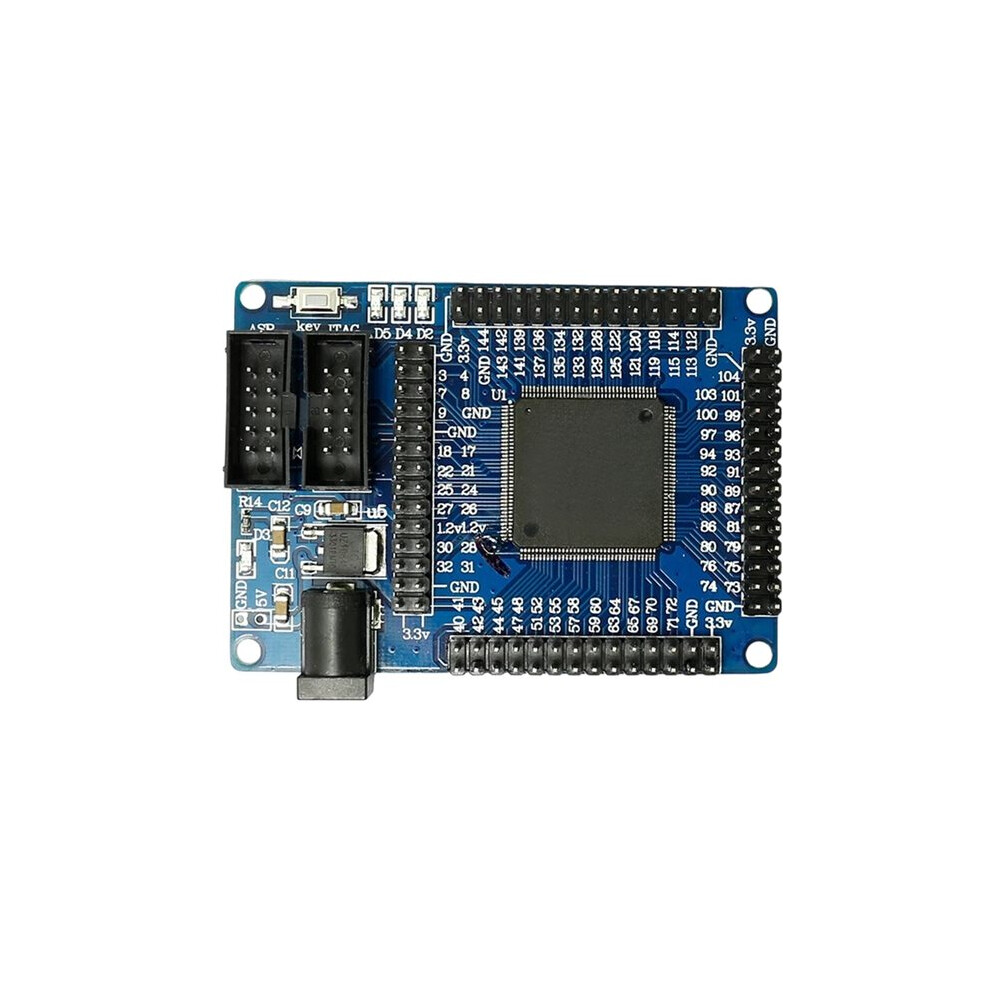

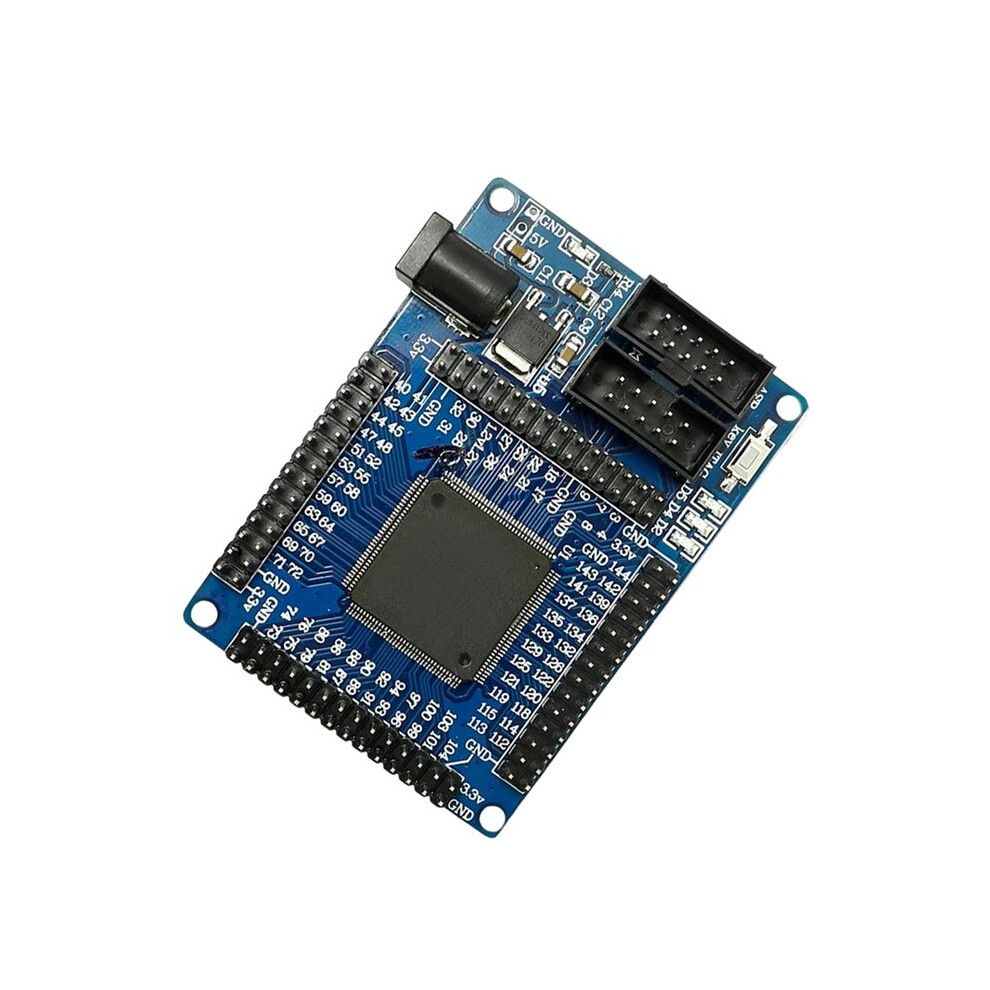

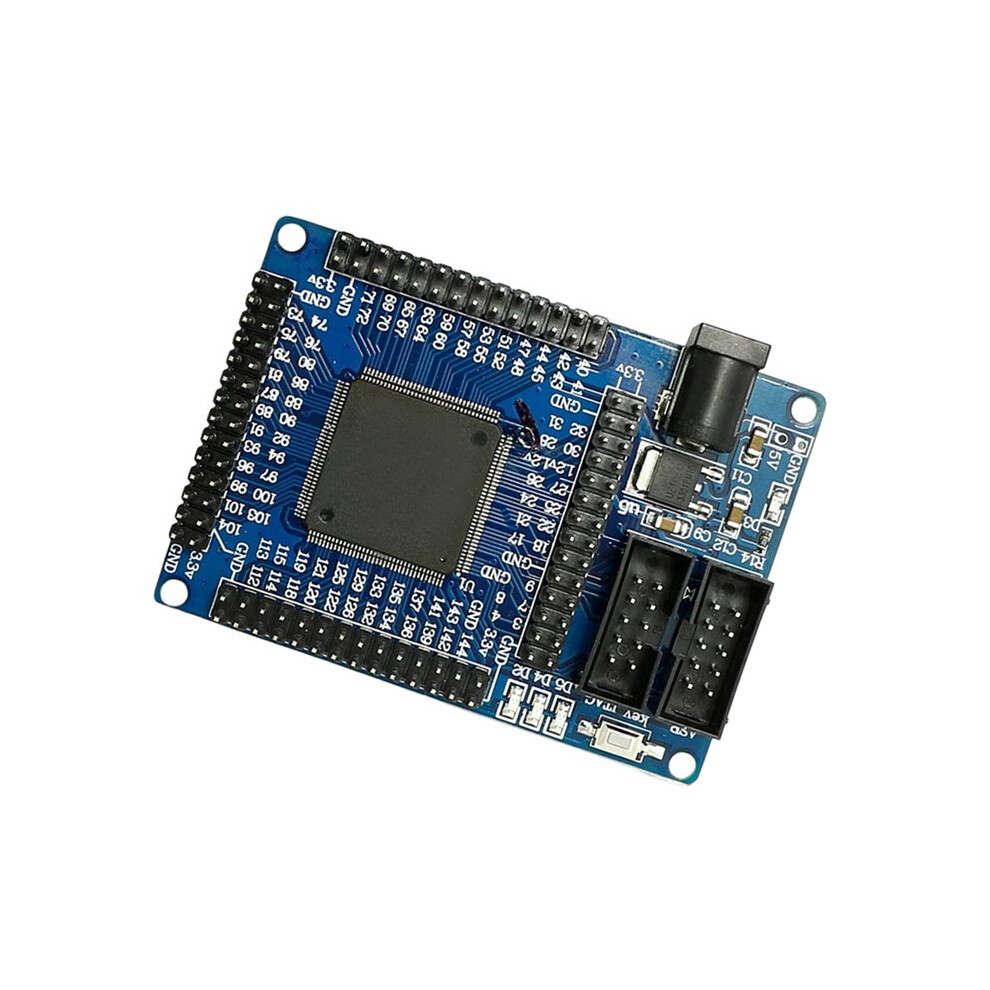

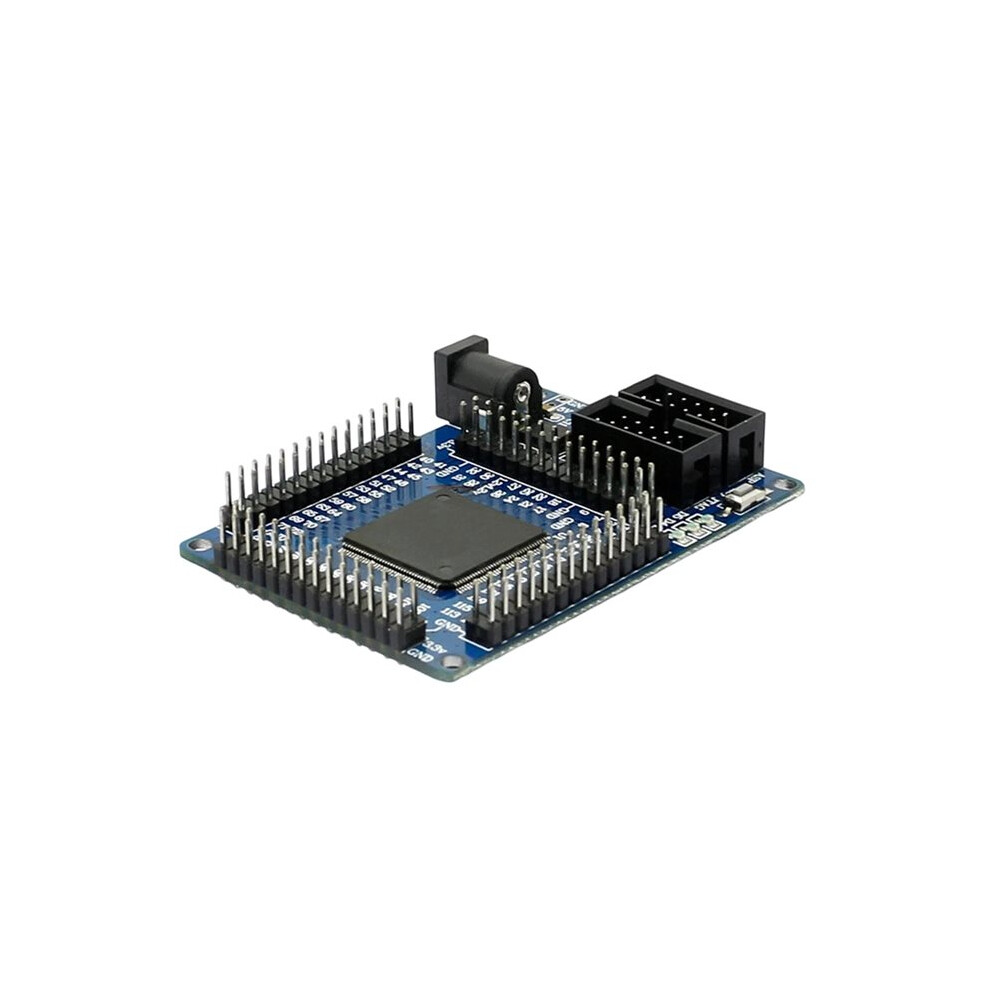

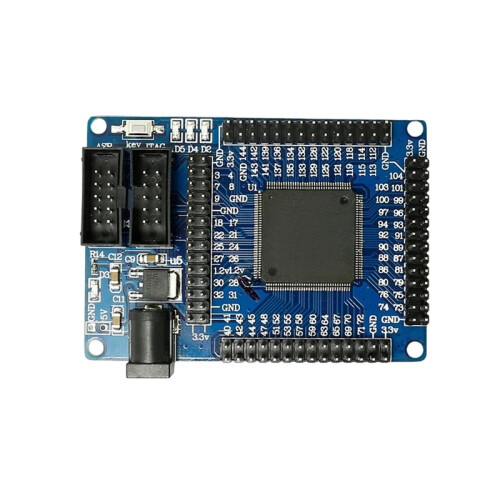

EP2C5T144 ALTERA FPGA Cyclone IIMinimum System Development Board

EP2C5T144 ALTERA FPGA Cyclone IIMinimum System Development Board Περιγραφή

-board EP2C5T144 chip.
The configuration EPROM chip using EPCS4, size is 4Mbit.

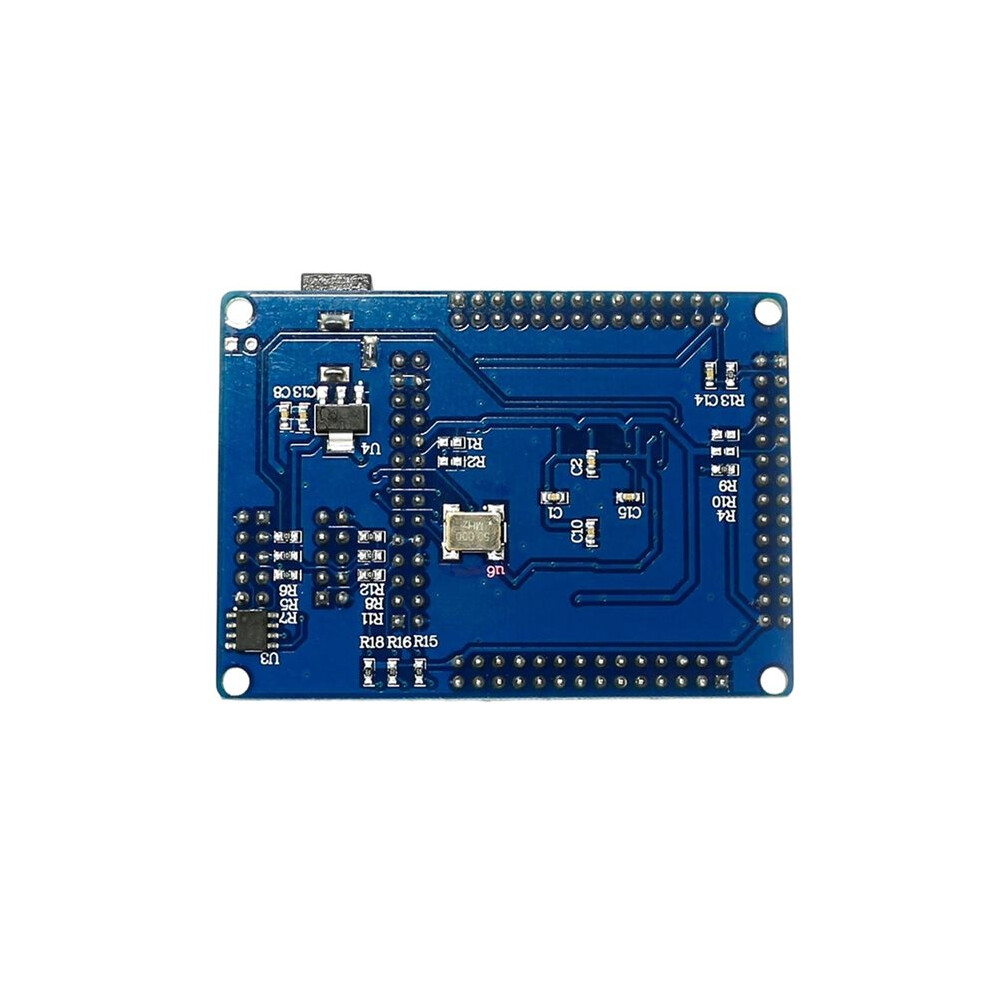

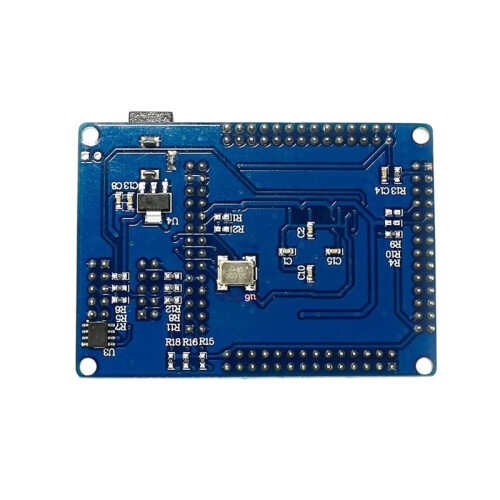

-board 50M active SMD crystal (the crystal in the back of the board).
Using power electrical outlet, a single 5V power supply.
All the IO , and clock pins through the pin leads, through these interfaces can be extended to any memory and peripheral; support the development of NiosII embedded CPU, complete the simple logic control, data acquisition, signal processing, mathematical calculations and other functions.

The board high quality tantalum capacitors for power supply filtering. Panel power indicator and reset . 3 SMD LEDs -board can do LED test experiments, more experiments using lead. The board's core FPGA chip pin all leads directly to the board into the application board. Very compact size: 6 (cm) * 8 (cm).
Color: As Shown
Material: ABS

Package Contents:
1*EP2C5T144 Development Board
