DDS Function Signal Generator Frequency Counter Signal Source Module

DDS Function Signal Generator Frequency Counter Signal Source Module Description

DDS Function Signal Generator-Frequency Counter-Signal Source Module Description
I. Main Technical Parameters:

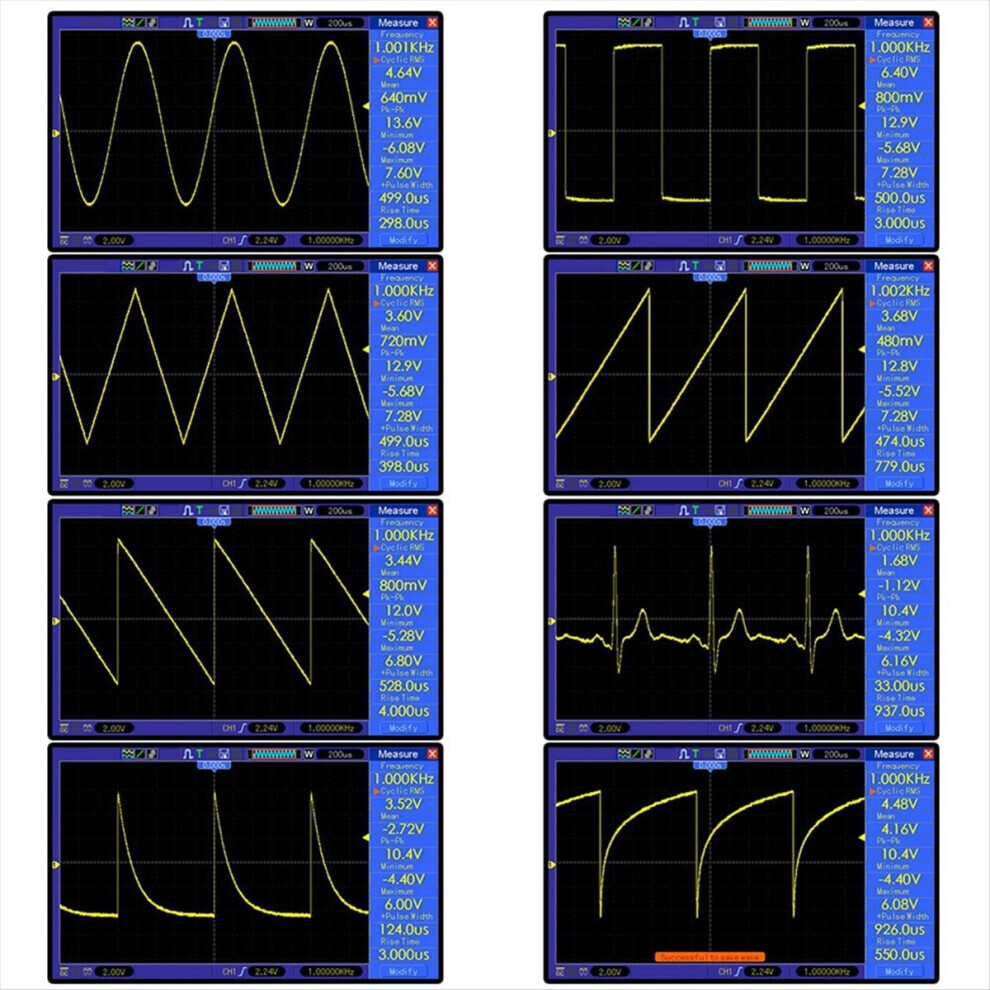

1. Output Waveforms: Sine wave, square wave, triangle wave, forward-facing serpentine wave, reverse-facing serpentine wave, ECG wave, exponential rise, exponential fall, Lorentz pulse, Gauss pulse, sinc pulse, half-wave, -wave, wave, noise wave, etc. 15 types of waveforms.
2. Power Supply: DC4-9V, DC5V is recommended when using an adapter, a 3.7V lithium battery is recommended for battery operation.
3. Current: 180mA at 5V
4. Frequency range: Sine wave 0.01 Hz - 500.00 kHz (as the frequency increases, the output amplitude decreases), other waveforms 0.01 Hz - 100.00 kHz (however, this does not limit the upper limit of the adjustable frequency. If distortion and jitter requirements are not high, the frequency range can be increased further).
5. Resolution: 0.01 Hz.
6. Sine wave distortion: Less than 1% below 1 kHz, less than 0.5% above 1 kHz.
7. Output amplitude: Maximum 10 V (PP).
8. Output impedance: 50 ohms.
9. DC offset: Maximum 10 V, with cutoff function.
10. All setup parameters can be saved.
11. There are switchable filters that adapt well to sinusoidal and pulsed waveforms.
II. Features:
Compact size (125 x 80 x 26.5 mm), comprehensive functionality, easy operation, and easy to transport. Power is supplied via an AC adapter or a 3.7 V lithium battery. Together with an oscilloscope, it can be used for testing and debugging electronic circuits, testing frequency characteristics and impulse responses, and measuring audio amplifiers. Due to the
high accuracy and frequency stability of DDS, it is also very well suited for calibrating the sweep time factor of oscilloscopes. The square wave output is suitable for adjusting oscilloscope attenuation and probe pulse characteristics. Note: Due to different production batches, slight product differences may occur. Color: Photo color. Material: Plastic. Package includes: 1 * FG-200 DDS Signal Generator. Only the above package contents are included; other products are not included. Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The allowable measurement error is +/- 1-3 cm. [OnBuy.com]
