Industrial USB Bare Camera Module Lens Assembly-With 2m cable

Industrial USB Bare Camera Module Lens Assembly-With 2m cable Description

Features:
1MP 720P/30fps pixel, high resolution lens module, clear picture.
Upgraded OV9732 chip, with stable performances.

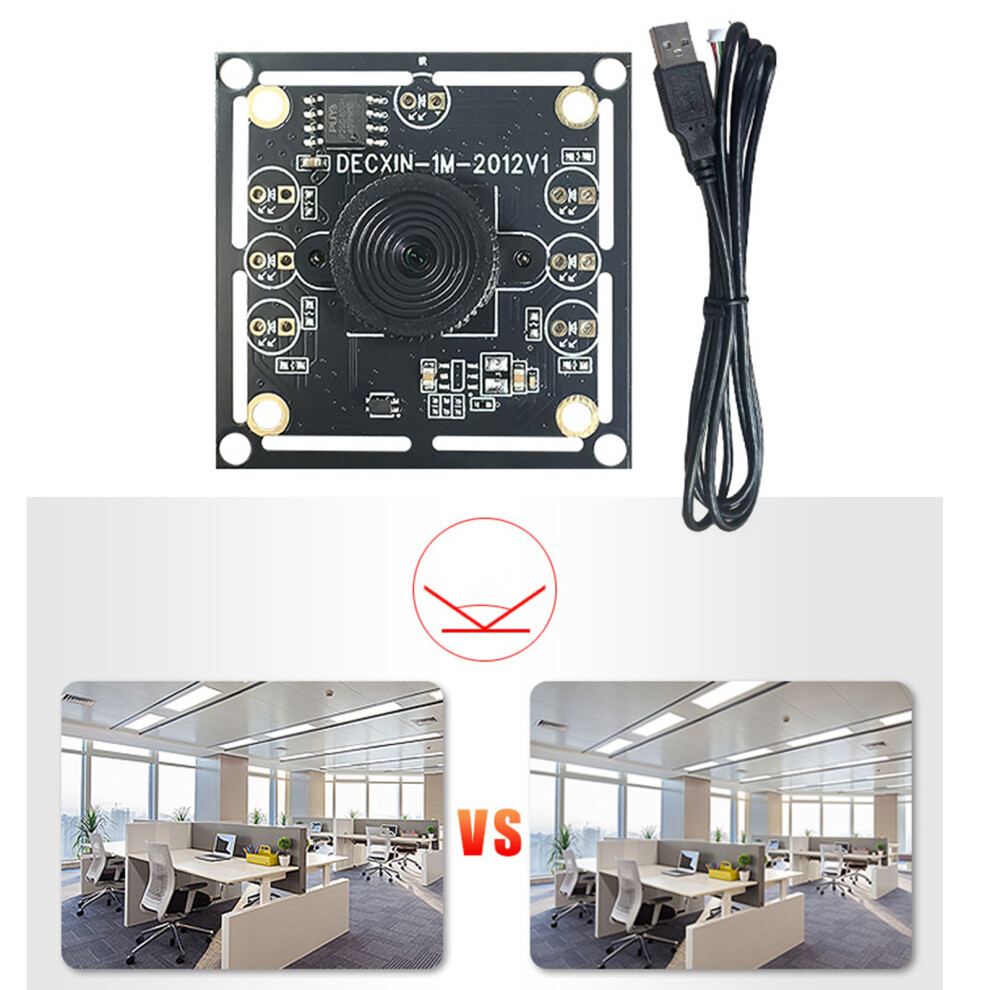

Large 100 degree field of view, wide viewing, broader field of view.
Strong compatibility, supports Win XP/7/8/10 and more system, USB port, not need driver, convenient use.
Widely used in license plate recognition, face recognition, UAV photography, overhead camera, gate access and more.

Specifications:
Material: ABS+Metal
Type: with 1m cable, with 2m cable, with 3.0m cable(optional)

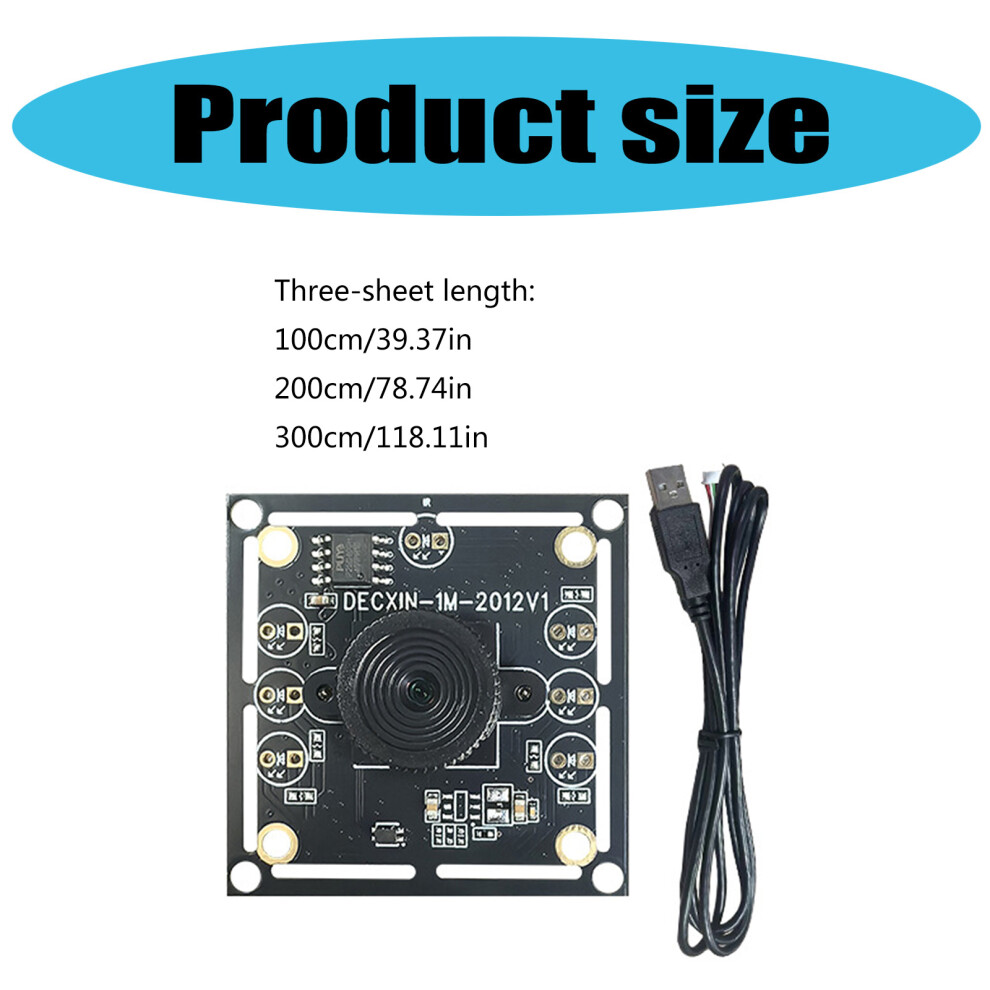

Module Board Side Length: Approx. 38mm/1.5inch
Cable Length: 1m/3.28FT, 2m/6.56ft, 3.0m/9.84ft
Name: 100 Degree USB Industrial Camera Module
Chip: OV9732
Photographic film: (1/4inch)
Effective pixel: up to 1280 (H) x720 (M)
Lens size: 1/4inch (4:3)
Focal length: 2.84m
Diagonal: 100
Port: M12xP0.5
Pixel size: 3.0um x 3.0um
Imaging area: 5.7mmx4.28mm
Supported resolution and frame rates: 1280x720@30fps MJPEG, 1280x720@10fps YUV, 800x600@30fps MJPEG, 800x600@15fps YUV, 640x480@30fps MJPEG 640x480@30fps YUV
Focal Point: Fixed
Interfaces type: USB2.0
Automatic Exposure Control: Supports
Automatic White Balance AEB: Supports
Parameters: brightness/contrast/color saturation/tone clarities/white balance/backlits contrast/exposure

Package Includes:
1 Piece OV9732 USB Industrial Camera Module
1 Piece USB Cable(Different Length Avaliable)

note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.
