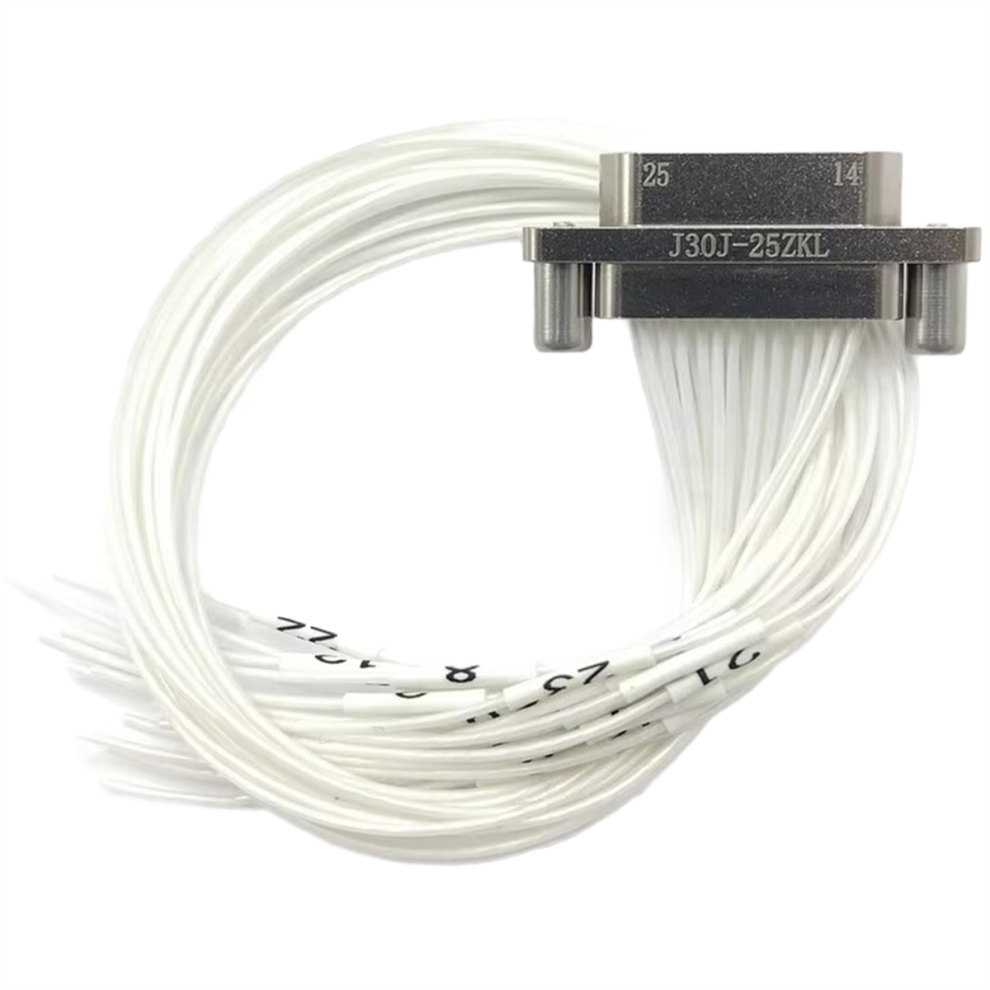

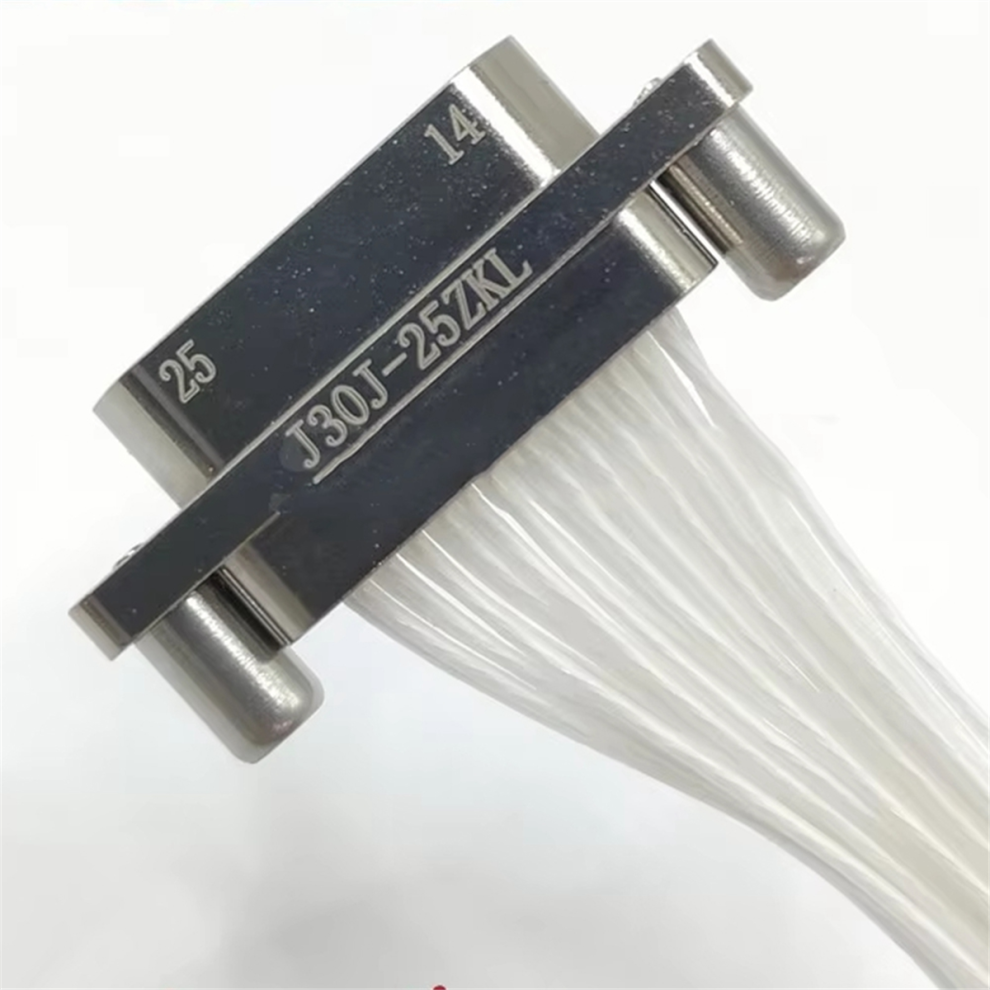

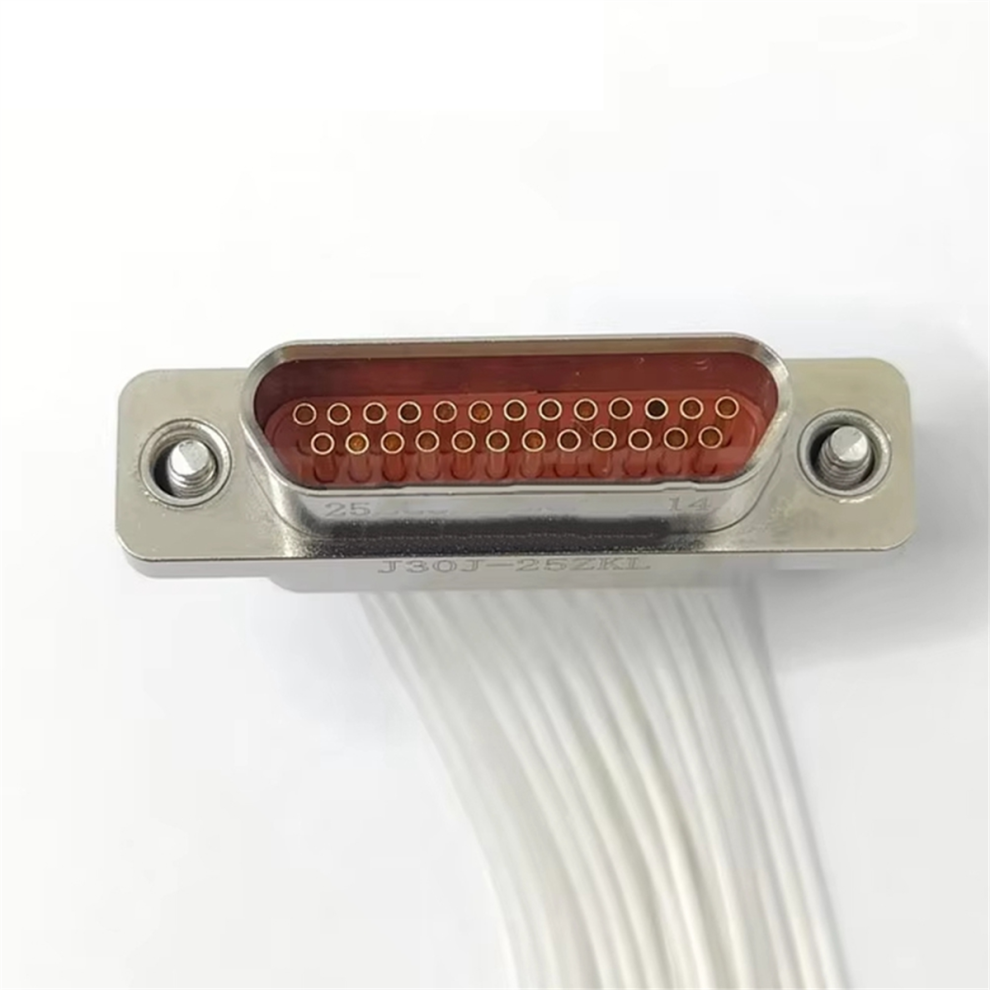

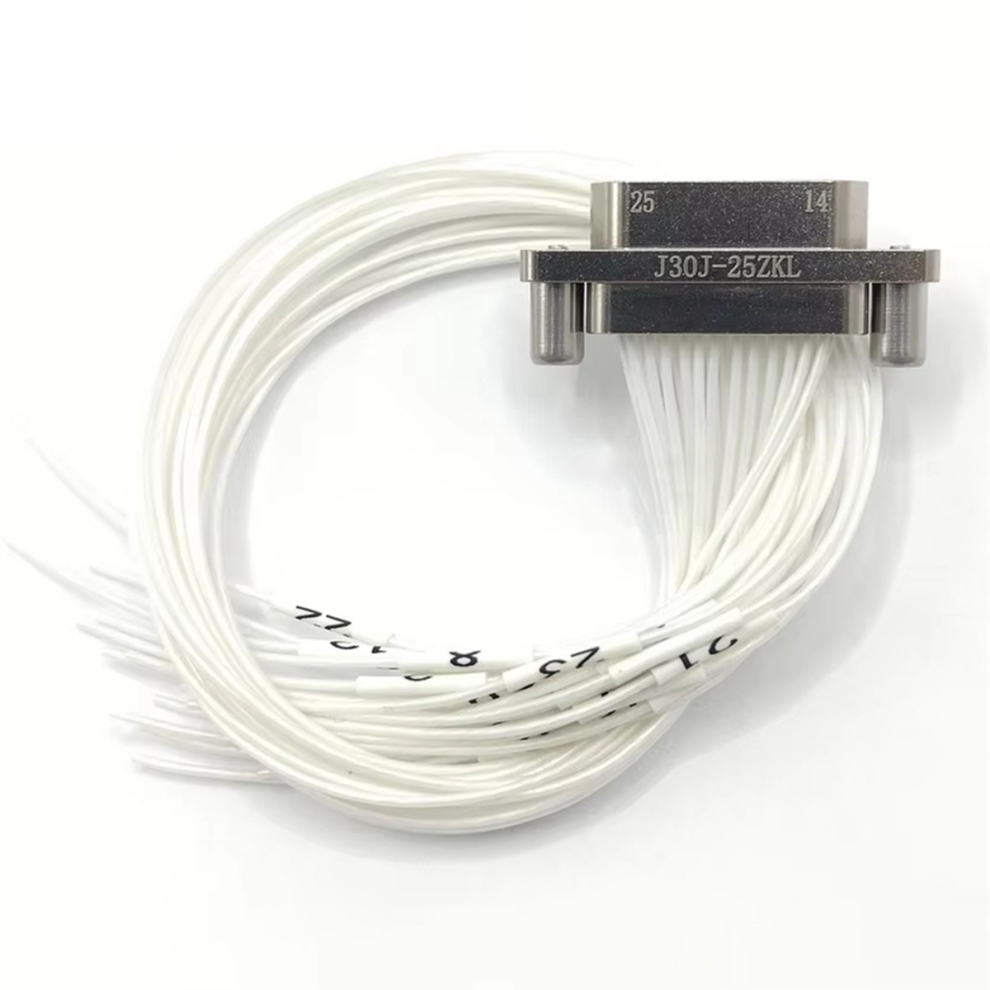

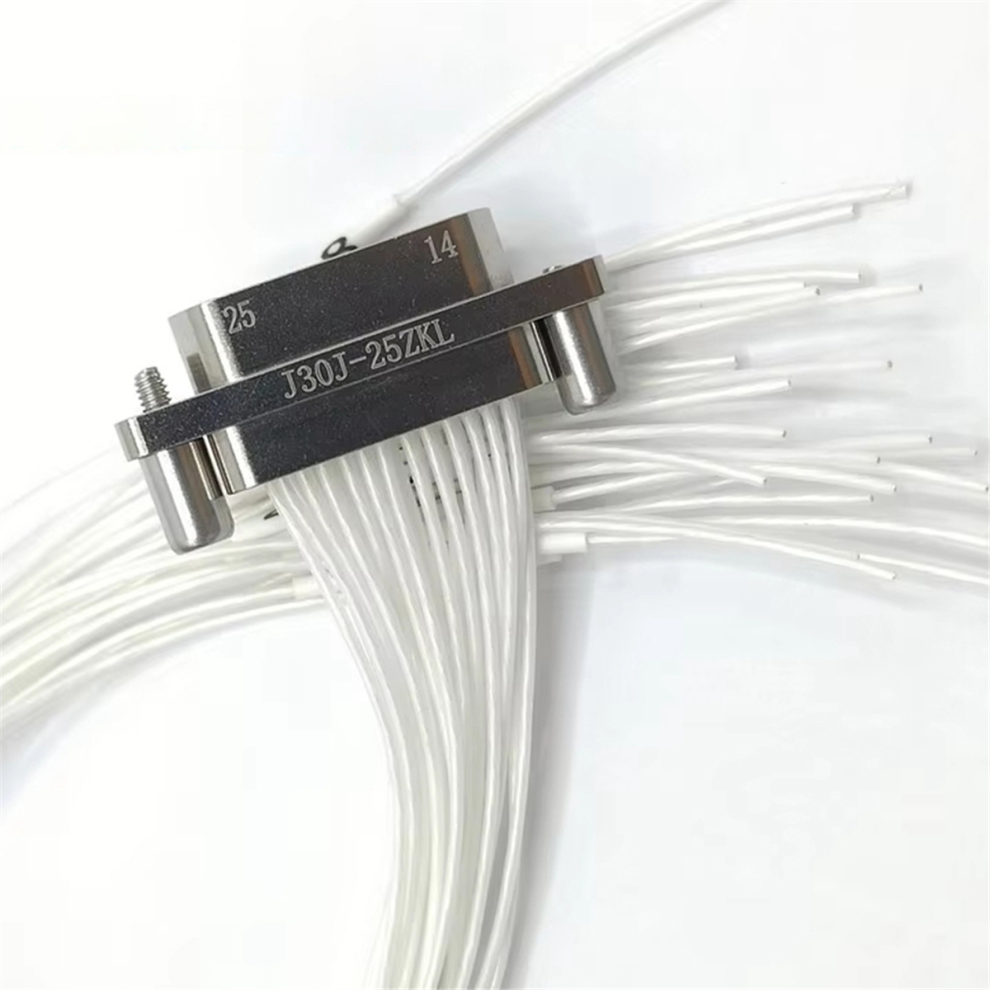

J30J-25ZKL-300 Aviation Socket 25 Core Electronic Connector Bend

J30J-25ZKL-300 Aviation Socket 25 Core Electronic Connector Bend Description

High Insulation Resistance:Offers a robust 5000MΩ insulation resistance, safeguarding your circuits.
Low Contact Resistance:Boasts 10mΩ contact resistance, promoting efficient power transmission.
High Durability:Withstands 500 times of use, ensuring long-term reliability for your electronic connections.
J30j 25zkl|J30j 25tjp|Ambient Temperature Range:Operates effectively across a wide range from -55 to +125, suitable for diverse environments.

Ambient temperature: -55-+125
Vibration: 10Hz- 2000Hz 196m/s²
Random vibration: the power density 0.4G² /Hz, root mean square value of total acceleration 23.1G;
Shock: 735 m/s² 11ms
Current rating: 3A
Contact resistance: 10mΩ
Insulation resistance: 5000MΩ
Dilectric withstand voltage: 800V
Length: 30mm
Durability: 500 times
Color: As Shown
Material: Gold Plated

Package Contents:
1 x Electrical signal connection conversion plug

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
