Digital Load Cell Weight Sensor-4 Sets 1KG Load Cell HX711 Amplifier

Digital Load Cell Weight Sensor-4 Sets 1KG Load Cell HX711 Amplifier Beschrijving

Digital Load Cell Weight Sensor-4 Sets 1KG Load Cell HX711 Amplifier Description
Two selectable differential input channels
On-chip active low noise with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation Less than 1.5mApower down Less than 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operating Temperature Range: -20 degree ~ +85 degree
Wiring method: positive (E+) red, power negative (E-) black, signal positive (S+) green, signal negative (S-) white
color: Silver
Material: Metal

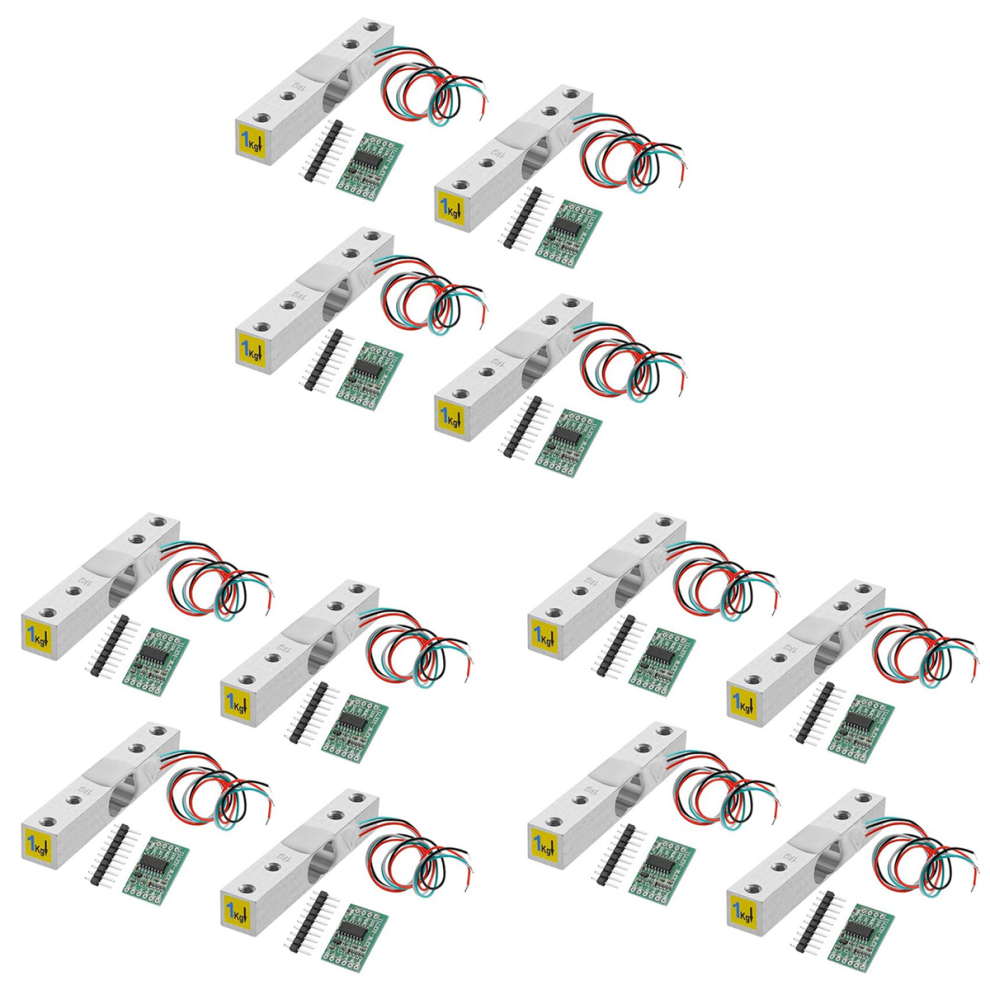

Package Contents:
12 x 1kg load cell weight sensor
12 x HX711 AD modules
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
