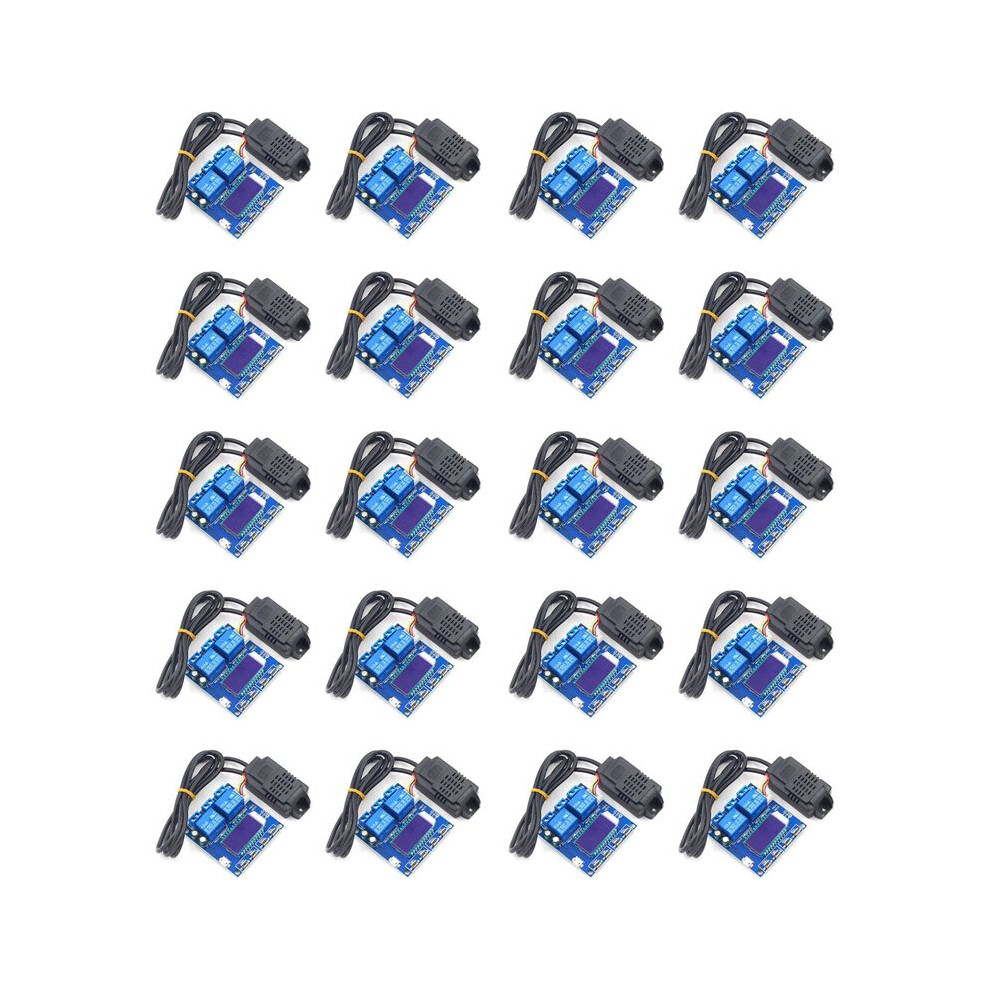

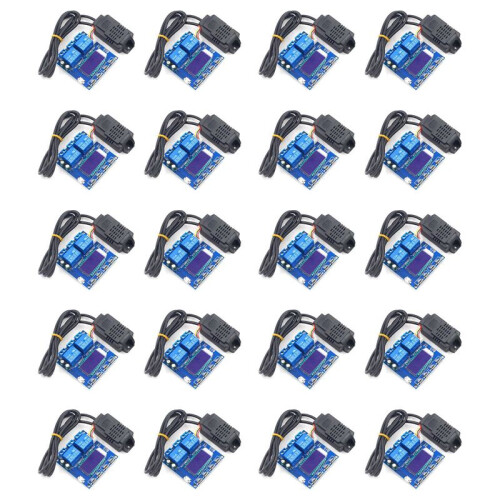

20X XY-TR01 Temperature and Humidity Control Module Automatic Constant Temperature and Humidity Control Panel

20X XY-TR01 Temperature and Humidity Control Module Automatic Constant Temperature and Humidity Control Panel Beskrivelse

1. Automatic identification of working mode: The system automatically recognizes the working mode according to the start temperature/stop temperature; Start temperature Greater than stop temperature, cooling mode 'C'; start temperature Less than stop temperature, heating mode 'H';
2. Cooling mode: When the detected temperature is greater than or equal to the starting temperature, the relay is turned , the red indicator light is , and the refrigeration equipment starts to work; When the detected temperature is less than or equal to the stop temperature, the relay is turned off, the red indicator light is off, and the refrigeration equipment stops working;
3. Heating mode: When the detected temperature is less than or equal to the starting temperature, the relay is turned , the red indicator light is , and the heating equipment starts to work; When the detected temperature the stop temperature, the relay is turned off, the red indicator light is off, and the heating equipment stops working
4. Temperature correction function OFE (-10.0 ~ 10.0): When the system works for a long , there may be deviations, which can be corrected by this function, the actual temperature = measured temperature + calibration value;

How to set start/stop temperature:
1. In the running interface, press and hold the 'TM+' button for more than 3 seconds to enter the startup temperature setting interface. You can use the TM+ TM- button to modify the parameters in the test. After the parameters are modified, wait for 6s to automatically exit and save;
2. In the running interface, press and hold the 'TM-' button for more than 3 seconds to enter the stop temperature setting interface. You can modify the parameters through the TM+ TM- button. After the parameters are modified, wait for 6s to automatically exit and save;
Material: ABS
colour:
