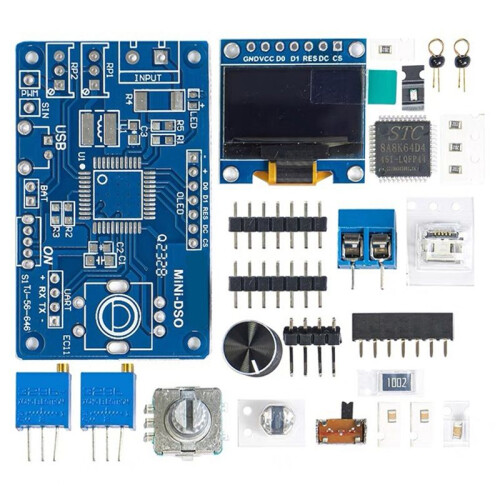

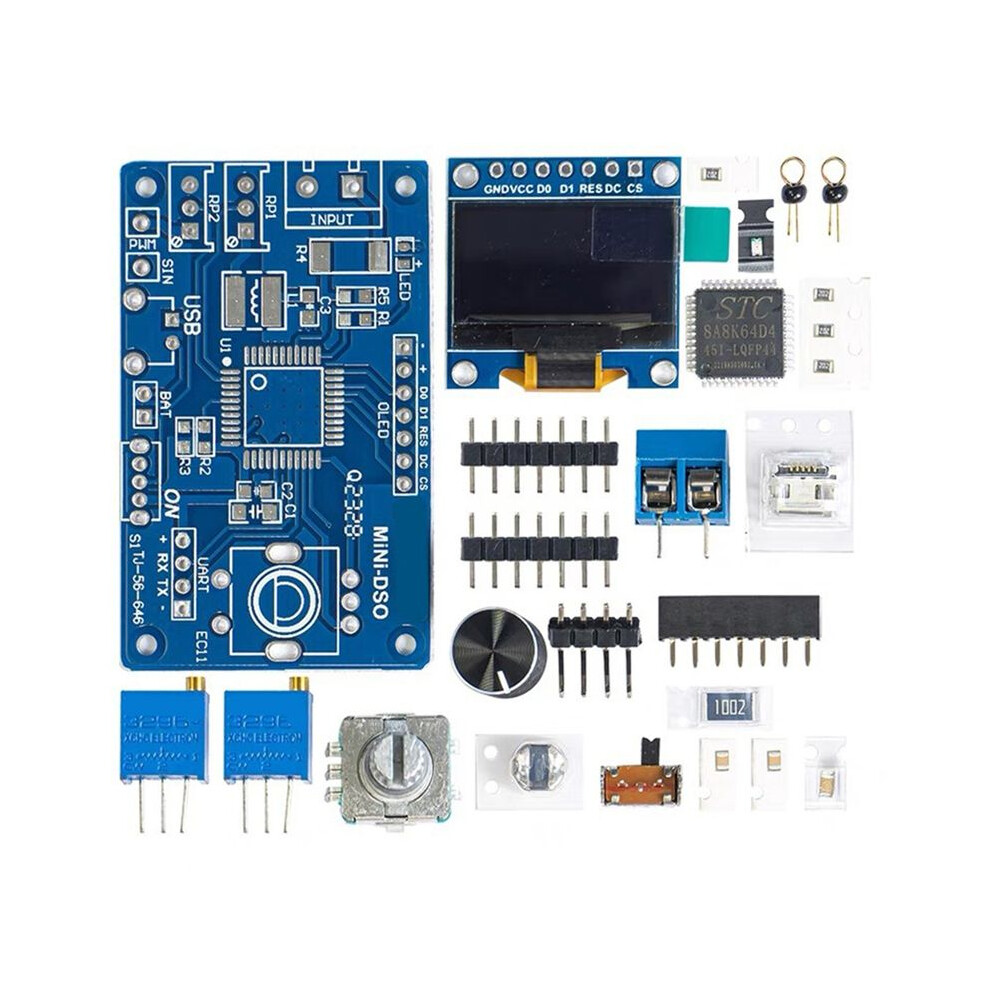

Digital DIY Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Parts

Digital DIY Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Parts Beskrivelse

1. Indicator light: Usually the indicator light is to indicate that sampling is running
2. There are three trigger modes: automatic mode, normal mode, and single mode
3. Trigger slope: The trigger slope determines whether the trigger point is the rising or falling of the signal
4. Trigger level: For repetitive signals, the trigger level can make it display stably. For single-shot signals, the trigger level can capture
5. Save settings: When exiting the setting interface, all parameters of the setting interface and the main interface will be saved in the EEPROM

6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively
Product parameters:
Power supply voltage: 5V (Micro-usb)
Voltage range: 0-30V (LSB needs to be adjusted)
Level sampling: 10kHz@100us/div
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,
10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us
Circuit board size: 57x35mm

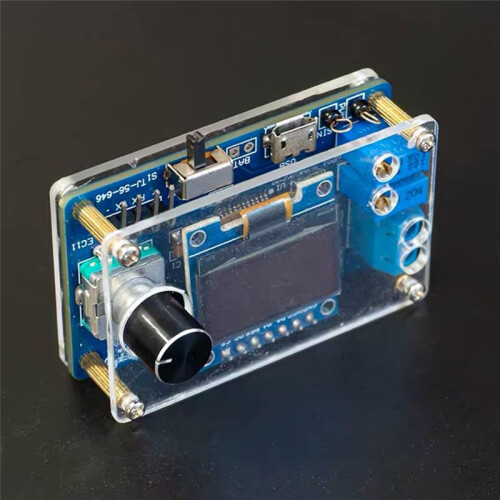

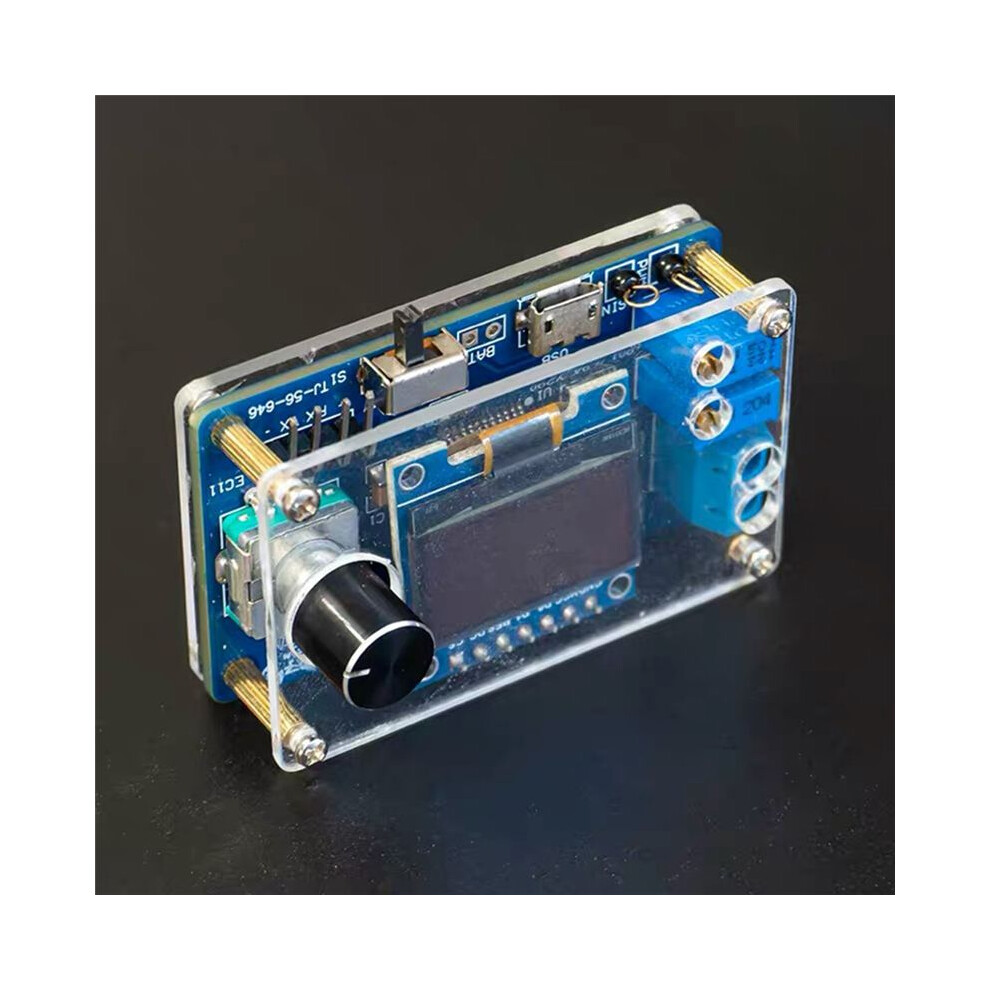

Finished product size: 57x35x30mm
Colour:As Shown
Material:Metal + Plastic
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

Package Contents:
1 * Digital DIY Oscilloscope Kit
