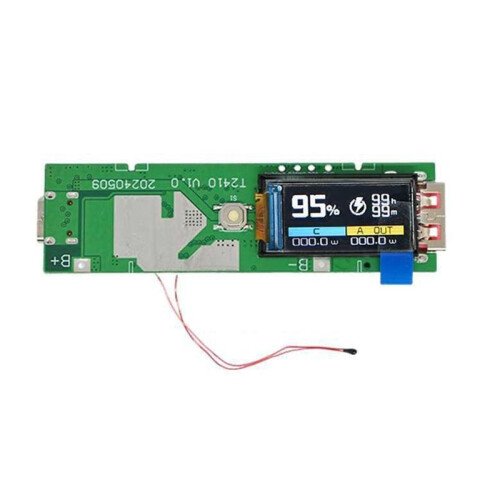

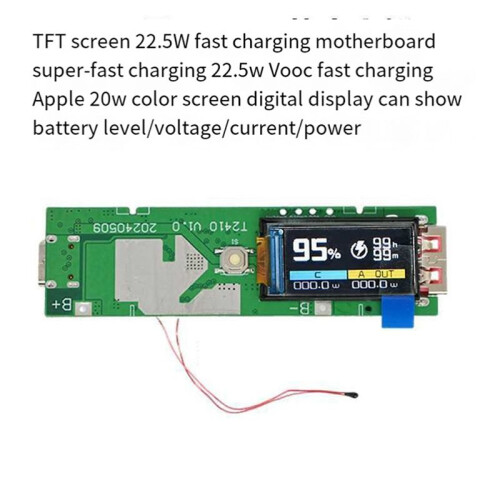

22.5W Fast Charging Module TFT Color Screen Digital Display Mobile Power Motherboard
New
63,72 RON
Produse similare care te-ar putea interesa
Would you like us to let you know when it's back?
Descriere & Detalii
Rezumat
- 1. Multi-protocol compatibility: support for PD/for QC/for APPLE and other mainstream protocols, adapting to all brands of equipment fast charging
- 2. Quadruple safety protection: overcharging/over-discharging/over-voltage/overheating intelligent protection, to avoid potential safety hazards
- 3. TFT color screen display strength: real-time display of power/voltage/temperature, status at a glance
- 4. Protection-free board design: integrated protection function on the main board, directly weld the battery to save space and simplify assembly
- 5. Intelligent self-learning power: automatically calibrate the power display after the first use, accurately reflecting the remaining battery power
Descriere 22.5W Fast Charging Module TFT Color Screen Digital Display Mobile Power Motherboard
1. Multi-protocol compatibility: support for PD/for QC/for and other mainstream protocols, adapting to all brands of equipment fast charging
2. Quadruple safety protection: overcharging/over-discharging/over-voltage/overheating intelligent protection, to avoid potential safety hazards
3. TFT color screen display strength: real- display of power/voltage/temperature, status at a glance
4. Protection-free board design: integrated protection function the main board, directly weld the battery to save space and simplify assembly
5. Intelligent self-learning power: automatically calibrate the power display after the first use, accurately reflecting the remaining battery power
Product Name: 22.5W fast charging module
Input Parameters: 5V 3A/9V 2A/12V 1.5A
Output Parameters: 5V 3A/9V 2A/12V 1.5A/10V 2.25A
Interfaces: Configure 1 Type-C fast charging port (can be charged as well as output) + 2 USB fast charging output
Protocol: for PD, for QC, for , for FCP, for SCP, for VOOC
Function: with over-charging / over-discharging / over-voltage / overheating and other kinds of protection, high conversion rate, current and voltage stability
Note: 22.5W is the super fast charging protocol, bidirectional fast charging is the PD20W protocol, multiple interfaces at the same the output of the fast charging of no
Color: As Shown
Material: PCB
Package Contents:
1 x Flash charging mobile power motherboard
Detalii
| OPC | PRJKGCC |
|---|---|
| Coduri | 6033797245860 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 8cm |
| Length | 13cm |
| Weight | 0.012kg |
| Colour | As Shown |
| Material | PCB |
