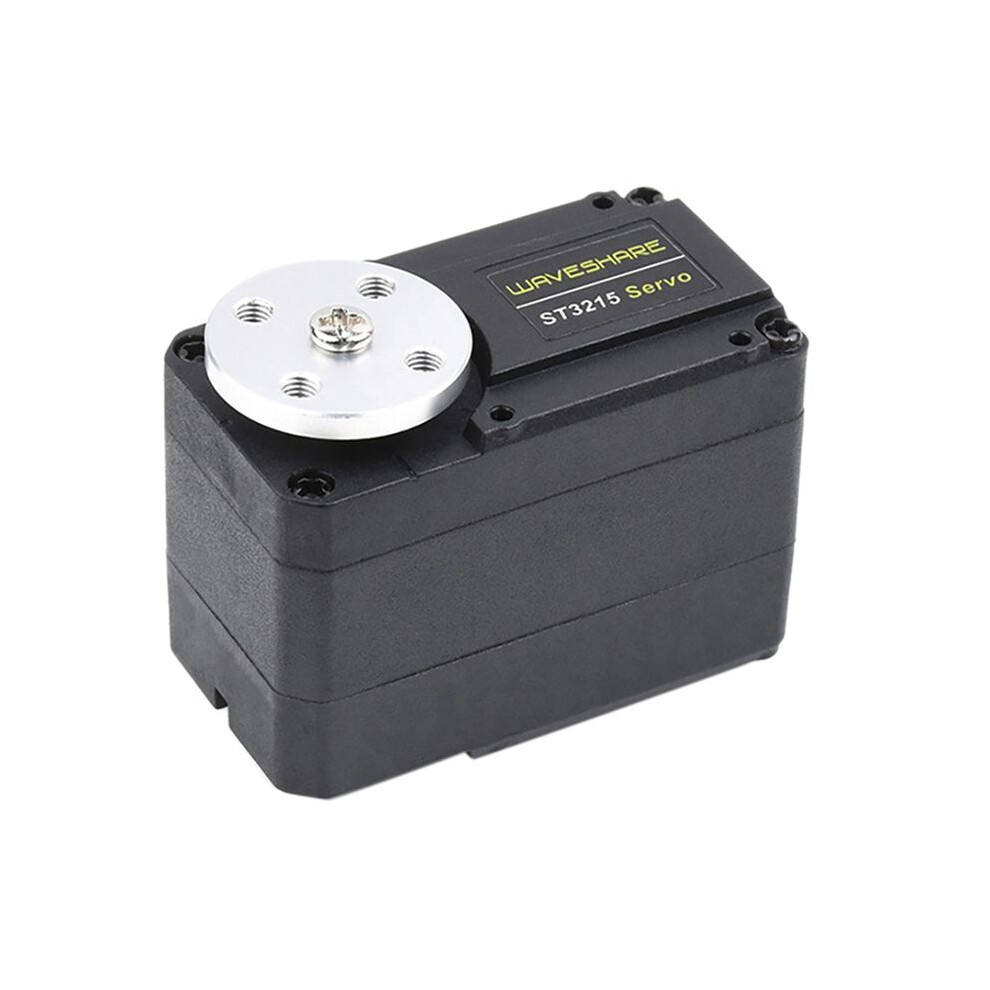

3X Waveshare 30Kg High Precision High Torque Programmable 360degree Magnetic Encoder Serial Bus Servo 12V Two-Way Feedback
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
456,45 RON
601,77 RON
Reducere de 24%!
+45.000,00 RON livrare
1%
Câștigați 4,56 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (45.000,00 RON) | mar 23 - lun 29 iun.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Alarme împotriva efracției
Descriere & Detalii
Rezumat

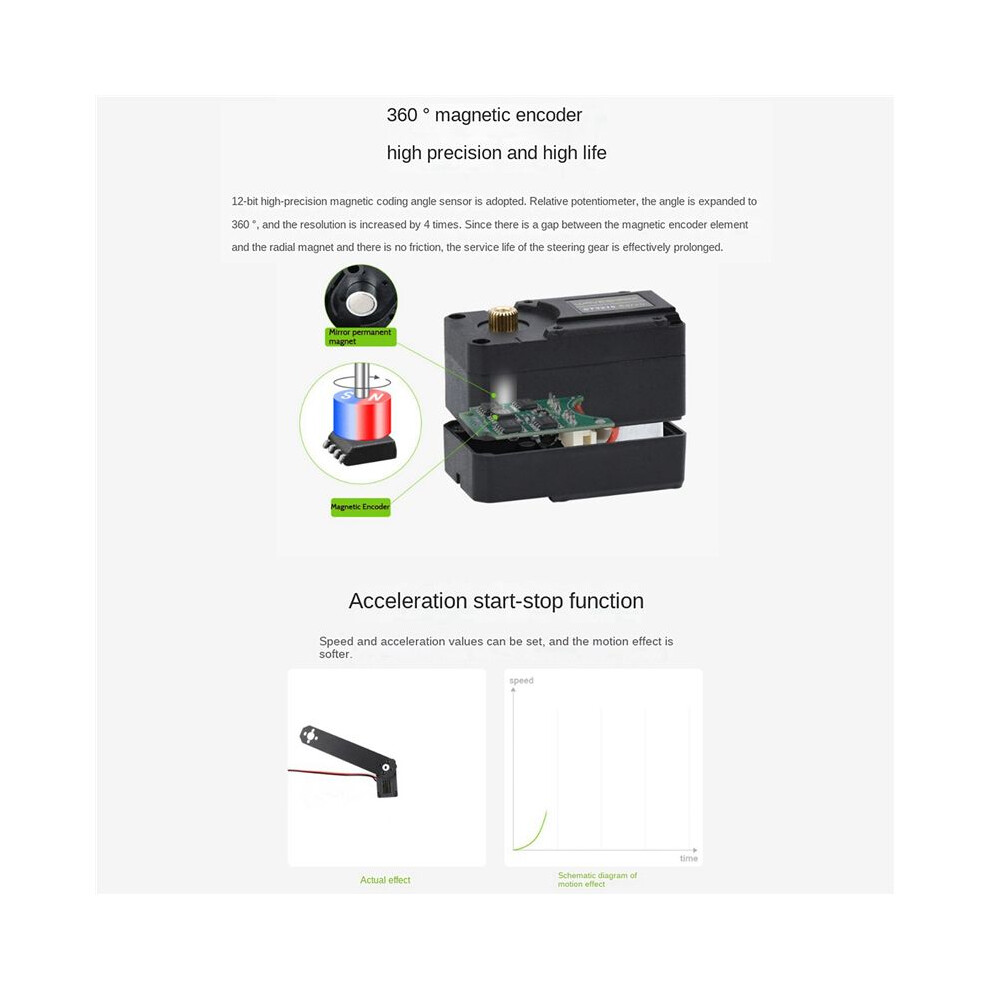

- 1. Adopt 12-bit high-precision magnetic encoder angle sensor. Compared with the potentiometer, the angle is expanded to 360degree , and the resolution is increased by 4 times. Since there is a space between the magnetic encoder elements and the radial magnet, there is no friction, so the service life of the servo is effectively extended
- 2. The shell adopts the structural design of higher strength engineering plastic shell and double-axis low shell, optimizes the plane spacing of the double-axis rudder plate, and the overall structure is more compact, which can make the appearance of the product more beautiful
- 3. One-key calibration of the median, 360degree installation at any position, one-key to correct the current position to the median, very convenient for installation
- 4. The two-way feedback servo can feed back information such as position, load, speed and input voltage in real time, and control it at all times.

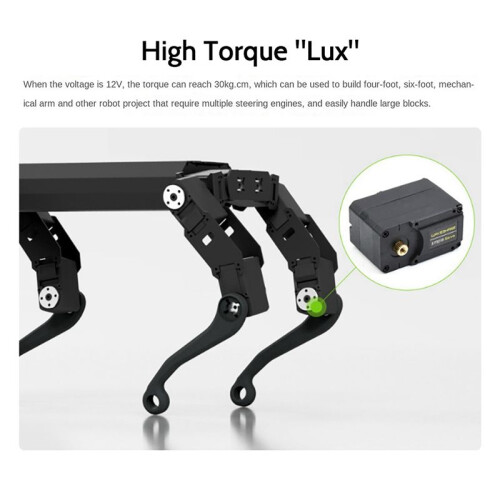

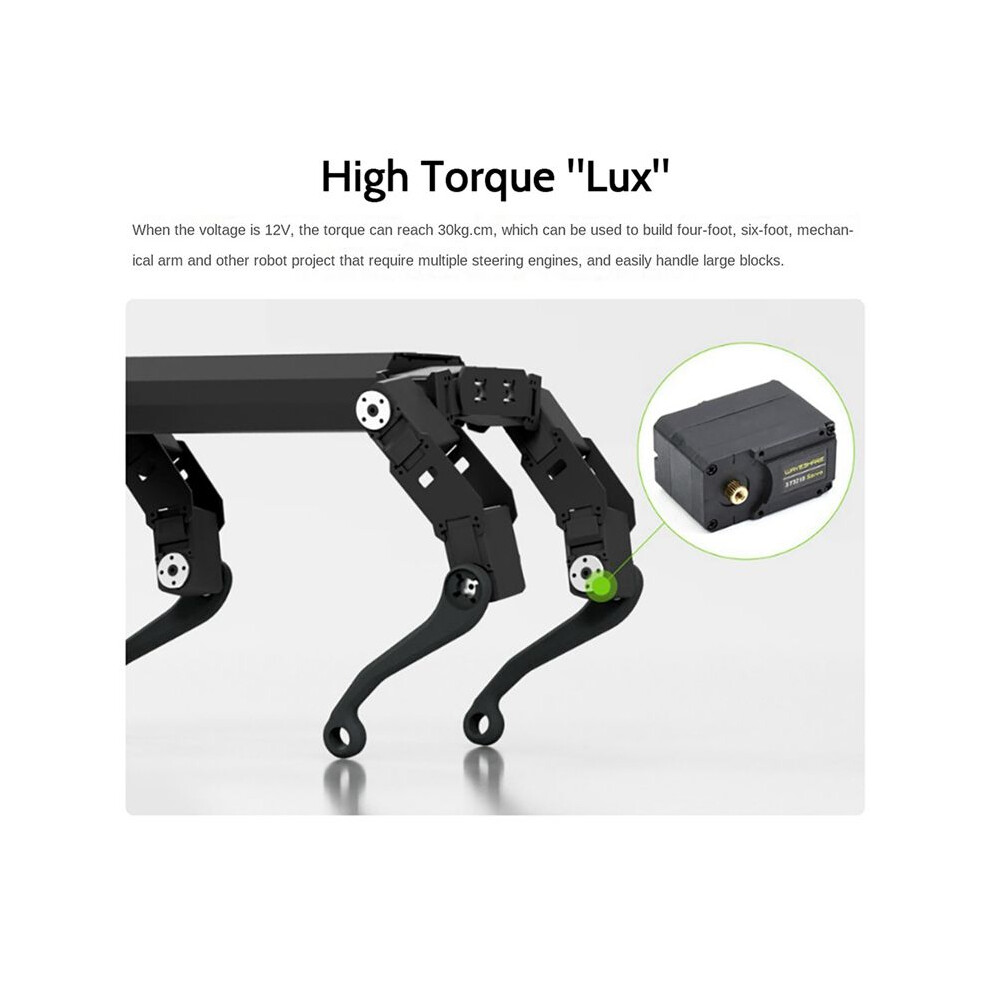

- 5. When the voltage is 12V, the torque can reach 30kg.cm, which can be used to build four-legged, six-legged, robotic arm and other robotic projects that require multiple steering gears, and can easily handle large people
Descriere 3X Waveshare 30Kg High Precision High Torque Programmable 360degree Magnetic Encoder Serial Bus Servo 12V Two-Way Feedback
1. Adopt 12-bit high-precision magnetic encoder angle sensor. Compared with the potentiometer, the angle is expanded to 360degree , and the resolution is increased by 4 times. Since there is a space between the magnetic encoder elements and the radial magnet, there is no friction, so the service life of the servo is effectively extended
2. The shell adopts the structural design of higher strength engineering plastic shell and double-axis low shell, optimizes the plane spacing of the double-axis rudder plate, and the overall structure is more compact, which can make the appearance of the product more beautiful
3. One-key calibration of the median, 360degree installation at any position, one-key to correct the current position to the median, very convenient for installation
4. The two-way feedback servo can feed back information such as position, load, speed and input voltage in real , and control it at all times.
5. When the voltage is 12V, the torque can reach 30kg.cm, which can be used to build four-legged, six-legged, robotic arm and other robotic projects that require multiple steering gears, and can easily handle large people

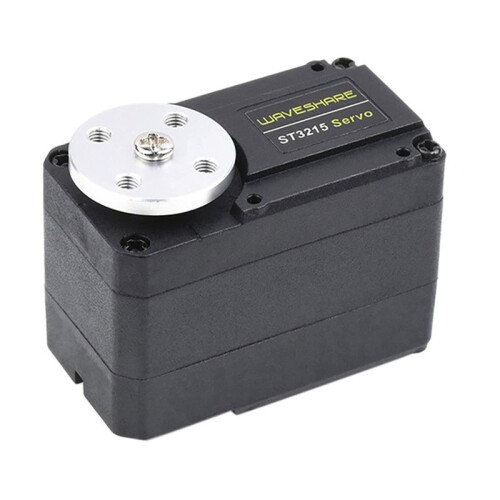

Product Type: ST3215 Servo Bus Servo
Product torque: 30kg.cm@12V
Rotation angle: 360degree (0-4095)
Position sensor resolution: 360degree /4096
Mechanism limit angle: no limit
Working voltage: 6~12.6V
Gear form: high precision metal gear
No-load speed: 0.222sec/60degree (45RPM)@12V
Encoder type: 360degree magnetic encoder
ID range: 0~253
Baud rate: 38400bps~1 Mbps (default 1Mbps)
Feedback: Position; Load; Speed; Input voltage
No-load current: 180mA
Stall current: 2.7A
Kt constant: 11kg.cm/A
Colour:black
Material:Plastic + Metal
Size: 45.22 x 37.25 x 24.72mm
Package Contents:

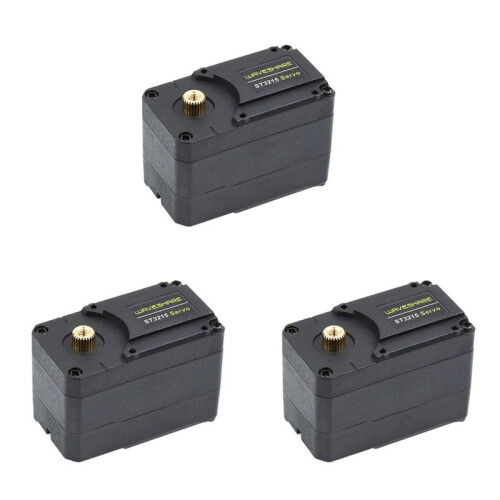

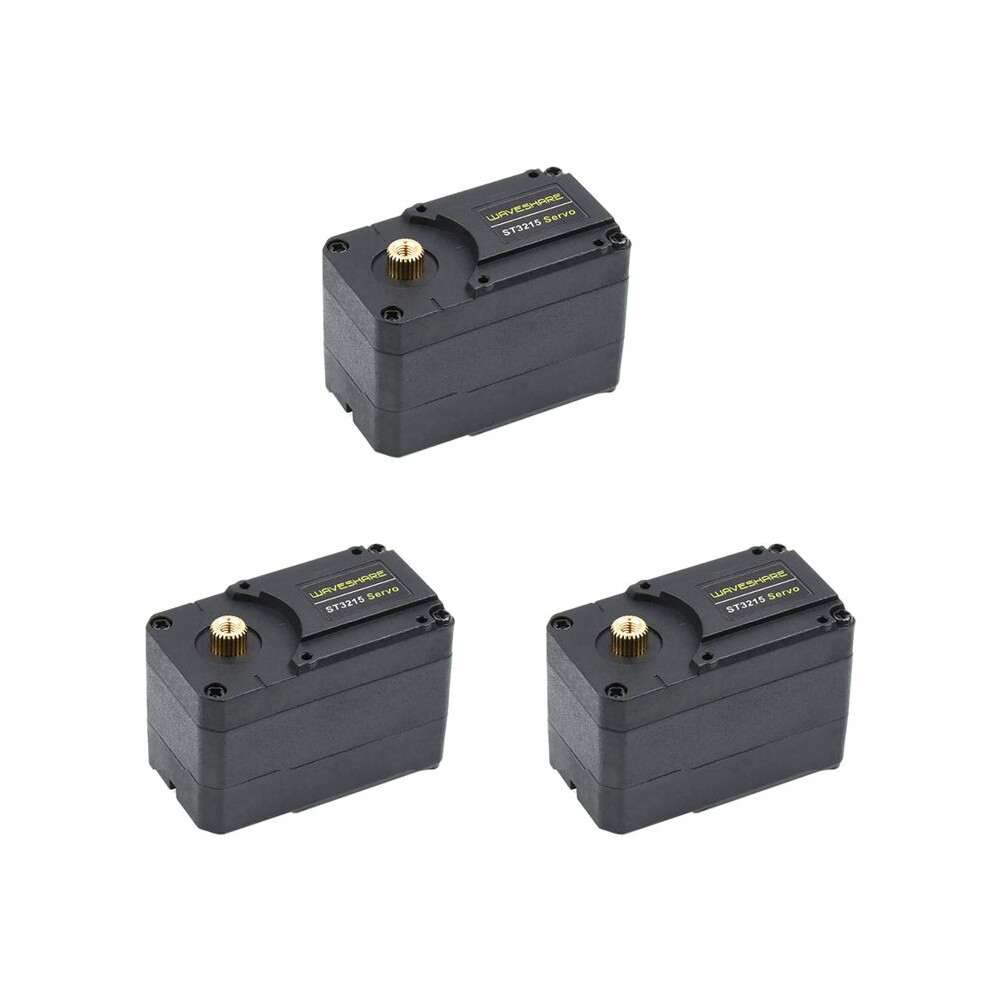

3 x 30kg serial bus servo
Detalii
| OPC | PTPDXHB |
|---|---|
| Coduri | 4711679262960 (EAN) |
Date despre produs
| Height | 12cm |
|---|---|
| Width | 6cm |
| Length | 6cm |
| Weight | 0.234kg |
| Colour | Black |
| Material | Plastic + Metal |
