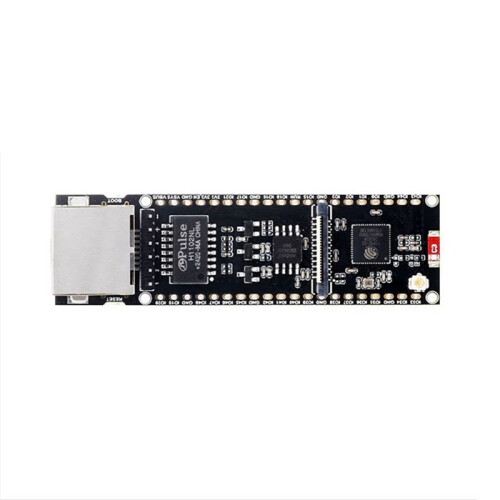

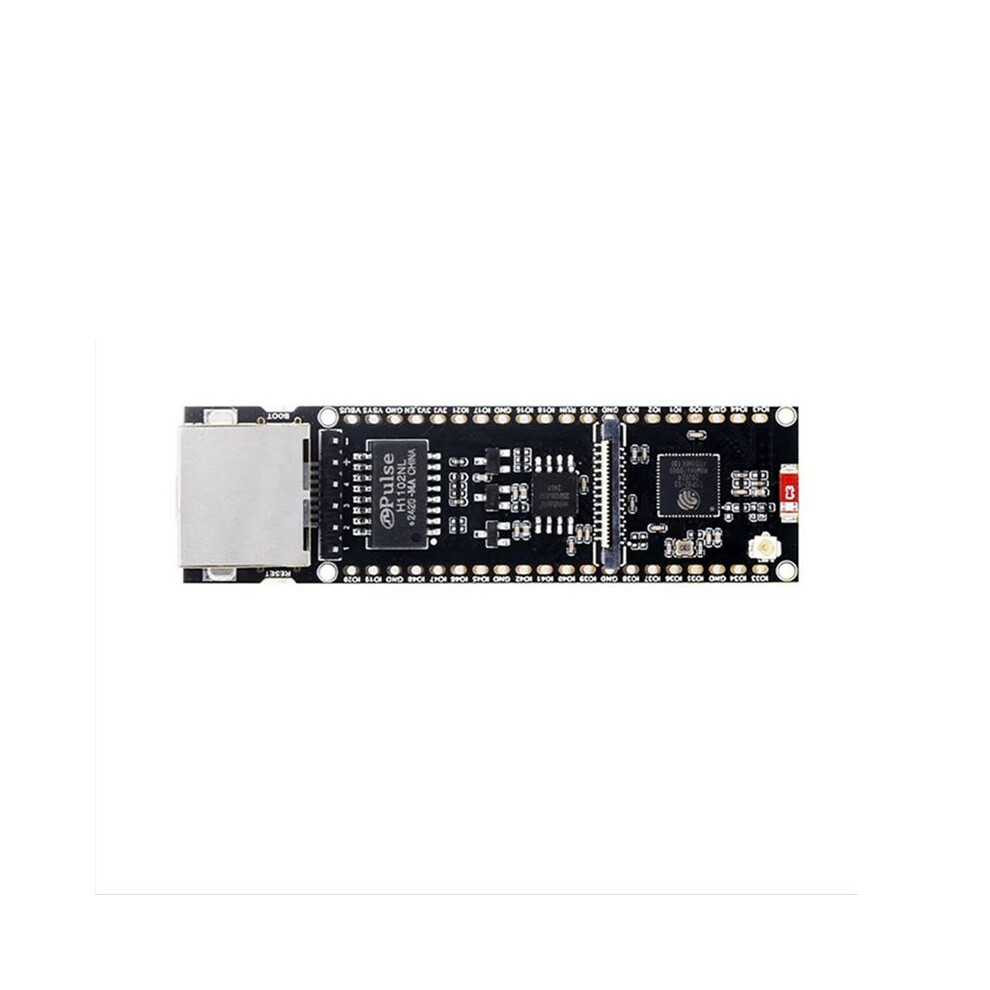

ESP32-S3 ETH Ethernet Development Board Dual-Core Wi-Fi and Wireless USB Type-C Interface ESP32-S3-ETH

ESP32-S3 ETH Ethernet Development Board Dual-Core Wi-Fi and Wireless USB Type-C Interface ESP32-S3-ETH Popis

Based the ESP32-S3R8 high-performance chip, equipped with Xtensa 32-bit LX7 dual-core processor, with a main frequency of to 240MHz.
Integrated 512KB and 384KB ROM, built-in 8MB PSRAM and 16MB Flash.

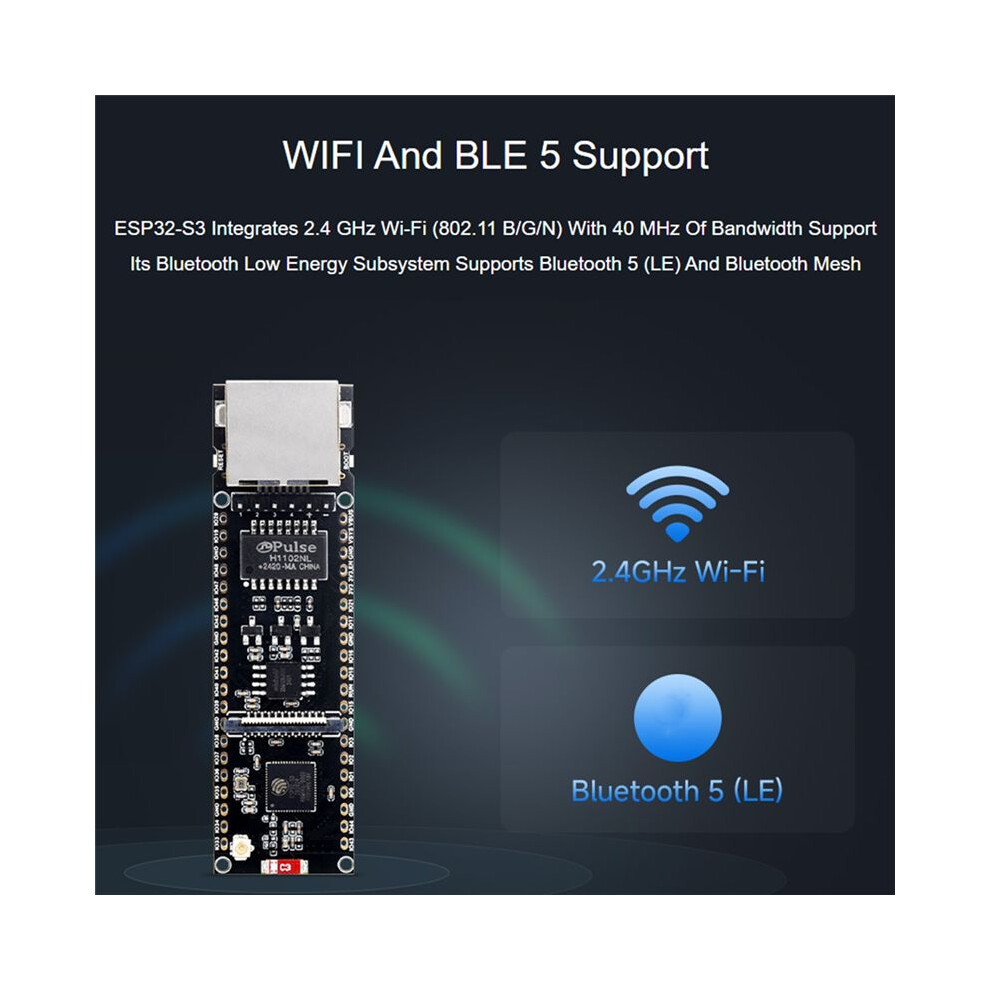

Supports 2.4GHz Wi-Fi and 5 (LE), built-in antenna, supports external antenna,Onboard W5500 Ethernet chip, expands 10/100Mbps network connection through SPI interface

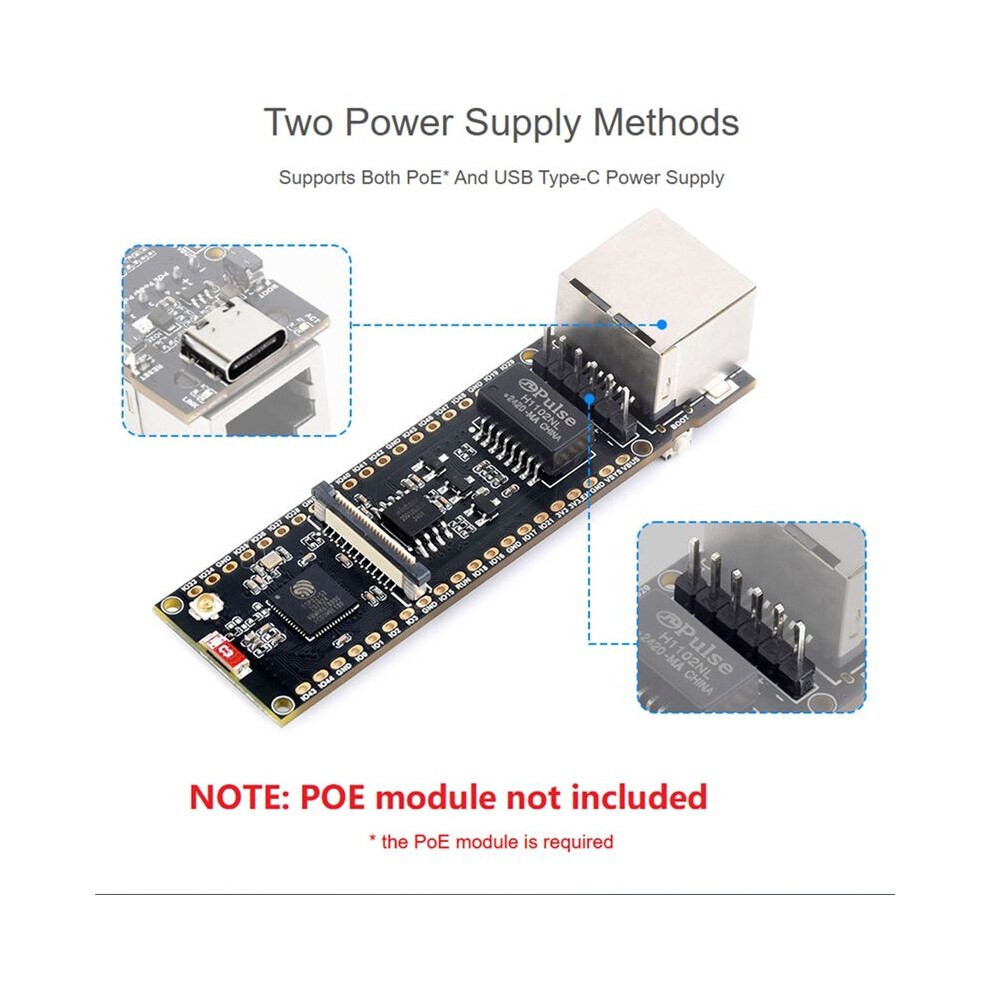

Supports external PoE module to realize Ethernet power supply function (compliant with IEEE 802.3af standard). (PoE module not included).
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640, suitable for image and video acquisition

This is an Ethernet development board designed based ESP32-S3R8, with excellent Wi-Fi and wireless connection functions, more reliable and efficient wired Ethernet connection.
The development board also reserves a compatible interface, supports some for Raspberry Pi expansion boards, and relies its rich ecology and open source resources. Users can quickly and flexibly carry out secondary development, which can be widely used in Internet of Things, image acquisition, home and artificial intelligence projects.
Onboard USB Type-C interface, supports power supply, debugging and firmware download, and development is more convenient
Onboard Micro- card slot, supports external card to store pictures and files
Onboard compatible interface, provides rich peripheral expansion, strong compatibility
Color:Black
Material:PCB+Components

Package Contents:
1 x Ethernet development board
