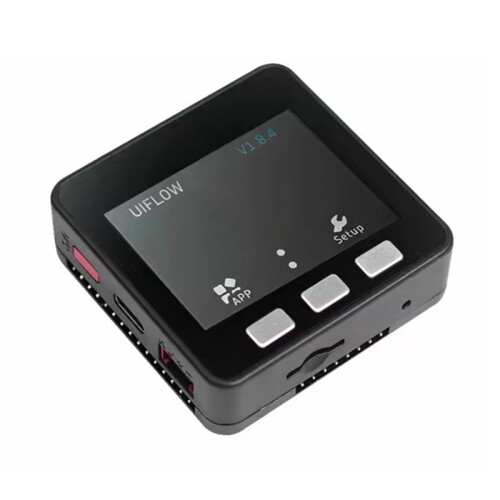

Esp32 Basic Core Lot Development Kit V2.7 2-Zoll-HD-IPS-Display

Esp32 Basic Core Lot Development Kit V2.7 2-Zoll-HD-IPS-Display Beschreibung

Dual-Core Power: Powered by the ESP32 chipset with dual-core Xtensa 32-bit microprocessors, delivering high performance at 240MHz.

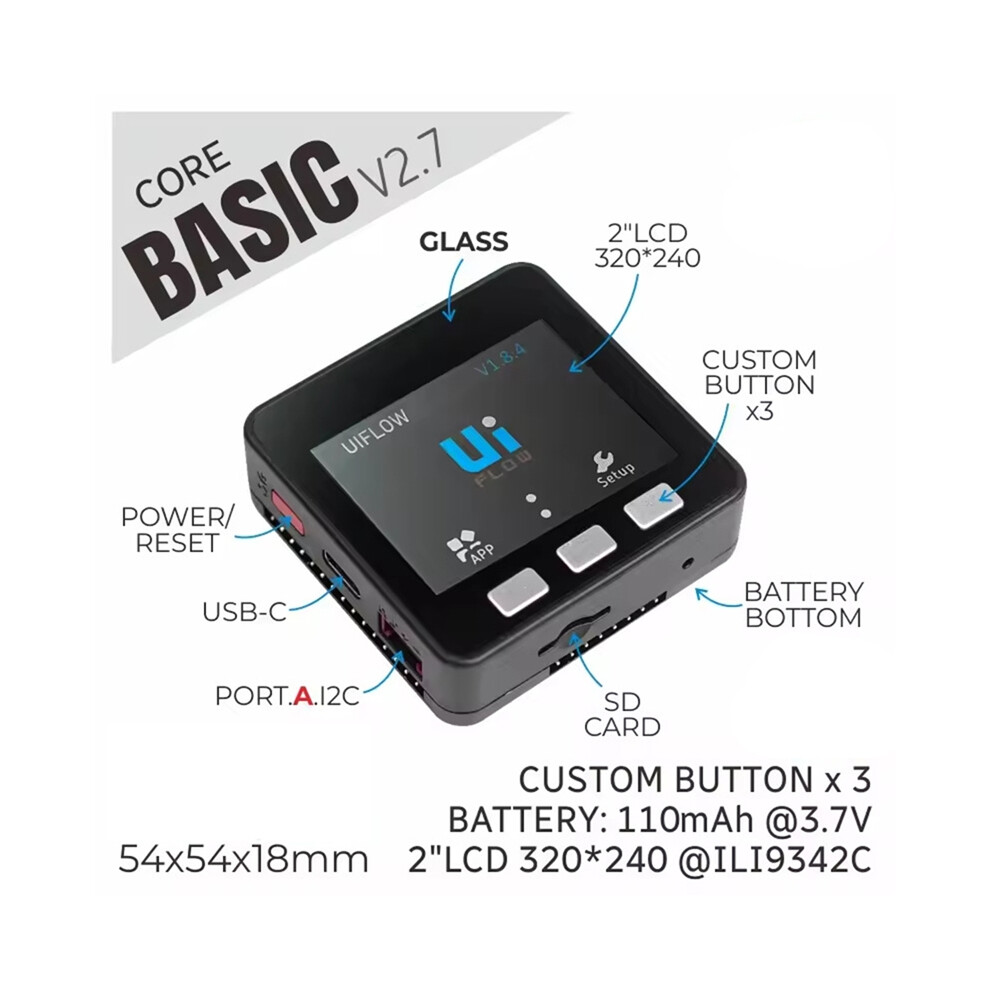

High Integration: Includes a 2.0-inch full-color HD IPS display, built-in speaker, and TF card slot, all packed in a compact design.
Rich Interface Support: Features 15x IO pins and supports ADC//I2C/UART/SPI interfaces, offering flexibility for applications.
Easy Development: Supports for UIFlow, for , for MicroPython, and .NET nanoFramework, perfect for low-code and no-code projects.

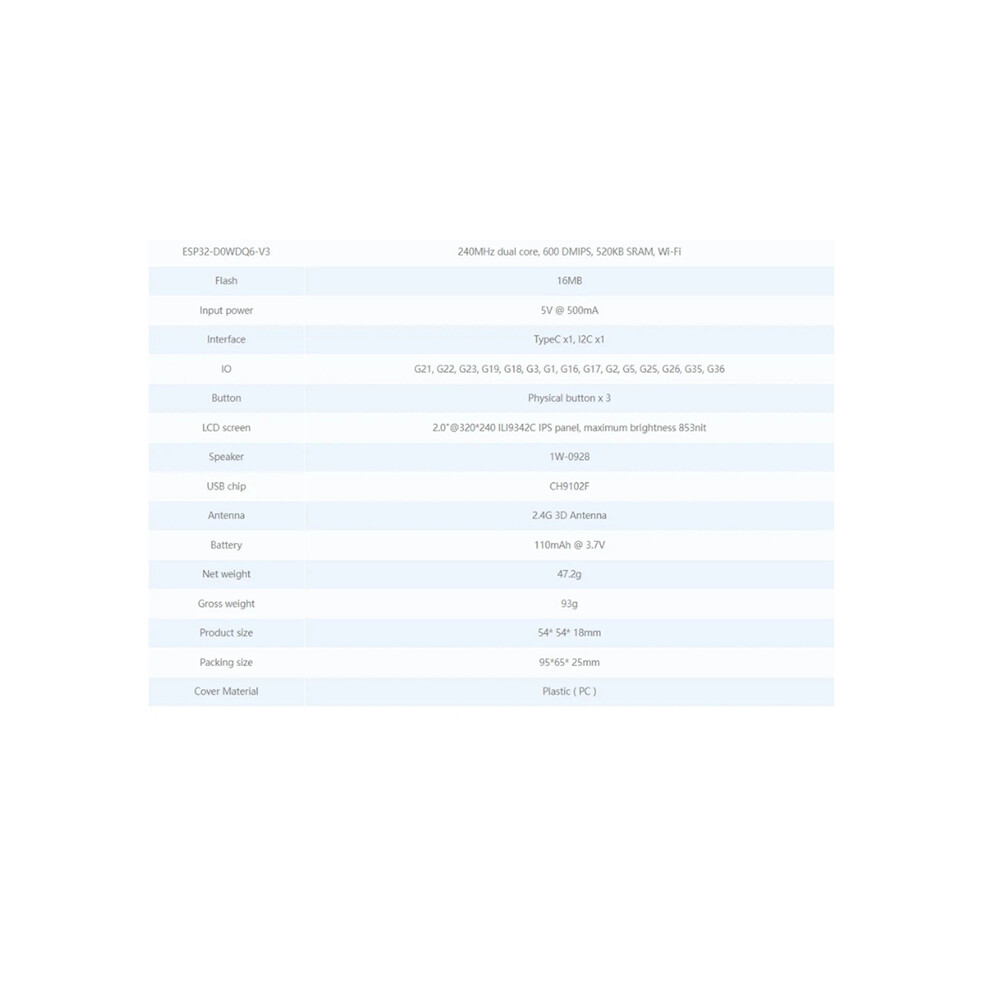

ESP32-D0WDQ6-V3:240MHz dual core, 600 DMIPS, 520KB , Wi-Fi
Flash:16MB
Input power:5V @ 500mA
Interface:TypeC x1, I2C x1
IO:G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
Button:Physical button x 3
LCD screen:2.0Inch @320*240 ILI9342C IPS panel, maximum brightness 853nit
Speaker:1W-0928
USB chip:CH9102F
Antenna:2.4G 3D Antenna
Battery:110mAh @ 3.7V
The product appearance and printed words depending on the batch, but this does not affect use.
Colour:As Shown
Material:Plastic

Package Contents:
1 * Esp32 Basic Core

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
