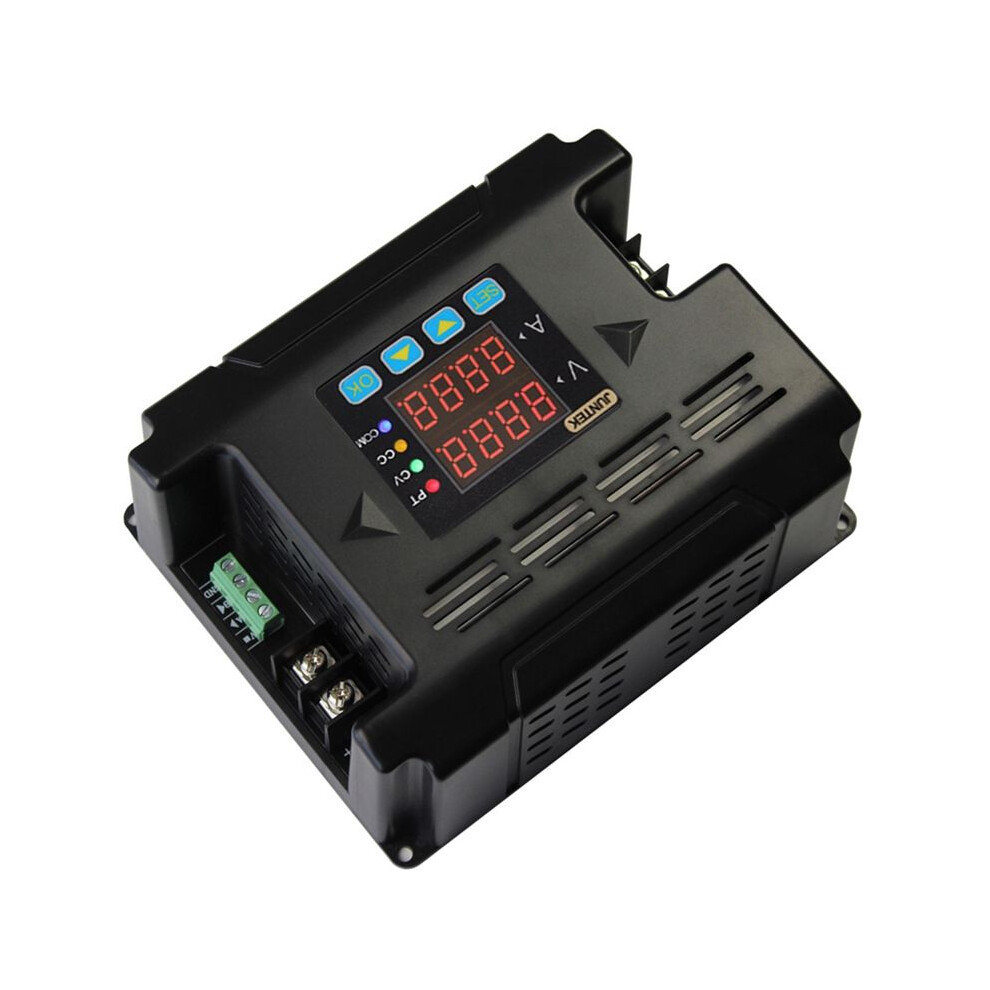

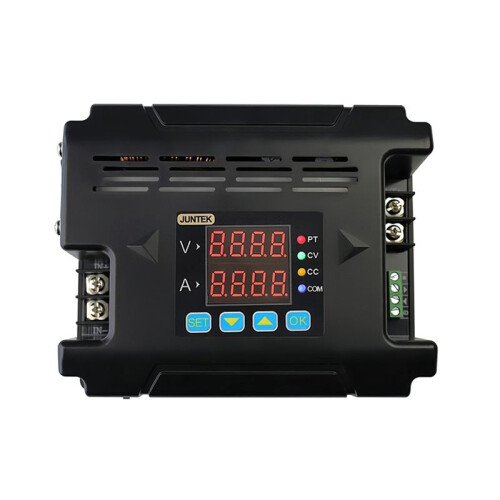

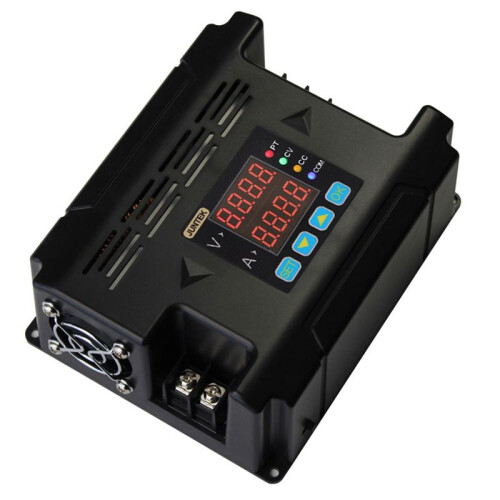

JUNTEK DPM8624 60V 24A - Step-Down Power Supply, Constant Voltage and Current LCD Voltmeter Buck Voltage Converter

JUNTEK DPM8624 60V 24A - Step-Down Power Supply, Constant Voltage and Current LCD Voltmeter Buck Voltage Converter Beschreibung

Input voltage 10-75V, with a AC- (AC to ) switching power supply or battery, you can combine them into a high-precision digital adjustable power supply or charger
The output voltage is 0-60V digitally continuously adjustable, the minimum voltage resolution is 10mV, and the ripple is lower than 50mVpp
The output current is divided into 0-24A (minimum resolution 10mA), The current is digital and continuously adjustable
Standard "USB to TTL" supports TTL serial communication,It is convenient for everyone to use our PC software to control the power supply
Automatically save parameters when power is off, there are 10 groups of M0-M9 storage locations, which can be saved and recalled at any

Input Voltage range: 10-75V
Output Voltage range: 0.01-60V
Output Current range: 0.01-24A
Output power range: 0-1440W
Output Voltage setting resolution: 10mV
Output current setting resolution: 10mA
Output ripple: Less than 50mVpp
Conversion Efficiency: 92% (Input 40V,Output 30V,Current 7A)
Voltage and current display accuracy: 10mV, 10mA
Voltage error: 2‰+1 digit
Current error: 5‰+2 digit
Response : Less than 50ms
Operating Frequency: 150KHz
Operating Temperature: -10C to +45C
Control Method: Digital Control + LED Display
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: plastic
Specification:DPM8624

Package Contents:
1 x DPM8624 - power supply
