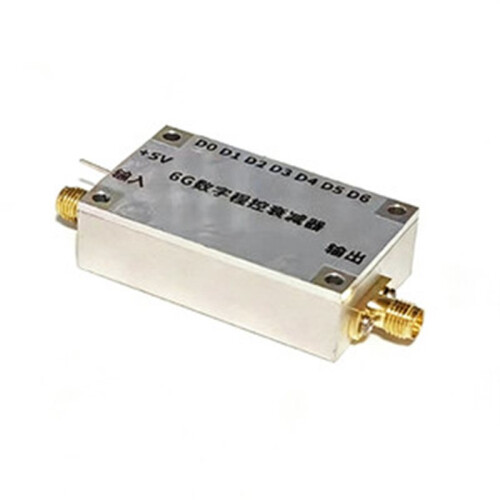

10M-6GHz Digital Programmable Attenuator 31.75dB Attenuation Range 0.25dB Step Precision for Communication System

10M-6GHz Digital Programmable Attenuator 31.75dB Attenuation Range 0.25dB Step Precision for Communication System Beschreibung

Wideband Coverage: Operating frequency range of 10MHz-6GHz, meeting the needs of multi-band applications.
High-Precision Attenuation: Attenuation range of 0.25-31.75dB, with a step of 0.25dB, enabling precise signal adjustment.
Low Insertion Loss Design: Typical insertion loss is only 1.5dB, and approximately 2.7dB at 5.8GHz, ensuring efficient signal transmission.
Convenient Digital Control: Supports 7-bit parallel control mode, compatible with external microcontroller control, offering flexible operation.
Easy Integration: Single +5V power supply, 50Ω impedance, standard SMA interface, and mounting holes for easy system integration.

Model: QM-AT016031S
Operating Frequency: 10M-6GHz
Control Method: Parallel control (supports external microcontroller)
Insertion Loss: 1.5dB typical (approximately 2.7dB at 5.8GHz)
Attenuation Range: 0.25-31.75dB
Attenuation Step: 0.25dB
Maximum Input Power: 23dBm
Power Supply Voltage: +5V single power supply
Impedance: 50Ω
Control Interface: Feedthrough capacitors
Input/Output Interface: SMA female connector
Module Dimensions: 50*30*14mm (excluding connectors)
Other Features: Includes mounting holes, excellent electromagnetic shielding performance
Color: As Shown
Material: Metal

Package Contents:
1*Digital Programmable Attenuator
