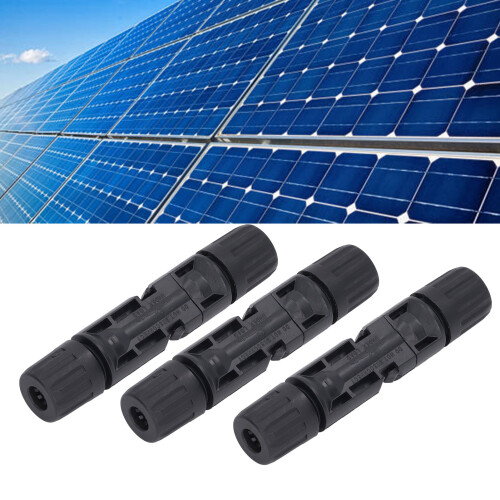

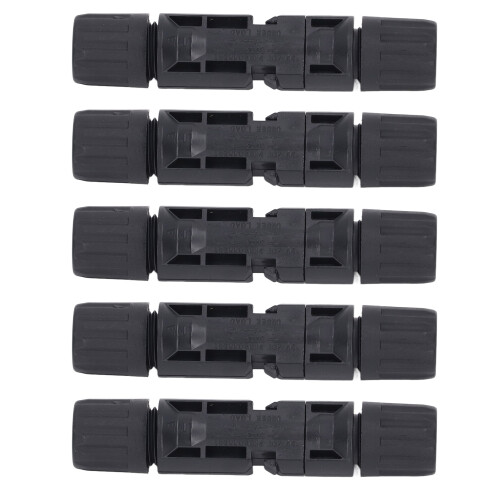

5x IP67 Solarkonnektor männlich/weiblich 1000V 30A 4mm
New
€ 30,16
Ähnliche Produkte, die dir gefallen könnten
Would you like us to let you know when it's back?
Beschreibung & Details
Zusammenfassung
- For Solar System: The connector is a special connector for parallel and series connection of solar photovoltaic panels to form an array module.
- Stable Power Supply: Comes with high voltage bearing capacity of 1000V, the solar connector can also carry large current for stable power supply.
- Safe Connection: Self locking design ensures firm connection between the male and female PV connectors, which largely improve the work safety.
- Waterproof Design: IP67 waterproof design guarantees reliable working performance for both indoor and outdoor environments, safe for operation.
- Easy to Install: Compact in size and light in weight as well, the convenient installation can be quickly completed within several minutes.
5x IP67 Solarkonnektor männlich/weiblich 1000V 30A 4mm Beschreibung

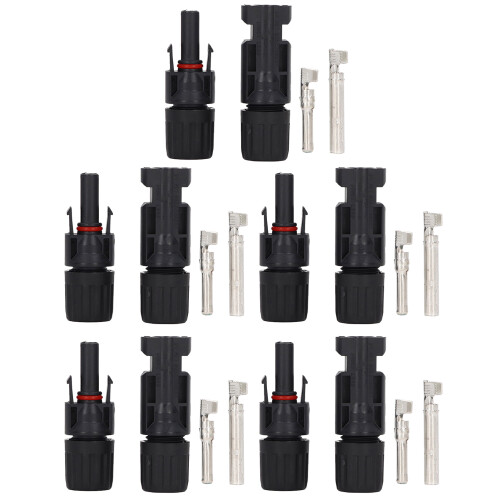

5 Sätze Solarstecker männlich/weiblich IP67-wasserdichtes PV-Modul-Kabelstecker 1000V Hochspannung 30A
Artikeltyp: Solarkonnektor
Nennspannung: DC1000V
Umgebungstemperatur: -40 bis +105
Kontaktimpedanz des Steckers: 0,5 mΩ
Prüfspannung: 6000V
Metall-Stecksystem: ca. 4 mm / 0,16 in
Leiterdurchmesser-Referenz: 17A 1,5 mm², 22A 2,5 mm² 14 AWG, 30A 4 mm² 6 mm² 12 AWG 10 AWG.
