ESP32-S3 1,69-Zoll-LCD-Display-Entwicklungsboard 240 x 280

ESP32-S3 1,69-Zoll-LCD-Display-Entwicklungsboard 240 x 280 Beschreibung

Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240 MHz
Supports 2.4 GHz Wi-Fi (802.11 b/g) and Bluetooth 5 (LE), onboard antenna.
Built-in 512KB and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash
Using Type-C interface, keep up with the trend of , no need to worry about whether to insert it forward or backward Onboard 1.69-inch LCD screen, 240x280 resolution, 262K color, can clearly display color pictures

Built-in ST7789V2 driver chip, using SPI does not occupy too many interface pin resources
Onboard QMI8658 six- inertial measurement unit (3- acceleration, 3- gyroscope), can detect motion posture, step counting, etc.
Onboard PCF85063 chip, reserved SH1.0 battery slot (supports charging) can easily realize function requirements
Onboard , BOOT and a side button with customizable functions, convenient for custom function development using buttons
Onboard 3.7V MX1.25 lithium battery charging and discharging interface
Lead out 5 GPIO, I2C and UART pads for external devices and debugging, flexible configuration of peripheral functions
Support flexible clock, module power separate setting and other precise control, realize multi-scenario low power mode
1.69-inch compact screen: With 262K IPS color panel, 240x280 resolution, Easily cope with scenes.
Different batches may have different appearances, which not affect the use; different light or display may cause color difference in the actual product
Colour:Black
Material:PCB+Plastic

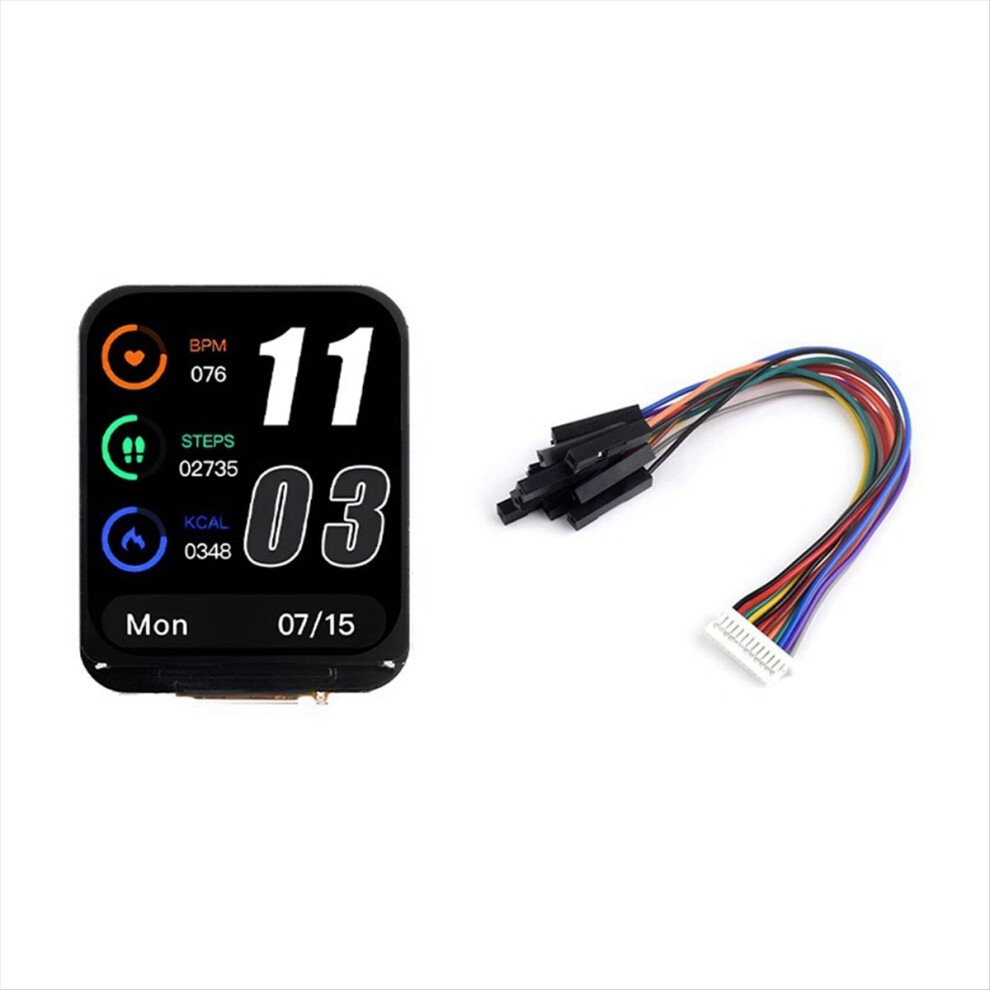

Package Contents:
1x display screen
1x cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
