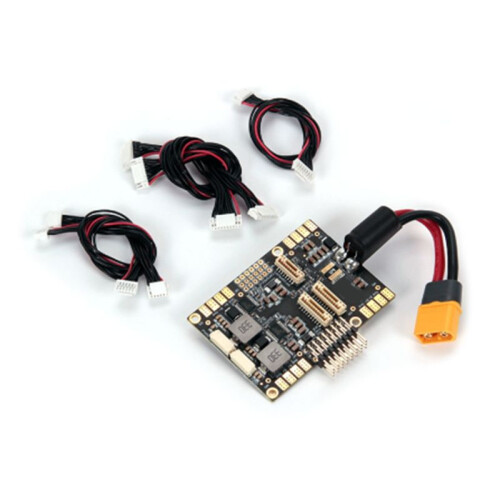

PM07 Power Management PM Module / 5V UBEC 2 - 12s LiPo Output for Pixhawk 4 PX4 Flight Controller FPV Racing Drone

PM07 Power Management PM Module / 5V UBEC 2 - 12s LiPo Output for Pixhawk 4 PX4 Flight Controller FPV Racing Drone Beschreibung

This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for to 8 ESCs.
It is designed specifically for flight controller that do not have built-in servo header pins like the for Pixhawk 6C & Pixhawk 4.
It comes with pre-soldered wires, capacitor, and XT60 connector.It has two power output port with independent BEC and circuitry.

Input voltage: 2S-14S
PCB Cont. Current Rating: 90A
PCB Burst Current Rating: 140A (Less than 60 Sec)
Output: 5.2V & 3A Max
Please Note:
The XT60 Plug and 12AWG wire that are pre-soldered the board is rating for 30A continuous current and 60A burst current (Less than 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly.
This PM02 Power Module uses analog data output and is not compatible to the for Pixhawk 5X & 6X (Requires a digital PM like PM02D).
Color: As Shown
Material: PC

Package Contents:

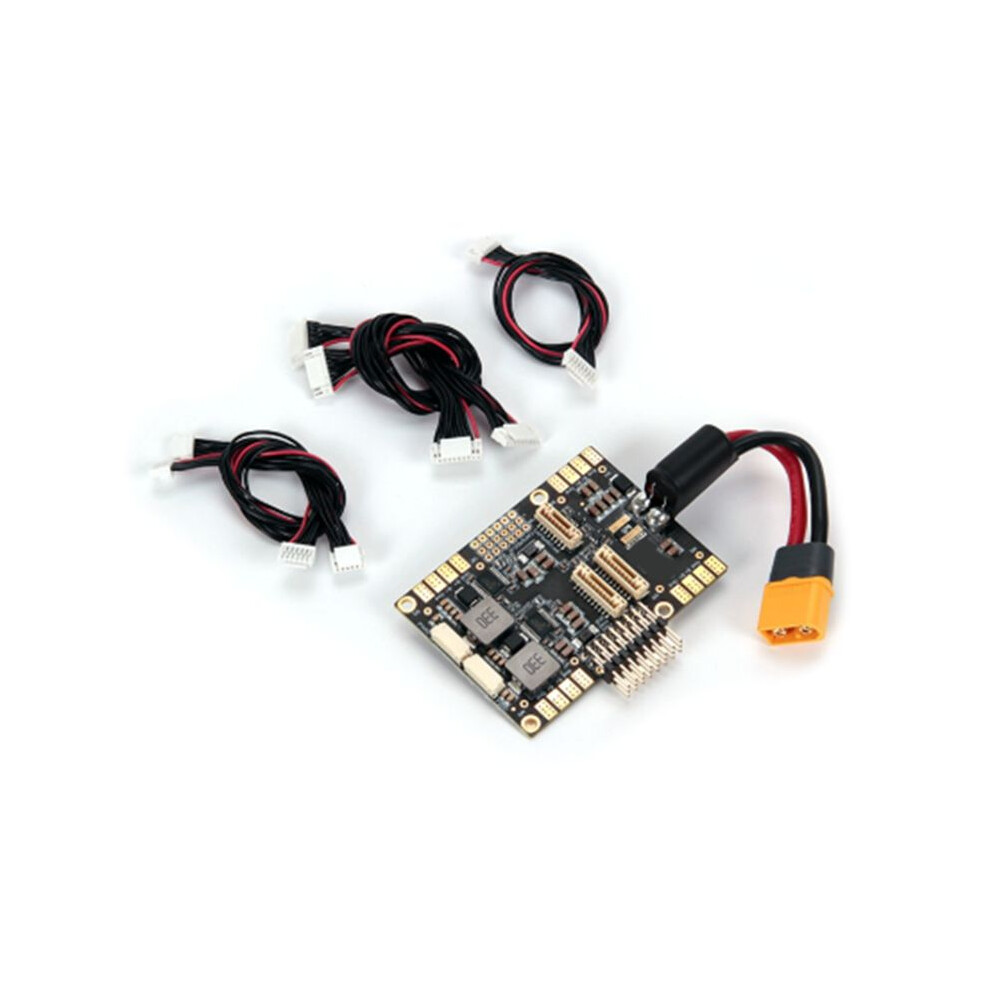

1 x PM07 Power Management PM Module Kit
