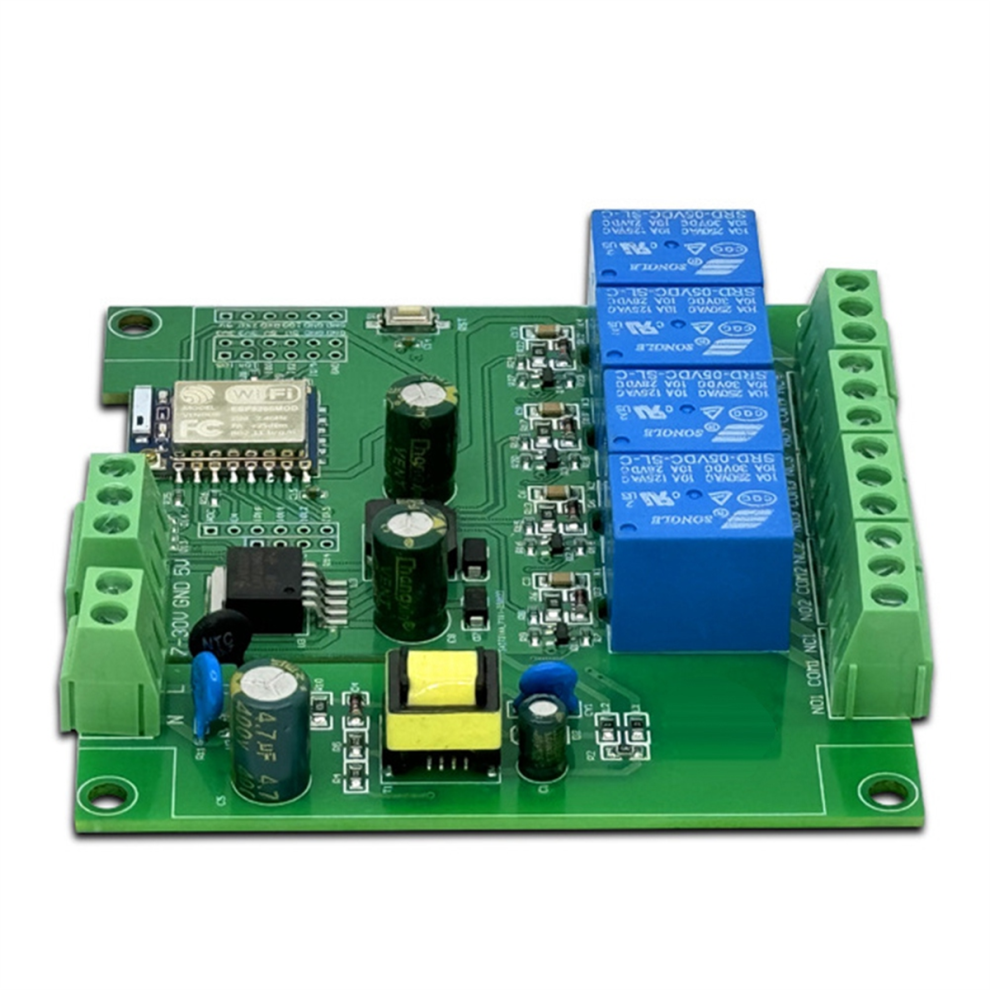

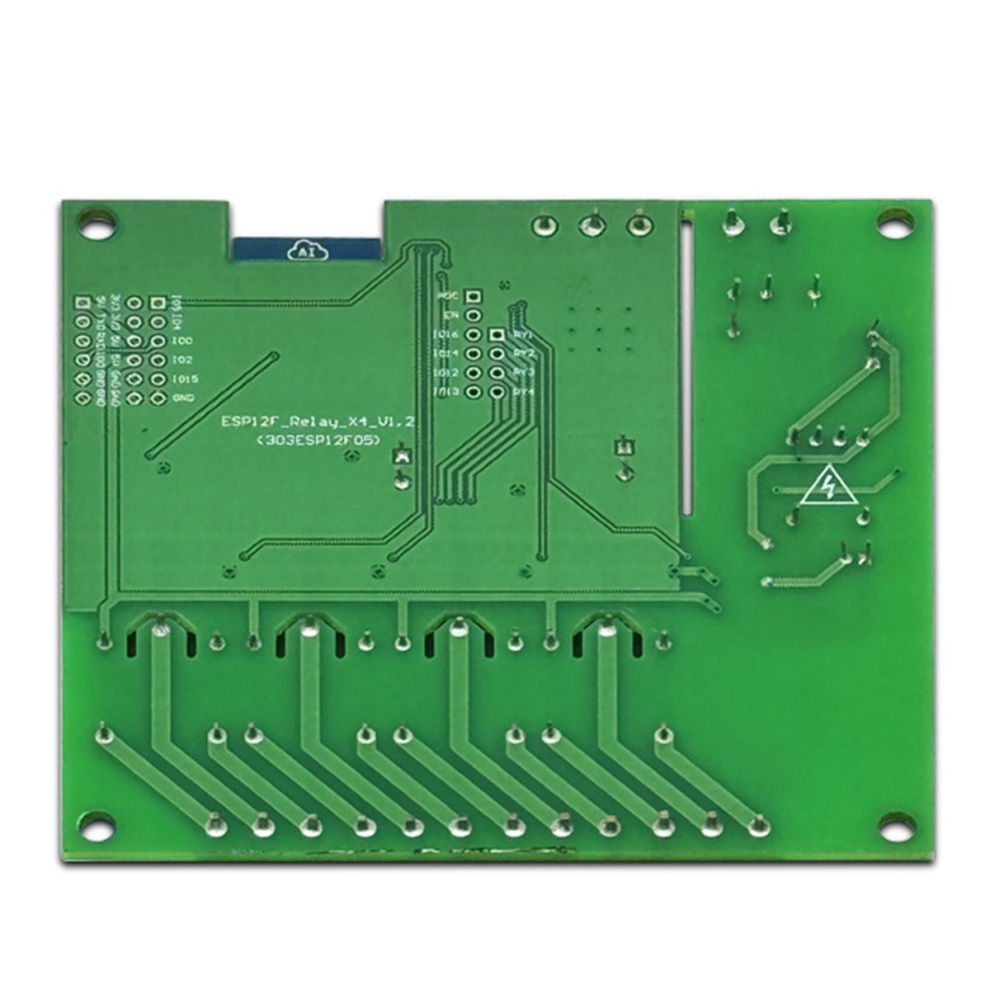

Relais ESP-07 4-Wege-WLAN-Stromversorgung ESP8266 Entwicklungsboard

Relais ESP-07 4-Wege-WLAN-Stromversorgung ESP8266 Entwicklungsboard Beschreibung

Features: 1. Onboard And Stable Esp07 Wifi Module, Large Capacity 4m Byte Flash

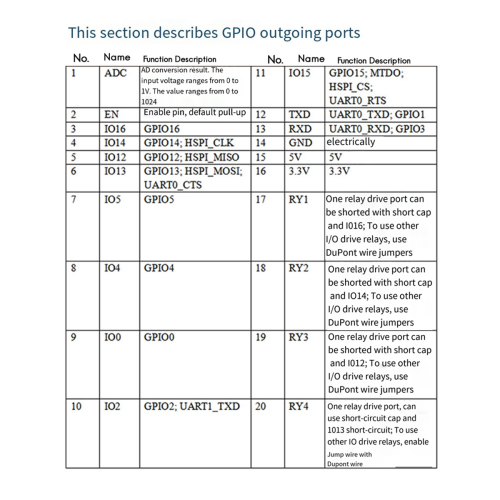

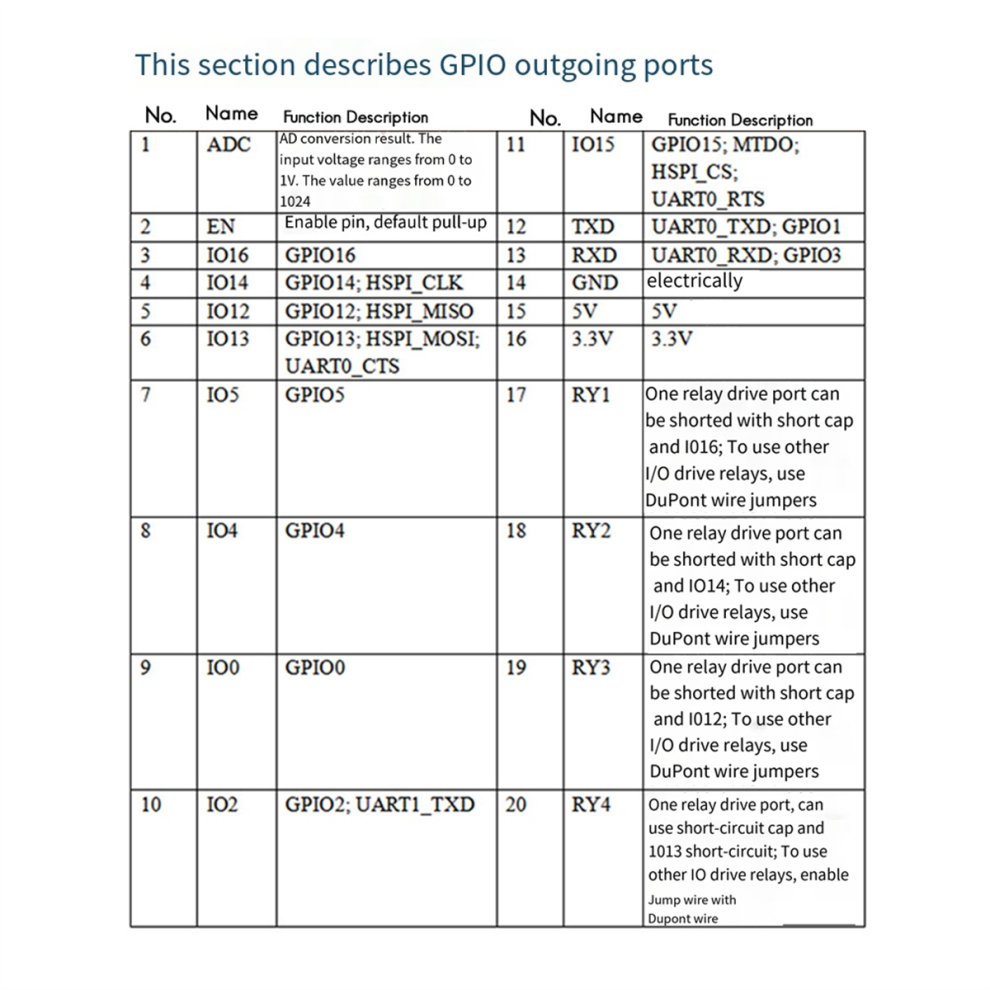

2. The I/0 Port Of The Wifi Module And The Uart Program Download Port Are All Lead Out To Facilitate Secondary Development; There Are 4 Channels Of 5V Relays On The Board, Which Output Switching Signals And Are Suitable For Controlling The Working Voltage. Loads Within AC 250V/DC30V
3. Onboard Ac-Dc Switching Power Supply Module, Power Supply Mode Supports AC90-250V/DC7-30V/5V
4. Onboard Wifi Module Reset Button; Onboard Power Indicator Light, 1 Programmable Led And Relay Indicator Light
5. ESP07 Supports The Use Of Development Tools Such As Eclipse/for Arduinoide And Provides for Development Reference Procedures In The Environment

Description:
Product Name:Relay Module
Board Size: About 93 x 87mm
Material: PCB
colour: As shown

Package Contents:
1 x Relay Module
1 x 6Pin Double Row Pin
1 x 6Pin Single Row Of Pins
1 x 4Pin Single Row Of Pins
5 x Short Circuit Cap

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
