3D Printer Motherboard Silent Driver TMC2209 V3.0 Super Silent Stepper Motor Driver

3D Printer Motherboard Silent Driver TMC2209 V3.0 Super Silent Stepper Motor Driver Beschreibung

3D Printer Motherboard Silent Driver TMC2209 V3.0 Super Silent Stepper Motor Driver
Hardware compatible with for StepStick and for A4988
Drive capability up to 1.7A (RMS) continuous coil current - 2.8A
Step/Dir interface with microstep interpolation (up to 256 microsteps)
Configuration via pins or UART interface
Motor voltage: 5.5...28V
Logic voltage: 3.3...5V
RSense: 0.11 Ohm
stealthChop2 - for quiet operation and smooth motion
spreadCycle - highly dynamic motor control chopper (enableable via UART, OTP, Pin)
coolStep - current control for energy savings
The TMC2209 is an ultra-quiet motor driver IC ( chip) for two-phase stepper motors. The TMC2209 is pin-compatible with many legacy drivers as well as the TMC2208. advanced StealthChop2 chopper ensures silent motor operation, high efficiency, and maximum torque. Its combination of fast current regulation and resonance suppression enables highly dynamic motion. StallGuard prevents stalls by providing sensorless homing. Built-in power MOSFETs handle motor currents up to 2A RMS and feature protection and diagnostic features for stable and reliable operation. An easy-to-use UART interface opens up tuning and control options. Application tuning can be stored in OTP memory. Separate pulse directions allow to be configured for silent operation and very precise operation, resulting in a cost-effective and competitive solution.
Color: As Shown
Material: plastic

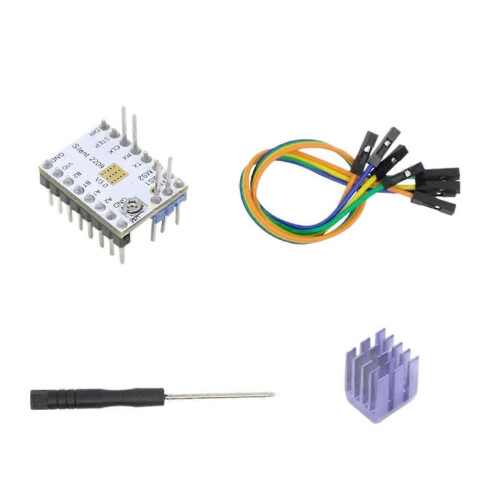

Package Contents:
1 * Driver
1 * Heat sink
1 * Screwdriver
1 * Ribbon cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
