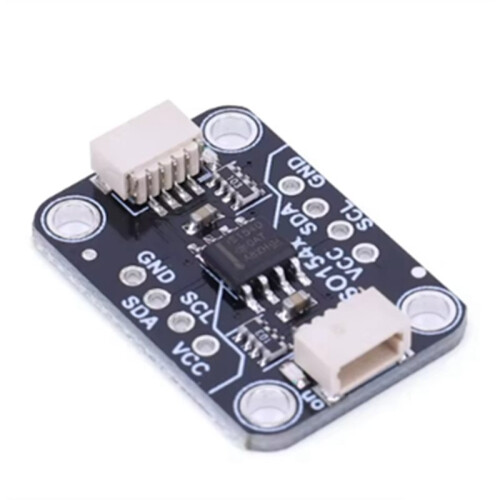

4X ISO1540 Bidirectional I2C Isolator STEMMA QT Qwiic Module 3.3V/5V Isolator Module Support Operation to 1 MHz

4X ISO1540 Bidirectional I2C Isolator STEMMA QT Qwiic Module 3.3V/5V Isolator Module Support Operation to 1 MHz Beschreibung

Feature:
1. Bi-Directional Isolation: This module features an ISO1540 bidirectional isolator that allows electrical isolation of two devices communicating through an I2C interface. It provides 2500 V-RMS isolation, ensuring reliable and safe communication between different devices.
2. High-Speed Communication: The module supports to 1 MHz communication, which ensures smooth and efficient data transfer between various devices.
3. Open-Drain Outputs: The first side has a sink current capability of 3.5 mA, while the second side has a sink current capability of 35 mA. These open-drain outputs make it easy to connect to different devices without any compatibility issues.
4. Wide Temperature Range: With a working temperature range from -40C to +125C, this module is ideal for use in a wide range of applications, even in harsh environments.

ESD Protection: All pins have HBM 4 kV ESD protection, while the bus pins provide 8 kV protection, protecting the module from electrostatic discharge. It also comes with a STEMMA QT connector, making it easy to connect to different devices.
Specification:
Bidirectional insulation isolator, compatible with I2C
It supports communication to 1 MHz
The open drain output has a current carrying capacity of 3.5 mA the first side and 35 mA the second side
Working temperature from -40 C to+125 C
Anti transient 50 kV/ μ S
HBM 4 kV ESD protection all pins; 8 kV bus pins
Voltage: 3.3V or 5V
STEMA QT connector
Size: 25 x 18 x 5mm/0.98 x 0.70 x 0.19inch
Color: Black
Material: PC

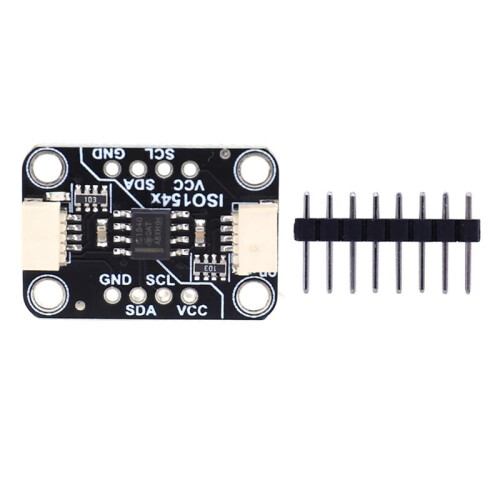

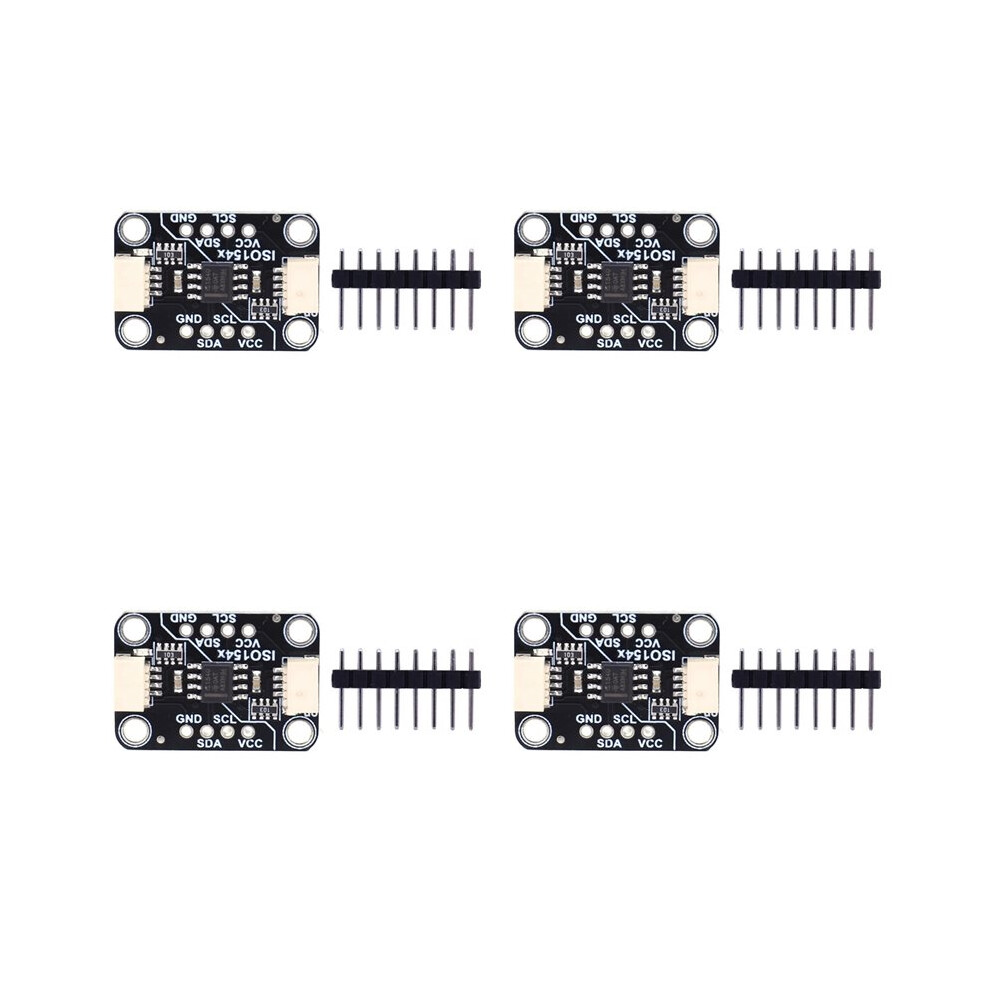

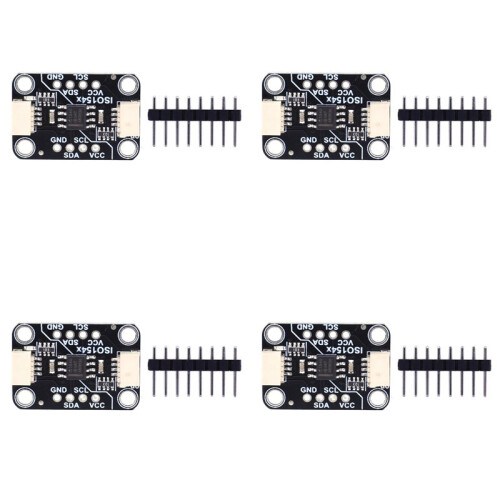

Package Contents:
4 x Module

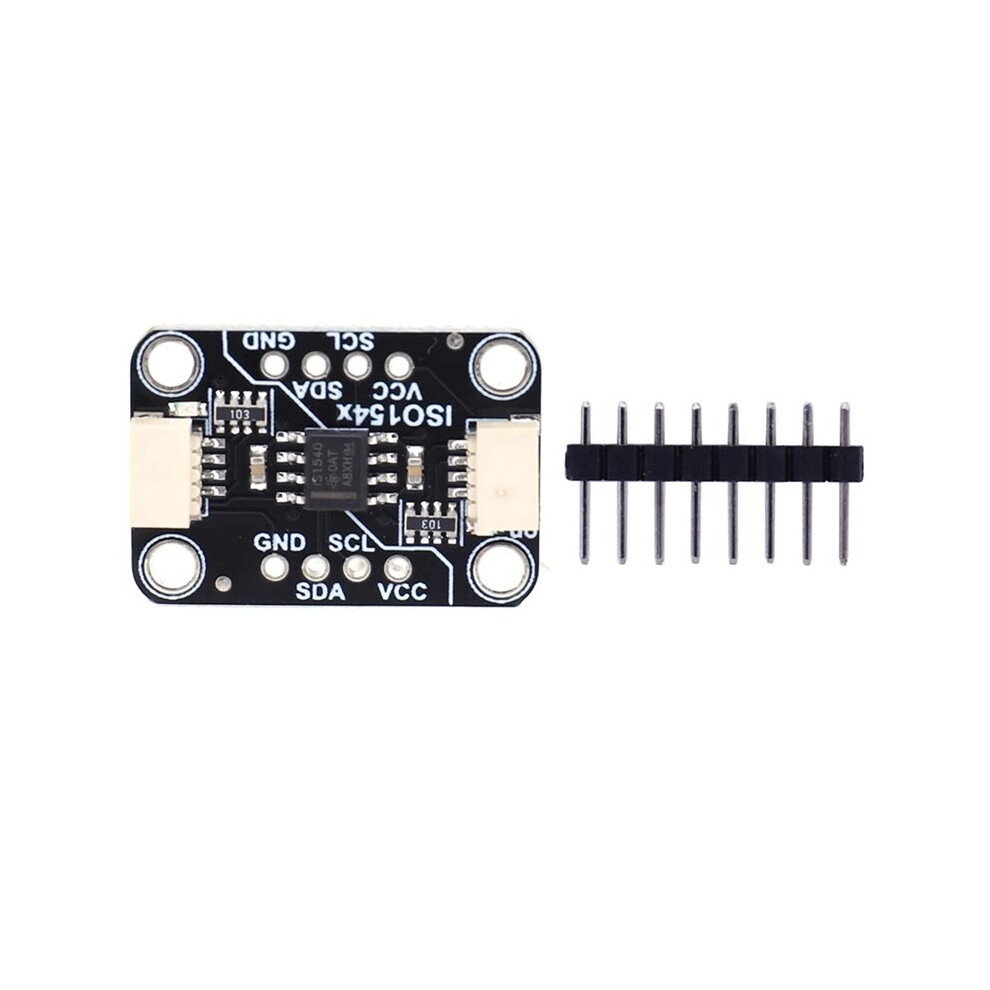

4 x 8-pin Pin Header
