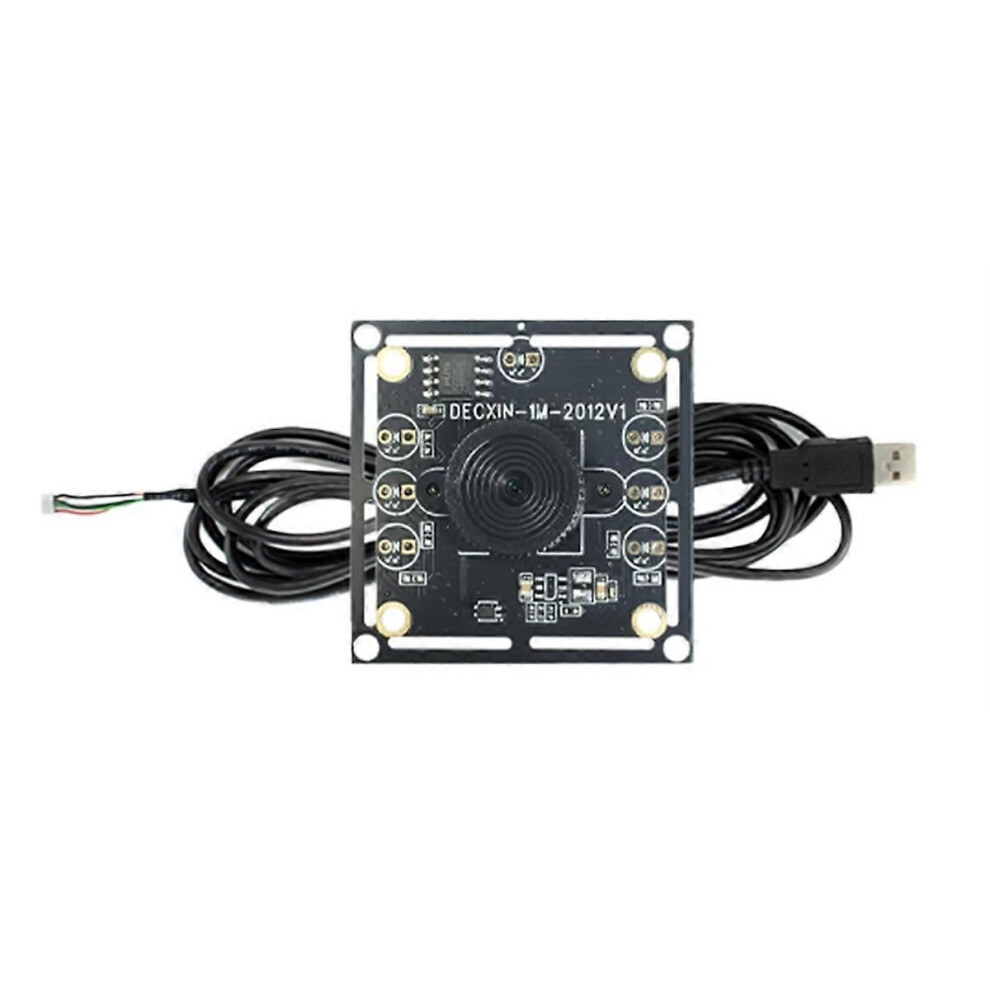

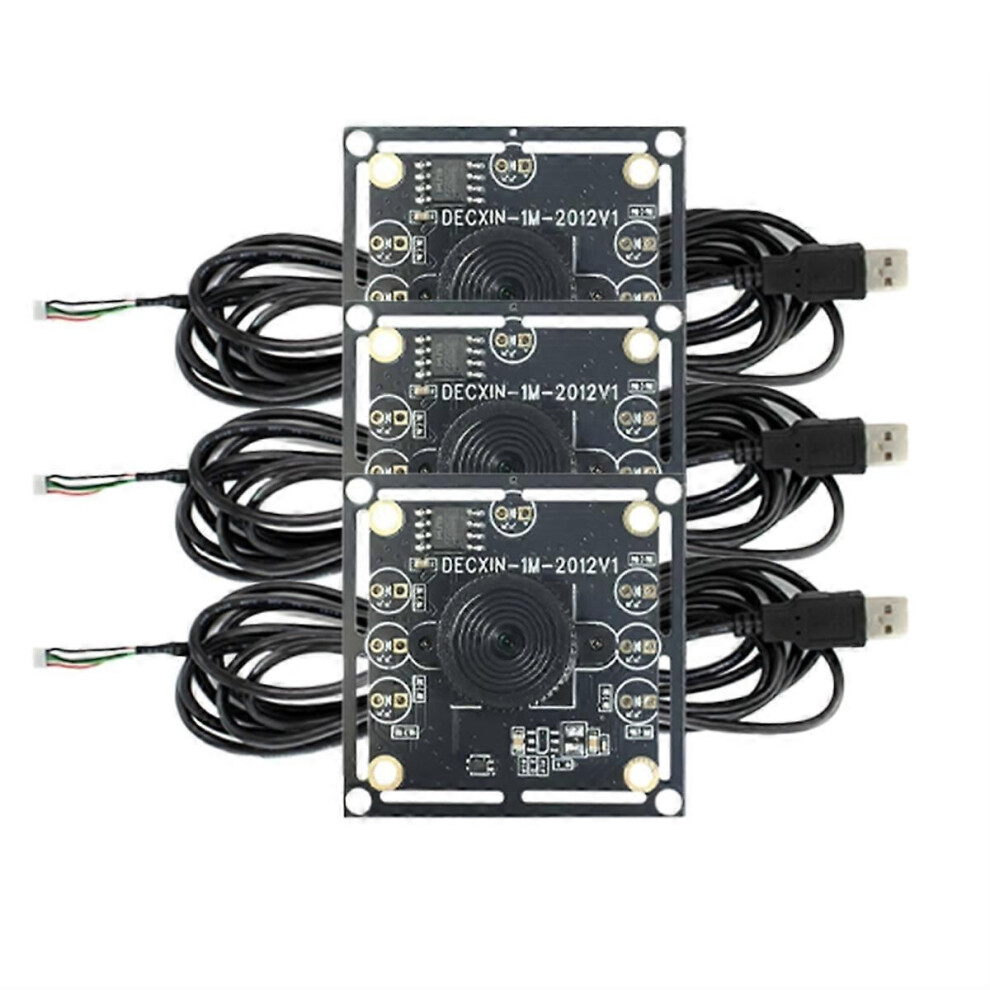

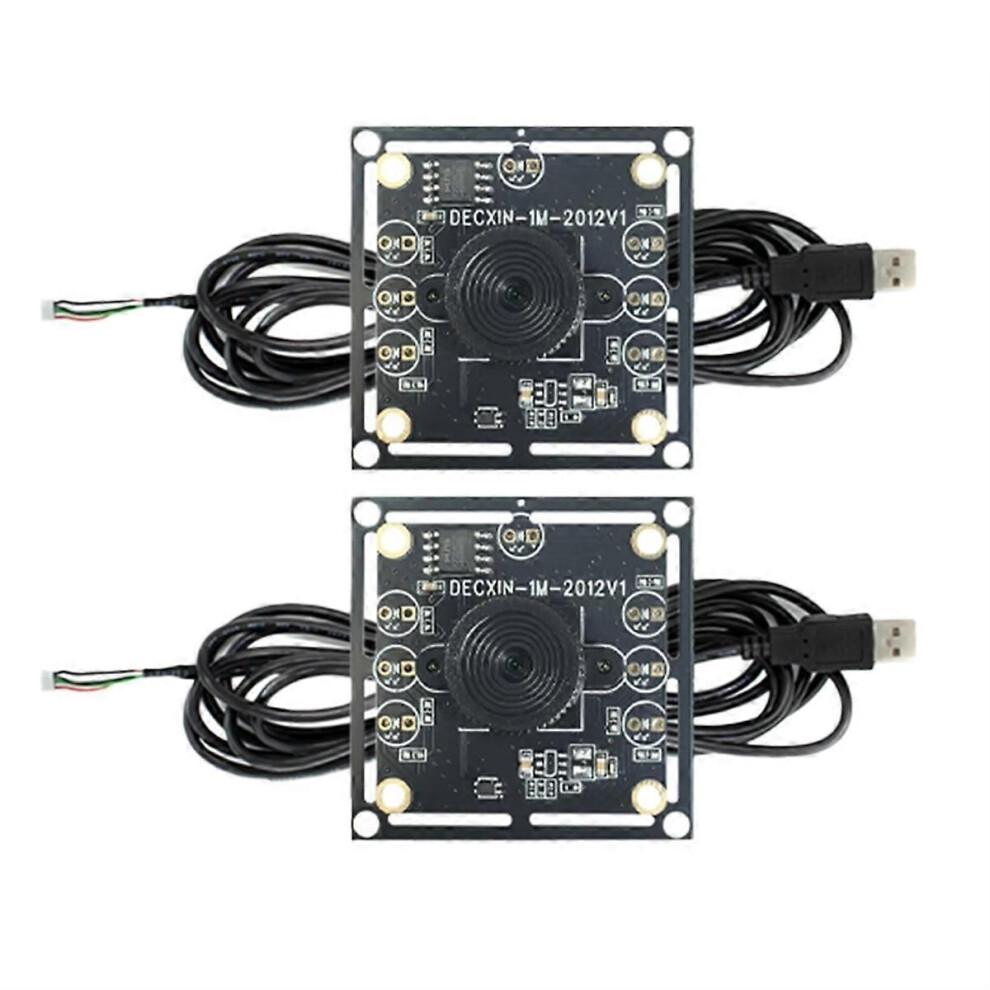

6Pcs 100 Degree Camera Module with 2 Meter Cable for WinXP/7/8/10

6Pcs 100 Degree Camera Module with 2 Meter Cable for WinXP/7/8/10 Beschreibung

6Pcs 100 Degree Camera Module with 2 Meter Cable for WinXP/7/8/10
1. P osensitive film: (1/4inch )
2. The highest effective pixel: 1280(H)x720(M)
3. Lens Size: 1/4 inch (4: 3)
4. Pixel Size: 3.0umx3.0um
5. Image area: 5.7mm x 4.28mm
6. Output image format: MPEG/YUV2 (YUYV)
7. Supported resolutions and frame rates:
1280x720@30fps MJPEG
1280x720 @10fps Yuv
800x600 @30fps MJPEG
800x600 @15fps Yuv
640x480 @30fps MJPEG
640x480 @30fps Yuv
8. Camera board assembly technology: SMT
9. Focus: Fixed
10. Center definition: 600LW/PH (Center)
11. Signal-to-noise ratio: TBD
12. Dynamic range: TBD
13. Sensitivity: 1.4V/lux-sec@550nm
14. Minimum illumination: 0.5lux
15. Shutter type: Electronic rolling shutter / Frame exposure
16. Interface type: USB 2.0 High Speed
17. Automatic exposure control : supported
18. Automatic white balance AEB: supported
19. Automatic gain control AGC: supported
20. Adjustable parameters: brightness/contrast/color saturation/ clarity/gamma/white balance/backlight contrast/exposure
21.Lens specifications:
length: 2.84m
Aperture F2.0
diagonal:100
Interface M12xP0.5
Colour:As Shown
Material:PC
Slightly different circuit board printing, which not affect use
Package Contents:

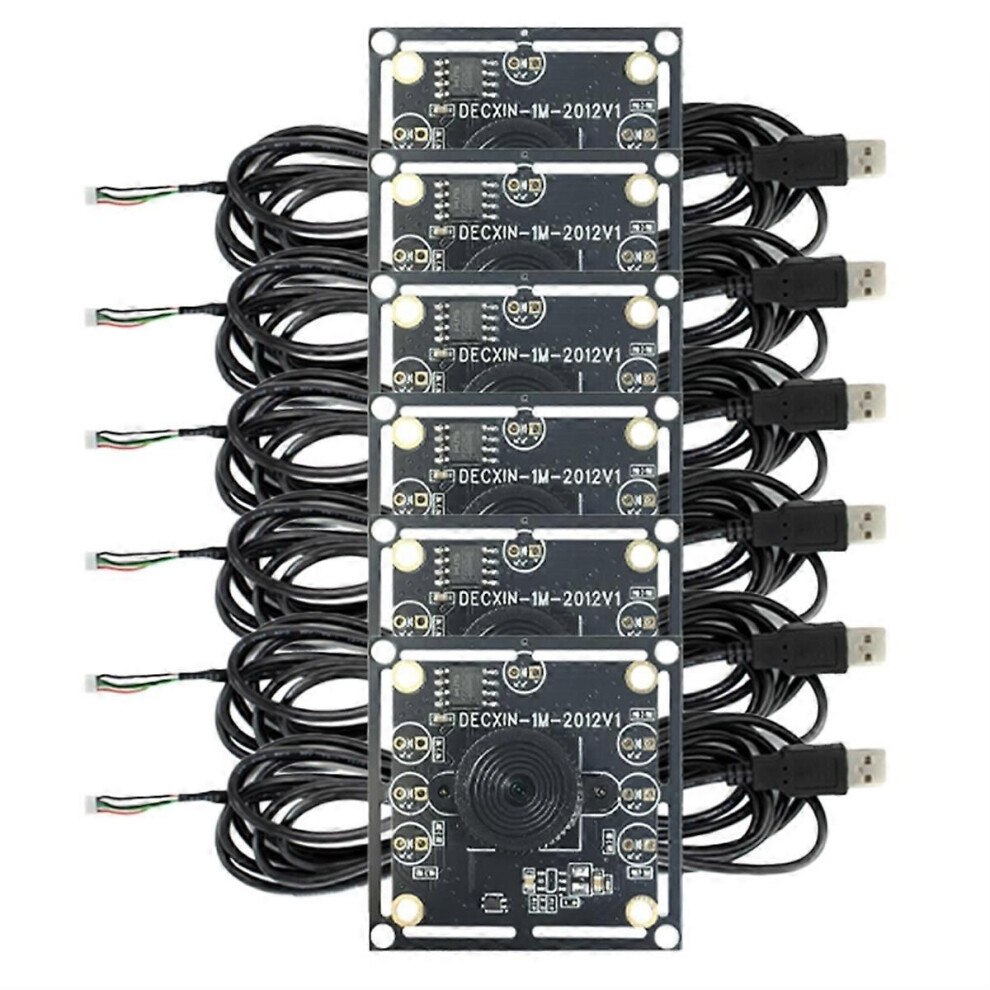

6 x 100 Degrees OV9732 Camera Module
6 x 2m USB Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
