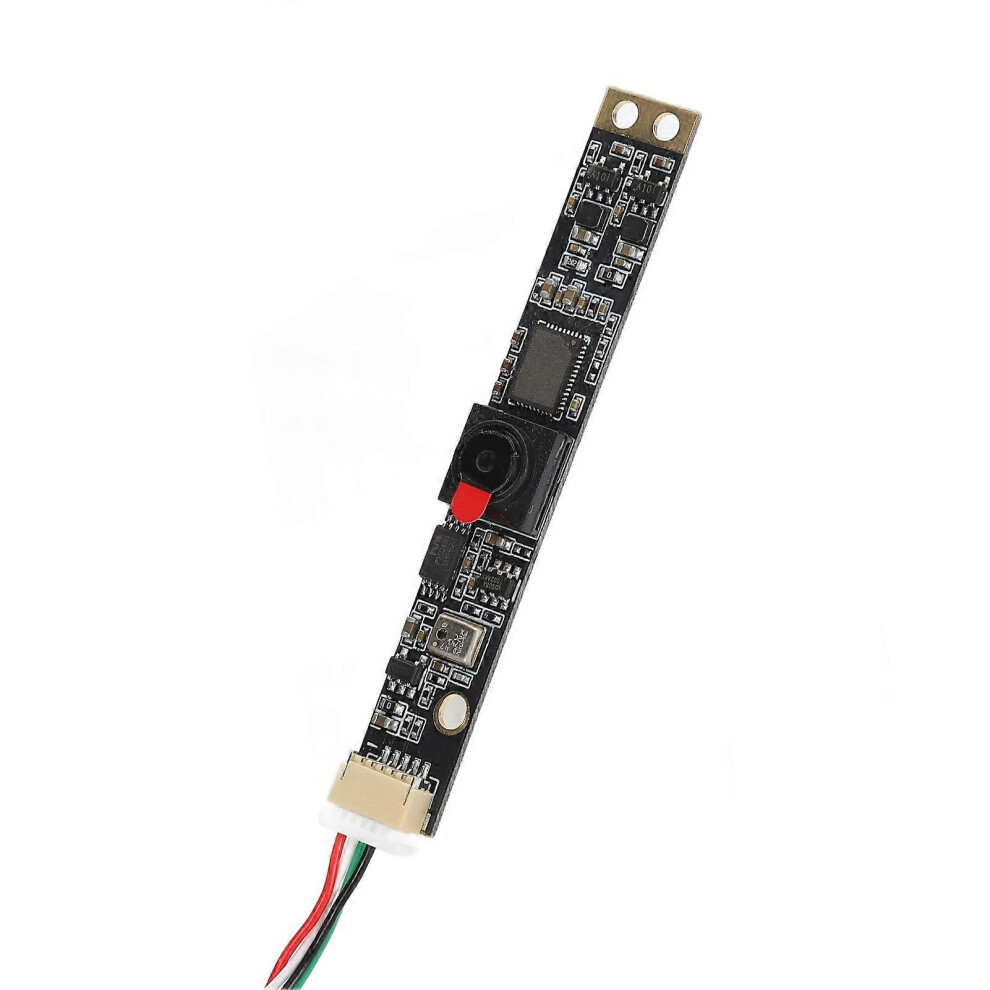

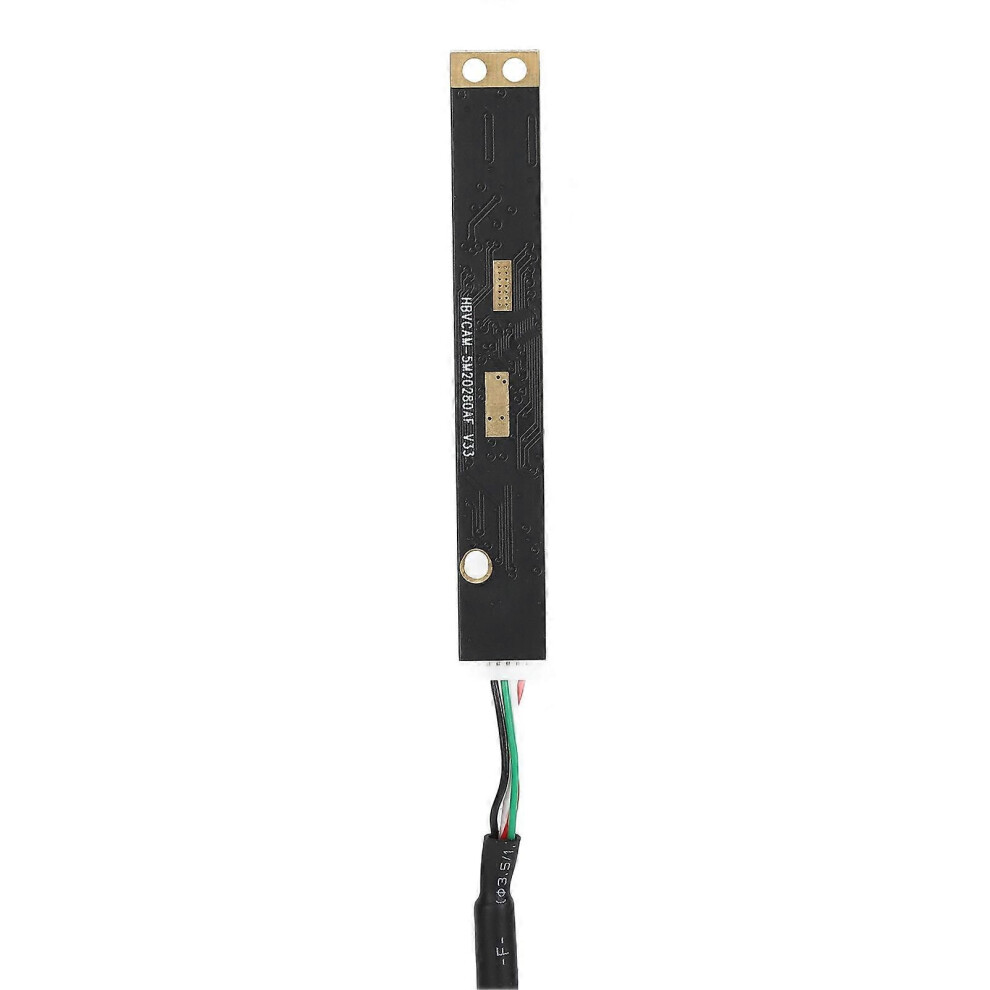

Autofocus Camera Module HD 5MP Mini USB2.0 Webcam Board for Android HBV-5M20280FF68 V33

Autofocus Camera Module HD 5MP Mini USB2.0 Webcam Board for Android HBV-5M20280FF68 V33 Beschreibung

Autofocus Camera Module HD 5MP Mini USB2.0 Webcam Board for Android HBV-5M20280FF68 V33
Feature:
1. 5 Million Pixel Lens: This autofocus camera module adopt 5 million pixel lens, the image picture is clearer
2. OV5647 High Definition Photosensitive Chip: Using OV 5647 high definition photosensitive chip, possess stable performance and clearer images
3. Wider Field Of View: 68 field of view bring larger visual range and wider field of view, more practical to use
4. Adapt To A Variety Of Systems: Adapt to a variety of systems, for WinXP, for Win7, for Win8, for Win10, for OS X, for Linux, for Android can be adapted, with strong compatibility
5. USB Interface Free Drive: Support OTG, standard UVC protocol, USB interface free drive, plug and play, come with auto focus function
6. Wide Range of Applications: Possess a wide range of applications and can be applied to various industry products, such as advertising machines, face recognition, drone aerial photography, high speed cameras, QR code gates, robot vision
Specification:
Item Type: Autofocus Camera Module
Product Model: HBV-5M20280AF68 V33
Pixel: 5 Million pixels
Photosensitive Chip: OV5647(1/4in) CMOS
Field of View: 68, Focal Length: 3.5mm
Format: MJPG, YUY2
Resolution:
MJPEG 640x480 30FPS(YUY2 640x480 30FPS)
MJPEG 960x540 30FPS(YUY2 960x540 15FPS)
MJPEG 1280x720 30FPS(YUY2 1280x720 8FPS)
MJPEG 1920x1080 30FPS(YUY2 1920x1080 5FPS)
MJPEG 2592x1944 30FPS(YUY2 2592x1944 2FPS)
Focus Mode: Auto focus
Function Introduction: Support OTG, standard UVC protocol, with microphone, USB free drive
Output: USB 2.0
Support System: For WinXP, for Win7, for Win8, for Win10, for OS X, for Linux, for Android
Working Temperature: -20~70
Product Size(LxWxH): Approx. 62 x 9 x 5.4mm / 2.44 x 0.35 x 0.21in.
Package List:

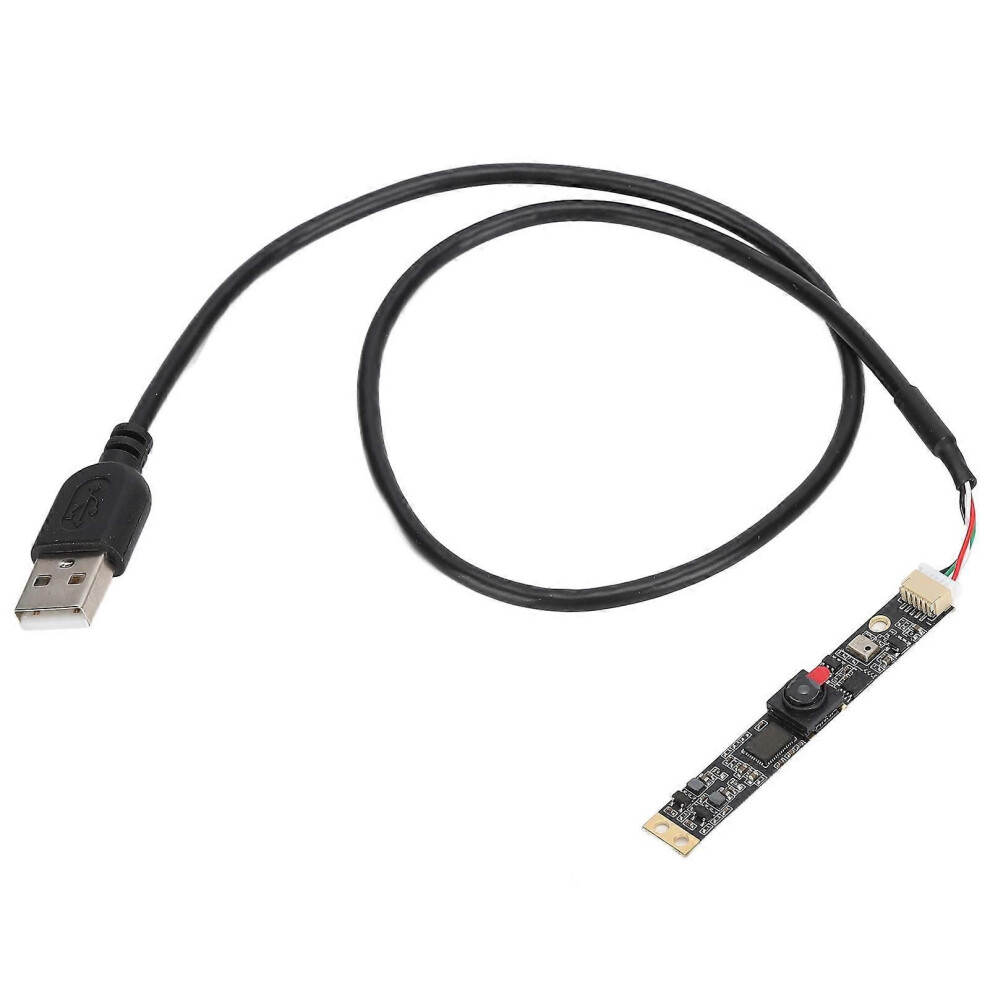

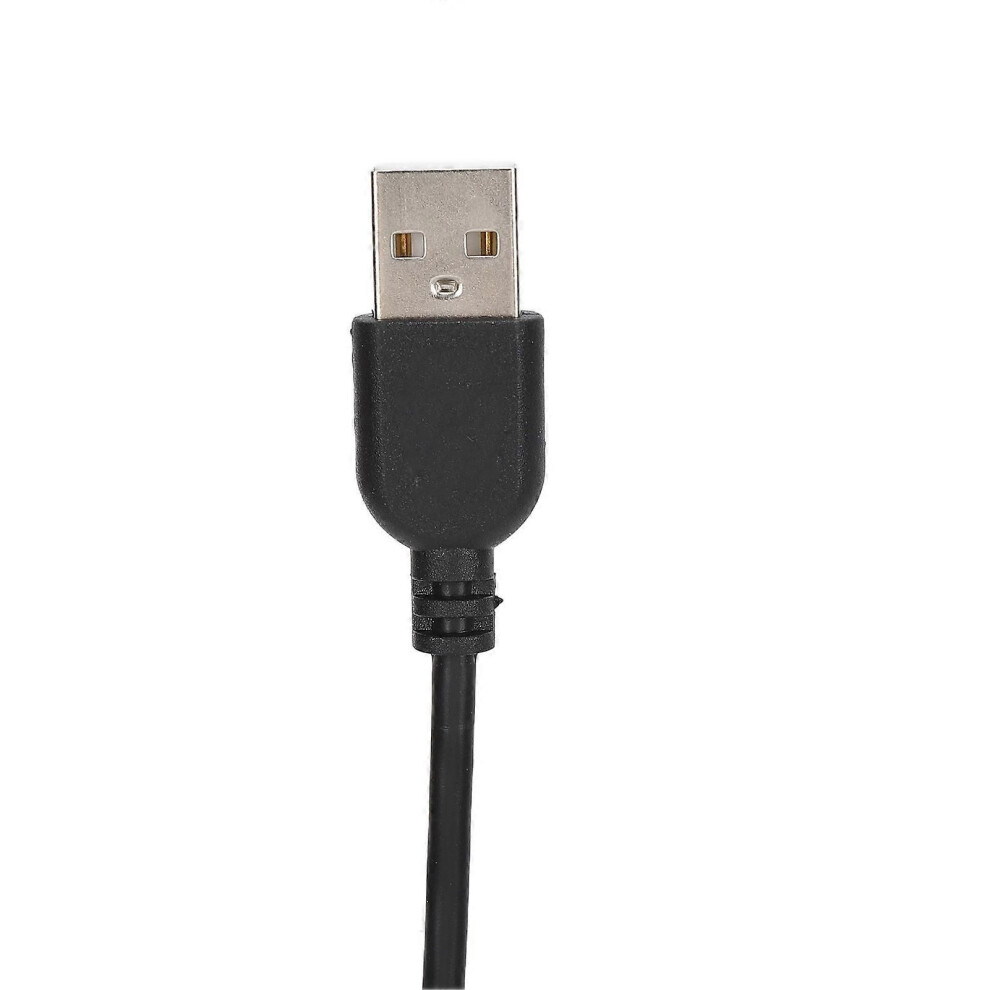

1 x Camera Module1 x USB Cable
Note:
1. Focus Mode: Auto focus.2. Adapt to multiple systems, for WinXP, for Win7, for Win8, for Win10, for OS X, for Linux, for Android.
