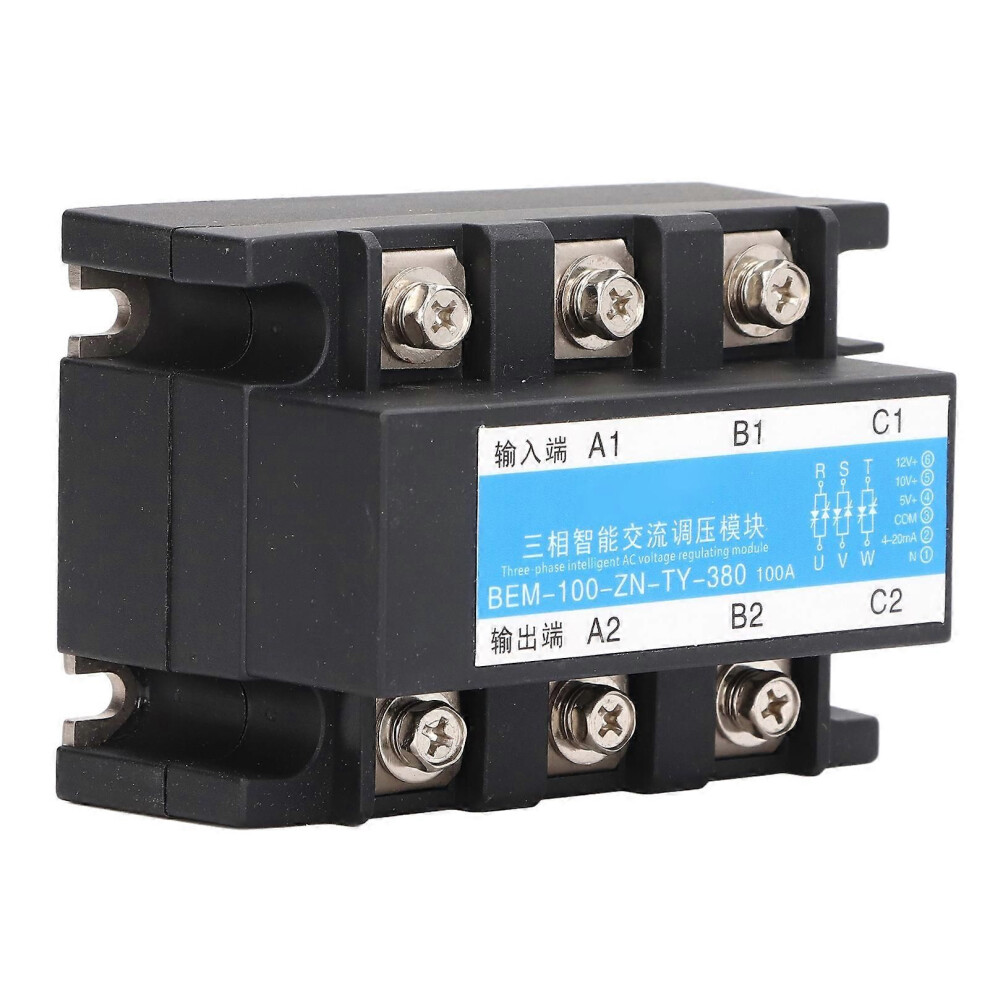

BERM Voltage Regulator Module, Fully Isolated Three-Phase Intelligent Regulator Board, 380VAC Input
Feature:
1. VOLTAGE REGULATOR MODULE: Full isolation 3 phase intelligent AC voltage regulator module, the input and output voltage is 380VAC, efficient and reliable.
2. PC SHELL: The pressure regulating module shell is made of PC material, which is corrosion and impact resistant, and has a long service life.
3. GOOD STABILITY: The AC voltage regulation board adopts multi pulse trigger circuit, which has strong anti interference ability and stable performance.
4. FINE PROCESSING: The module is processed with precise technology, with DCB ceramic welding, has high stability and good durability.
5. WIDE APPLICATION: Installed with bolts, this voltage regulator module is widely used in heating systems, motor equipment, lighting systems, etc.
Specification:
Item Type: Voltage Regulation Module
Material: PC
Input Voltage: 380VAC
Output: 100A 380VAC

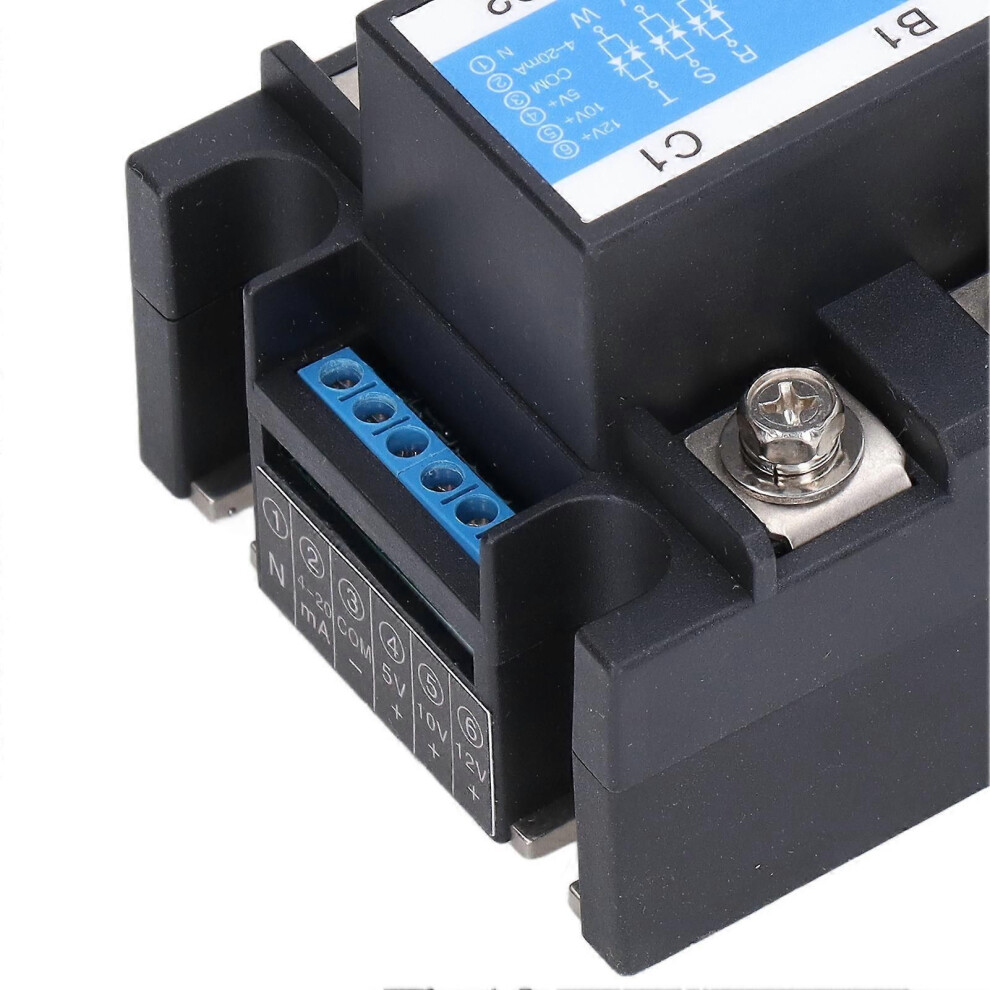

Control Current: 20mA
On State Voltage Drop: 1.5V
On State Leakage Current: 5mA
Ambient Temperature: -30~75
Insulation Resistance: 1000MΩ 500VDC
Fixing Method: Bolt Fixing.
Package List:
1 x Voltage Regulation Module
Note:
1. If the load is 10A, a radiator must be installed. Above 40A, fan forced cooling or water cooling is required.2. When using an inductive load, be sure to connect a varistor in parallel at the output end, the value of which is 1.6 to 1.9 times the load voltage
