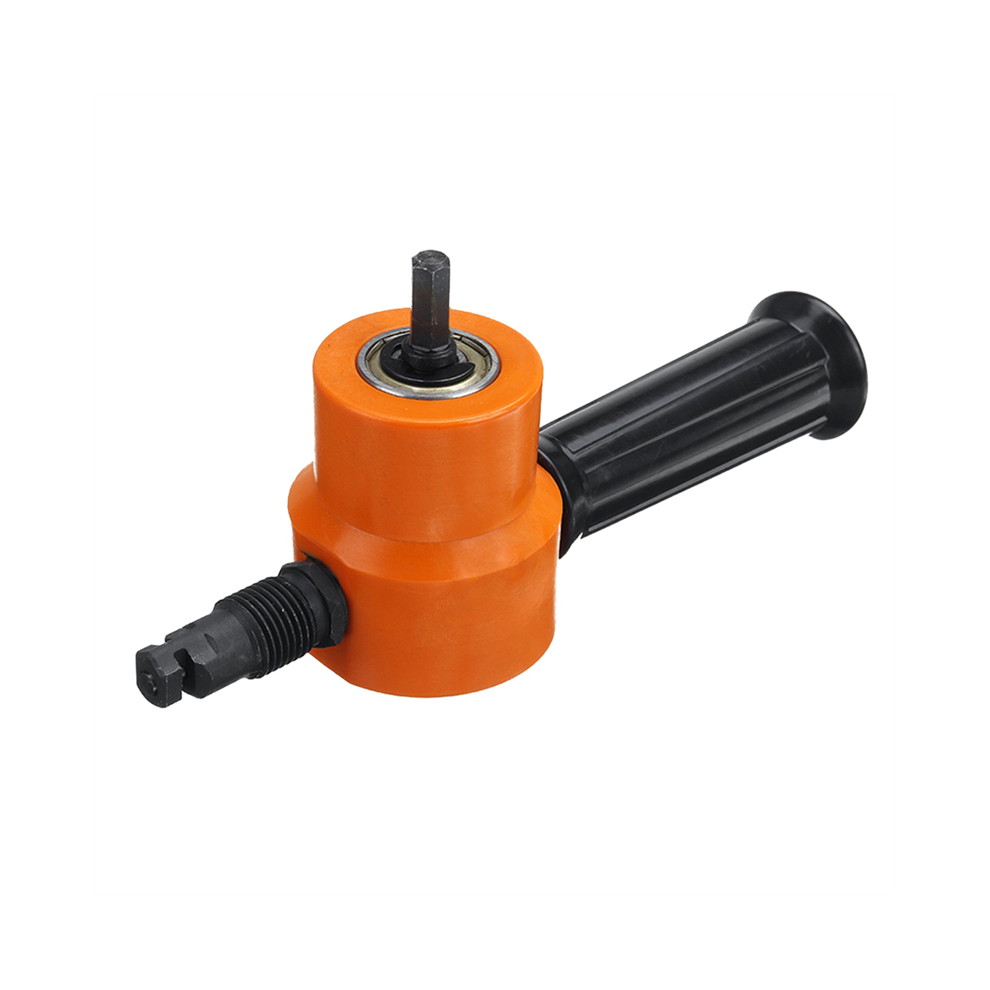

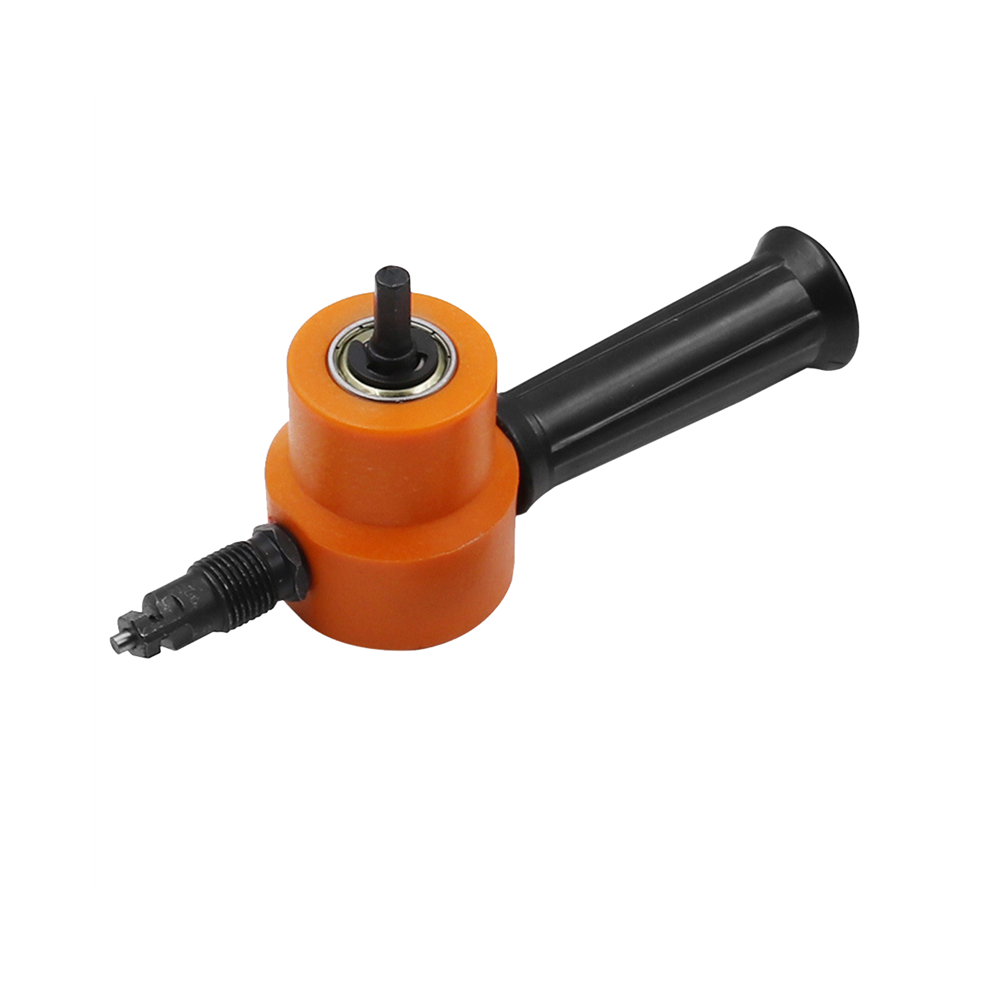

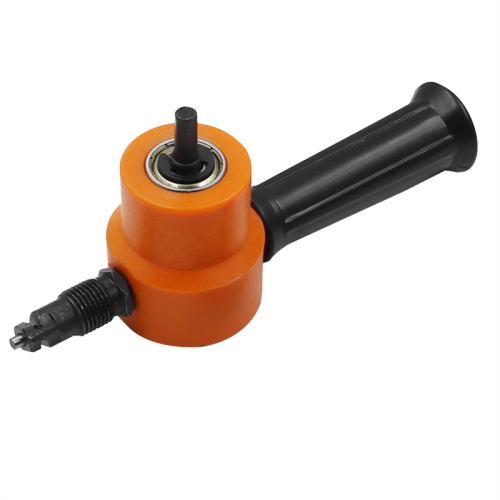

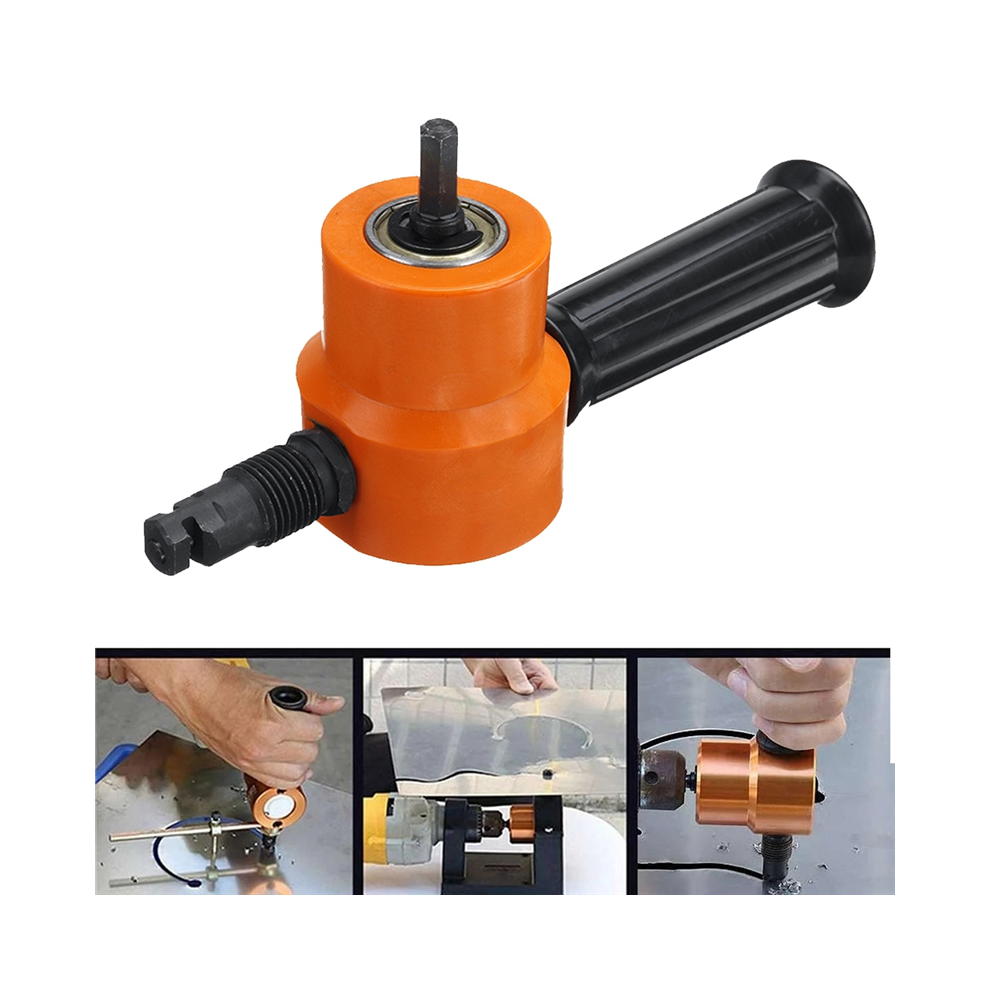

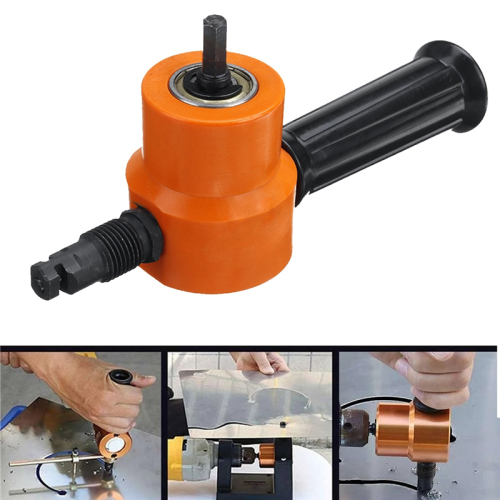

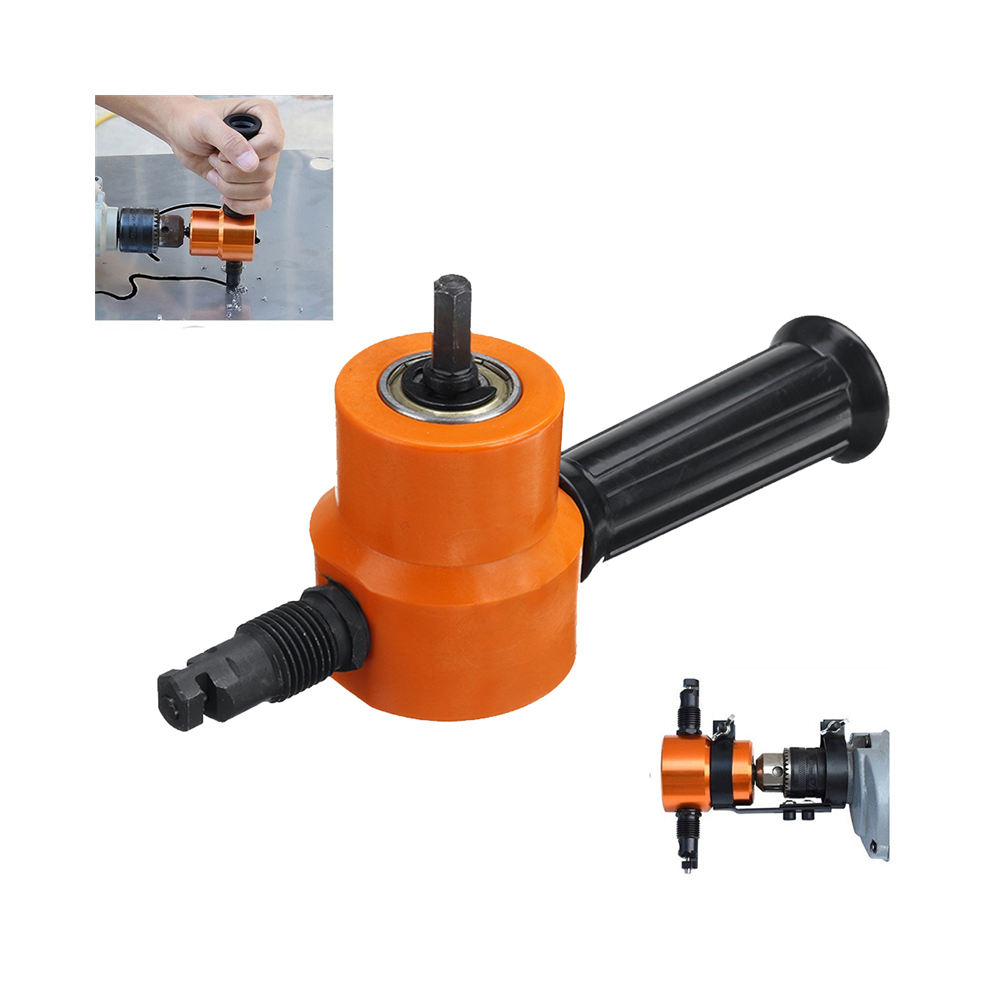

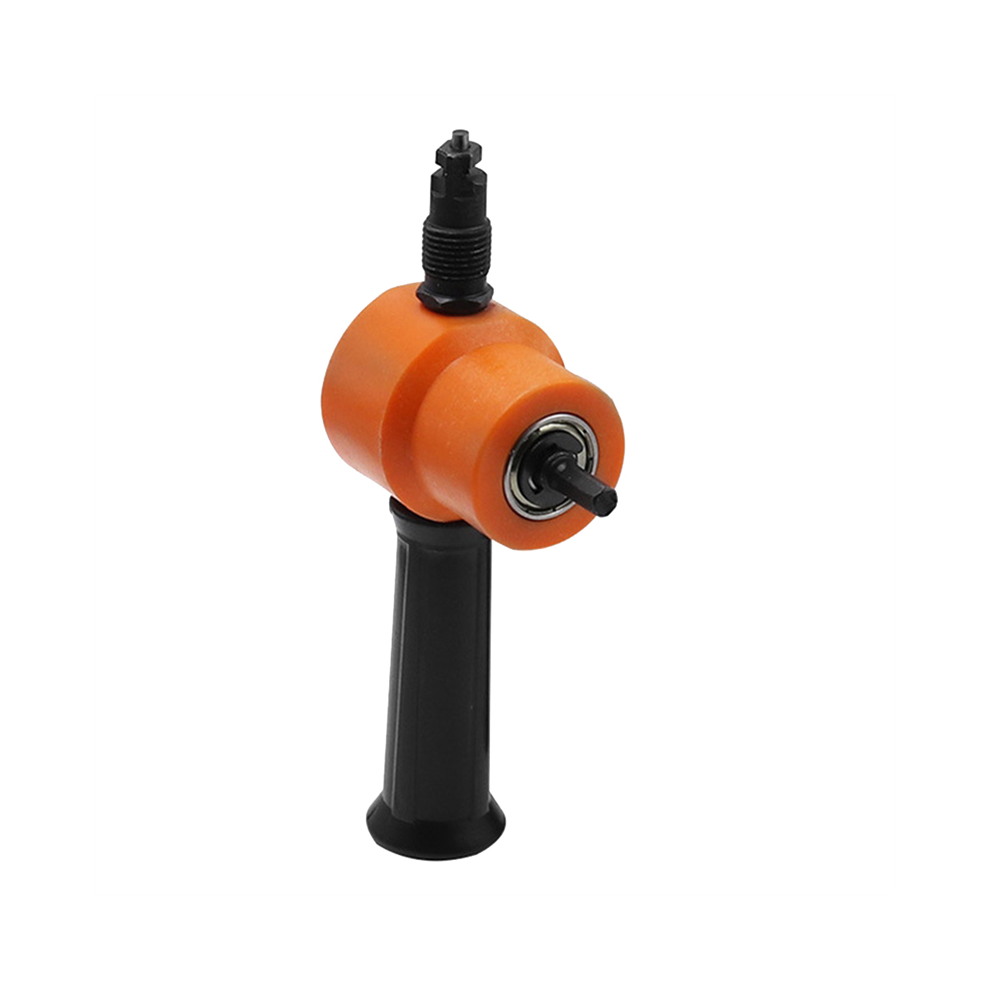

Double Metal Sheet Cutter Cutting Machine Saw Iron Tool Hole Opener

Double Metal Sheet Cutter Cutting Machine Saw Iron Tool Hole Opener Beschreibung

1. Oil the blade frequently, especially when cutting aluminum plates.
2 Turn on the electric drill first, then cut, and exit first before turning off the electric drill at .

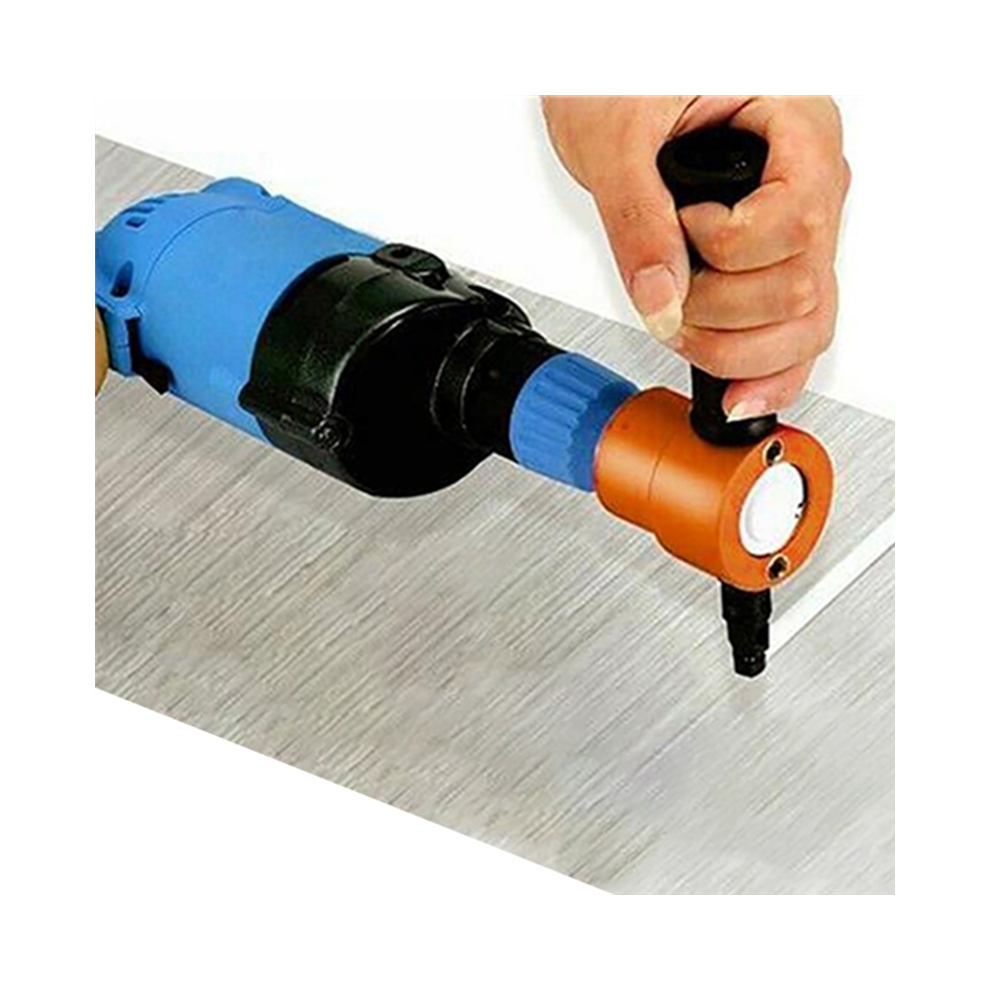

3. When cutting, the incision of rod must be perpendicular to the workpiece to be cut to prevent from being broken.
4 Blade replacement: open the cover, take out the anti-loosening nut, loosen the set screw, pull out the blade with pliers, reinstall the blade, and tighten the screw.
5 Tool seat replacement: Unscrew the compression cap counterclockwise and replace with a new tool seat.

instructions:
1 When equipped with a thin plate hole saw, first insert the front end of the electric drill and the cutter into the round hole of the hole saw, connect the cutter to the electric drill and lock it firmly, and then tighten the three sticks and the stud screws on the shelf. , to prevent the shelf of the hole saw from sliding; insert the ruler rod into the small square hole of the shelf with the positioning pin facing upwards from left to right, and finally adjust and tighten the top screw according to the size of the cut arc to fix the ruler rod firmly , to the accuracy of cutting round holes.
2 When cutting a standard arc, a thin plate hole opener should be used to that the arc cut is smooth and beautiful, and a 3mm positioning hole should be drilled first, and then a 12mm hole should be drilled, and the cutter should be inserted into the hole Cut the inner and outer circles.
Technical Parameters:
1. There are two adjustable heads for cutting
2. The cutter can be positioned 360 degrees in any direction
3. Electric or pneumatic drill, speed 1500-3000 rpm
4. The minimum cutting radius is 12mm
Allowable Cut Thickness Reference
Ordinary iron plate: 1.8mm
Stainless steel plate: 1.2mm
Copper and aluminum plate: 2mm
Plastic plywood: 2mm
Color: orange + silver
material: plastic

Package Contents:
1 x Metal Sheet Cutter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
