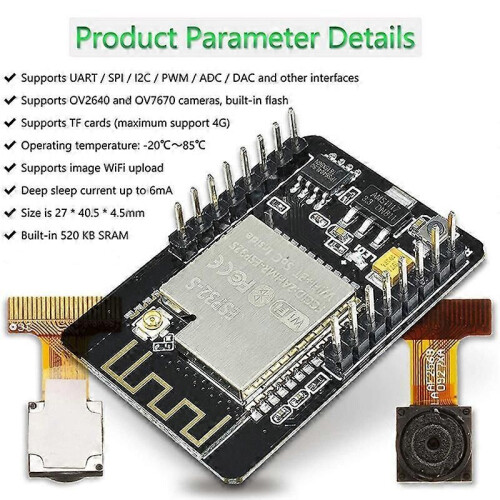

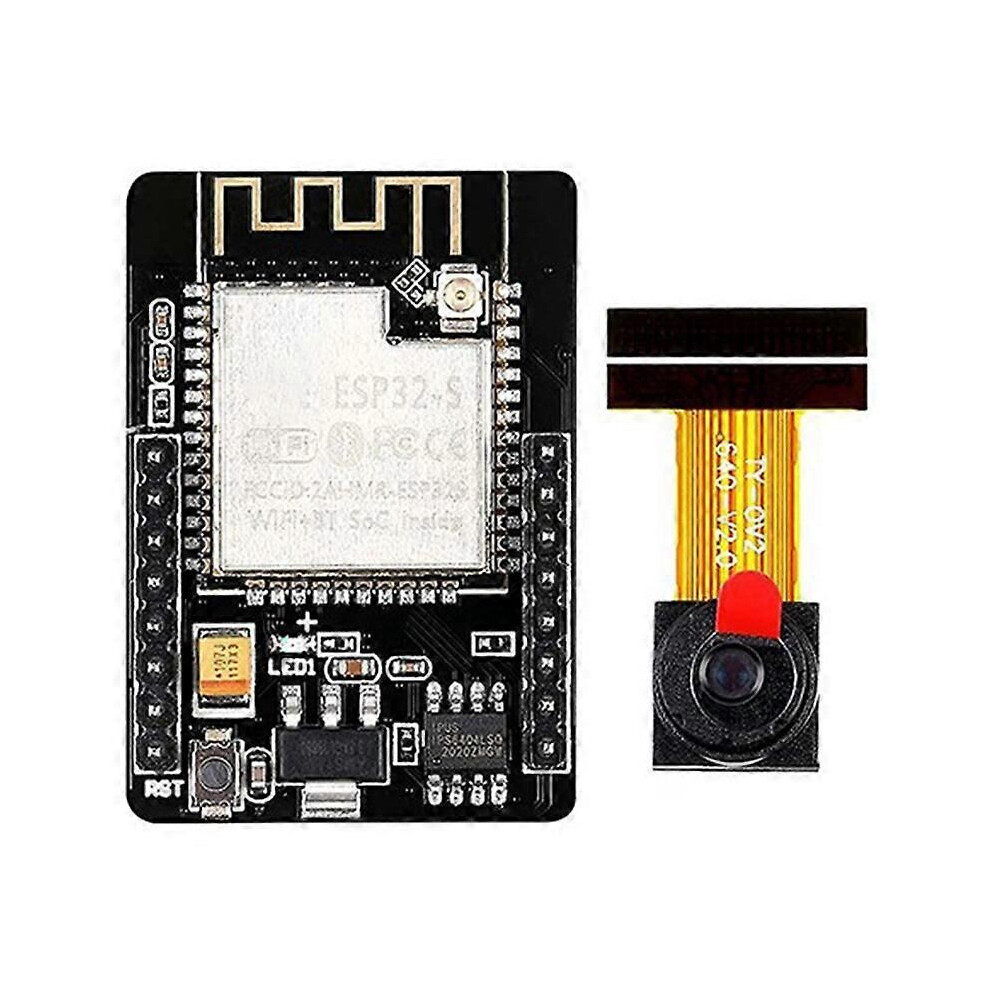

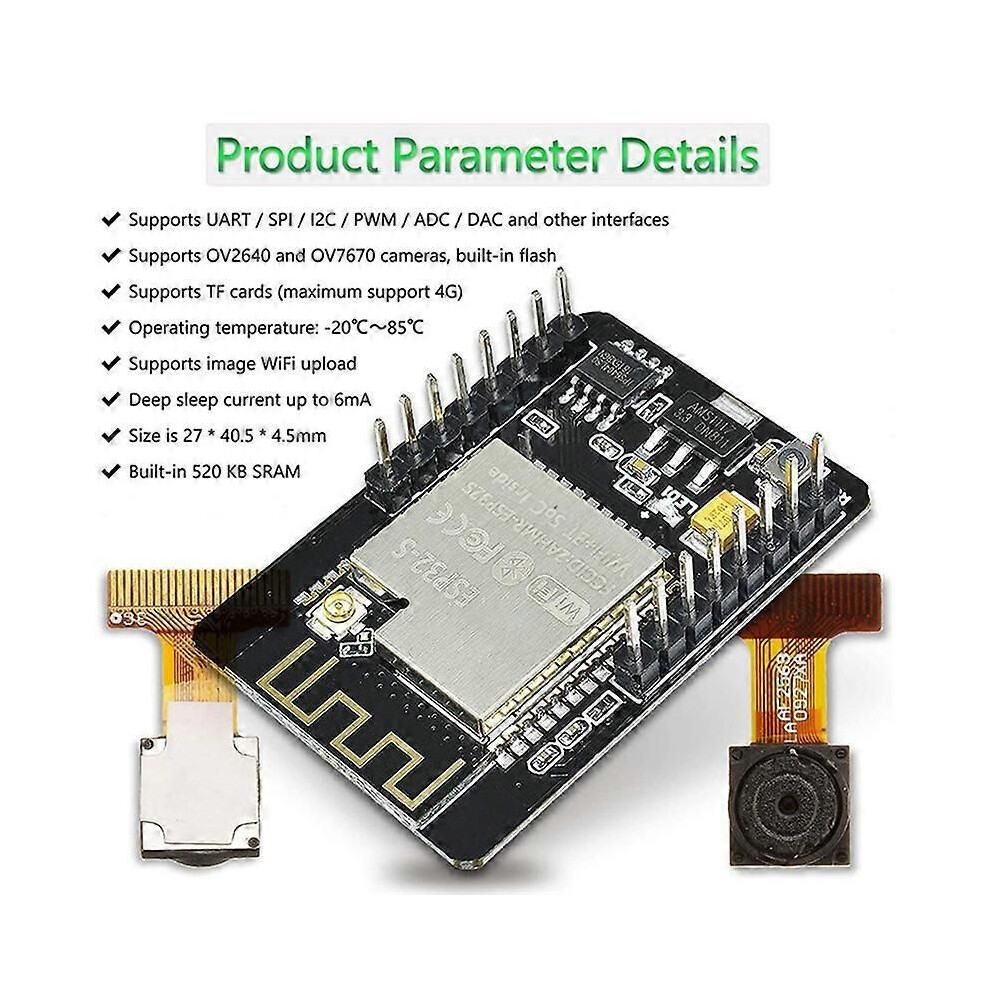

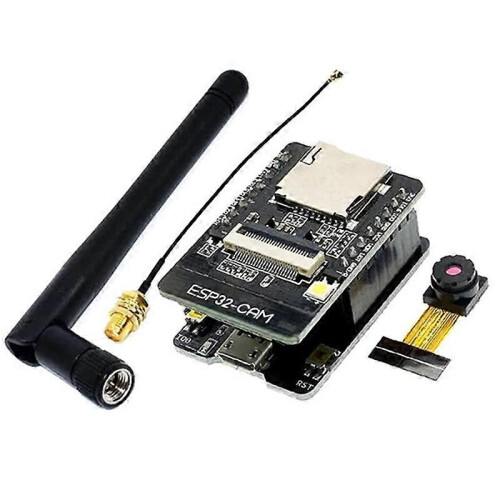

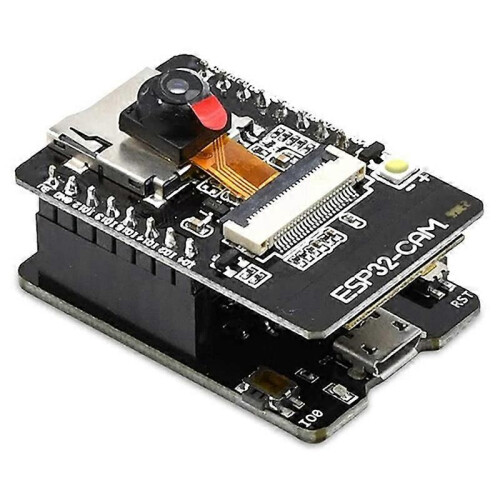

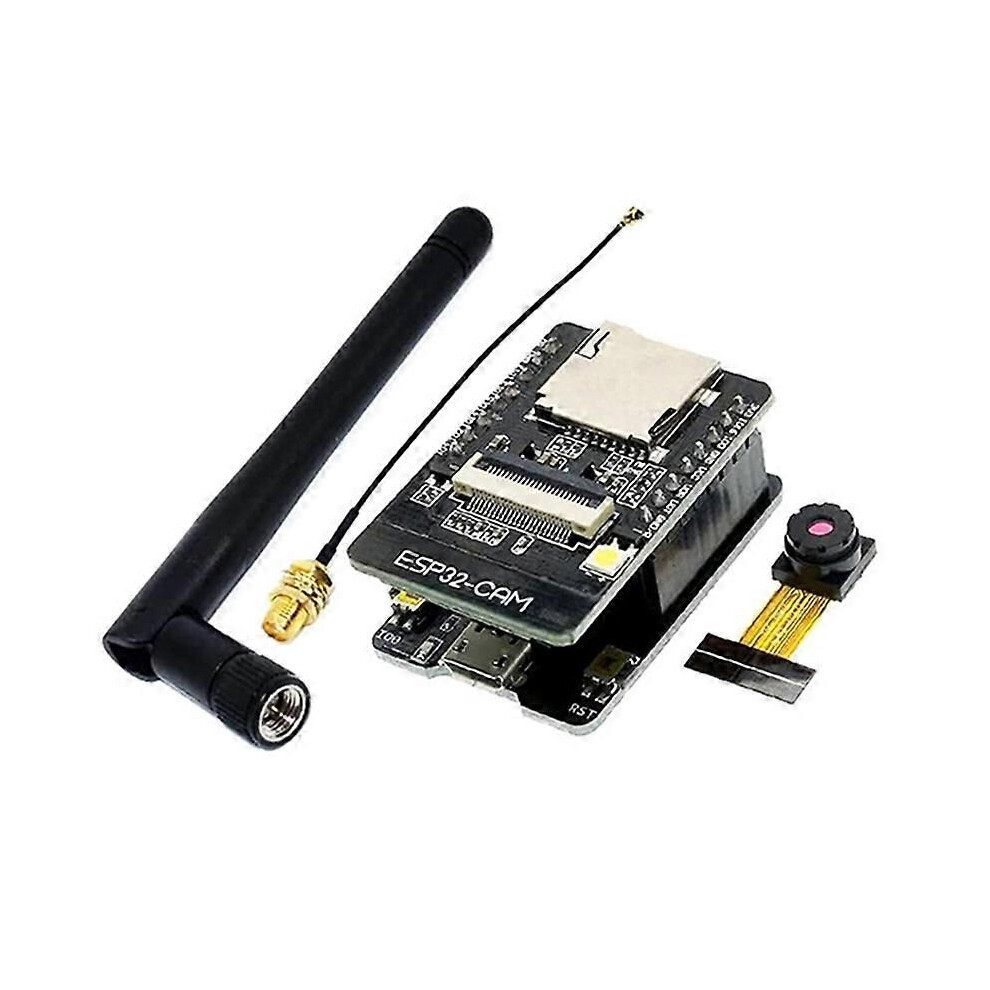

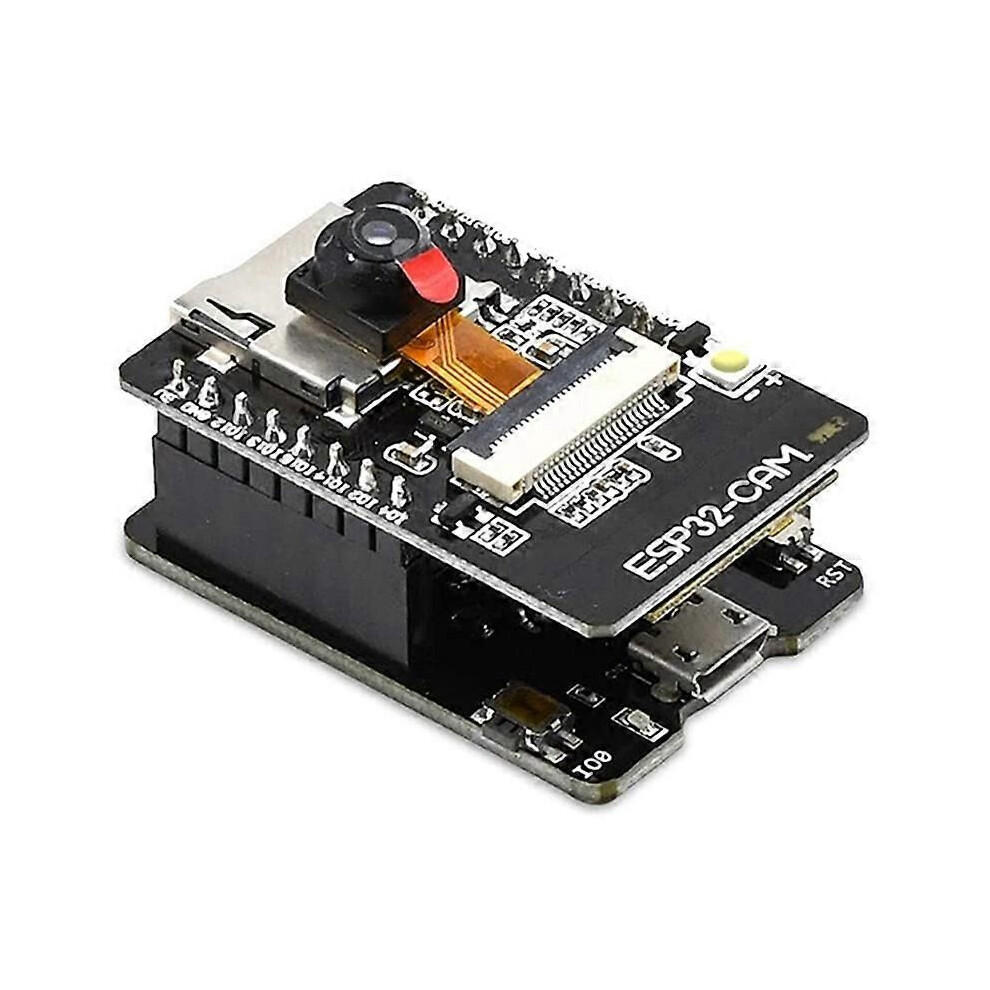

ESP32-CAM WiFi + Bluetooth Module Camera Module Development Board ESP32 with Camera Module OV2640 2M

ESP32-CAM WiFi + Bluetooth Module Camera Module Development Board ESP32 with Camera Module OV2640 2M Beschreibung

ESP32-CAM WiFi + Bluetooth Module Camera Module Development Board ESP32 with Camera Module OV2640 2M
Features: Using low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB , external 4MB PSRAM
Support UART/SPI//PWM/ADC/ and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Parameters:
Working voltage: 4.75-5.25V
SPIFlash: Default 32Mbit
RAM: Internal 520KB + external 8MB PSRAM
Wi-Fi: 802.11b/g/e/i
Bluetooth: Bluetooth 4.2BR/ and BLE standard
Support interface (2Mbps): UART, SPI, , PWM
Support TF card: maximum support 4G
IO port: 9
Serial port rate: default 115200bps
Spectrum range: 2400 ~2483.5MHz
Antenna form: onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Material: PCB board
colour: as shown
Package Contents:
1 x bottom plate
1 x antenna
1 x ESP32-CAM
1 x camera
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
