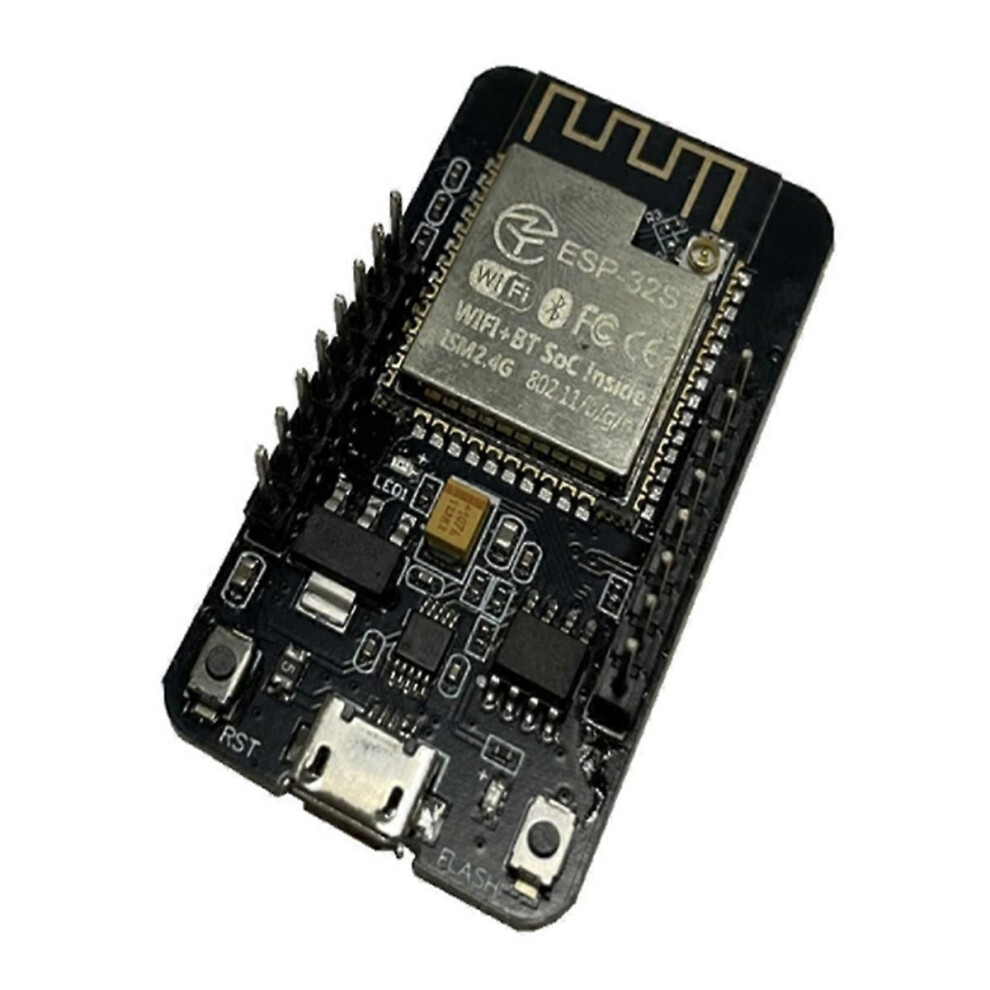

ESP32-CAM Wireless WiFi+Bluetooth Development Board with OV3660 Camera Module CH340 Serial Port DC 5V

ESP32-CAM Wireless WiFi+Bluetooth Development Board with OV3660 Camera Module CH340 Serial Port DC 5V Beschreibung

ESP32-CAM Wireless WiFi+Bluetooth Development Board with OV3660 Camera Module CH340 Serial Port DC 5V
Comprehensive Connectivity: The ESP32-CAM module integrates WiFi and Bluetooth, providing diverse wireless communication options for a wide range of IoT applications.
Power Supply: Efficiently operates from a 5V power supply, ensuring compatibility with a wide range of electronic components and systems.
High-Quality Camera: Equipped with the OV3660 camera module, it captures high-resolution images and video, making it ideal for surveillance and remote monitoring
SPI Flash: Default 32Mbit
RAM: Internal 520KB + External 4MB PSRAM
Bluetooth: Bluetooth 4.2 BR/ and BLE standards
Wi-Fi 802.11 b/g/e/i
Supported interfaces: UART, SPI, I2C, PWM
TF card support: Up to 4G
IO ports: 9
Serial port speed: Default 115200 bps

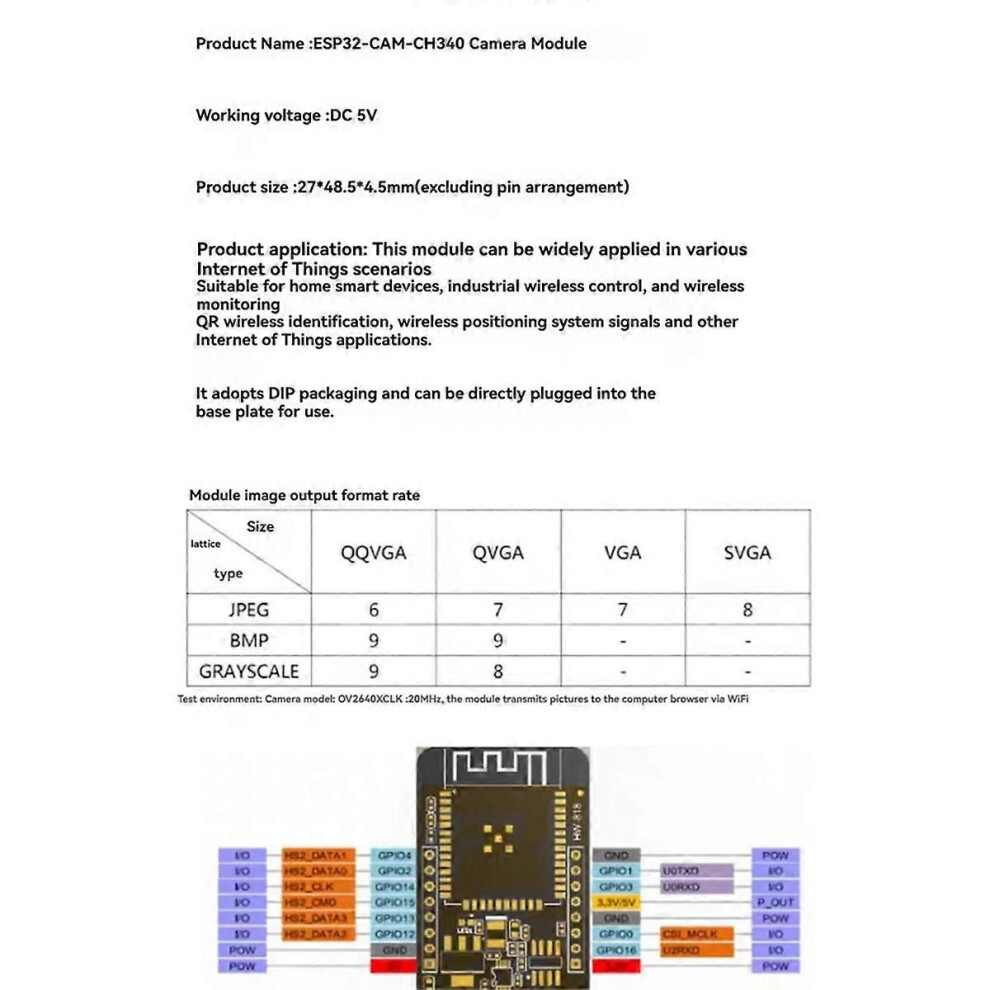

Image output formats: JPEG (OV2640 only), BMP, GRAYSCALE
Spectrum range: 2412-2484MHz
Antenna: Onboard PCB antenna, 2dBi gain
(The product printed words depending on the batch, but this does not affect use)
Color: Black
Material: PCB
Package Contents:
1 x Development Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
